John Boos UBIB-1848-CP10-X Slim-Line Bar Equipment
Description

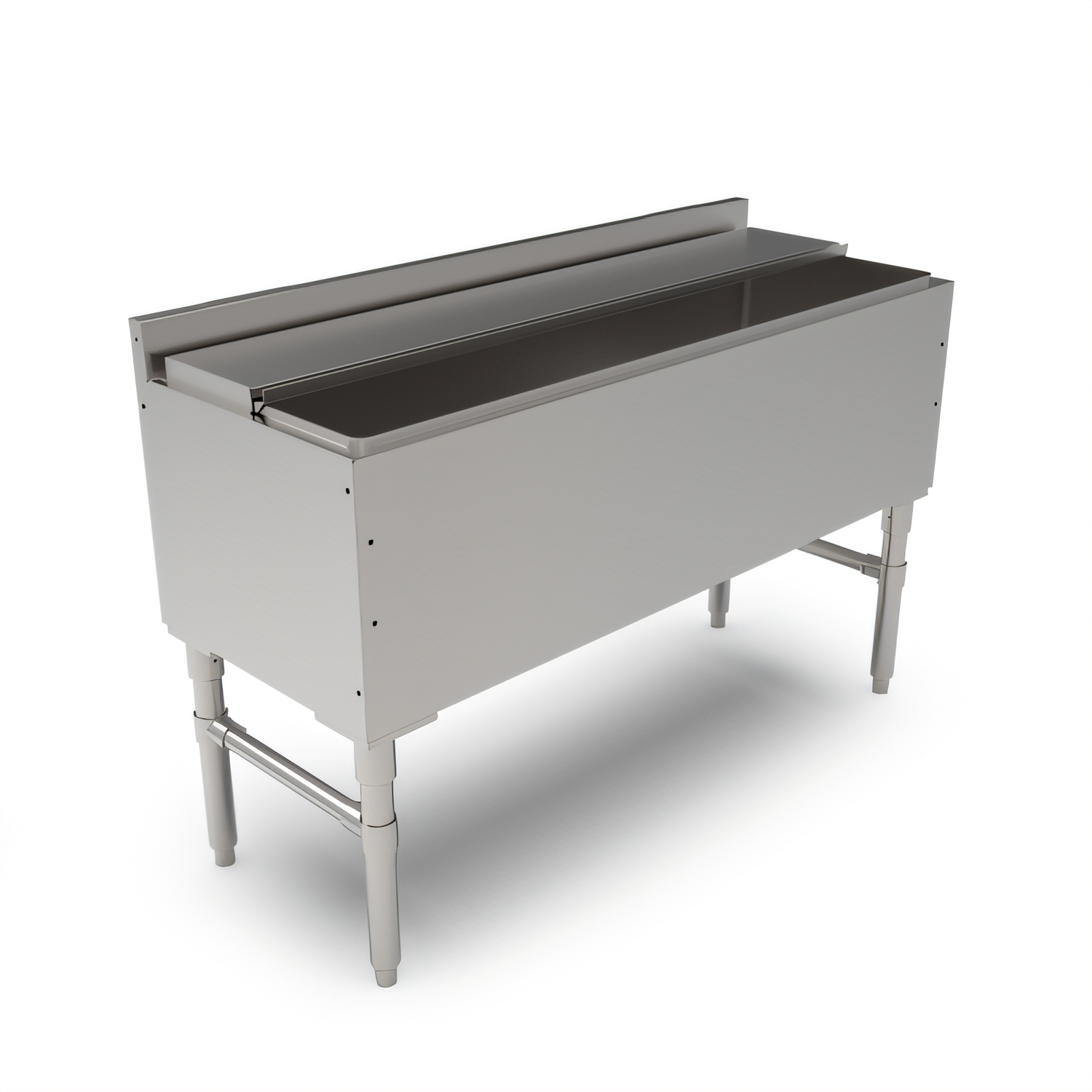

John Boos Slim-Line 48″ Underbar Ice Bin w/10-Circuit Cold Plate
Model UBIB-1848-CP10 • NSF CertifiedBuilt for busy bars that demand maximum beverage output in minimum space, the Slim-Line 48″ Underbar Ice Bin combines a high-capacity insulated ice well with a factory-installed 10-circuit cold plate—perfect for serving perfectly chilled fountain drinks, cocktails, and mixed beverages shift after shift.
Key Benefits & Features
- Space-saving 18″ front-to-back depth fits tight bar layouts without sacrificing capacity.

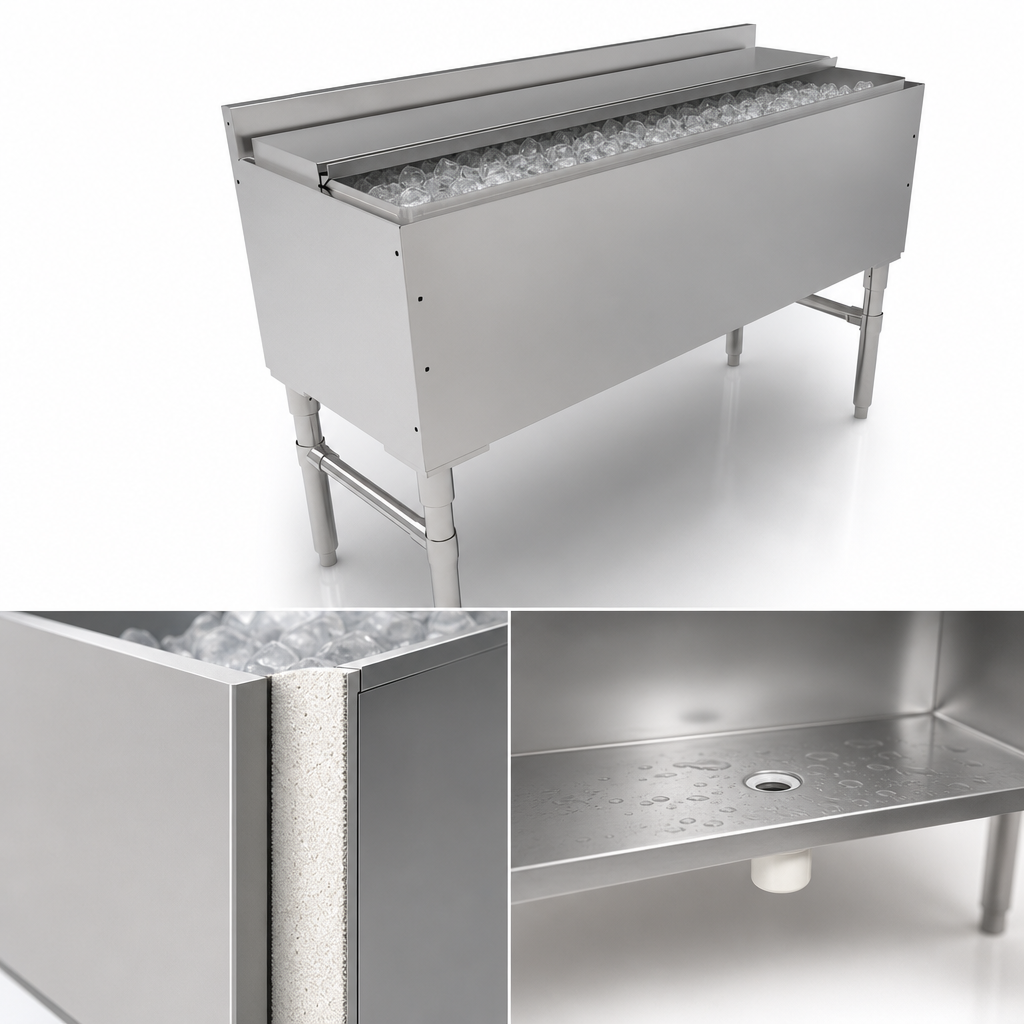

- Foam-insulated ice bin holds up to 46″ × 15″ × 13-1/2″ of ice—ideal for high-volume service.

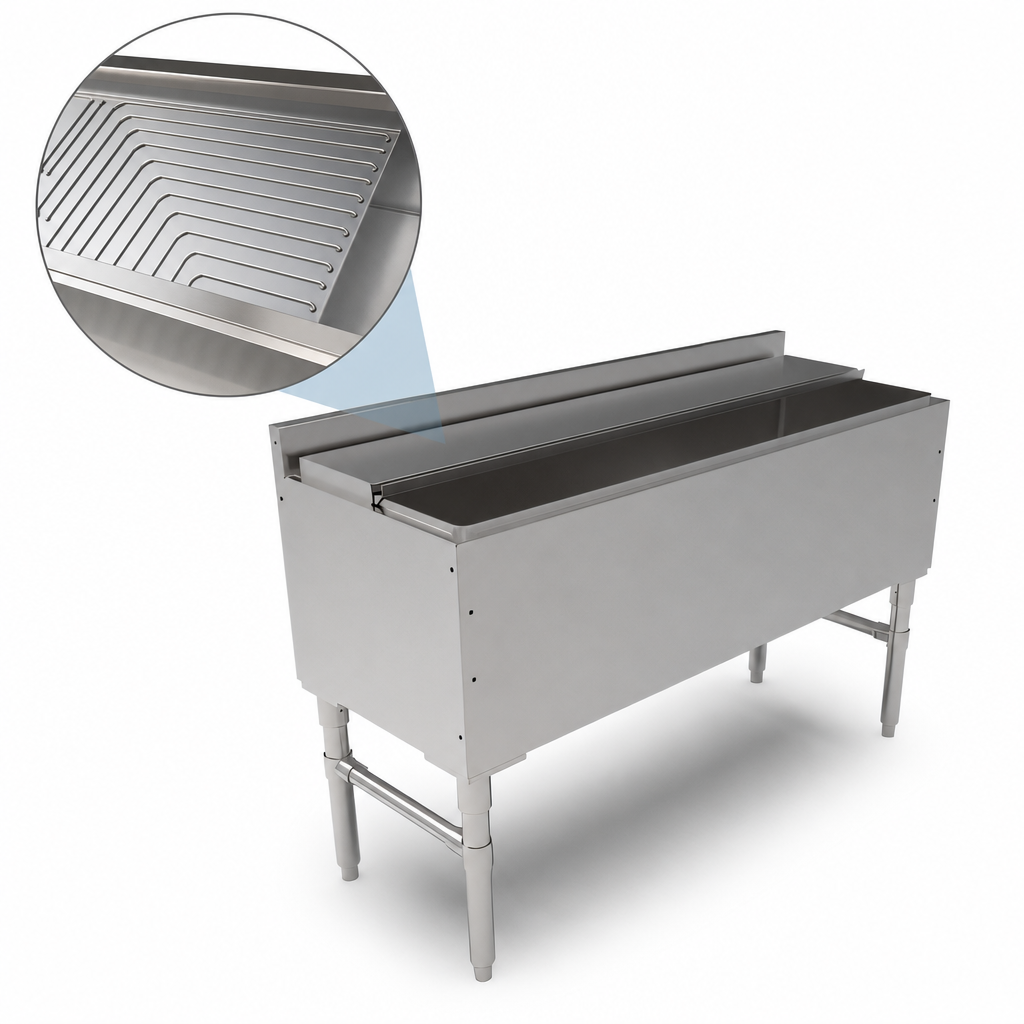

- Integrated 10-circuit cast-aluminum cold plate chills soda gun lines for consistent drink quality.
- 18 gauge, Type 300 stainless steel construction with #4 satin finish—durable, easy to sanitize, and corrosion-resistant.
- Includes 2-piece sliding stainless-steel lid to keep ice clean and reduce melt.
- 3″ backsplash with access plates for quick routing of beverage lines.
- 1-5/8″ dia. bolt-on stainless steel legs with 1-1/4″ front-to-back bracing for rock-solid stability.
- Adjustable 1″ stainless steel bullet feet for easy leveling on uneven floors.
- Factory-installed 1-7/8″ drain with 1″ MPT (3-1/4″ L) outlet for fast ice melt removal.
- Threaded side & front inserts accept adjoining underbar units or speed rails—expand your bar as you grow.
Specifications
| Overall dimensions (W × D × H) | 48″ × 18″ × 32-1/2″ |
|---|---|
| Ice bin interior | 46″ × 15″ × 13-1/2″ deep |
| Backsplash height | 3″ |
| Cold plate | 10-circuit, factory-installed |
| Material | 18 ga. 300-series stainless steel, #4 satin |
| Legs & bracing | 1-5/8″ Ø stainless legs, 1-1/4″ front-to-back bracing |
| Feet | Adjustable 1″ stainless steel bullet feet |
| Drain | 1-7/8″ drain plug, 1″ MPT outlet |
| Weight | 157 lb (uncrated) |
| Certifications | NSF |
All dimensions are typical. Tolerance ±0.5″. Weights exclude additional packaging materials.
Popular Accessories (sold separately)
- Left- or right-hand side splash (UBSS-18-L / UBSS-18-R)
- Single or double speed rails – 30″ or 36″ lengths
- Bottle well holder with lid for 30″ or 36″ Slim-Line ice bins
Care & Maintenance
Maintain the signature Boos satin finish by cleaning daily with a soft cloth or sponge and a non-chloride cleanser such as Bar Keepers Friend. Rinse thoroughly and wipe dry. Avoid abrasive pads, steel wool, or chlorine bleach to prevent scratching or pitting of the stainless surface.
