John Boos UBIB-1848-CP10 Slim-Line Bar Equipment
Description

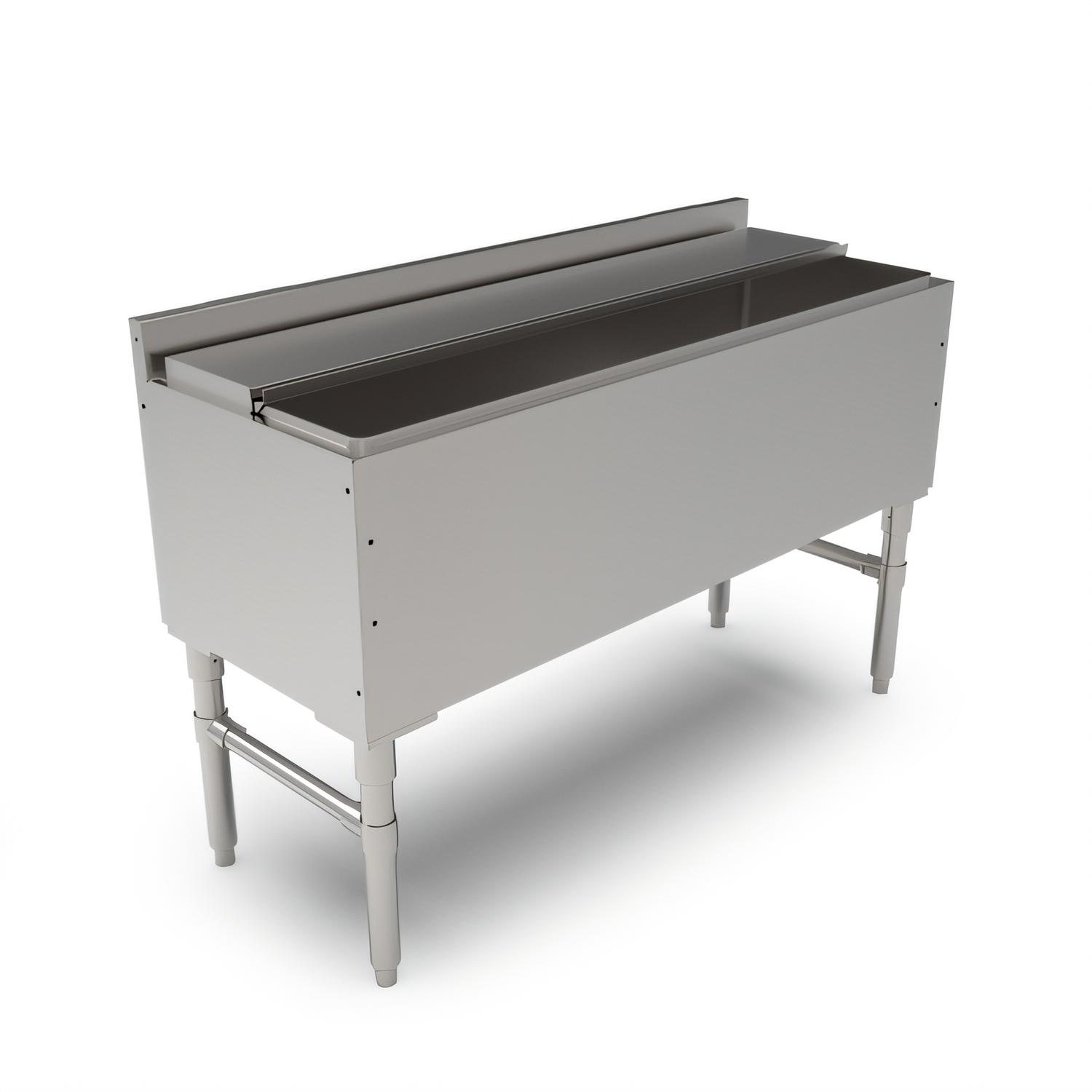

John Boos “Slim-Line” 48" Underbar Ice Bin with 10-Circuit Cold Plate
Model UBIB-1848-CP10 • NSF ListedDesigned for high-volume cocktail programs and soda service, the John Boos Slim-Line ice bin delivers uncompromising capacity in a space-saving 18" front-to-back footprint. From its foam-insulated 46" wide ice compartment to the integrated 10-circuit cold plate, every detail is engineered to keep beverages ice-cold and service lightning-fast.
Why you’ll love it
- Full 48" wide underbar unit fits seamlessly with other Slim-Line components.
- Foam-insulated ice bin: 46"W × 15"D × 13 ½"H for maximum cold retention.
- Built-in 10-circuit cast aluminum cold plate keeps up to ten beverage lines ice-cold before the pour.
- 2-piece sliding stainless-steel lid protects ice and speeds reloads.
- 18 ga. Type 300 stainless steel throughout with #4 satin polish for a professional, easy-clean finish.
- 3" backsplash with removable access plates—run soda gun lines without drilling the unit.
- Stainless legs, side & front bracing, and 1" adjustable bullet feet for rock-solid stability.
- Threaded side inserts & front mounting holes accept speed rails and let you bolt multiple underbar sections together.
- 1 ⅞" drain with 1" MPT, 3 ¼" long outlet for quick plumbing hook-up.
- NSF certified and built in the USA by John Boos & Co.
At-a-glance specifications
| Manufacturer / Model | John Boos • UBIB-1848-CP10 |
|---|---|
| Overall dimensions | 48" W × 18" D × 32 ½" H |
| Ice bin interior (usable) | 46" W × 15" D × 13 ½" H |
| Cold plate | 10 soda circuits, cast-in, fully insulated |
| Construction | 18 ga. Type 300 stainless steel, #4 satin finish |
| Backsplash height | 3" |
| Drain connection | 1" MPT × 3 ¼" L with 1 ⅞" drain plug |
| Legs / feet | 1 ⅝" Ø bolt-on stainless legs with 1" adjustable bullet feet |
| Weight | 157 lb (unit only) |
| Certifications | NSF |
Optional accessories (sold separately)
- Single or double speed rails – 30" & 36" widths
- Left- or right-hand side splashes for added spill control
- Bottle well holders with lid for pre-chilling mixers
- Z-clip wall mount kit (included) for permanent installations
For best results, clean daily with a non-chloride stainless steel cleanser and a soft cloth. Avoid abrasive pads and always wipe along the grain to preserve the Boos satin finish.
