John Boos

John Boos Slim-Line 36-Inch Stainless Steel Underbar Ice Bin/Cocktail Unit with 2-Piece Sliding Lid

SKU: UBIB-1836-X
$840.45
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Bar Ice Bins Best Sellers Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment John Boos New Arrivals Restaurant Equipment Underbar Equipment

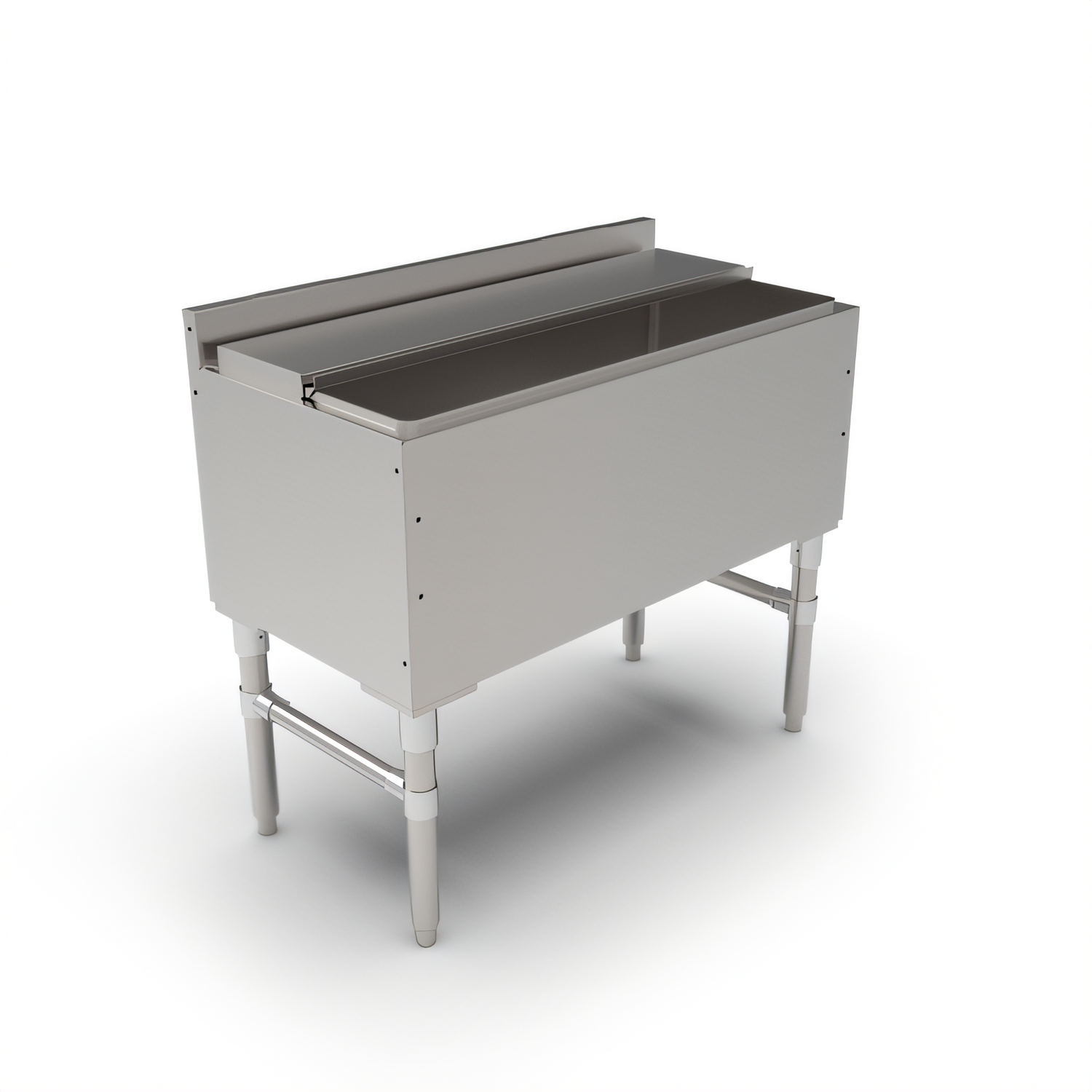

John Boos Slim-Line 36-Inch Stainless Steel Underbar Ice Bin/Cocktail Unit with 2-Piece Sliding Lid

36"W x 18"D x 32-1/2"H Overall; 34" x 15" x 13-1/2" Deep Ice Bin

A compact, insulated stainless steel underbar ice bin designed to streamline bar service while fitting neatly into slim back-of-house layouts.

  • Slim-Line 18-inch-deep design helps maximize space behind the bar.
  • Foam-insulated ice bin helps keep ice colder longer.
  • Includes a 2-piece sliding lid for quick access and coverage.
  • 18-gauge stainless steel construction is built for heavy commercial use.
  • Side inserts and front inserts help support adjacent units and bar accessories.
  • Stainless steel legs, bracing, and adjustable bullet feet provide a stable setup.

Overall Dimensions:

36.0"W x 18.0"D x 32.5"H

Product Weight:

83.0 lb

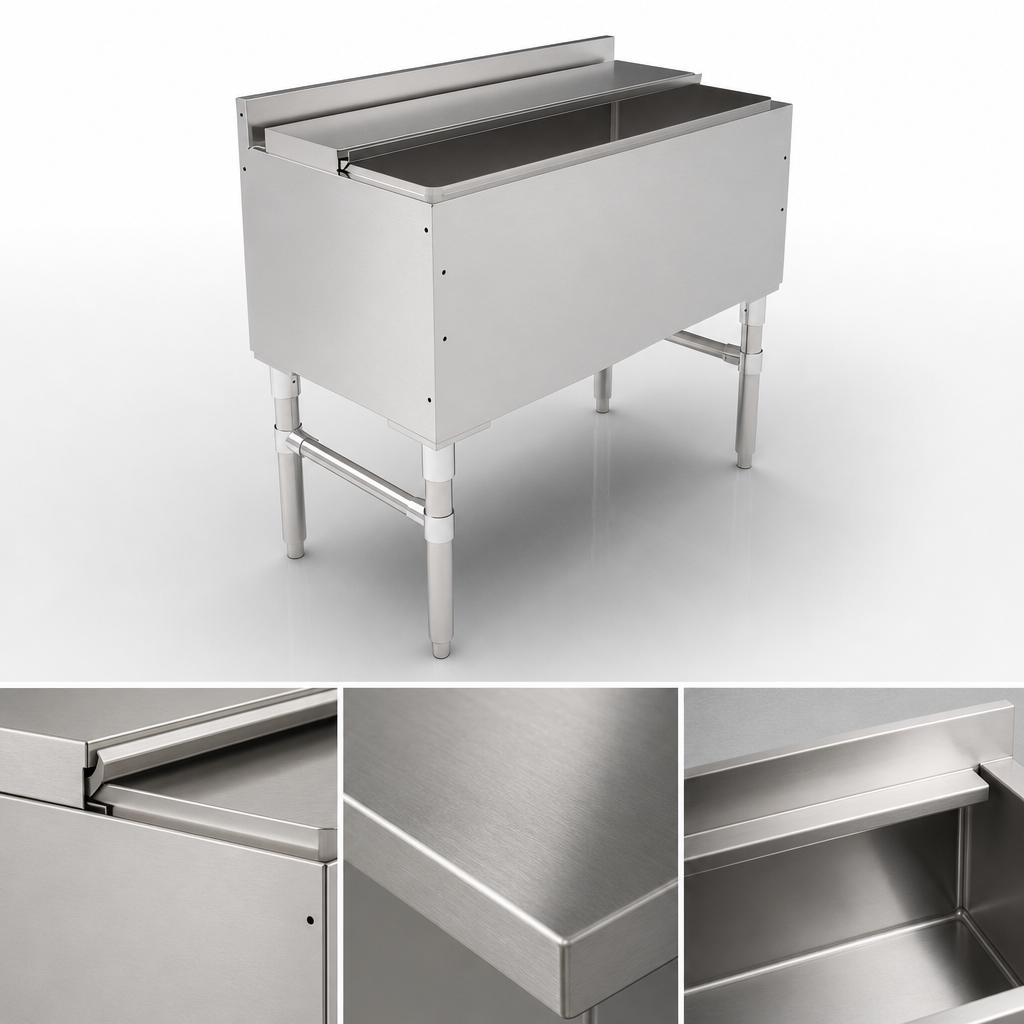

18-Gauge Stainless Steel Construction

Built from Type 300 stainless steel for durable, commercial-grade performance.

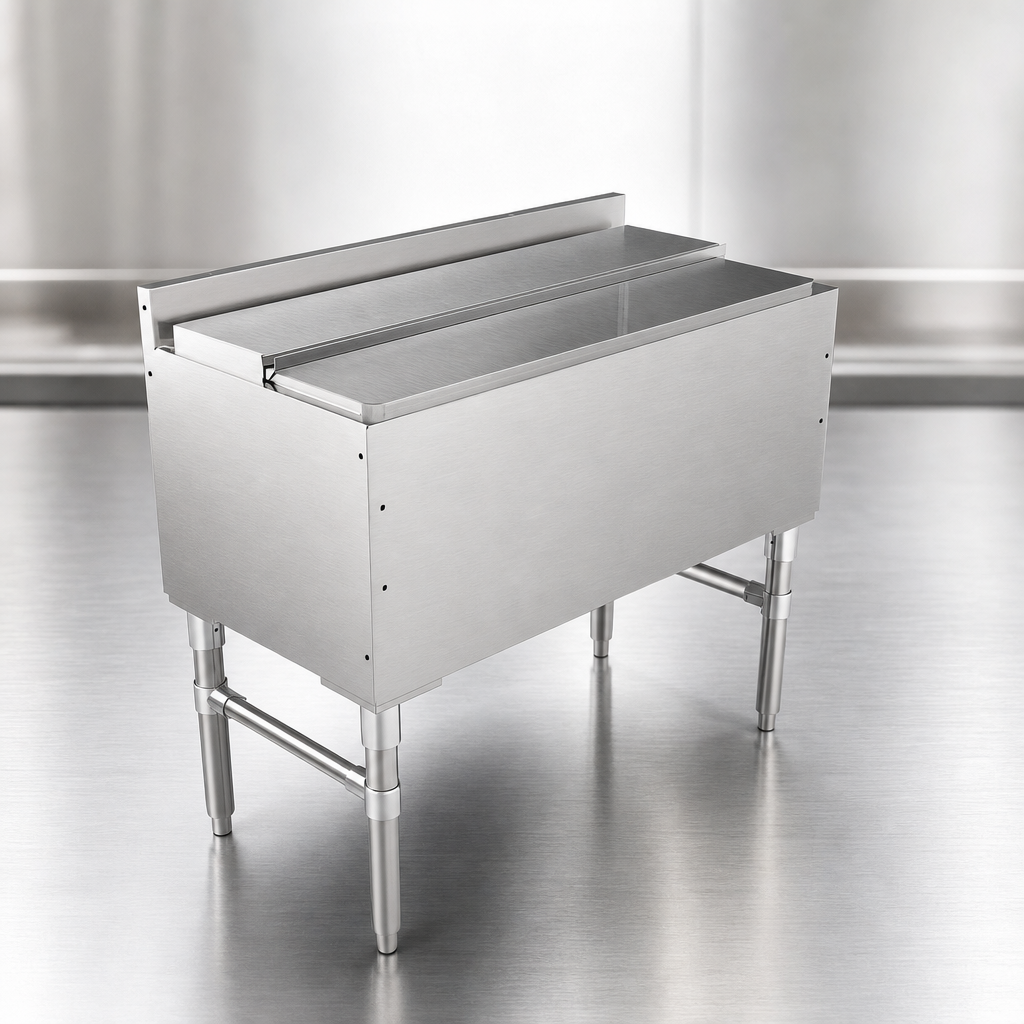

Satin Finish

Features a #4 polish satin finish for a clean, professional appearance.

Foam-Insulated Ice Bin

Insulated bin construction helps reduce melting and maintain ice temperature.

2-Piece Sliding Lid

Included lid helps cover the bin while allowing easy access during service.

Slim-Line Profile

18-inch front-to-back depth is designed to fit compact underbar spaces.

Accessory Mounting Points

Standard threaded side inserts and front inserts support attachment of adjacent units and speed rails.

Backsplash Access Plates

Access plates on top of the backsplash allow routing for soda gun lines.

Stainless Steel Support Structure

Includes stainless steel legs, side bracing, and adjustable bullet feet for a stable installation.

Drain Connection

Includes a 1-inch MPT drain connection with a 3-1/4-inch long drain connection and 1-7/8-inch drain plug.

Type Underbar Ice Bin/Cocktail Unit
Style Slim-Line
Installation Type Floor Model
Material Stainless Steel
Finish #4 Polish, Satin
Drain Connection Size 1 Inch MPT x 3-1/4 Inches Long
Shipping Width 36 Inches
Shipping Depth 18 Inches
Shipping Height 33 Inches
Shipping Weight 83 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Assembly instructions PDF Download PDF Care & maintenance PDF Download

Frequently Asked Questions

The overall size is 36 inches wide by 18 inches deep by 32-1/2 inches high.
The insulated ice bin measures 34 inches wide by 15 inches front-to-back by 13-1/2 inches deep.
Yes. It includes a 2-piece sliding lid.
It is made from Type 300 stainless steel with a satin finish.
Yes. The unit includes threaded side inserts for attaching adjacent units and front inserts for speed rail attachment.
The unit uses a 1-inch MPT drain connection that is 3-1/4 inches long.
