John Boos UBIB-1836 Slim-Line Bar Equipment
John Boos UBIB-1836 Slim-Line Bar Equipment is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
John Boos UBIB-1836 Slim-Line Bar Equipment
Description

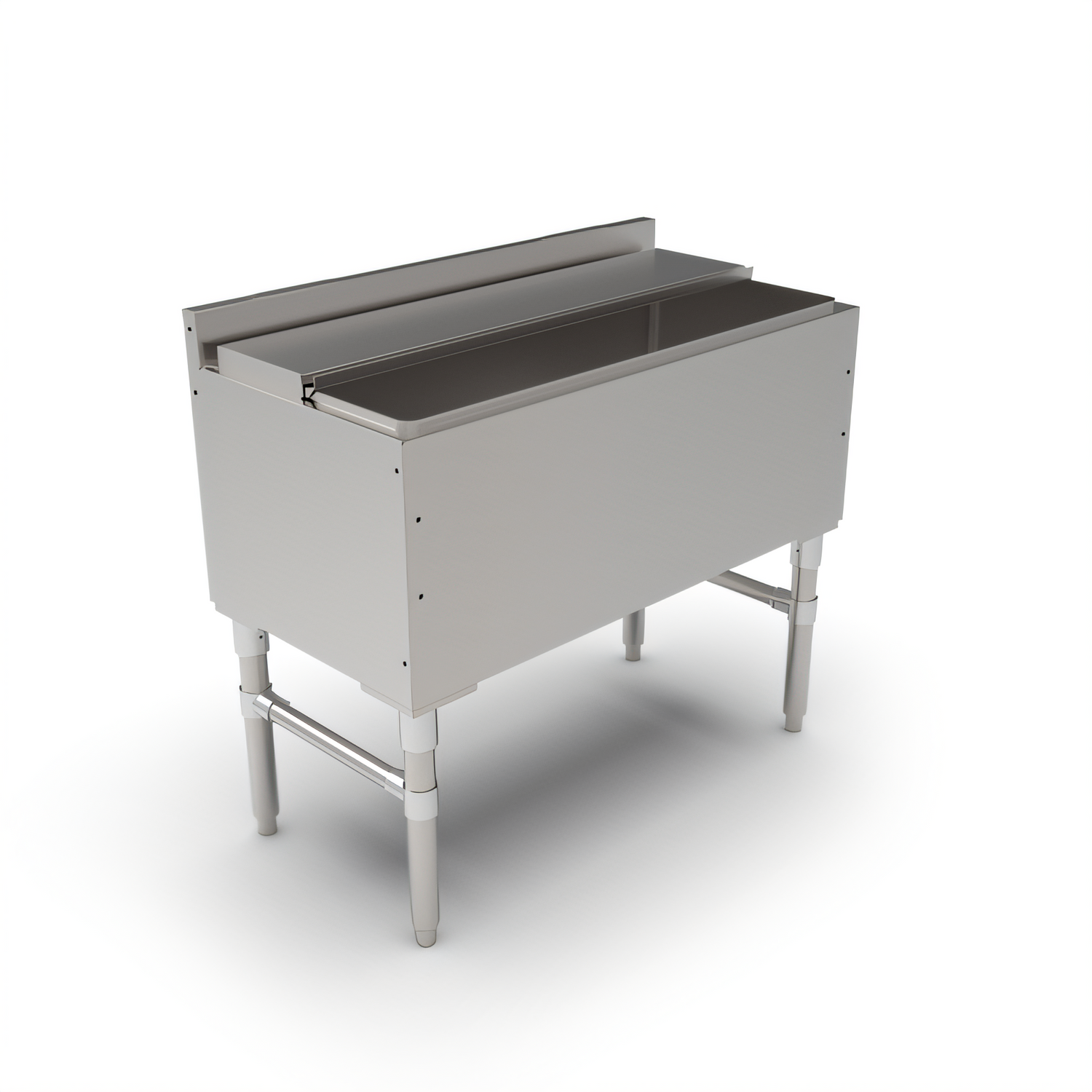

Slim-Line 36" Underbar Ice Bin / Cocktail Unit
John Boos Model UBIB-1836Maximize bar throughput in the tightest footprints. At just 18" front-to-back, the John Boos Slim-Line ice bin keeps servers moving, ice cold, and cocktails flowing all night long.
- Overall size: 36" W × 18" D × 32-1/2" H

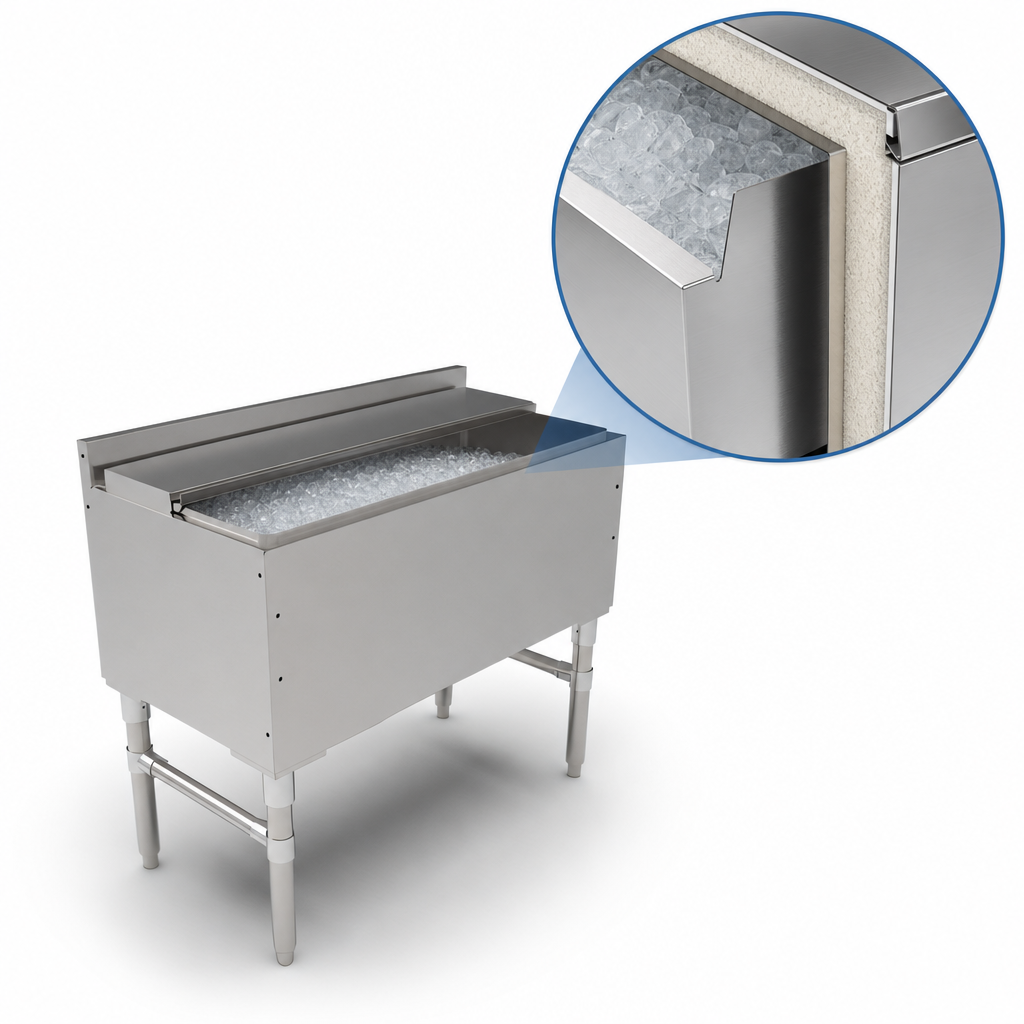

- Foam-insulated ice bin: 34" W × 15" D × 13-1/2" deep (≈90 lb ice capacity)
- 18 ga Type 300 stainless steel with #4 satin polish—built for high-volume service

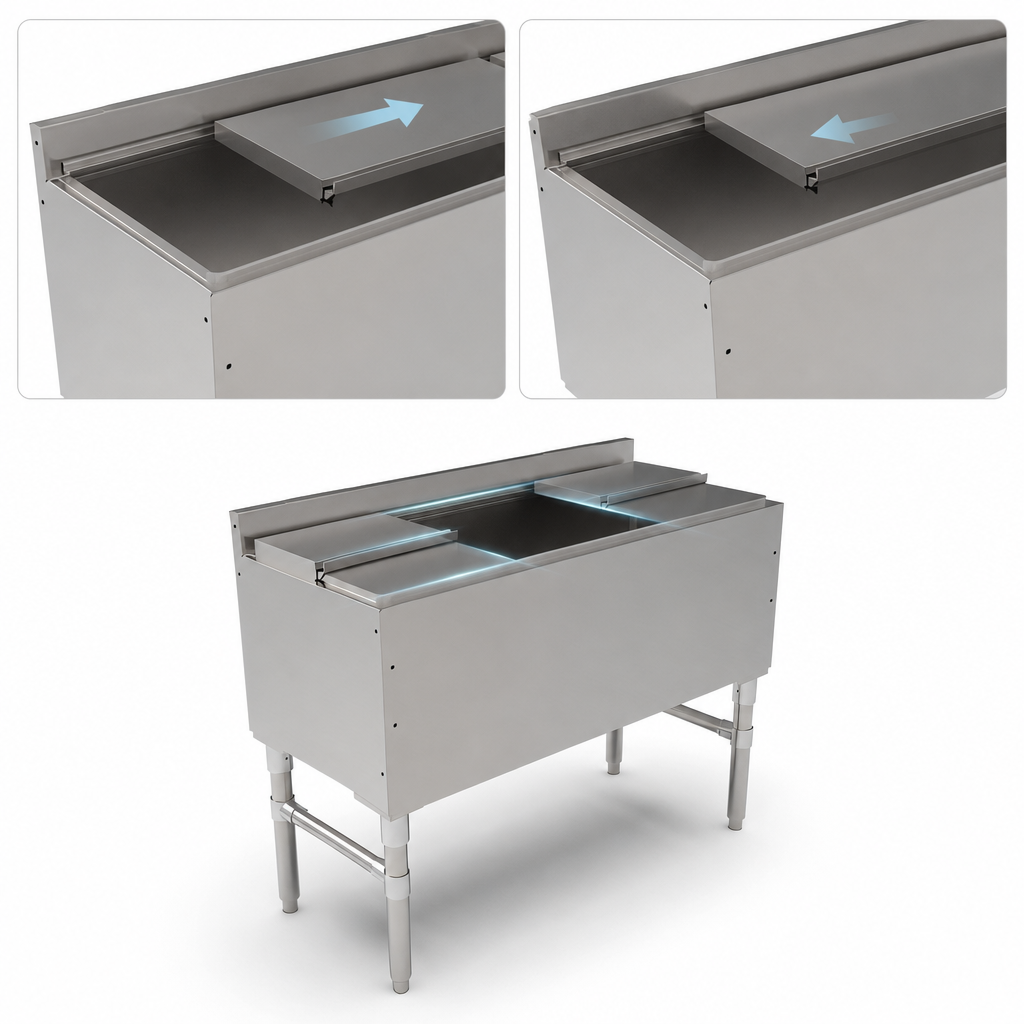

- 2-piece sliding stainless steel lid keeps ice sanitary & accessible
- 3" integrated backsplash with (2) access plates for soda gun lines
- 1-7/8" drain with 1" MPT (3-1/4" long) connection
- Bolt-on 1-5/8" Ø stainless legs, stainless front-to-back bracing, 1" adjustable bullet feet
- Threaded side & front inserts accept adjoining units or speed rails—no drilling required
- NSF listed & ready for commercial food-zone use
Why Choose Slim-Line?
Traditional 24" deep underbar equipment can crowd walkways. The Slim-Line series trims depth to 18" while preserving full-size ice capacity, giving bartenders more elbow room without sacrificing efficiency.
Technical Specifications
| Model | UBIB-1836 |
|---|---|
| Overall dimensions | 36" W × 18" D × 32-1/2" H |
| Ice bin interior | 34" W × 15" D × 13-1/2" H |
| Material / finish | 18 ga 300 series stainless, #4 satin |
| Ice capacity | Approx. 90 lb |
| Drain | 1-7/8" Ø w/ 1" MPT (3-1/4" long) |
| Legs | 1-5/8" Ø stainless, bolt-on |
| Feet | 1" adjustable stainless bullet feet |
| Weight | 83 lb (before packaging) |
| Certification | NSF |
Compatible Accessories (sold separately)
- UBSS-18-L / UBSS-18-R – 18" stainless side splashes
- UBSR single or double speed rails – 24", 30", 36"
- UBIBL-18 Bottle Well Holders with lid – 24", 30", 36"
Fast, Flexible Installation
- Legs ship loose; attach in minutes with supplied set screws
- Z-clip (included) secures backsplash to wall for rock-solid stability
- Factory-installed inserts let you bolt multiple Slim-Line modules together for a seamless bar run
Stainless Steel Care
Clean daily with a non-chloride stainless cleaner (e.g., Bar Keepers Friend) using a soft cloth. Avoid abrasive pads or bleach to keep the protective finish intact.
Important: All dimensions are typical and may vary ± 0.5". Listed weights exclude pallet/packaging.
