John Boos UBIB-1836-CP7-X Slim-Line Bar Equipment
John Boos UBIB-1836-CP7-X Slim-Line Bar Equipment is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
John Boos UBIB-1836-CP7-X Slim-Line Bar Equipment
Description

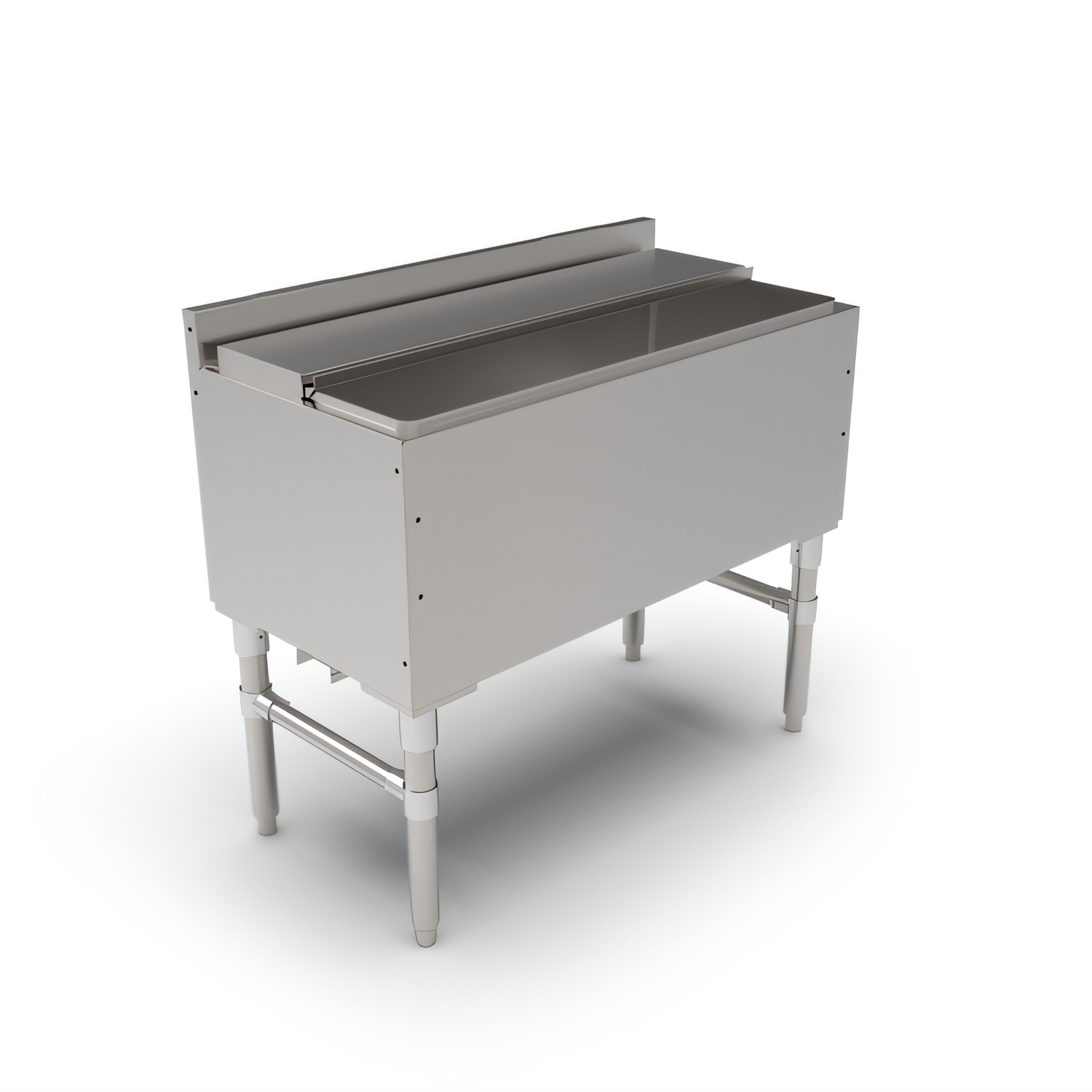

Slim-Line 36" Underbar Ice Bin / Cocktail Unit w/ 7-Circuit Cold Plate
John Boos Model UBIB-1836-CP7Give your bartenders faster service and colder drinks with the John Boos Slim-Line ice bin. At just 18" front-to-back, it saves valuable aisle space while its deep, foam-insulated well and built-in cold plate keep every cube rock-solid shift after shift.
Key Features
- Slim 36" W × 18" D footprint fits narrow bar layouts

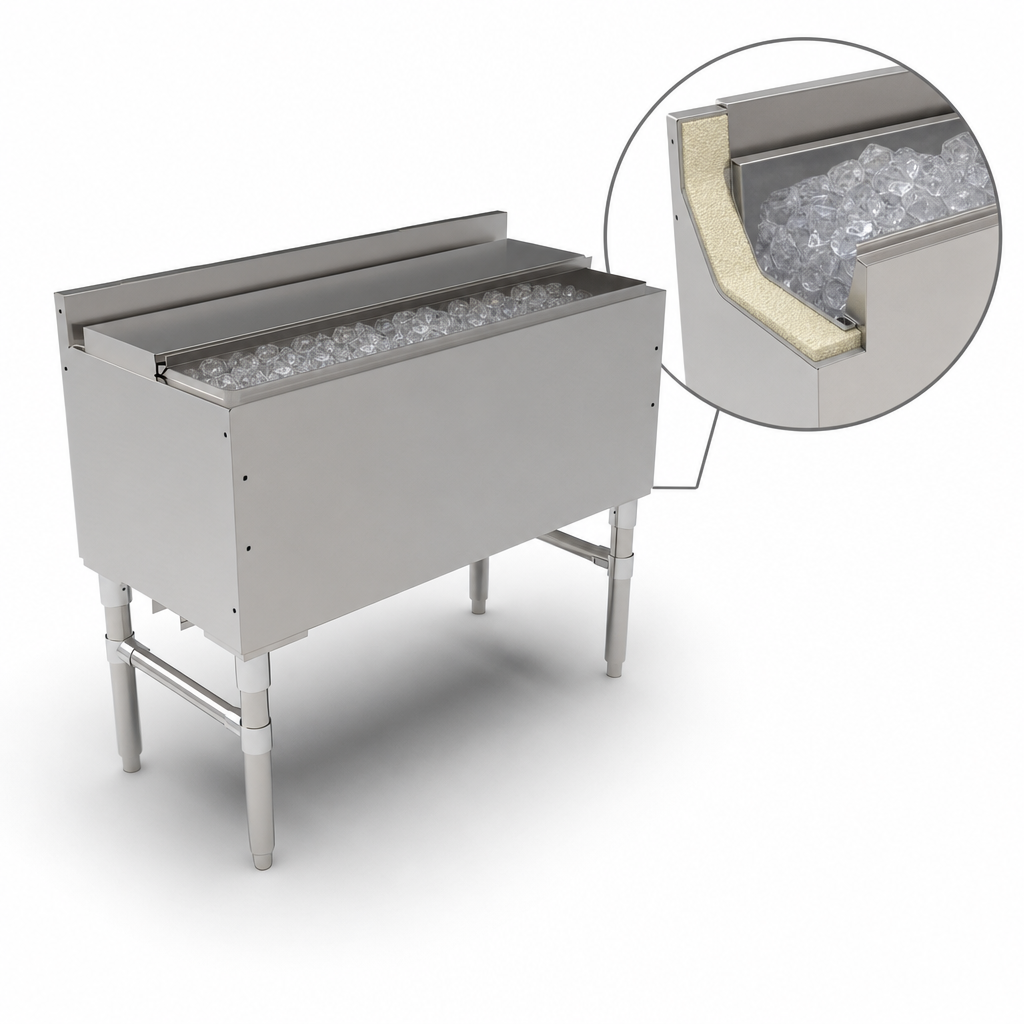

- Foam-insulated ice bin (34" W × 15" D × 13-1/2" H) for extended ice life

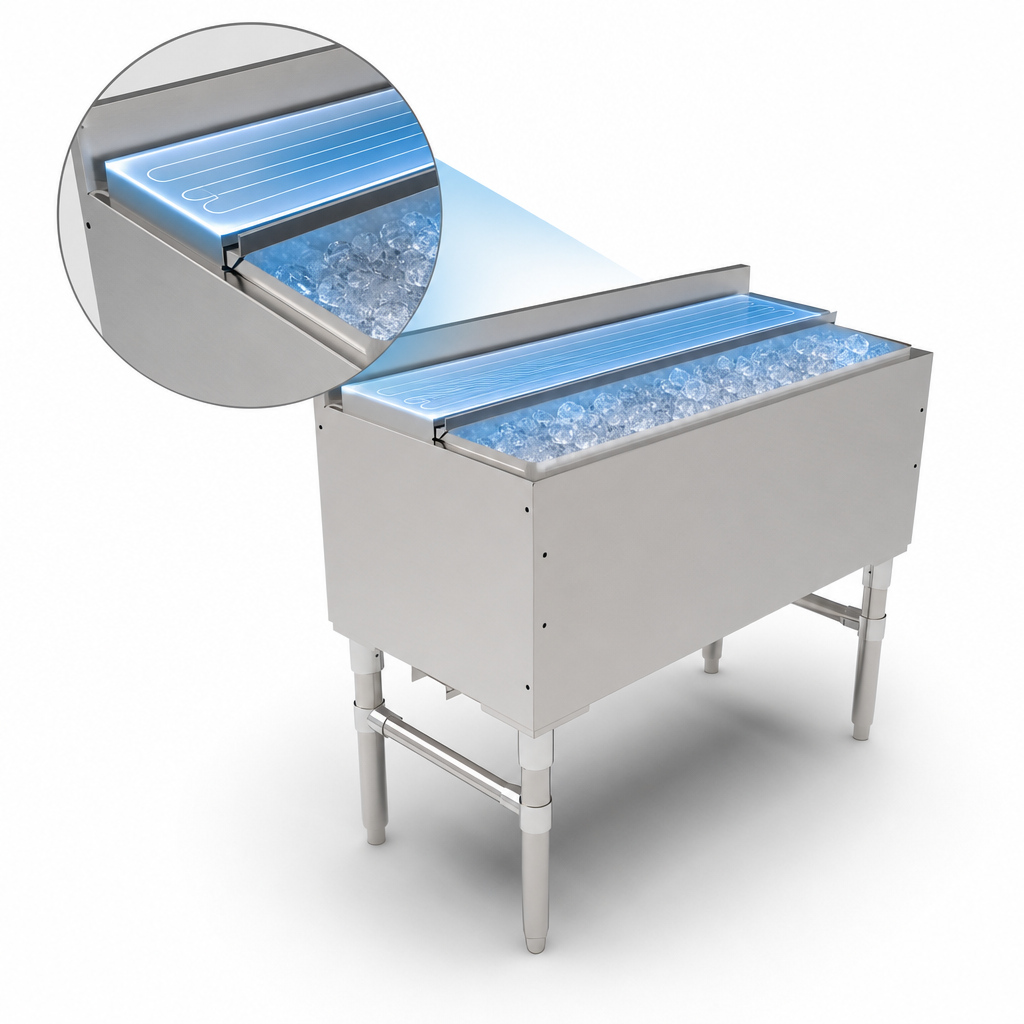

- Cast-in 7-circuit cold plate—direct hook-up for soda gun manifolds
- 18 ga, Type 300 stainless steel top, sides, apron & 3" backsplash (#4 satin finish)
- Two-piece sliding stainless steel lid protects ice and doubles as a prep shelf
- Stainless 1-5/8" legs with front-to-back bracing; 1" adjustable bullet feet for quick leveling
- Threaded side inserts to bolt adjoining underbar pieces; front inserts accept speed rails
- 1-7/8" drain with 1" MPT, 3-1/4" long connection for hassle-free plumbing
- Access plates on backsplash for easy soda line routing
- NSF listed for sanitation & safety in commercial environments
At-a-Glance Specs
| Overall dimensions | 36" W × 18" D × 32-1/2" H |
|---|---|
| Ice bin interior | 34" W × 15" D × 13-1/2" H |
| Cold plate | 7 circuits (cast aluminum) |
| Backsplash height | 3" |
| Construction | 18 ga, Type 300 stainless steel |
| Lid style | 2-piece sliding, stainless steel |
| Legs / feet | Bolt-on SS legs, 1" adj. bullet feet |
| Drain connection | 1" MPT, 3-1/4" L (1-7/8" drain opening) |
| Net weight | 121 lb* |
| Certifications | NSF |
*Weights are subject to additional packaging.
Compatible Accessories (sold separately)
- Single & double speed rails – 24", 30", 36"
- Bottle well holder with lid – model UBIBL-1836-BWH
- Left- or right-hand side splashes
Care & Cleaning
- Wipe daily with mild, non-chloride detergent and a soft towel.
- For stubborn residue, use Bar Keepers Friend on a damp plastic pad, then rinse and dry.
- Avoid abrasive steel pads or chlorine bleach to preserve the protective stainless film.
- Finish with John Boos Stainless Steel Cleaner to restore the original satin sheen.
Built by Boos – Trusted Since 1887
Every John Boos underbar unit is crafted in Effingham, Illinois, to withstand the punishing pace of busy bars, night after night. Pair this Slim-Line ice bin with matching sinks, drainboards and storage cabinets for a seamless, high-performance bar system.
