John Boos Slim-Line 36-Inch Underbar Ice Bin/Cocktail Unit with 7-Circuit Cold Plate

SKU: UBIB-1836-CP7
GTIN: 662969778781
$2,734.03
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Bar Ice Bins Best Sellers Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment John Boos New Arrivals Restaurant Equipment Underbar Equipment

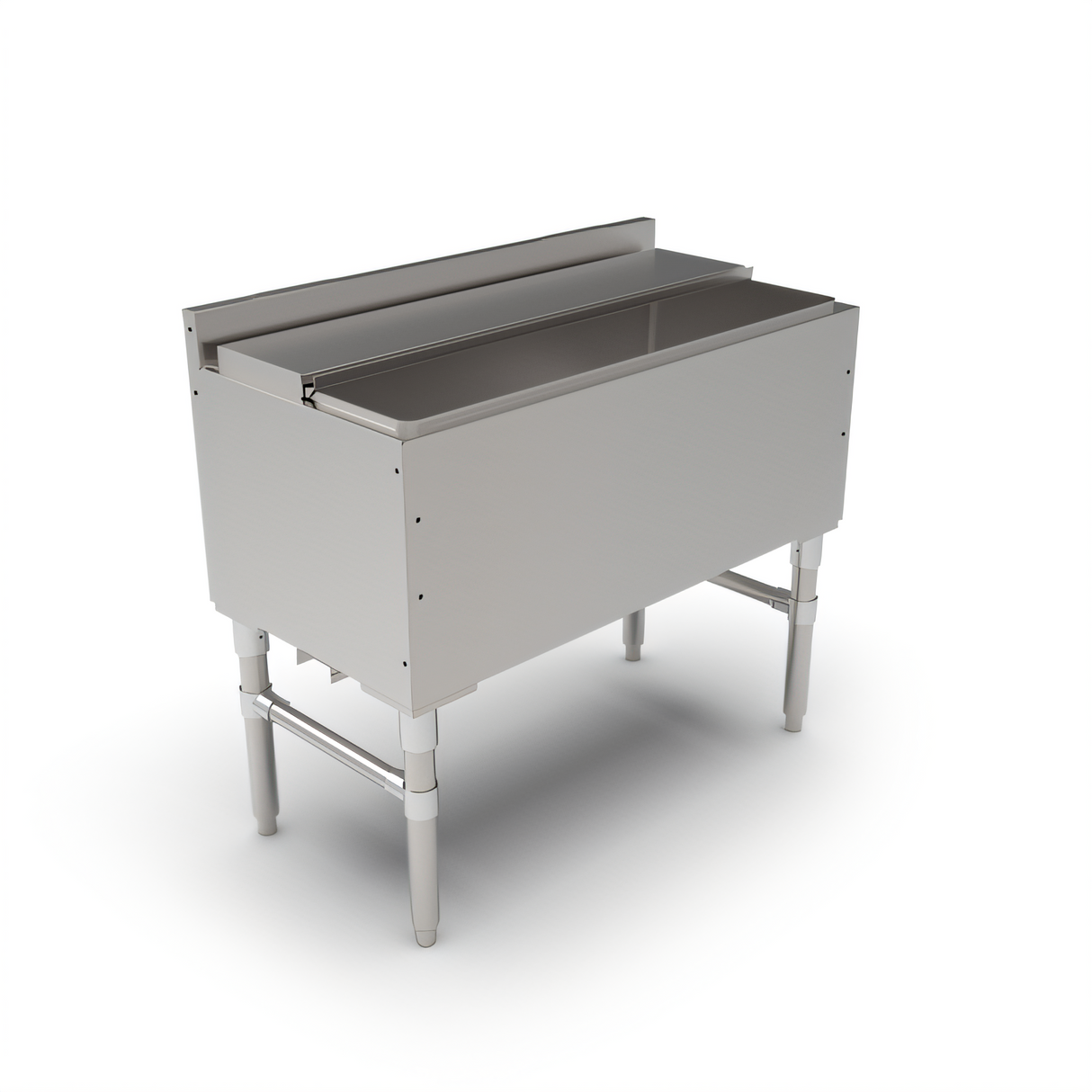

John Boos Slim-Line 36-Inch Underbar Ice Bin/Cocktail Unit with 7-Circuit Cold Plate

18-Inch Deep, Stainless Steel, 3-Inch Backsplash

A space-saving underbar ice bin that combines foam insulation, a built-in 7-circuit cold plate, and durable stainless steel construction for efficient bar service.

  • 36-inch Slim-Line underbar ice bin/cocktail unit fits compact bar layouts.
  • Foam-insulated ice bin helps keep ice colder longer and reduces condensation.
  • Built-in 7-circuit cold plate supports chilled beverage dispensing.
  • Includes a 2-piece sliding lid, stainless steel legs, bracing, and adjustable bullet feet.
  • Stainless steel construction with satin finish is built for demanding commercial use.
  • Backsplash access plates and mounting inserts help streamline installation and add-on accessories.

Overall Dimensions:

36.0"W x 18.0"D x 32.5"H

Product Weight:

121.0 lb

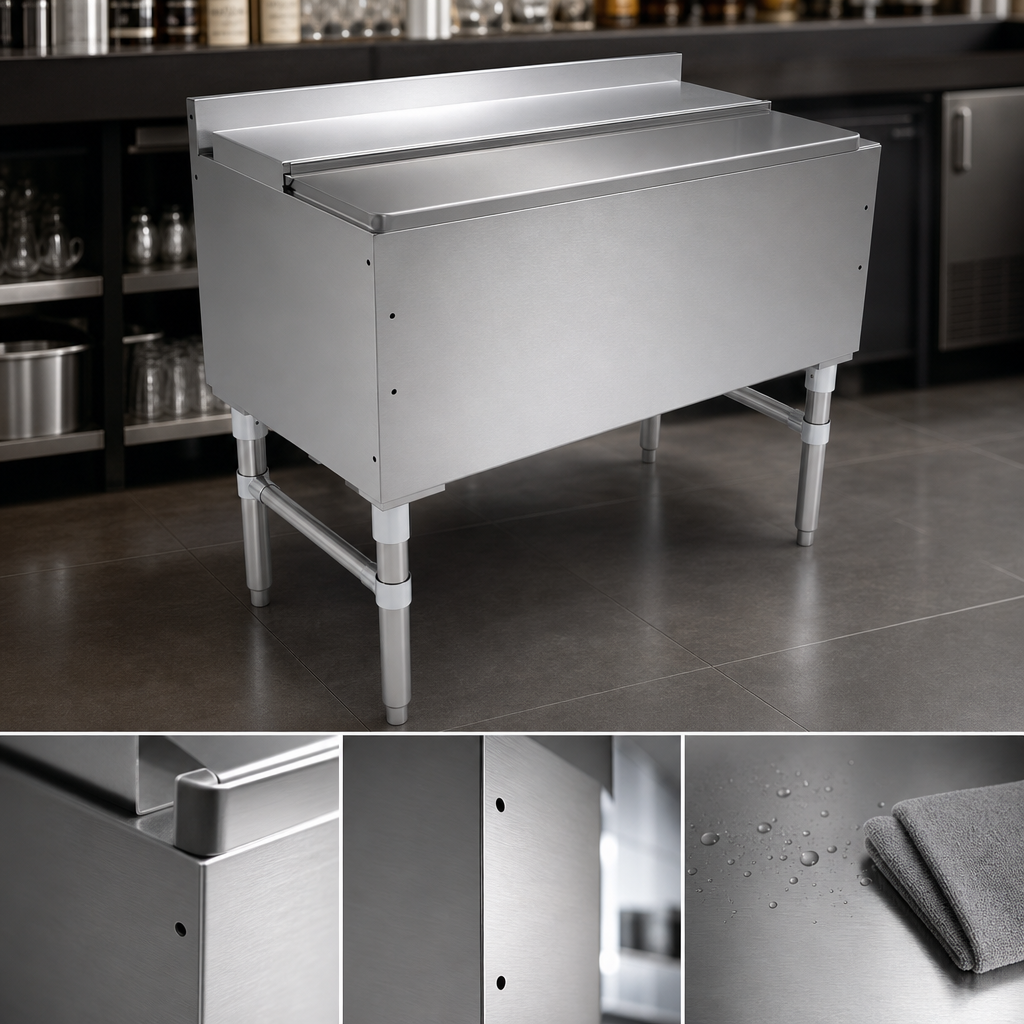

18-Gauge Type 300 Stainless Steel Construction

Durable stainless steel construction with a #4 polish, satin finish for long-lasting bar service.

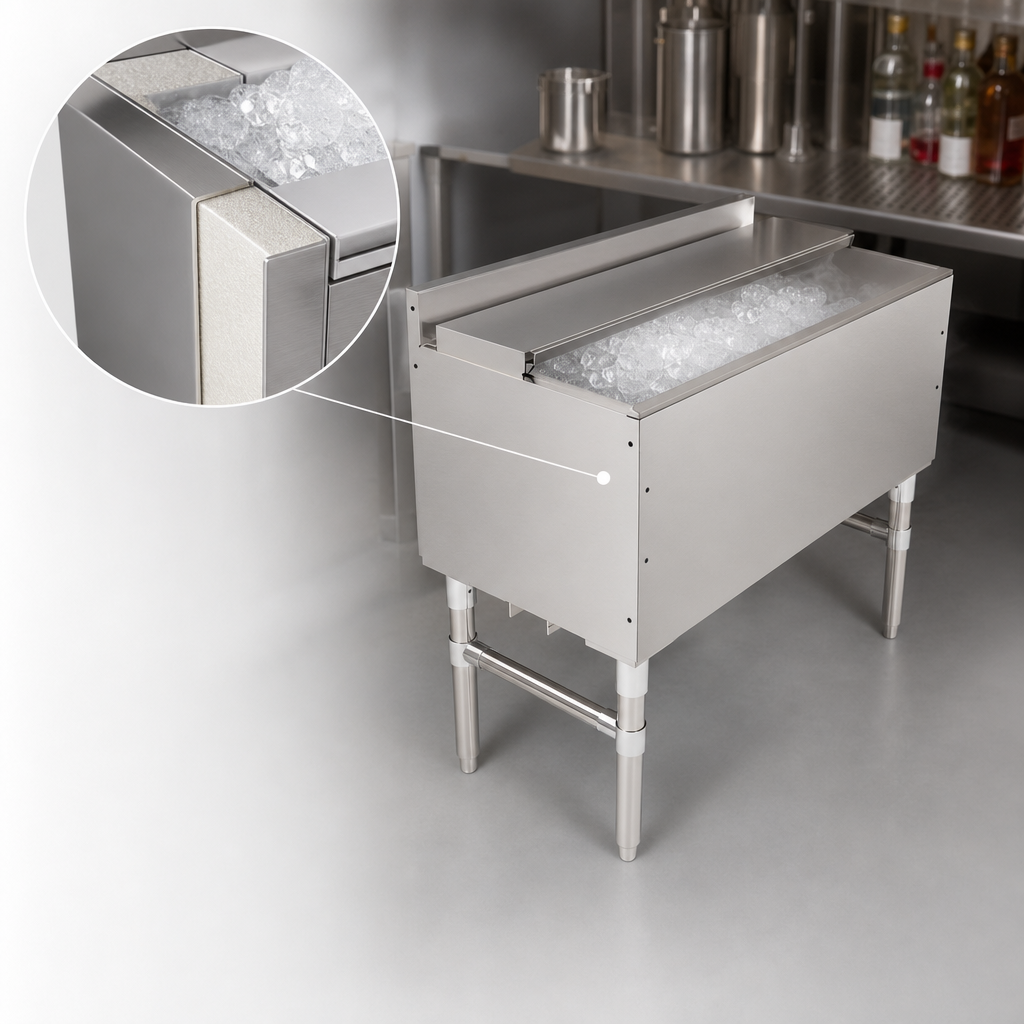

Foam-Insulated Ice Bin

Helps preserve ice and reduce condensation during busy shifts.

7-Circuit Cold Plate

Built in for chilled beverage service.

2-Piece Sliding Lid

Covers the ice bin while allowing quick access during operation.

3-Inch Backsplash

Helps contain splashes behind the unit.

Threaded Side Inserts

Allows adjacent underbar units to be secured together.

Front Inserts For Speed Rail Attachment

Provides mounting points for compatible speed rail accessories.

Backsplash Access Plates

Top access plates support routing soda gun lines.

Stainless Steel Legs And Front-to-Back Bracing

Adds stability and support during installation.

Adjustable Stainless Steel Bullet Feet

Helps level the unit on uneven floors.

Drain Connection

Includes a 1-inch MPT, 3-1/4-inch long drain connection and 1-7/8-inch drain plug.

Type Underbar Ice Bin/Cocktail Unit
Style Slim-Line
Installation Type Floor Model
Material Type 300 Stainless Steel
Finish Satin Finish
Cold Plate 7 Circuit
Drain Connection Required
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 18 Inches
Shipping Height 33 Inches
Shipping Weight 121 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Assembly instructions PDF Download PDF Instructions PDF Download

Frequently Asked Questions

Yes. It includes a 2-piece sliding lid.
Yes. The ice bin is foam insulated to help keep ice colder longer.
It includes a 7-circuit cold plate and backsplash access plates for soda gun lines.
It has threaded side inserts for attaching adjacent units, front inserts for speed rail attachment, and Z-clip mounting capability.
It includes a 1-inch MPT, 3-1/4-inch long drain connection and a 1-7/8-inch drain plug.
