John Boos  |  Slim-Line  |  SKU: UBIB-1836-CP10-X

John Boos UBIB-1836-CP10-X Slim-Line Bar Equipment

$2,047.14
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Assembly instructions Care & maintenance Instructions
Related Searches
Bar Equipment Bar Ice Bins Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment John Boos Restaurant Equipment Underbar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

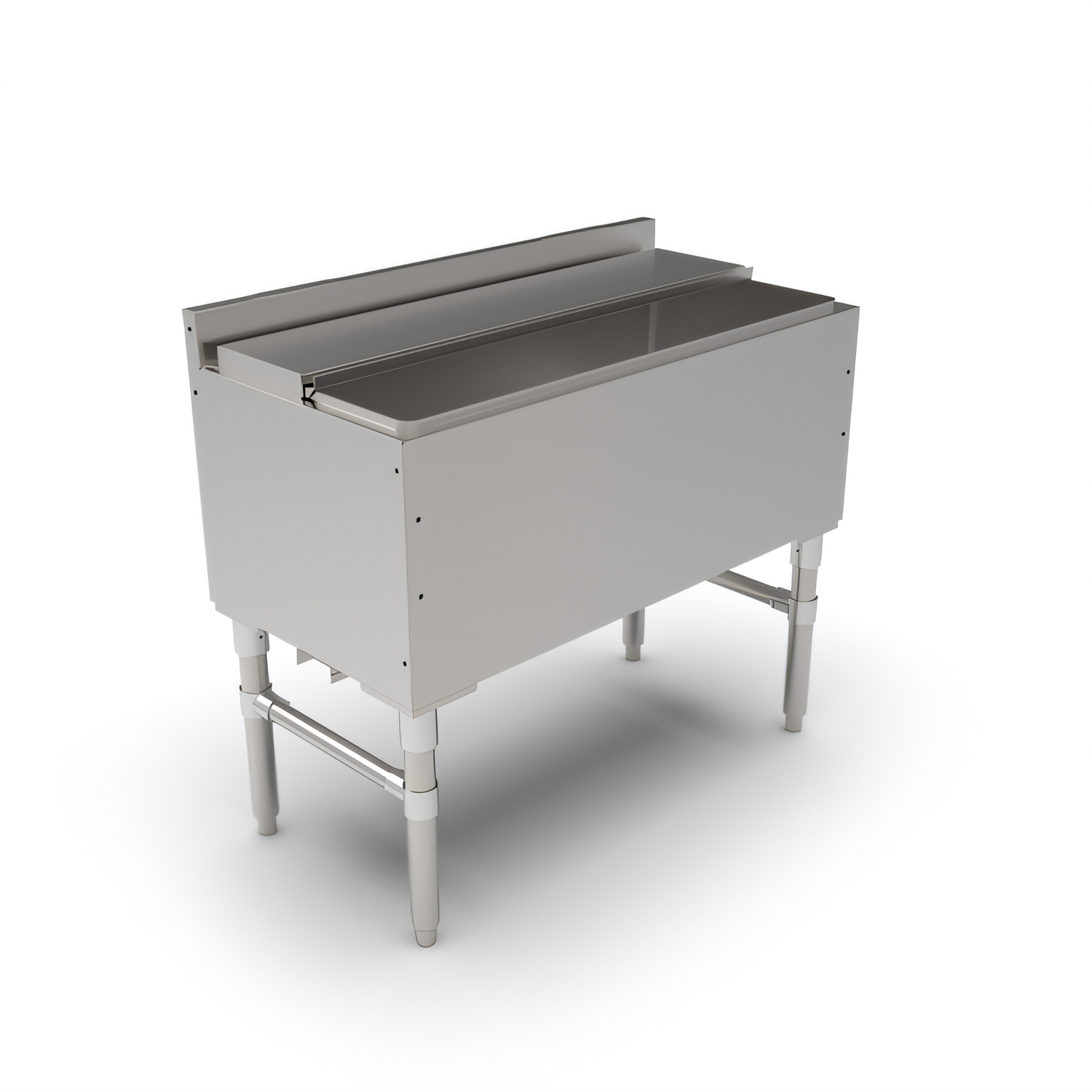

Slim-Line Underbar Ice Bin w/ 10-Circuit Cold Plate

John Boos | Model UBIB-1836-CP10

Designed for busy bars that have absolutely no room to spare, the 36-inch Slim-Line ice bin delivers full-size performance in an 18-inch deep footprint. A foam-insulated bin, integrated 10-circuit cold plate, and sliding stainless-steel lid work together to keep every cube and beverage line ice-cold until last call.

Why you’ll love it

  • Space-saving 18 in. front-to-back depth keeps aisles clear.
  • Generous 34 in. L × 15 in. W × 13-1/2 in. D ice bin holds plenty of product for peak periods.

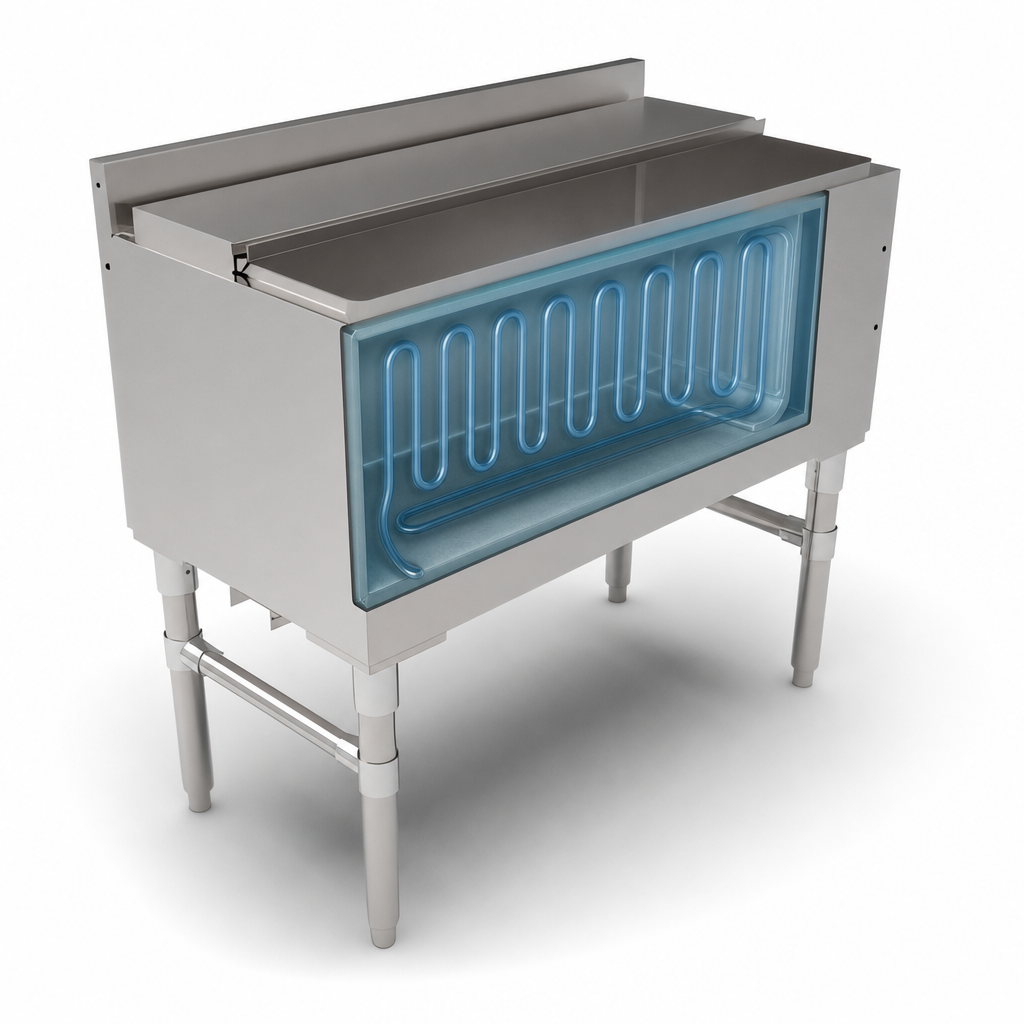

  • 10-circuit cast aluminum cold plate chills soda lines right inside the ice.

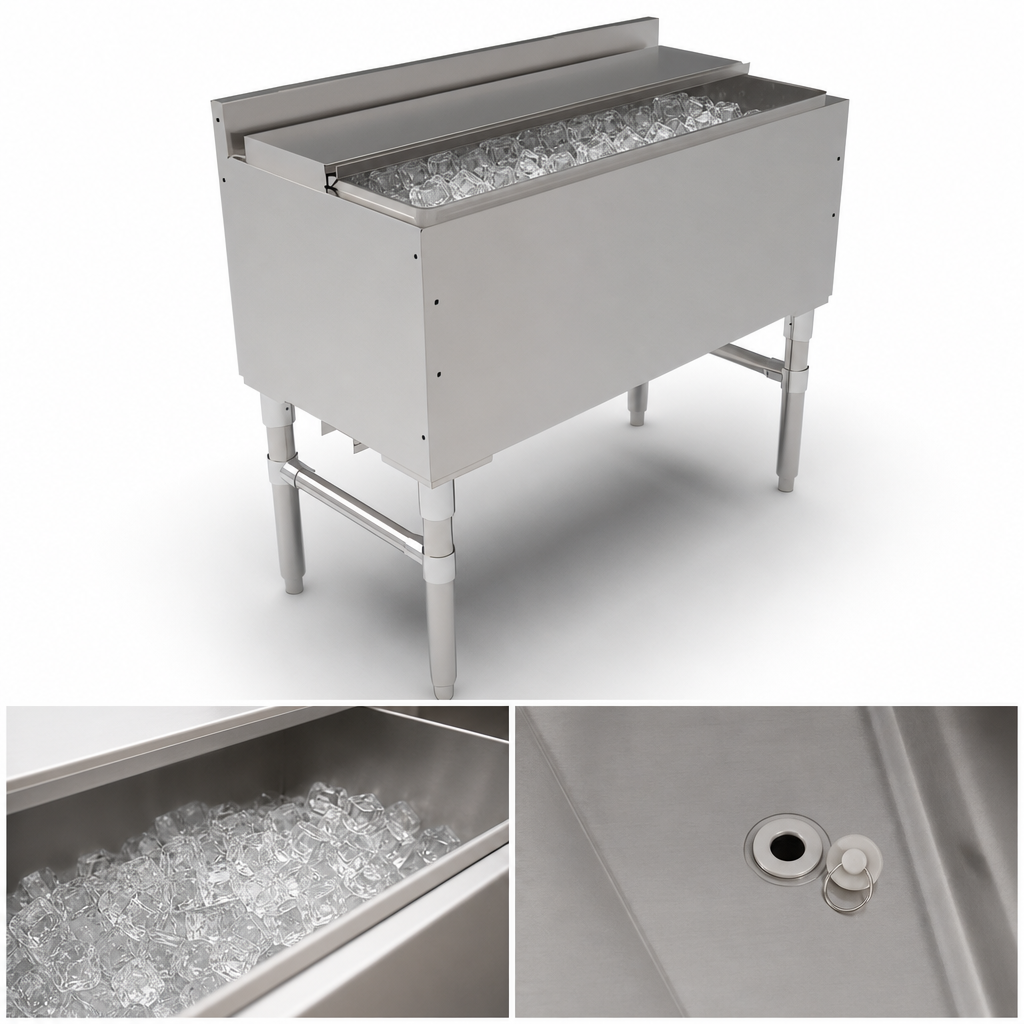

  • Foam-in-place insulation extends ice life and minimizes condensation.
  • Durable 18 ga type 300 stainless steel with #4 satin finish—built for commercial abuse.
  • Two-piece sliding lid protects ice & doubles as a quick prep surface.
  • 3 in. backsplash with access plates for easy soda-gun routing.
  • Threaded side inserts & front inserts make attaching speed rails or adjacent units painless.
  • Stainless legs, front-to-back bracing & adjustable bullet feet for fast, rock-solid leveling.
  • NSF listed for peace of mind behind the bar.

Specifications

Overall dimensions 36 in. W × 18 in. D × 32-1/2 in. H
Interior ice bin size 34 in. L × 15 in. W × 13-1/2 in. D
Material & finish 18 ga Type 300 stainless steel, #4 satin polish
Cold plate Cast aluminum, 10 circuits
Drain connection 1-7/8 in. plug, 1 in. MPT × 3-1/4 in. long
Backsplash height 3 in.
Legs & feet 1-5/8 in. O.D. bolt-on stainless legs with adjustable stainless bullet feet
Shipping weight Approx. 138 lb (subject to packaging)
Certifications NSF

Popular add-ons (sold separately)

  • UBSS-18-L / UBSS-18-R Slim-Line side splashes
  • UBSR1-36 single speed rail | UBSR2-36 double speed rail
  • UBIBL-1836-BWH bottle-well holder with lid

Maintain the stainless finish with non-chloride cleaners and a soft cloth. Detailed care instructions are included with the unit.

Features & Specs

Manufacturer

John Boos

Brand_name

Slim-Line

Certifications

NSF

Height

32.5in

Width

36.0in

Depth

18.0in

Shipping Weight

138.0lbs

Cold Plate

(10) circuit

Construction

stainless steel construction

Splash

3"

Depth (front - back) OA

18" - 19"

Width (side - side) OA

31" - 36"

Bin Depth

12" deep ice bin

Specifications

Slim-Line Underbar Ice Bin/Cocktail Unit, 36"W x 18"D x 32-1/2"H overall size, 34"W x 15" front-to-back x 13-1/2" deep insulated ice bin with drain, 3"H backsplash, with 10-circuit cold plate, includes 2-piece sliding lid, 18/300 stainless steel construction, stainless steel legs & side bracing, adjustable stainless steel bullet feet, NSF (weights are subject to additional packaging)
