John Boos Slim-Line 30-Inch Underbar Ice Bin/Cocktail Unit with Sliding Lid

SKU: UBIB-1830-X
$782.33
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Bar Ice Bins Best Sellers Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment John Boos New Arrivals Restaurant Equipment Underbar Equipment

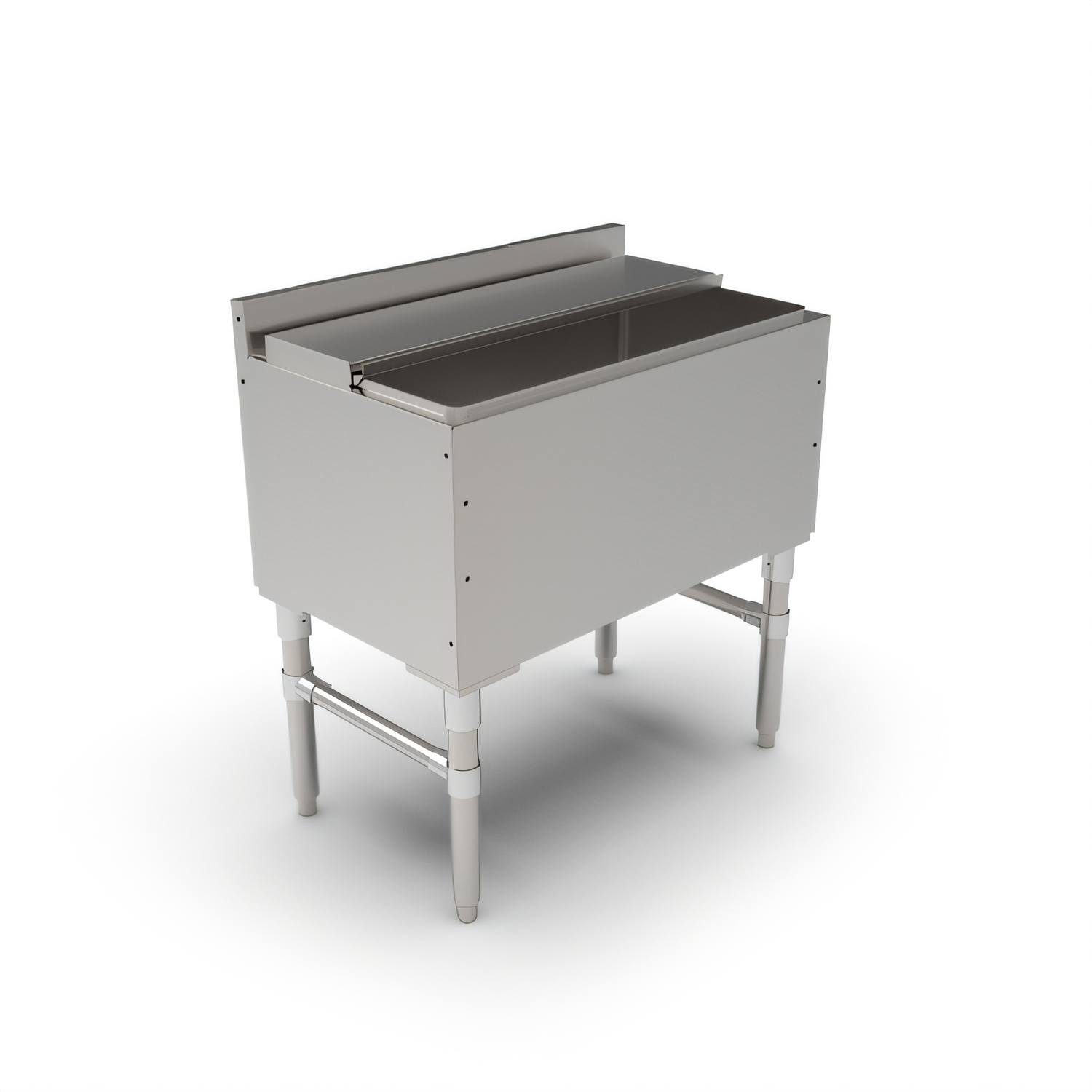

John Boos Slim-Line 30-Inch Underbar Ice Bin/Cocktail Unit with Sliding Lid

18/300 Stainless Steel, 13-1/2-Inch Deep Insulated Bin

Built for busy bars, this compact underbar ice bin combines insulated storage, stainless steel durability, and a standard sliding lid in one efficient station.

  • 30-inch-wide Slim-Line design fits neatly into underbar beverage stations.
  • 28-inch by 15-inch by 13-1/2-inch insulated ice bin helps keep ice colder longer.
  • 18-gauge Type 300 stainless steel construction is built for long service life.
  • 2-piece sliding lid, drain connection, and backsplash come standard.
  • Stainless steel legs, side bracing, and adjustable bullet feet support stable installation.
  • Threaded inserts and front mounting points help connect adjacent units and speed rails.

Overall Dimensions:

30.0"W x 18.0"D x 32.5"H

Product Weight:

74.0 lb

18-Gauge Stainless Steel Construction

Type 300 stainless steel top, front apron, backsplash, and sides provide durability for high-volume bar use.

Foam-Insulated Ice Bin

Insulated bin helps maintain colder ice and reduce melt during service.

Two-Piece Sliding Lid Included

Standard sliding lid covers the bin when not in use.

Integrated Backsplash

3-inch backsplash helps contain splashes and includes access plates for soda gun lines.

Stable Support Frame

Stainless steel legs, side bracing, and adjustable bullet feet help with installation and leveling.

Attachment and Mounting Points

Threaded side inserts, front inserts, and wall-mount support make it easier to attach adjacent units and accessories.

Built-In Drain Connection

Includes a 1-7/8-inch drain plug and 1-inch MPT drain connection for plumbing.

Slim-Line Footprint

18-inch front-to-back depth is designed to conserve space in underbar layouts.

Type Underbar Ice Bin/Cocktail Unit
Style Slim-Line
Installation Type Floor Model
Material Stainless Steel
Finish Satin Finish
Shipping Width 30 Inches
Shipping Depth 18 Inches
Shipping Height 33 Inches
Shipping Weight 74 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download PDF Assembly instructions PDF Download

Frequently Asked Questions

The overall size is 30 Inches wide x 18 Inches deep x 32-1/2 Inches high.
The insulated ice bin measures 28 Inches wide x 15 Inches front-to-back x 13-1/2 Inches deep.
Yes. A 2-piece sliding lid is included with the unit.
Yes. It includes a 1-7/8-inch drain plug and a 1-inch MPT 3-1/4-inch long drain connection.
Yes. The unit has standard threaded inserts on the sides for attaching adjacent units together.
Documented accessories include left and right side splashes, single and double speed rails, and bottle well holders with lids.
