John Boos UBIB-1830 Slim-Line Bar Equipment
Description

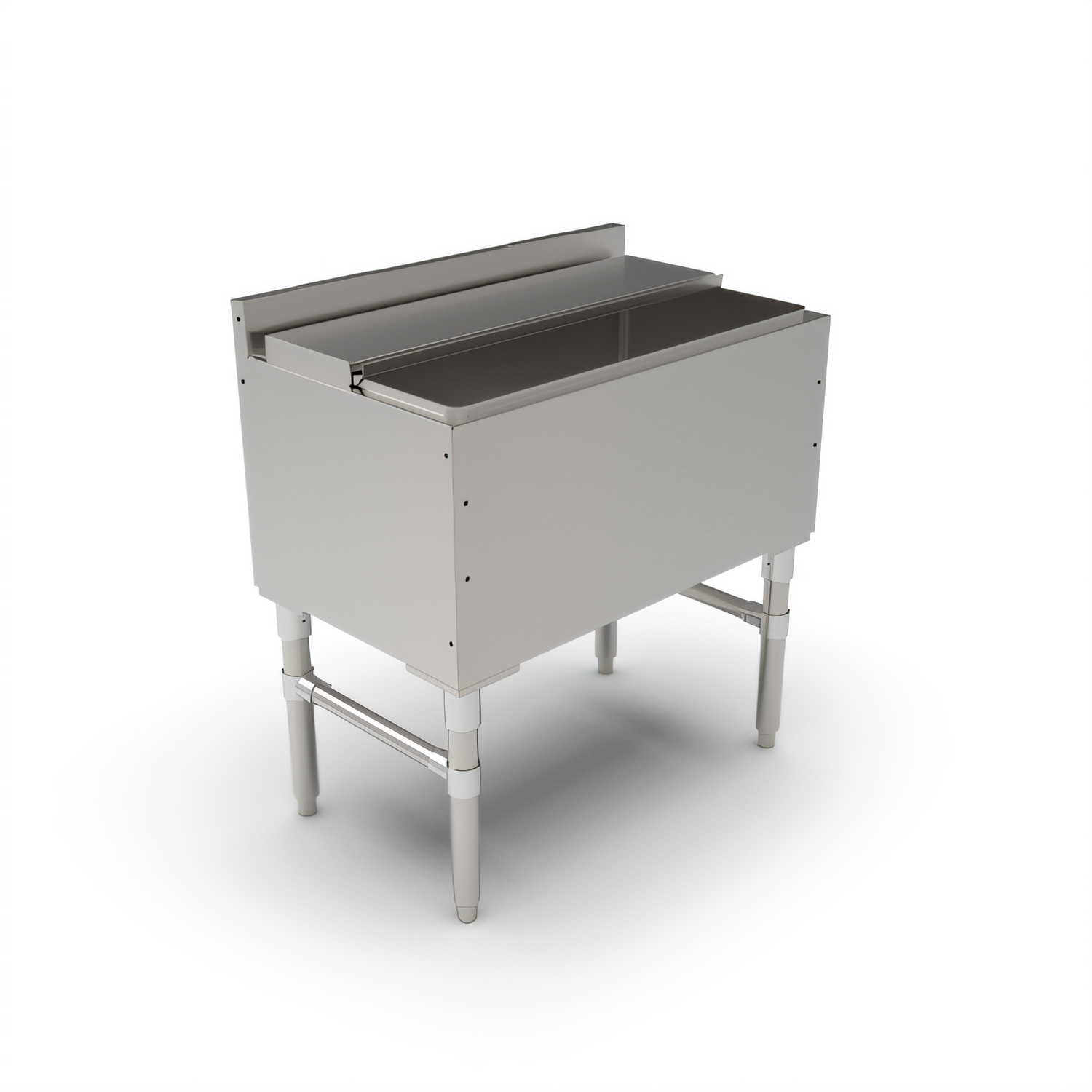

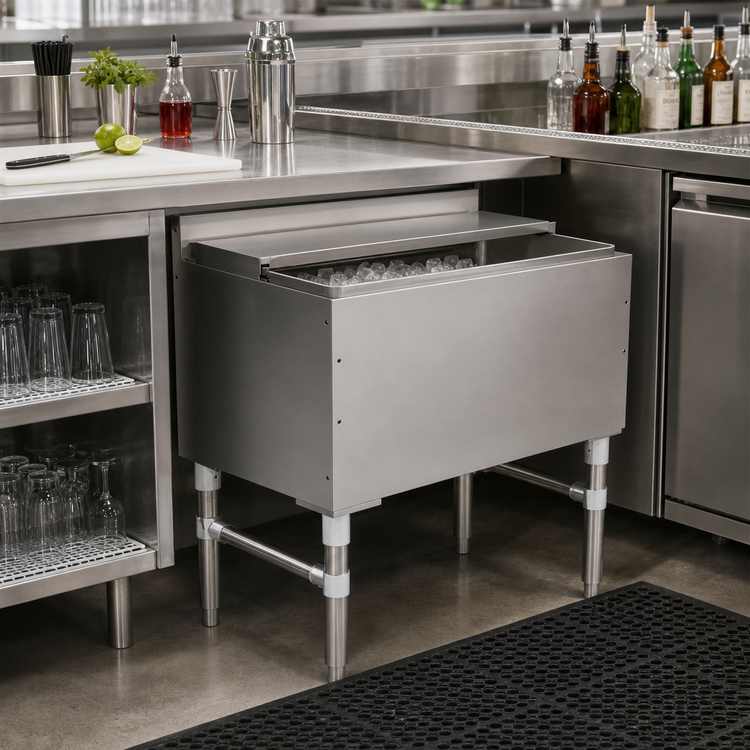

John Boos “Slim-Line” 30" Underbar Ice Bin / Cocktail Unit
Model UBIB-1830 • NSF ListedBuilt for the busiest bars and beverage stations, the John Boos Slim-Line underbar ice bin keeps cocktails flowing without taking up valuable floor space. A fully insulated 28"-wide ice chest, rugged 18 gauge type 300 stainless steel construction, and bartender-friendly details make this 30" unit the professional’s choice for years of reliable service.
Key Features
- Space-saving 30" W x 18" D “Slim-Line” footprint

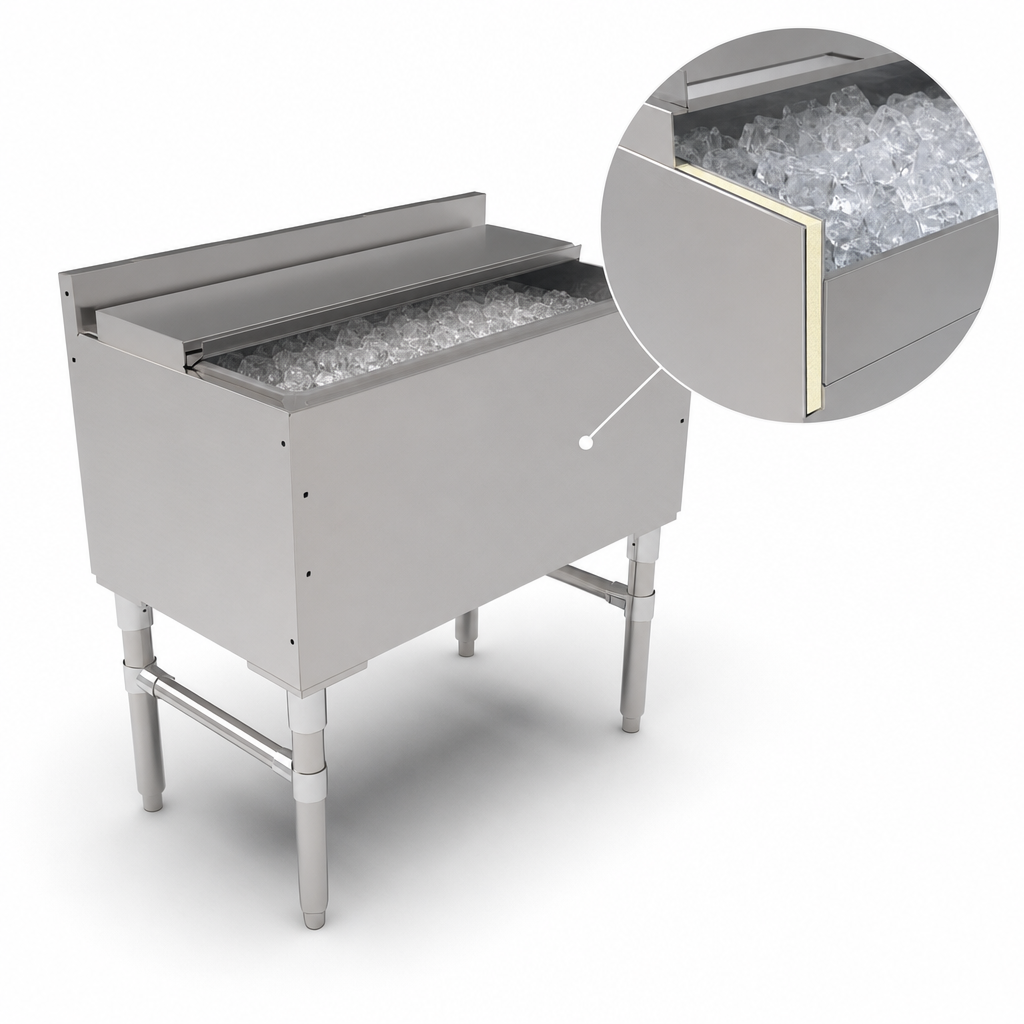

- Foam-insulated ice bin (28" W x 15" F-B x 13-1/2" deep) holds plenty of ice and reduces melt-off
- 2-piece sliding stainless steel lid for quick access & sanitary coverage

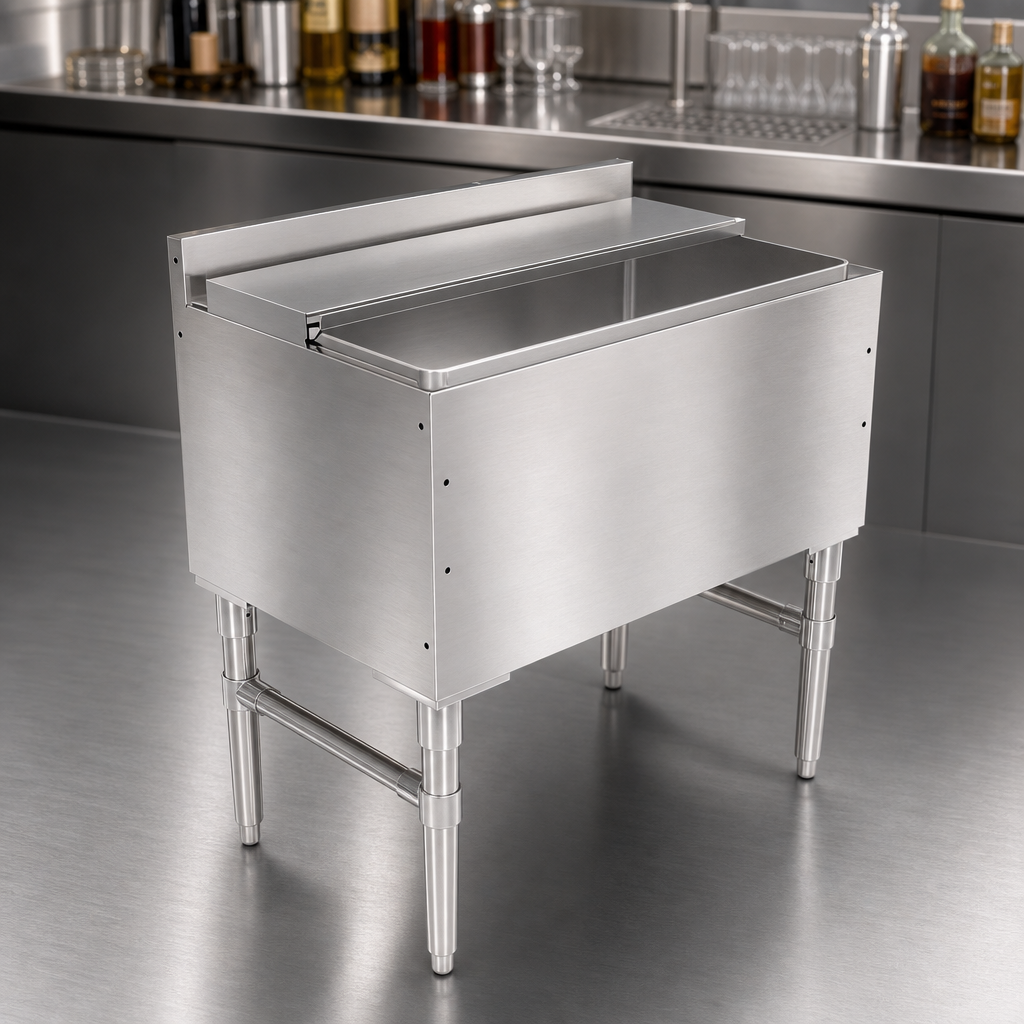

- 18 GA type 300 stainless steel throughout with #4 satin polish
- 3" high backsplash with removable access plates for soda gun lines
- 1-7/8" drain with 1" MPT (3-1/4" long) connection & plug
- Bolt-on 1-5/8" stainless steel legs, side & front bracing for rock-solid stability
- 1" adjustable stainless steel bullet feet for easy leveling (+1")
- Pre-punched threaded inserts for mounting speed rails or adjoining underbar pieces
- NSF certified for open foodservice environments
Specifications
| Overall Dimensions | 30" W × 18" D × 32-1/2" H |
|---|---|
| Interior Ice Bin | 28" W × 15" D × 13-1/2" H (foam insulated) |
| Backsplash Height | 3" |
| Material / Finish | 18 GA type 300 series stainless steel, #4 satin |
| Drain Connection | 1" MPT, 3-1/4" long (includes 1-7/8" drain plug) |
| Feet Adjustment | 1" (+) |
| Shipping Weight | Approx. 74 lb* |
| Certifications | NSF |
*Weights are approximate and may vary with packaging.
Compatible Accessories (sold separately)
- Single Speed Rails – 24", 30", 36" (models UBSR1-24/30/36)
- Double Speed Rails – 24", 30", 36" (models UBSR2-24/30/36)
- Left or Right Side Splashes (UBSS-18-L / UBSS-18-R)
- Bottle Well Holder with Lid – 30" × 18" (model UBIBL-1830-BWH)
Easy Installation & Care
- Bolt-on legs arrive un-assembled for reduced freight size—just attach and level.
- Integrated Z-clip lets you secure the backsplash to a wall for extra rigidity.
- For routine cleaning, wipe with a soft cloth and non-chloride stainless cleaner; avoid abrasive pads.
Threaded inserts on both sides allow this ice bin to bolt directly to adjoining John Boos underbar sinks, drainboards, and cabinets for a seamless, code-compliant work zone.
Questions? Contact our foodservice specialists or visit the John Boos website for CAD drawings and REVIT files.
