John Boos UBIB-1830-CP7-X Slim-Line Bar Equipment
John Boos UBIB-1830-CP7-X Slim-Line Bar Equipment is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
John Boos UBIB-1830-CP7-X Slim-Line Bar Equipment
Description

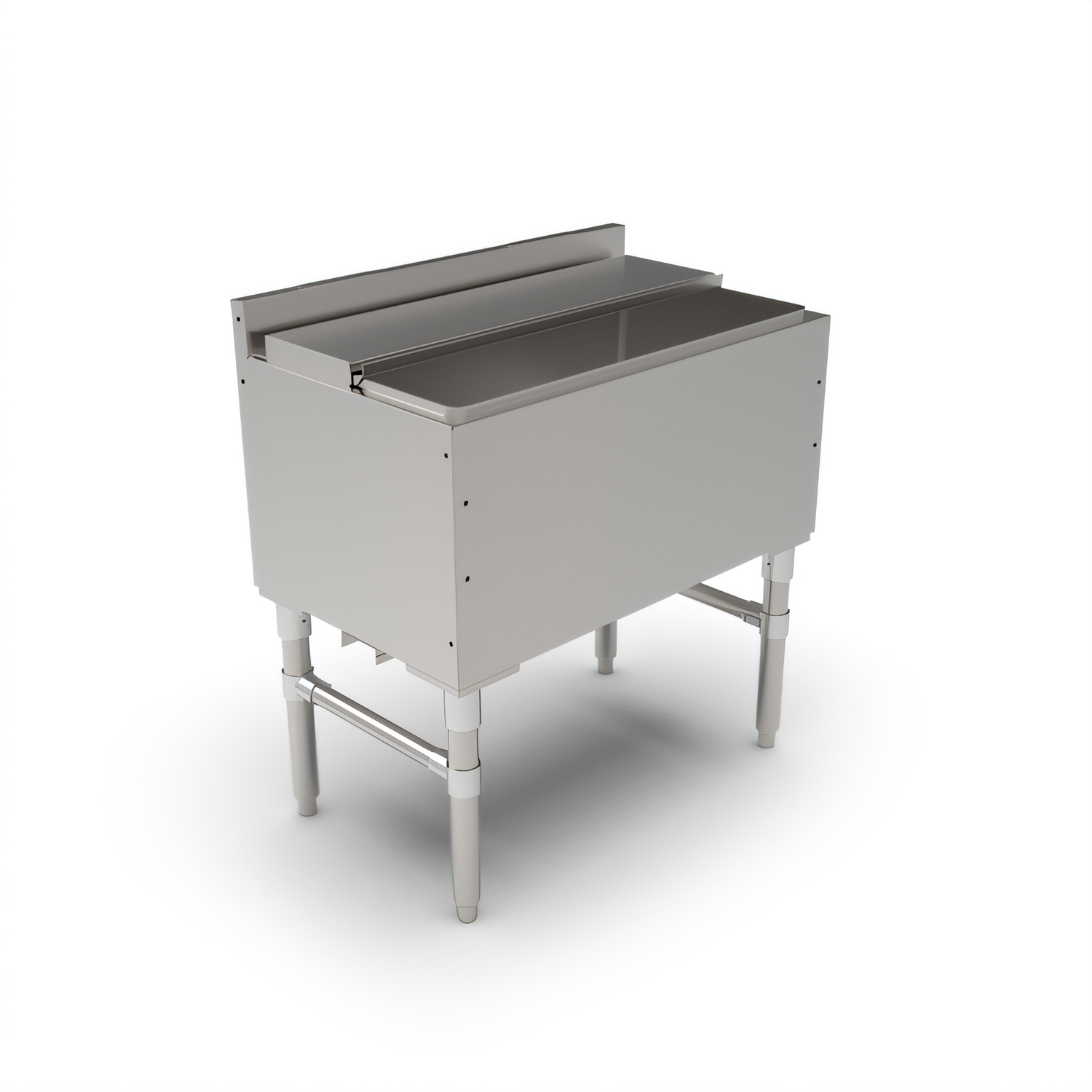

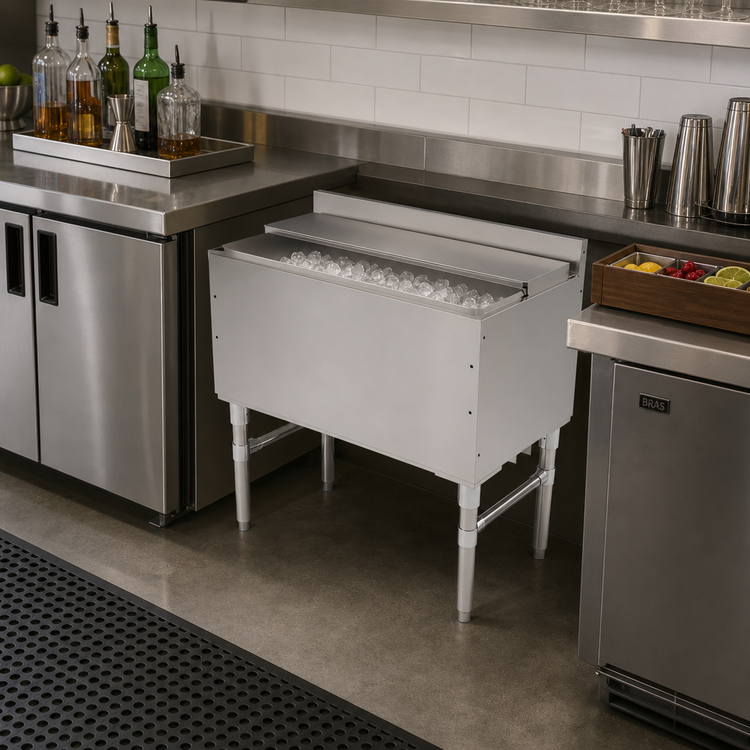

Slim-Line 30" Underbar Ice Bin w/ 7-Circuit Cold Plate
John Boos Model UBIB-1830-CP7 • NSFKeep cocktails flowing and fountain beverages ice-cold in even the tightest bar layouts. The John Boos Slim-Line Ice Bin delivers maximum chilling power in a space-saving 18" front-to-back footprint—all wrapped in rugged 18 GA Type 300 stainless steel built to thrive in busy commercial environments.
Key Features
- Slim-Line profile—only 18" deep to fit narrow underbar runs

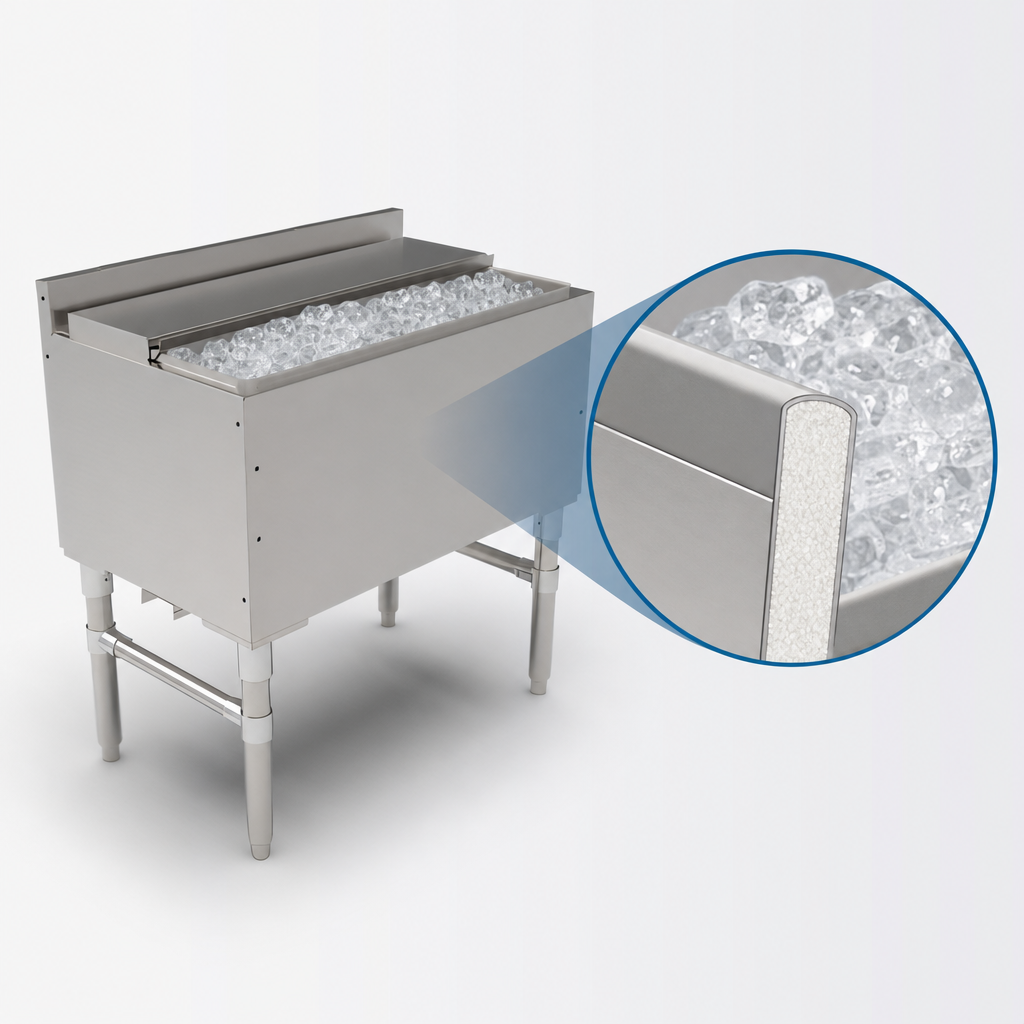

- Generous 28" W x 15" D x 13-1/2" H foam-insulated ice bin

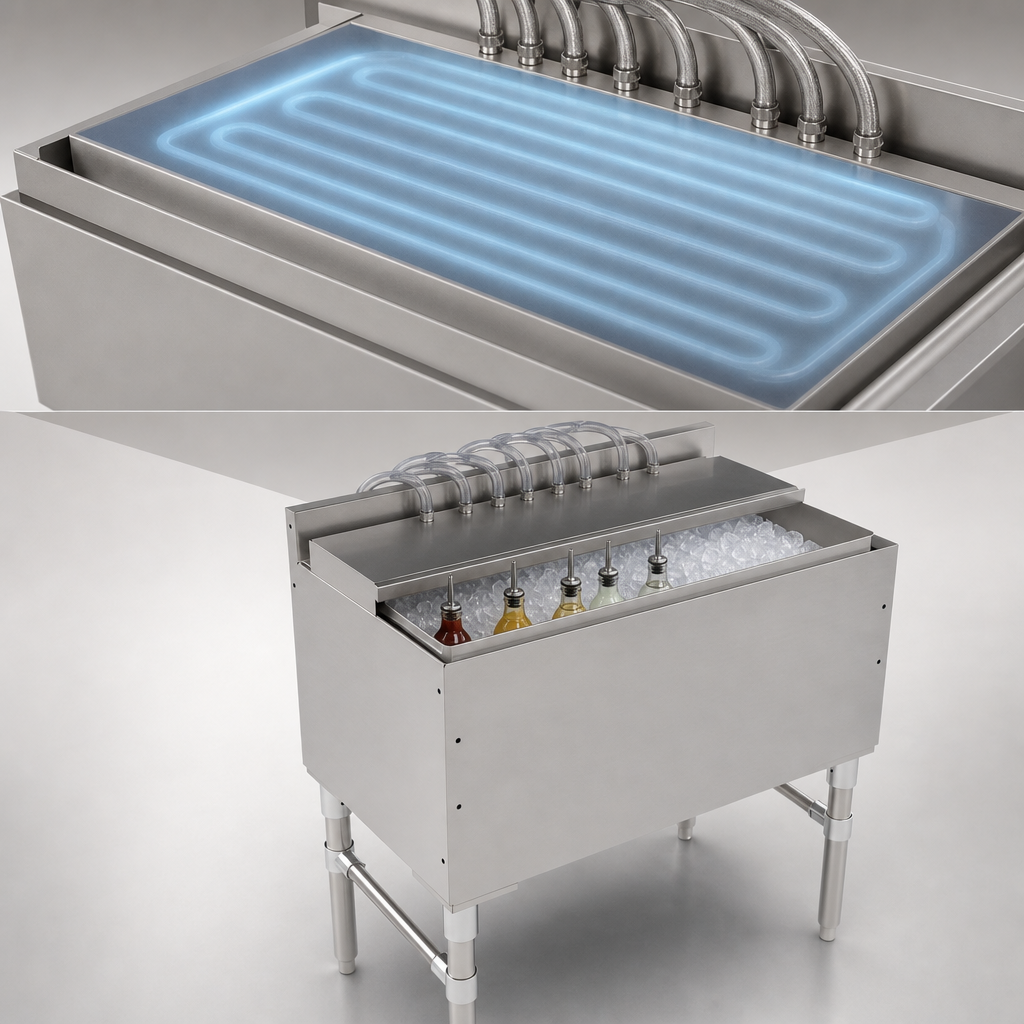

- Integrated 7-circuit cold plate for direct-draw soda gun lines
- 2-piece sliding stainless-steel lid keeps ice sanitary & easy to access
- 3" high backsplash with removable access plates for quick plumbing
- 18 GA Type 300 stainless steel top, apron, sides & backsplash (#4 satin finish)
- 1-5/8" dia. stainless legs with stainless front-to-back bracing
- Adjustable 1" stainless bullet feet for fast, wobble-free leveling
- 1-7/8" drain opening with 1" MPT (3-1/4" L) drain connection
- Factory-installed threaded inserts on sides & front for attaching speed rails or adjoining underbar pieces
At-a-Glance Specifications
| Overall Dimensions | 30" W × 18" D × 32-1/2" H |
|---|---|
| Interior Bin Size | 28" W × 15" D × 13-1/2" H |
| Cold Plate | Aluminum, 7 independent circuits |
| Material / Finish | 18 GA Type 300 stainless steel / #4 satin |
| Legs & Bracing | 1-5/8" dia. stainless legs with 1-1/4" front-to-back bracing |
| Feet | Adjustable stainless bullet feet (±1") |
| Drain | 1-7/8" dia. opening, 1" MPT outlet |
| Shipping Weight | 112 lb (additional packaging may apply) |
| Certifications | NSF |
Popular Accessories (sold separately)
- UBSS-18-L / UBSS-18-R – 18" Slim-Line left or right side splash
- UBSR1 & UBSR2 Series – Single or double speed rails (24", 30", 36")
- UBIBL-1830-BWH – Bottle well holder with lid for 30" × 18" ice bins
Stainless Steel Care
For a lifetime of corrosion-free service, clean daily with non-chloride, non-abrasive cleansers and wipe dry, following the grain. Avoid bleach or metal scouring pads. John Boos Stainless Steel Cleaner is recommended for routine polishing.
