John Boos UBIB-1830-CP7 Slim-Line Bar Equipment
Description

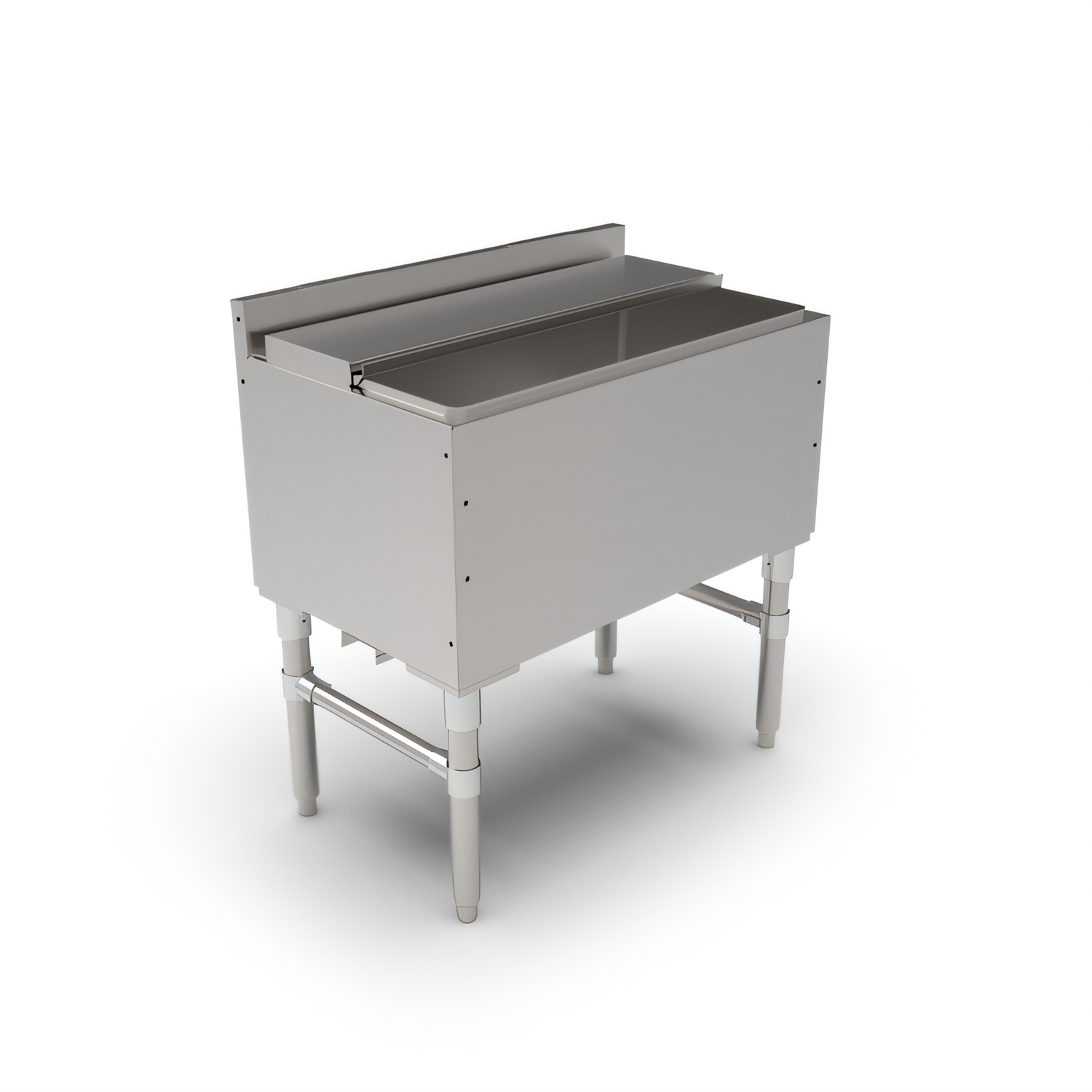

John Boos “Slim-Line” 30" Underbar Ice Bin / Cocktail Unit w/ 7-Circuit Cold Plate
Model UBIB-1830-CP7 | NSF Certified Stainless SteelKeep cocktails flowing and soda lines chilled without giving up valuable bar space. The John Boos Slim-Line underbar ice bin tucks a high-performance, 7-circuit cold plate into a narrow 18" footprint, delivering bar-ready ice and ice-cold beverage service in one compact, easy-to-clean station.
Key Features
- Space-saving 30" W × 18" D Slim-Line profile—perfect for tight bar runs.

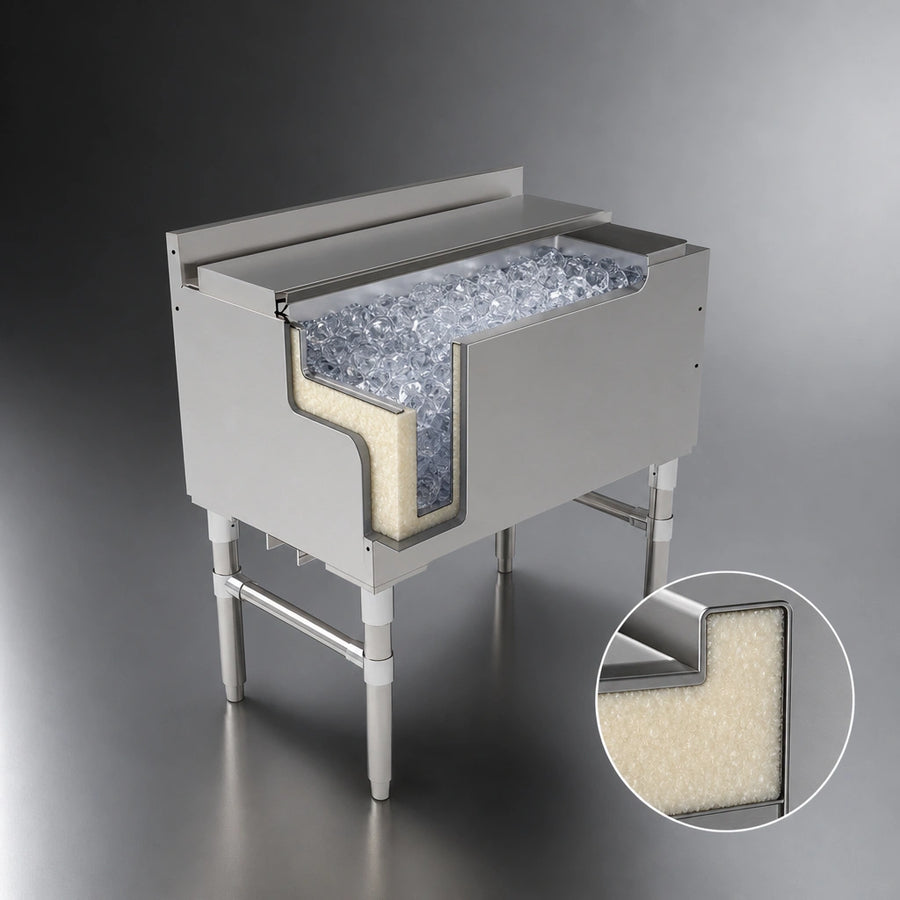

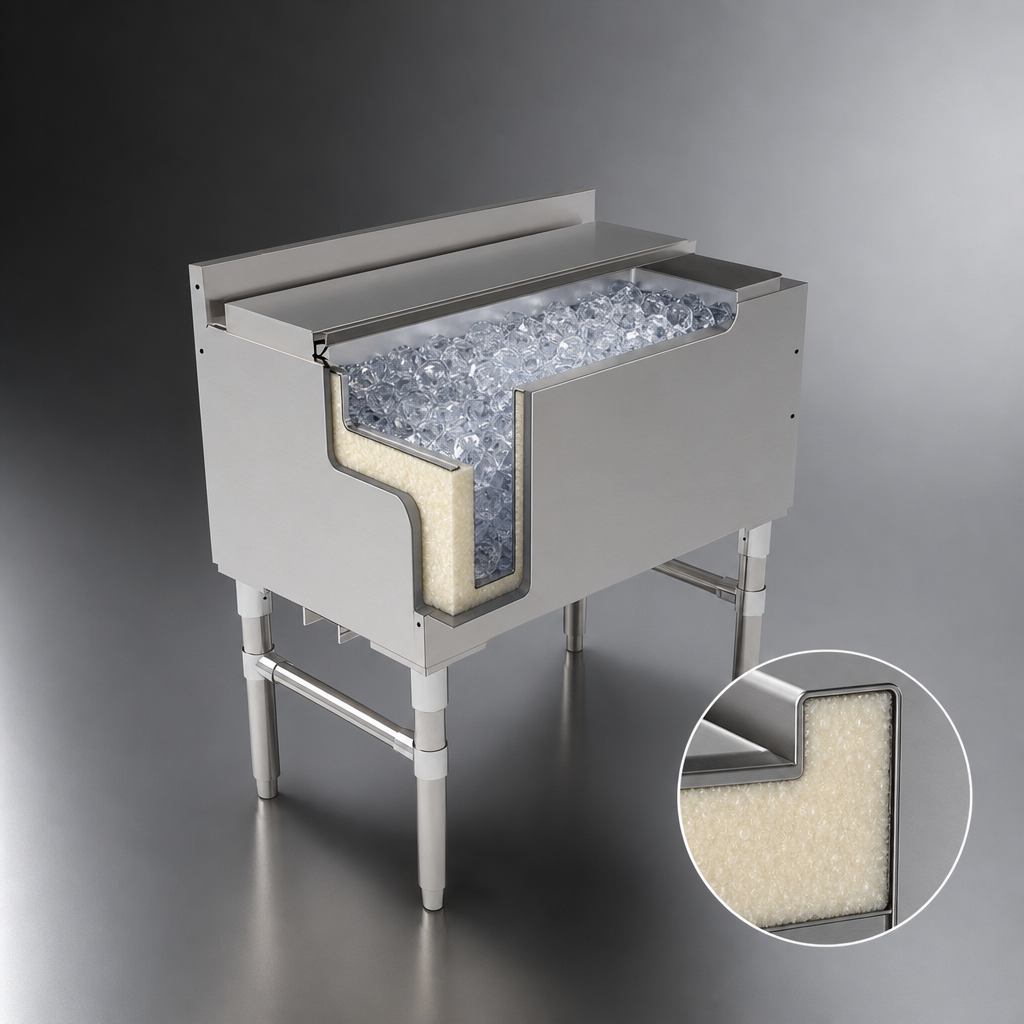

- Foam-insulated ice bin (28" W × 15" D × 13-1/2" H) holds temperature longer and reduces ice melt.

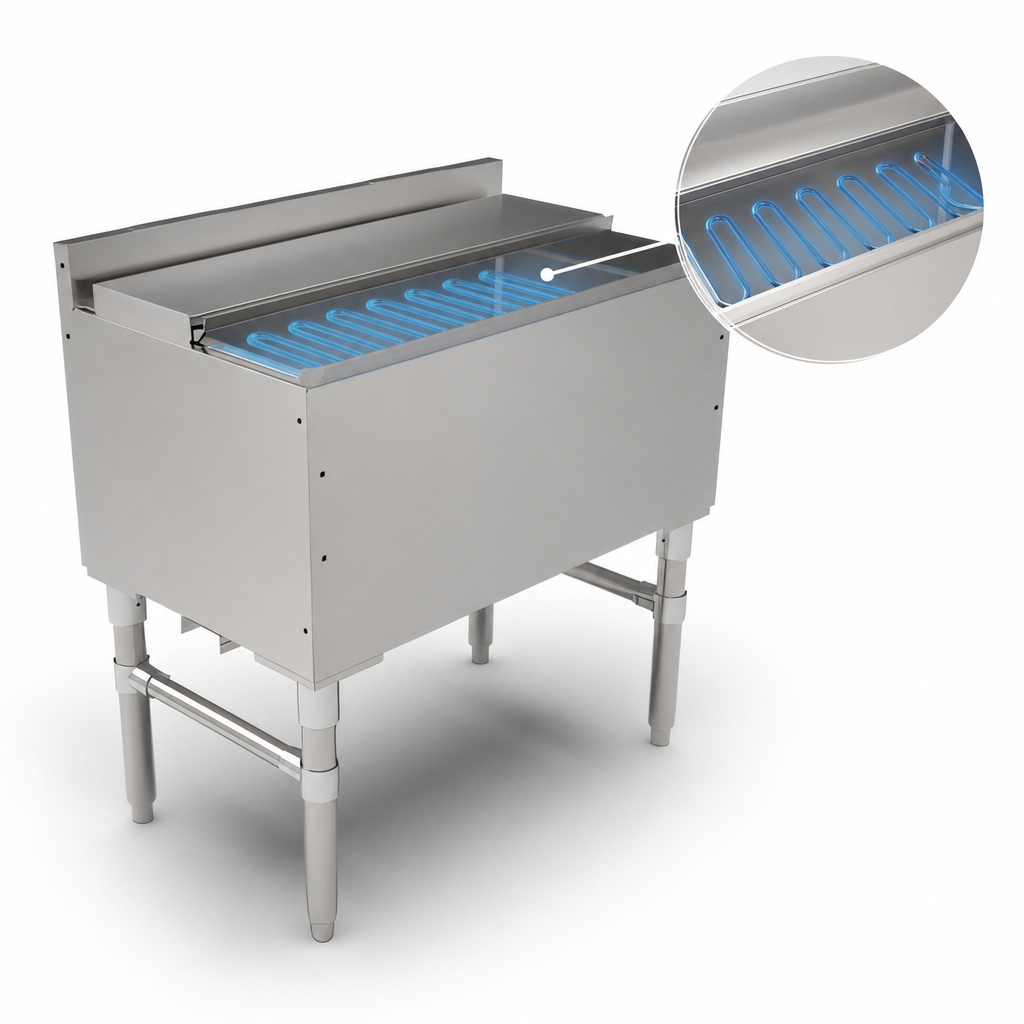

- Integrated 7-circuit cold plate chills up to seven beverage lines right inside the bin.
- Durable 18 ga, Type 300 stainless steel with #4 satin finish—built for heavy commercial use.
- Includes smooth-glide, two-piece sliding stainless steel lid to protect ice from debris.
- 3" high backsplash with access plates for easy soda-gun line routing.
- Factory-installed 1-5/8" diameter stainless legs, 1-1/4" front-to-back bracing & 1" adjustable bullet feet for fast leveling.
- 1-7/8" diameter drain with 1" MPT, 3-1/4" long connection simplifies plumbing.
- Threaded side inserts & front inserts accept adjoining underbar units and speed rails—no drilling required.
- NSF listed for peace of mind in any commercial bar, club, hotel or restaurant.
At-a-Glance Specs
| Overall dimensions | 30" W × 18" D × 32-1/2" H |
|---|---|
| Ice bin interior | 28" W × 15" D × 13-1/2" H (insulated) |
| Cold plate | 7 beverage circuits (integrated) |
| Material / gauge | 18 ga Type 300 stainless steel, #4 satin polish |
| Backsplash height | 3" |
| Feet | 1" adjustable stainless steel bullet feet |
| Drain connection | 1" MPT, 3-1/4" long (1-7/8" drain opening) |
| Unit weight | Approx. 112 lb (excluding packaging) |
| Certifications | NSF |
Compatible Add-Ons (Sold Separately)
- UBSR1-30 or UBSR2-30 Speed Rails (single or double) — 30" length.
- UBSS-18-L / UBSS-18-R Left or Right Side Splash kits.
- UBIBL-1830-BWH Bottle Well Holder with lid — drops directly into 30" × 18" bins.
Care & Maintenance
- Clean daily with non-chloride stainless cleanser and a soft towel; always wipe with grain lines.
- Avoid abrasive pads or wire brushes that can break the protective chromium film.
- Rinse away bar salts and citrus acids promptly to prevent pitting and rust.
For heavy build-up or surface corrosion, John Boos recommends Bar Keepers Friend® followed by Boos Block® Stainless Steel Cleaner.
Dimensions are typical; tolerances ±0.5". Shipping and packaging may affect final weight.
