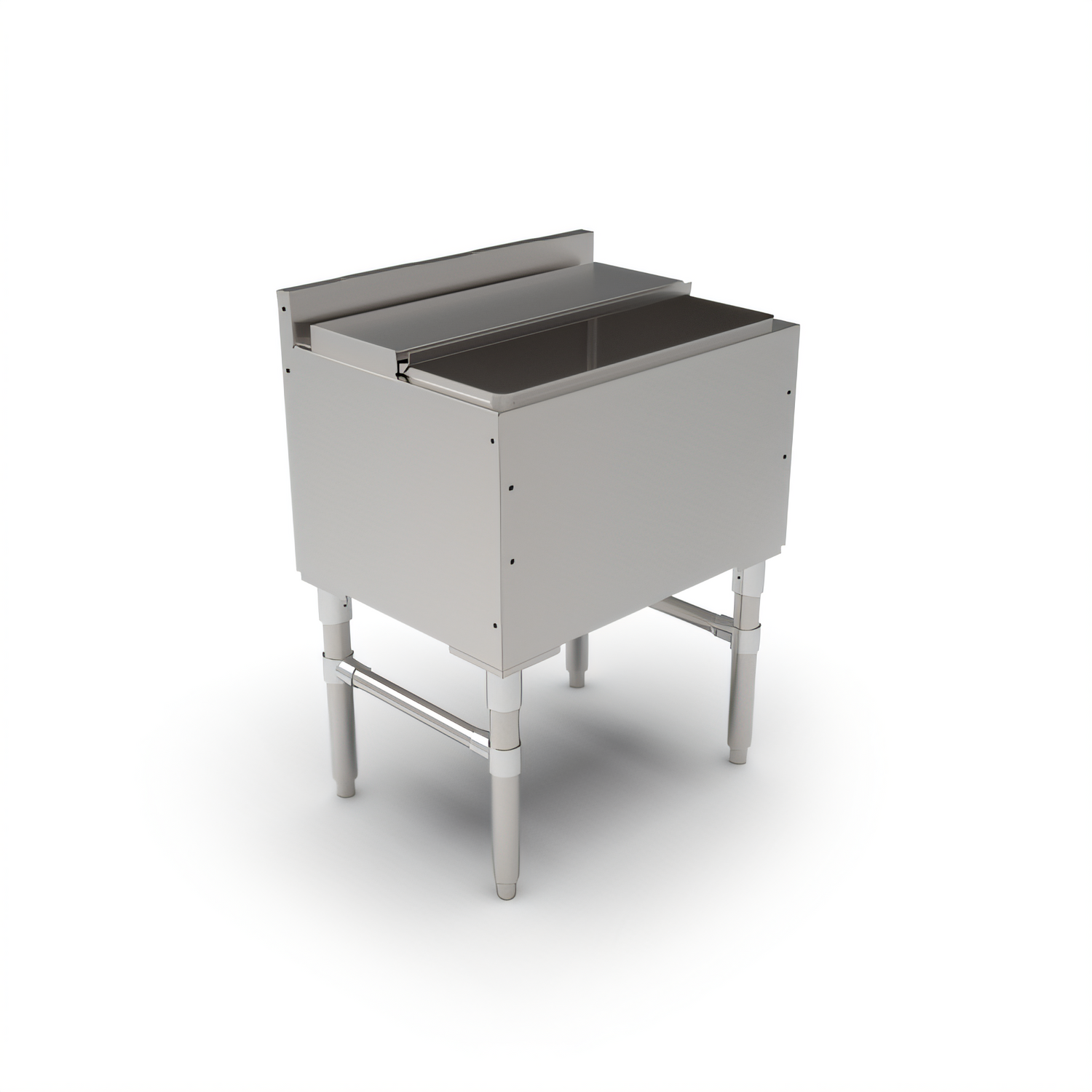

John Boos Slim-Line 24-Inch Underbar Ice Bin/Cocktail Unit with 2-Piece Sliding Lid

Foam-Insulated, Stainless Steel Construction, 18-Inch Deep

Built for busy bars, this compact Slim-Line ice bin combines insulated ice storage, stainless steel durability, and modular mounting features in one space-saving underbar unit.

  • 24-inch-wide underbar ice bin/cocktail unit with a compact 18-inch-deep footprint
  • Foam-insulated design helps hold ice longer during busy service
  • Includes a 2-piece sliding lid for easy access and coverage
  • Stainless steel legs, side bracing, and adjustable bullet feet support a stable install
  • Threaded side inserts, front inserts, and backsplash access plates help integrate adjacent units, speed rails, and beverage lines

Overall Dimensions:

24.0"W x 18.0"D x 32.5"H

Product Weight:

65.0 lb

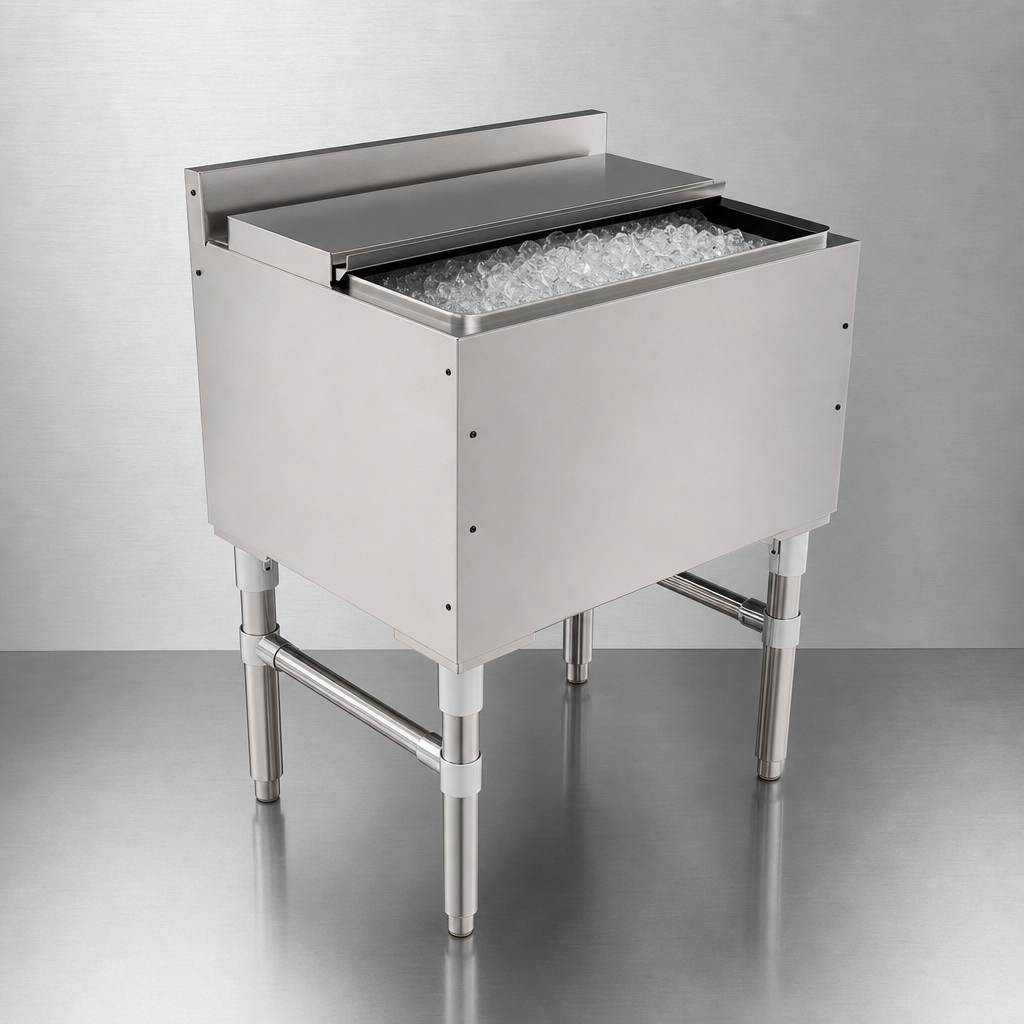

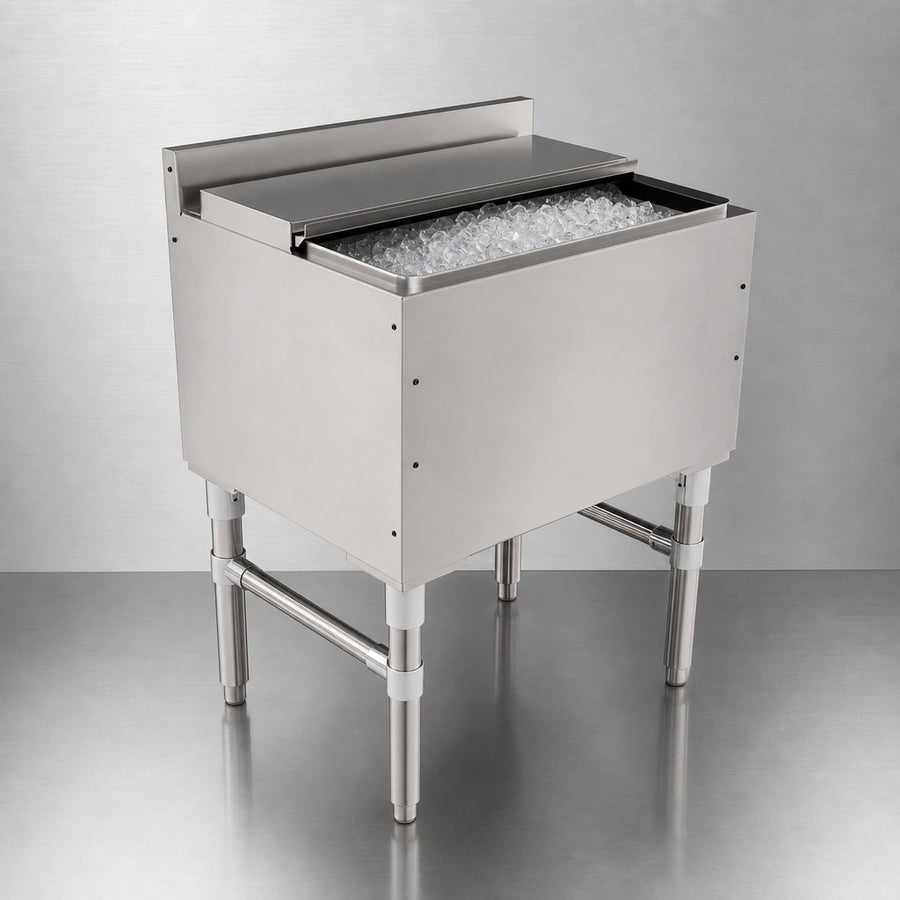

Non-Refrigerated Ice Bin

Standard insulated ice storage design without a cold plate.

Non-Refrigerated Ice Bin

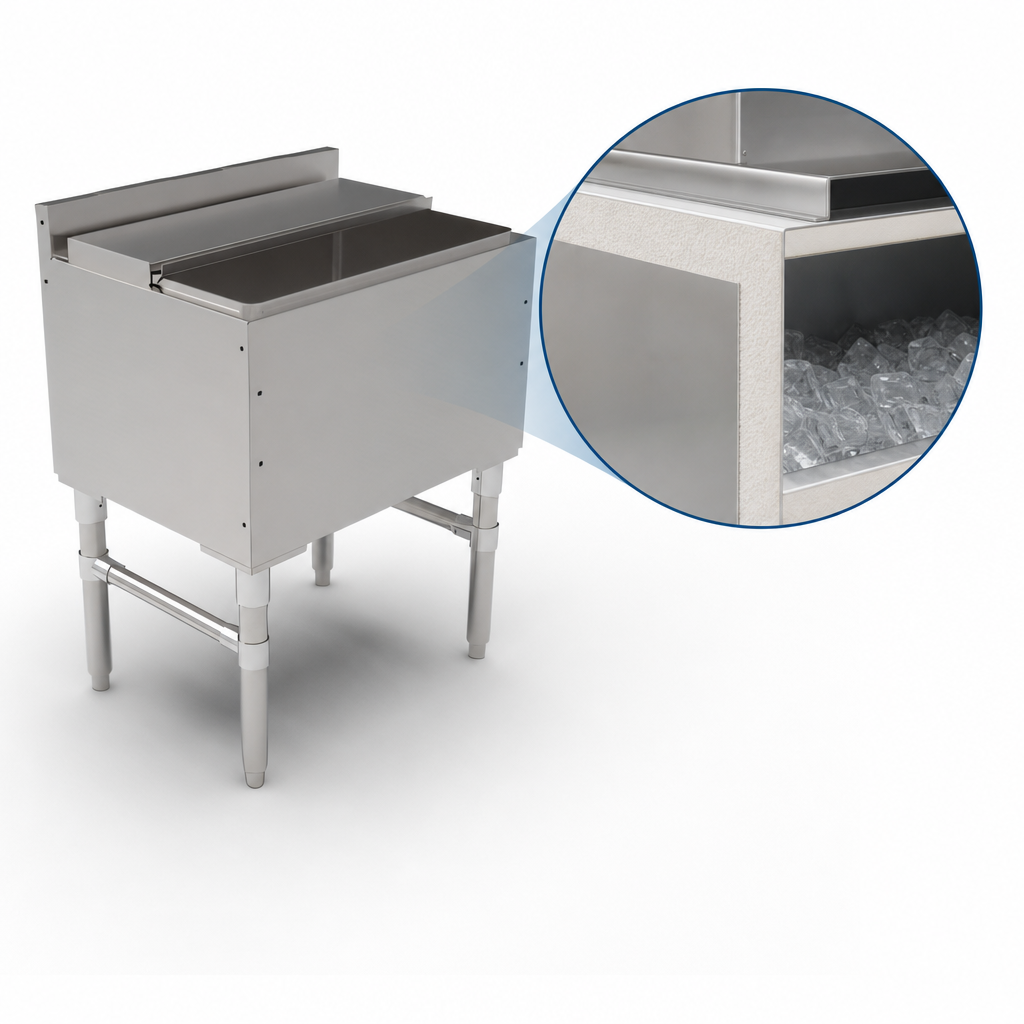

Foam-Insulated Bin

Insulated construction helps keep ice colder longer during service.

Foam-Insulated Bin

Sized Ice Well

The insulated ice bin measures 22 inches wide x 15 inches front-to-back x 13-1/2 inches deep.

18-Gauge Stainless Steel Construction

Durable type 300 stainless steel build with a #4 polish, satin finish.

2-Piece Sliding Lid

Included lid provides easy access and helps cover the bin between uses.

Modular Attachment Points

Threaded side inserts let you connect adjacent underbar units together.

Speed Rail and Beverage Line Ready

Front inserts and backsplash access plates support speed rail attachment and soda gun line routing.

Stainless Steel Legs and Bullet Feet

Bolt-on stainless steel legs, side bracing, and adjustable bullet feet help simplify installation and leveling.

Type Underbar Ice Bin/Cocktail Unit
Style Slim-Line
Installation Type Floor Model (With Legs)
Material Stainless Steel
Finish Satin Finish
Width 24 Inches
Depth 18 Inches
Height 33 Inches
Weight 65 lb.
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download PDF Assembly instructions PDF Download PDF Instructions PDF Download PDF Care & maintenance PDF Download

Frequently Asked Questions

Yes. It includes a 2-piece sliding lid.
Yes. The bin is foam-insulated to help keep ice colder longer.
The overall size is 24 inches wide x 18 inches deep x 32-1/2 inches high.
It includes a 1-7/8-inch drain plug and a 1-inch MPT, 3-1/4-inch long drain connection.
Yes. Standard threaded side inserts and bolt-on mounting support attaching adjacent units together.
Listed accessories include side splashes, single and double speed rails, and bottle well holders with lids.
