John Boos UBIB-1824 Slim-Line Bar Equipment
Description

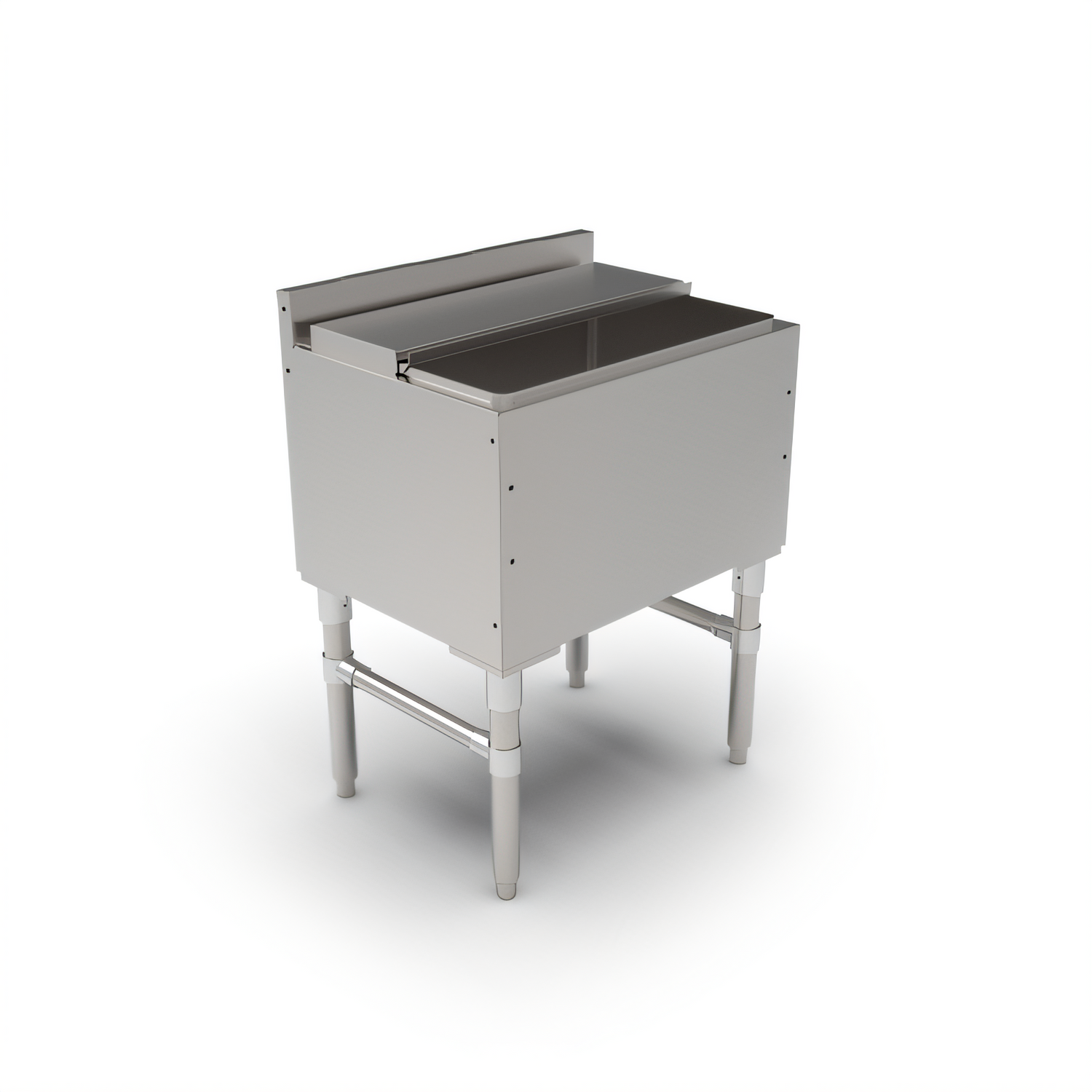

Slim-Line 24" Underbar Ice Bin / Cocktail Station
John Boos – Model UBIB-1824 • NSF CertifiedDesigned for bars where every inch matters, the Slim-Line Ice Bin delivers full-size ice capacity in a space-saving 18 inch footprint. Premium 18 gauge, type 300 stainless steel, paired with commercial-grade insulation, keeps your ice colder, service faster, and bartenders happier.
Key Features
- Space-saving 24" W × 18" D profile fits narrow underbar layouts.
- Foam-insulated ice bin (22" W × 15" D × 13-1/2" H) maintains ice integrity throughout the shift.
- 18 GA type 300 stainless steel with #4 satin polish resists corrosion and wipes clean.
- Two-piece sliding stainless lid protects ice and slides out of the way during rushes.
- 3" backsplash with removable access plates for soda gun or remote line routing.
- 1-7/8" drain plug with 1" MPT (3-1/4" L) connection for fast, reliable drainage.
- Bolt-on 1-5/8" stainless legs, stainless side bracing, and 1" adjustable bullet feet for rock-solid stability.
- Pre-threaded side inserts for adjoining underbar units and front inserts for speed rails or blender shelves.
- NSF listed for safe, sanitary beverage service.
Ideal Applications
- Cocktail & wine bars with limited aisle depth
- High-volume restaurants and nightclubs
- Catering lines, event venues, and mobile bars
Specifications
| Overall Dimensions (W × D × H) | 24" × 18" × 32-1/2" |
|---|---|
| Ice Bin Interior | 22" W × 15" D × 13-1/2" H (foam insulated) |
| Backsplash Height | 3" |
| Material | 18 GA type 300 stainless steel, #4 satin finish |
| Drain | 1-7/8" drain plug, 1" MPT × 3-1/4" L connection |
| Legs & Feet | 1-5/8" Ø stainless legs, stainless side bracing, 1" adjustable bullet feet |
| Weight | 65 lb (shipping weight may vary with packaging) |
| Included | Two-piece sliding lid, pre-installed threaded inserts |
| Certifications | NSF |
Compatible Accessories (sold separately)
- Single or double speed rails – 24", 30", 36"
- Left- or right-hand 18" side splashes
- Bottle well holder with lid – 24" × 18"
Care & Maintenance
Clean daily with non-chloride detergent and a soft cloth; rinse and dry along the grain. Avoid abrasive pads or bleach. For deep cleaning, use Bar Keepers Friend or John Boos Stainless Steel Cleaner to restore the protective finish.
