John Boos Slim-Line 24-Inch Stainless Steel Underbar Ice Bin/Cocktail Unit with 7-Circuit Cold Plate

18-Inch Deep, 3-Inch Backsplash, Includes 2-Piece Sliding Lid

A compact, bar-ready ice bin that combines insulated storage, a 7-circuit cold plate, and durable stainless steel construction for efficient beverage service.

  • Compact 24-inch-wide Slim-Line footprint fits underbar beverage service layouts.
  • Foam-insulated ice bin and integrated 7-circuit cold plate help keep service cold.
  • 18-gauge Type 300 stainless steel construction is built for demanding bar use.
  • Includes a 2-piece sliding lid, drain connection, and 3-inch backsplash.
  • Threaded side inserts, front mounting points, legs, and adjustable bullet feet simplify installation and integration.

Overall Dimensions:

24.0"W x 18.0"D x 32.5"H

Product Weight:

102.0 lb

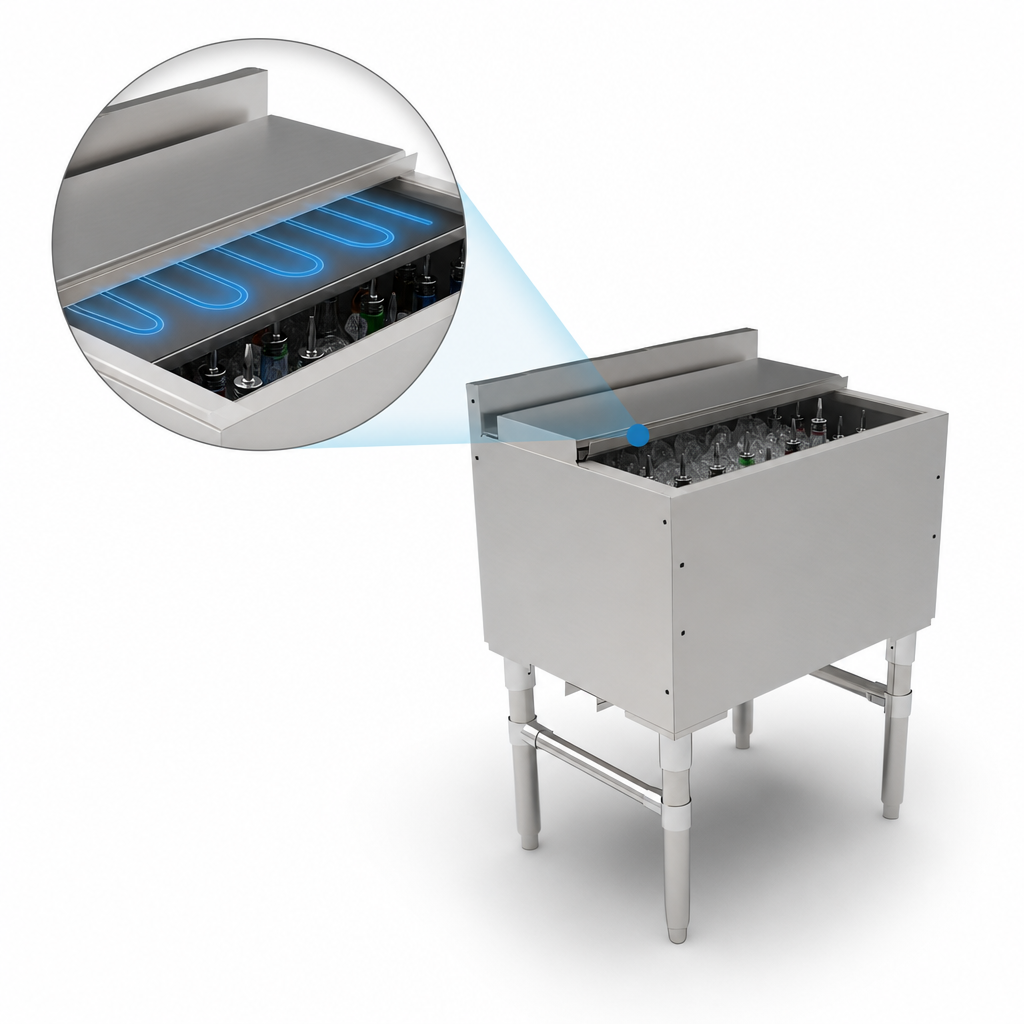

7-Circuit Cold Plate

Integrated cold plate helps chill beverage lines during service.

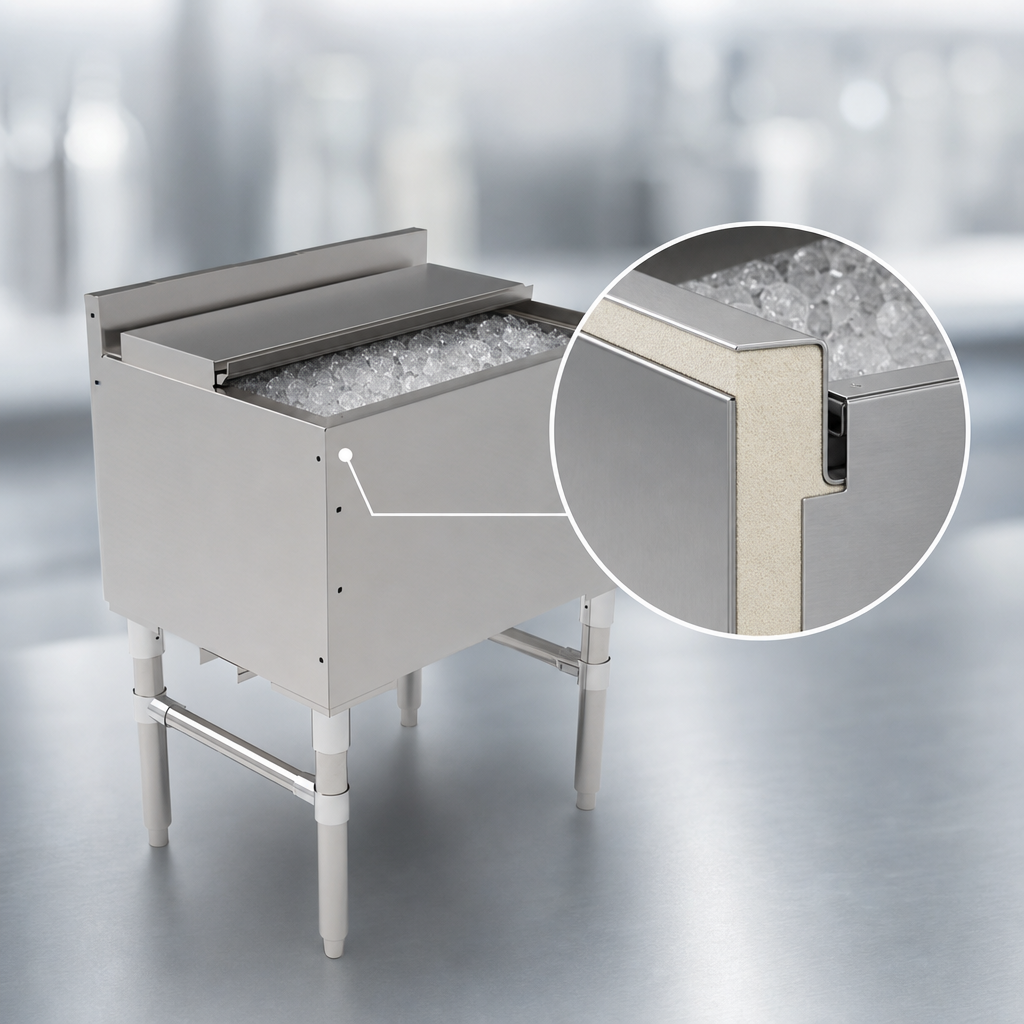

Foam-Insulated Ice Bin

Insulated bin helps retain ice and reduce melt.

2-Piece Sliding Lid

Included sliding lid helps cover and protect the ice bin when not in use.

Type 300 Stainless Steel Construction

18-gauge stainless steel build with #4 polish, satin finish for durability and easy cleaning.

3-Inch Backsplash

Helps contain splashes and includes access plates for soda gun lines.

Adjacent Unit Mounting

Standard threaded side inserts allow the unit to bolt to adjacent underbar pieces.

Speed Rail Mounting

Front inserts provide attachment points for speed rails and similar accessories.

Stainless Steel Legs and Bullet Feet

Bolt-on stainless steel legs, bracing, and adjustable bullet feet help support stable installation.

Drain Assembly

Includes a 1-inch MPT drain connection and drain plug for drainage.

Wall-Mount Support

Z-clip mounting support helps secure the unit to the wall during installation.

Type Underbar Ice Bin/Cocktail Unit
Style Slim-Line
Installation Type Floor Model (With Legs)
Material Type 300 Stainless Steel
Finish #4 Polish, Satin Finish
Cold Plate 7 Circuit
Lid Type 2-Piece Sliding
Backsplash Height 3 Inches
Drain Connection Required
Drain Connection Size 1 Inch MPT
Shipping Width 24 Inches
Shipping Depth 18 Inches
Shipping Height 33 Inches
Shipping Weight 102 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Assembly instructions PDF Download PDF Instructions PDF Download PDF Care & maintenance PDF Download

Frequently Asked Questions

The overall size is 24 inches wide by 18 inches deep by 32-1/2 inches high.
Yes, it includes a 7-circuit cold plate.
Yes, a 2-piece sliding lid is included.
It includes a 1-inch MPT, 3-1/4-inch long drain connection and a drain plug.
Yes, standard threaded side inserts are provided for attaching adjacent units together.
