John Boos UBHS-2112 Slim-Line Bar Equipment
John Boos UBHS-2112 Slim-Line Bar Equipment is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
John Boos UBHS-2112 Slim-Line Bar Equipment
Description

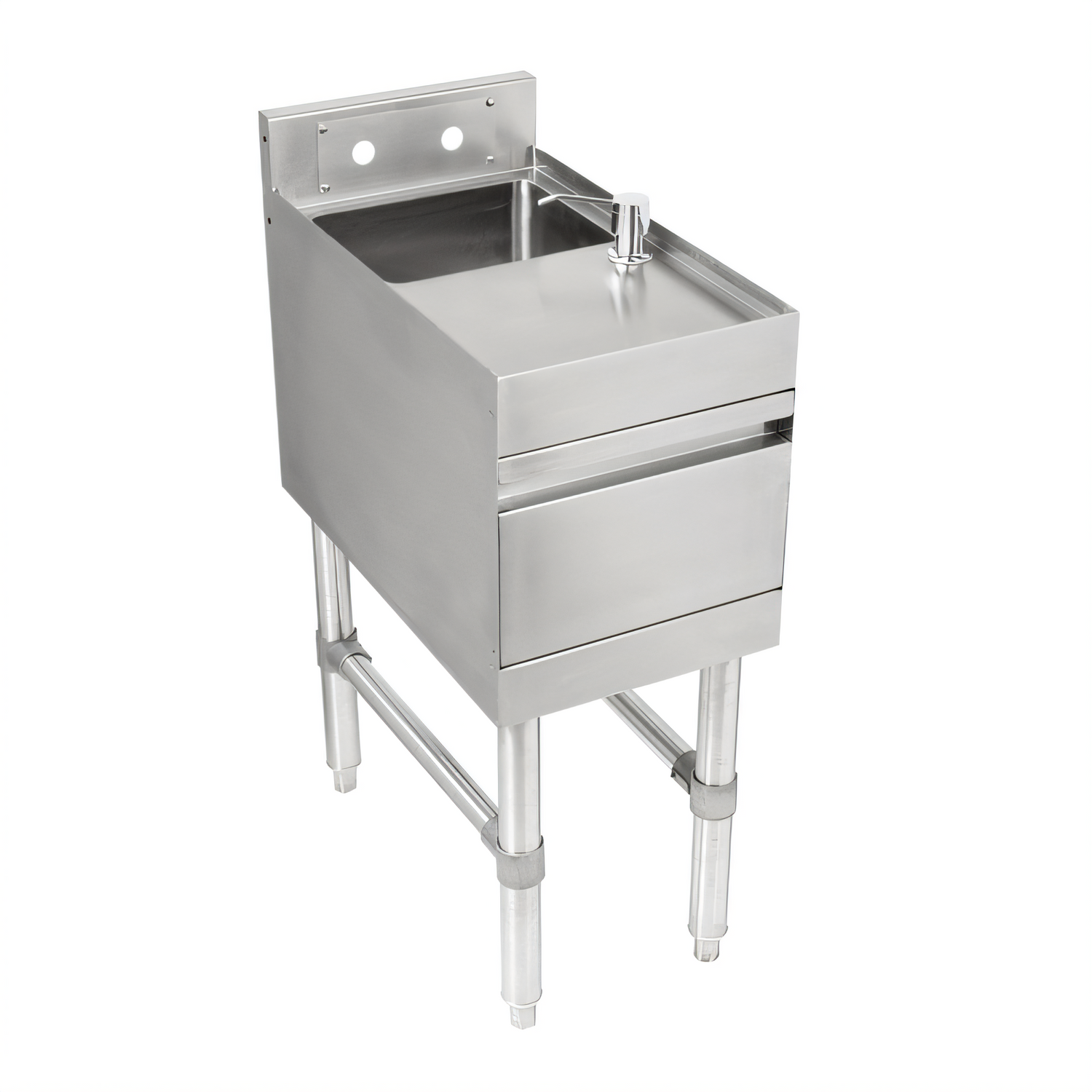

Slim-Line 12" Underbar Hand Sink
John Boos Model UBHS-2112 | NSF ListedPurpose-built for crowded bar stations, coffee shops, and satellite service areas, the John Boos Slim-Line hand sink delivers full-size sanitation capability in a space-saving 12 inch footprint. Heavy-gauge stainless steel construction, built-in dispensers, and easy-install features help you meet health code requirements without slowing down service.
Key Features
- Heavy-duty 18 GA Type 300 stainless steel with #4 satin finish
- Compact 12"W x 21"D body fits tight underbar layouts
- Fabricated sink bowl: 10"W x 8"D x 6"H with 1-7/8" drain & basket strainer
- 3" high backsplash plus removable faucet plate with 4" on-center splash-mount holes for fast plumbing
- Integrated deck-mount soap dispenser and front-mount paper-towel dispenser (both stainless steel)
- Bolt-on 1-5/8" stainless steel legs, front-to-back bracing, and wall Z-clip for rock-solid stability
- 1" adjustable stainless bullet feet level the sink on uneven floors
- Side mounting holes allow linking to other John Boos underbar modules
- NSF certified for hand-washing compliance
Specifications
| Overall dimensions | 12" W × 21" D × 33 ½" H (to top of backsplash) 32 ½" deck height, plus 1" foot adjustment |
|---|---|
| Sink bowl (L × F-B × Depth) | 10" × 8" × 6" |
| Backsplash height | 3" |
| Faucet plate | Removable, 4" on-center splash-mount holes |
| Drain connection | 1-½" NPS |
| Material / finish | 18 GA Type 300 stainless steel, #4 satin |
| Weight | 36 lb (unit only) |
| Certifications | NSF, AutoQuotes (Revit family available) |
Compatible Accessories (sold separately)
- PBF-4SM2-3GLF heavy-duty splash-mount faucet
- PBF-W2-3GLF economy splash-mount faucet
- PB-WL-36 flexible shallow-mount faucet hoses
- UBSS-21-L / UBSS-21-R left or right side splash
Simple Installation
- Bolt-on legs speed assembly—no welding required
- Removable faucet plate lets you plumb after the unit is secured
- Z-clip provided for quick wall anchoring
- Pre-drilled side holes join adjacent underbar units with four #8-32 screws
Care & Maintenance
- Clean daily with non-chloride cleaner and soft cloth
- Avoid abrasive pads or wire brushes that can break the stainless “passive” film
- Use Bar Keepers Friend for tough stains; rinse and dry thoroughly
- Finish with John Boos Stainless Steel Cleaner to restore the satin sheen
Need help choosing a faucet or side splash? Contact our sales team—most orders ship in 3–5 business days.
