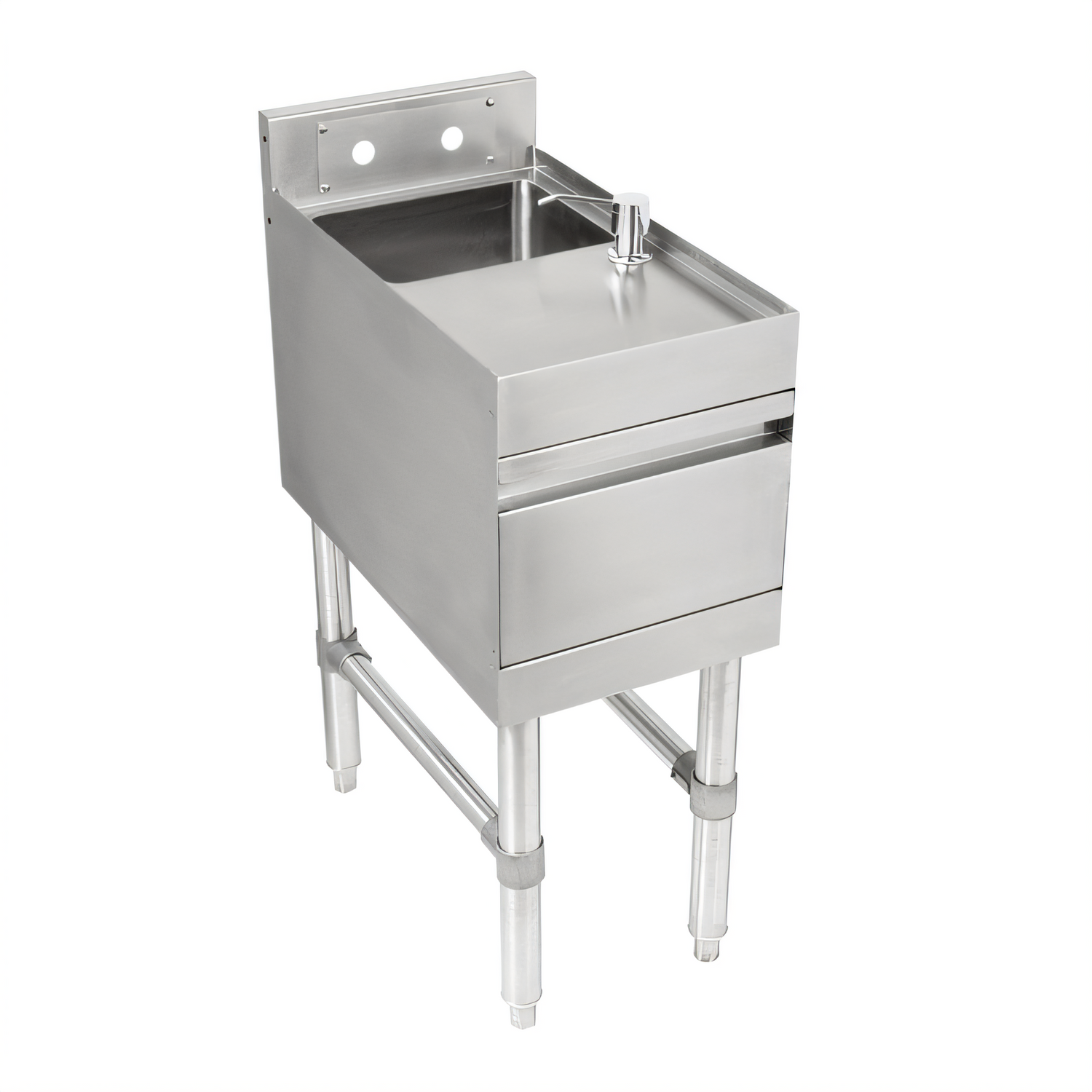

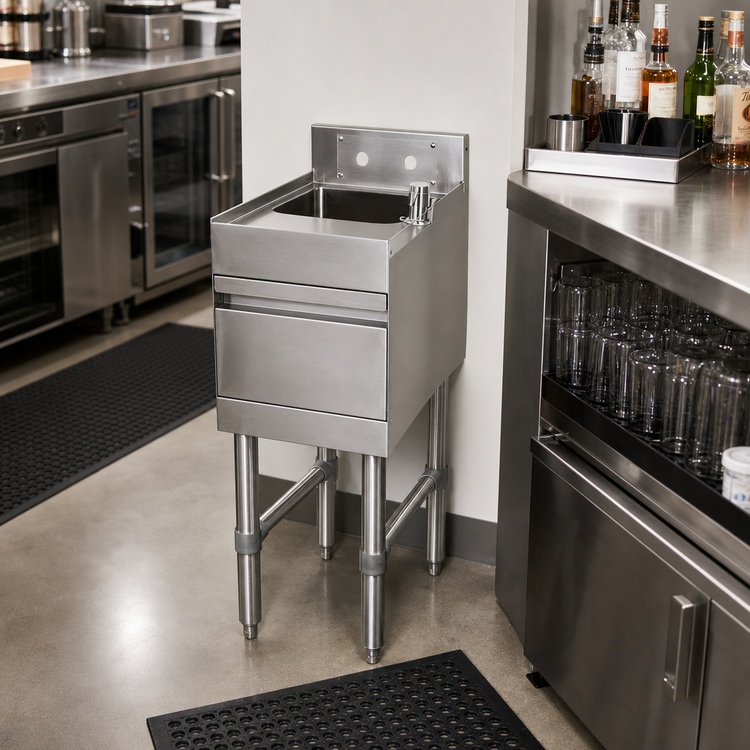

John Boos Slim-Line Freestanding Underbar Hand Sink, 12 x 18 x 32-1/2 Inches, 1 Bowl

300-Series Stainless Steel, Satin Finish, 3-Inch Backsplash

A compact, corrosion-resistant hand sink that brings a sanitary wash station and built-in dispenser mounting to busy bar and beverage areas.

  • Freestanding Slim-Line underbar hand sink sized for compact beverage and bar service spaces.
  • 18-gauge, 300-series stainless steel construction with satin finish for durability.
  • Fabricated 10" x 8" x 6" deep sink bowl supports handwashing tasks.
  • Removable faucet plate with 4" on-center splash-mount holes simplifies faucet placement.
  • Built-in soap and towel dispenser mounts help streamline sanitation setup.
  • Adjustable stainless steel bullet feet, side bracing, and wall-mount Z-clip support flexible installation.

Overall Dimensions:

12.0"W x 18.0"D x 32.5"H

Product Weight:

35.0 lb

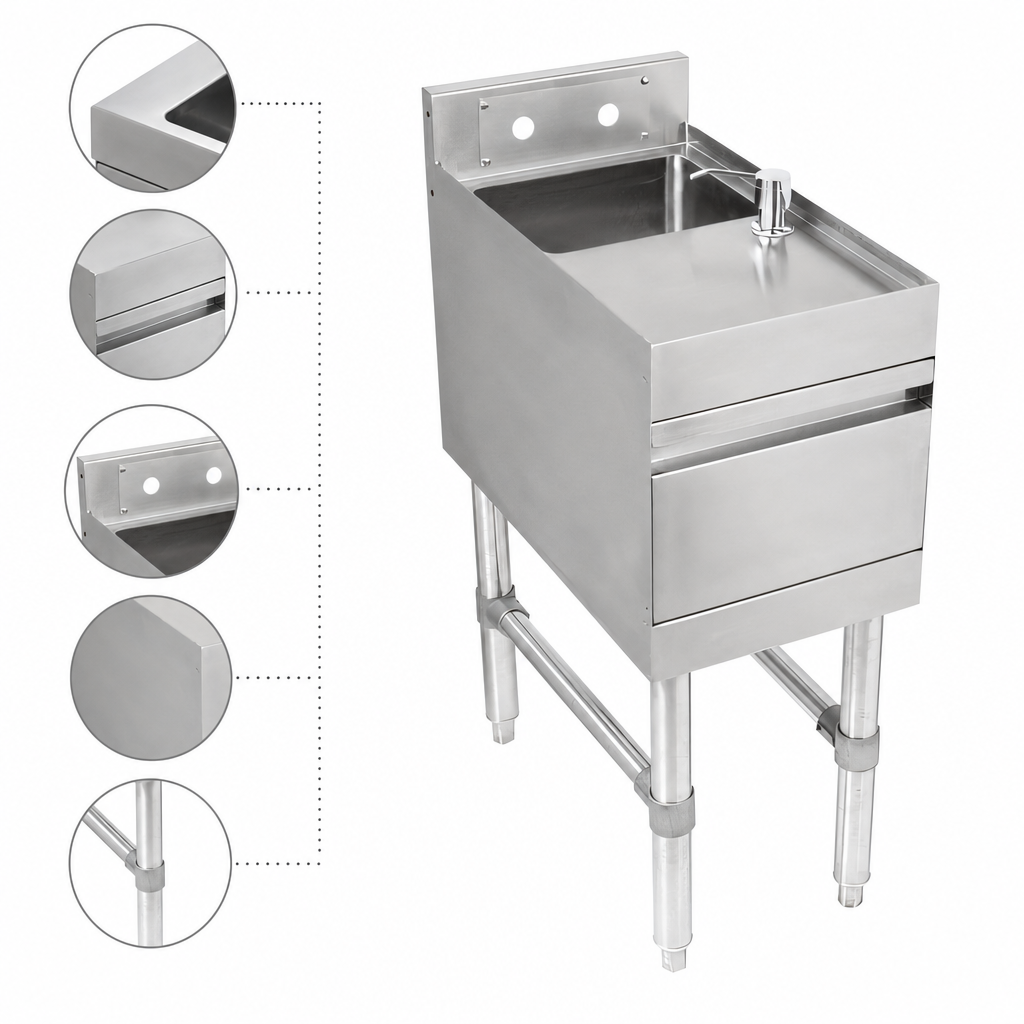

18-Gauge Stainless Steel Construction

Top, front apron, backsplash, sides, and legs are built from 18-gauge Type 300 stainless steel for strength and corrosion resistance.

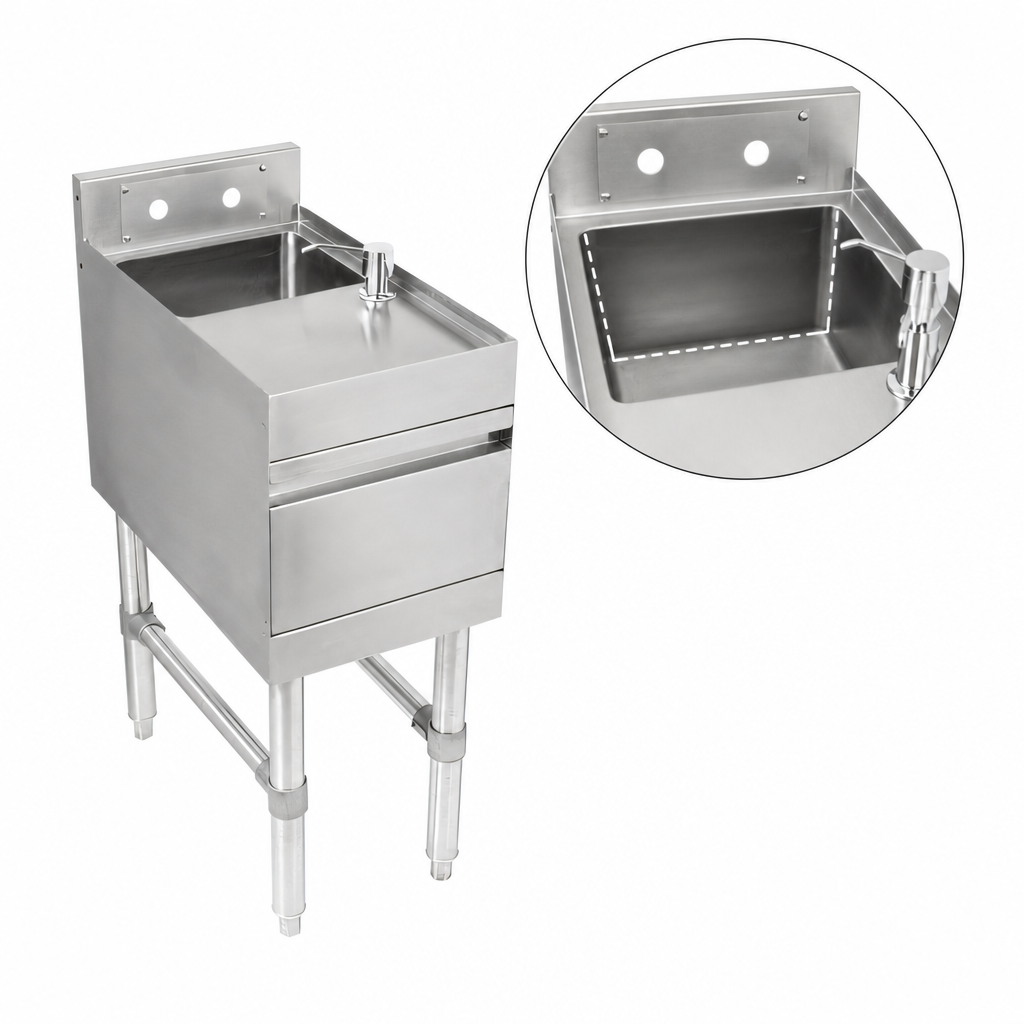

Fabricated Single Sink Bowl

Includes one fabricated bowl measuring 10" x 8" x 6" deep for handwashing use.

3-Inch Backsplash

The integrated backsplash helps reduce splashing and protect nearby surfaces.

Removable Faucet Plate

A removable faucet plate provides 4-inch on-center splash-mount faucet holes and makes plumbing access easier.

Built-In Dispenser Mounts

Designed with mounting points for a deck-mount soap dispenser and a front-mount towel dispenser.

Stainless Steel Legs And Bracing

Bolt-on stainless steel legs and front-to-back bracing add stability during daily use.

Adjustable Bullet Feet

Adjustable stainless steel bullet feet help level the sink on uneven floors.

Flexible Installation Options

Pre-drilled side holes allow adjacent units to be connected, and a Z-clip is provided for wall mounting.

Integrated Drain Connection

Supplied with a 1-7/8-inch drain and basket plus a 1-1/2-inch NPS drain connection.

Type Underbar Hand Sink
Style Slim-Line
Installation Type Freestanding
Material 300 Series Stainless Steel
Finish Satin Finish
Compartments 1
Drain Connection Size 1-1/2 Inches NPS
Shipping Width 12 Inches
Shipping Depth 18 Inches
Shipping Height 33 Inches
Shipping Weight 35 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Care & maintenance PDF Download PDF Assembly instructions PDF Download

Frequently Asked Questions

The overall size is 12" W x 18" D x 32-1/2" H.
The fabricated sink bowl measures 10" x 8" x 6" deep.
Yes. It includes a removable faucet plate with 4" on-center splash-mount faucet holes.
It includes stainless steel legs with adjustable bullet feet, a Z-clip for wall mounting, and holes for attaching adjacent units together.
It uses a 1-1/2" NPS drain connection.
