John Boos  |  Slim-Line  |  SKU: UBHS-1812  |  UPC: 662969778095

John Boos UBHS-1812 Slim-Line Bar Equipment

$1,264.84
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Instructions Assembly instructions Care & maintenance
Related Searches
Bar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

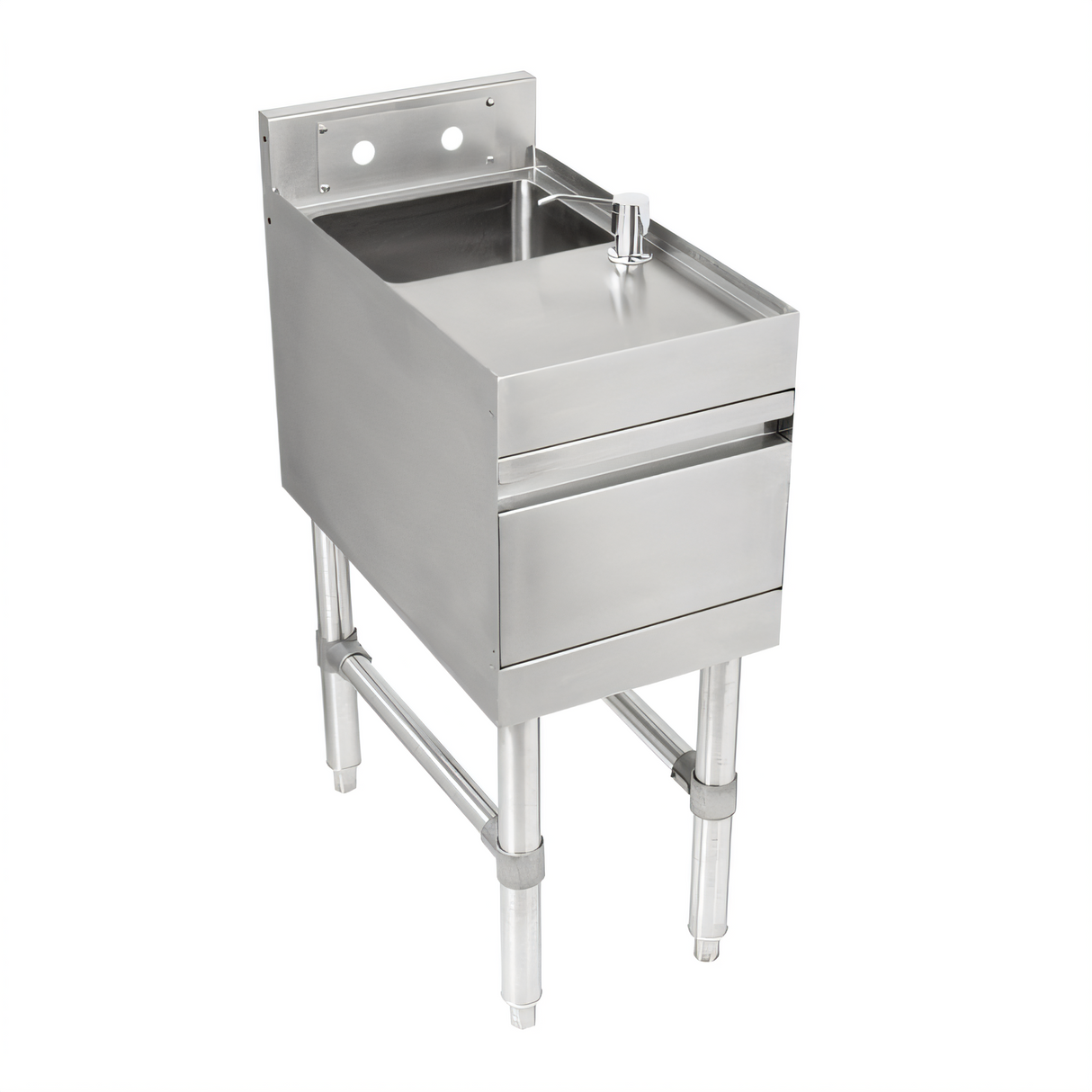

John Boos “Slim-Line” Underbar Hand Sink

Model UBHS-1812 • 12" W × 18" D footprint

Add a code-compliant hand-washing station without crowding your bar. The Slim-Line sink packs full-size performance into a lean 12 inch width and is built from heavy-duty, NSF-listed stainless steel made to thrive in high-volume service.

Key features

  • Slim 12" profile fits neatly between ice bins, drainboards or speed rails.
  • Fabricated sink bowl: 10" W × 8" F-B × 6" deep for thorough hand-washing.
  • 3" high backsplash with removable plate  –  pre-punched 4" on-center splash-mount faucet holes.
  • Deck-mount soap dispenser and front-mount paper-towel dispenser included.
  • 18-gauge, Type 300 stainless steel top, apron, sides & backsplash with #4 satin polish.
  • 1-5/8" Ø stainless legs with front-to-back side bracing for rock-solid stability.
  • 1" adjustable stainless bullet feet for quick, level installation on uneven floors.
  • Z-clip supplied for wall mounting; side holes let you bolt to adjacent Slim-Line units.
  • 1-7/8" drain with basket strainer, 1-1/2" NPS outlet.
  • NSF certified; ships knocked-down for fast bolt-on assembly.

Specifications

Model UBHS-1812
Overall dimensions (W × D × H) 12" × 18" × 33-1/2"
Sink bowl size 10" W × 8" F-B × 6" deep
Backsplash height 3"
Faucet centers 4" (splash mount) – faucet sold separately
Material 18-ga, 300-series stainless steel
Legs / Feet 1-5/8" stainless legs, side bracing, 1" bullet feet (adjustable)
Drain connection 1-7/8" drain w/ basket, 1-1/2" NPS outlet
Weight 35 lb (uncrated)
Certifications NSF

Popular accessories (sold separately)

  • PBF-4SM2-3GLF Heavy-Duty Splash-Mount Faucet
  • PBF-W2-3GLF Economy Splash-Mount Faucet
  • PB-WL-36 Flexible Shallow-Mount Faucet Hoses
  • UBSS-18-L / UBSS-18-R Left or Right Stainless Side Splash

Building an underbar lineup? Pre-drilled side holes let you bolt this sink directly to any John Boos Slim-Line ice bin, drainboard or cabinet for a seamless run.

Care & maintenance

  • Clean daily with non-chloride, non-abrasive stainless cleaners.
  • Always wipe along the grain of the stainless polish lines.
  • Avoid prolonged contact with standing water, salt or harsh chemicals.
Faucet not included. Choose a compatible 4" on-center splash-mount faucet from the accessory list above or supply your own to complete the installation.

Features & Specs

Manufacturer

John Boos

Brand_name

Slim-Line

Certifications

NSF

Height

32.5in

Width

12.0in

Depth

18.0in

Shipping Weight

35.0lbs

Depth (front - back) OA

18" - 19"

Bowl Size

10" x 12" front-to-back

Bowl Depth (rim - drain)

6"

Width (side - side) OA

7" - 12"

Construction

stainless steel top, front, ends & legs

Top Stainless Series

300 series

Sink Compartments

(1)

Splash

4"

Drainboards

without drainboards

Specifications

Slim-Line Underbar Hand Sink, freestanding, 12"W x 18"D x 33-1/2"H overall size, (1) 10"W x 8" front-to-back x 6" deep fabricated sink bowl, 3"H backsplash, (1) set of removable splash mount faucet holes with 4" centers, deck mount soap dispenser & front mount towel dispenser, 18/300 stainless steel construction, stainless steel legs & side bracing, adjustable stainless steel bullet feet, NSF (weights are subject to additional packaging)
