John Boos UBDBR-2124 Bar Equipment
John Boos UBDBR-2124 Bar Equipment is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
John Boos UBDBR-2124 Bar Equipment
Description

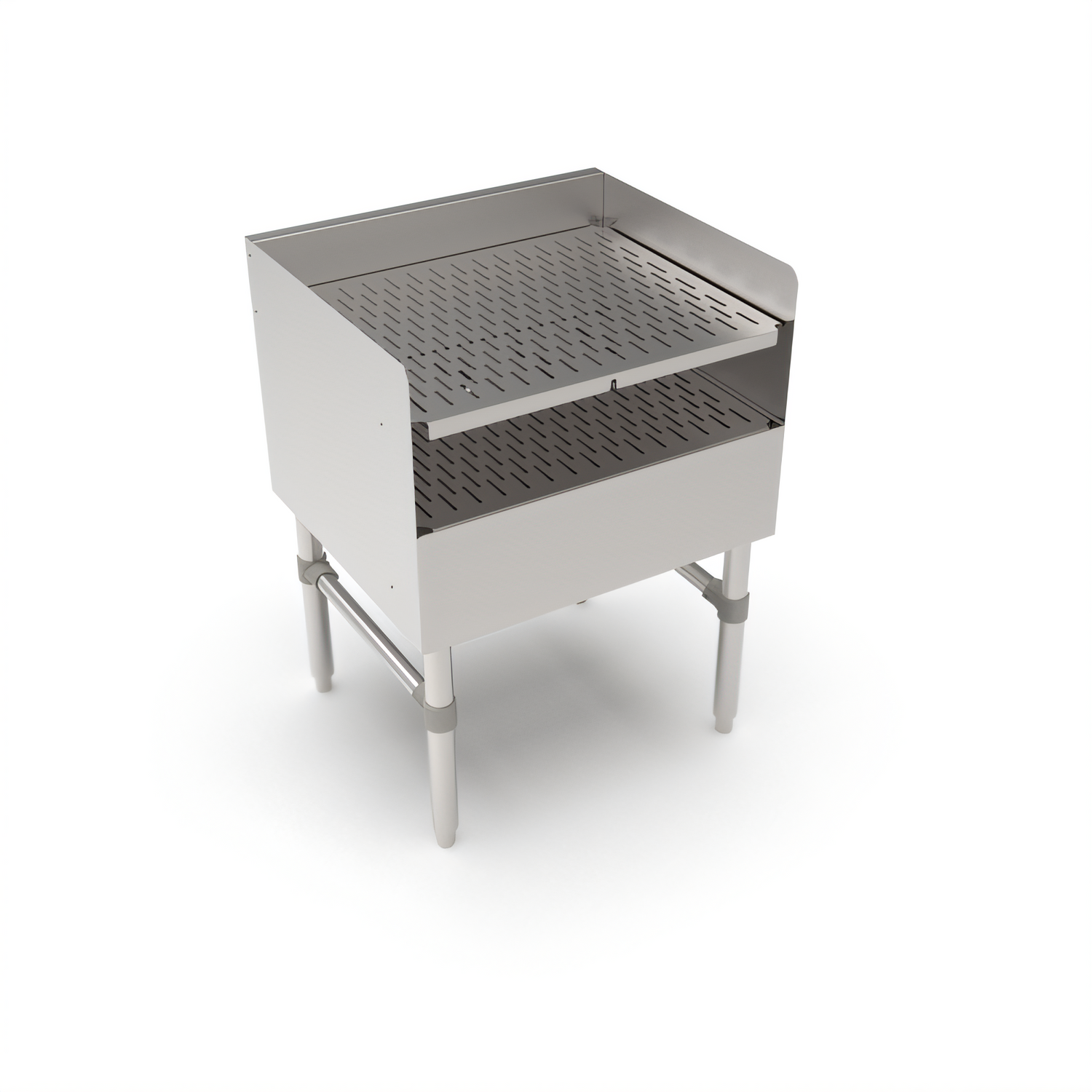

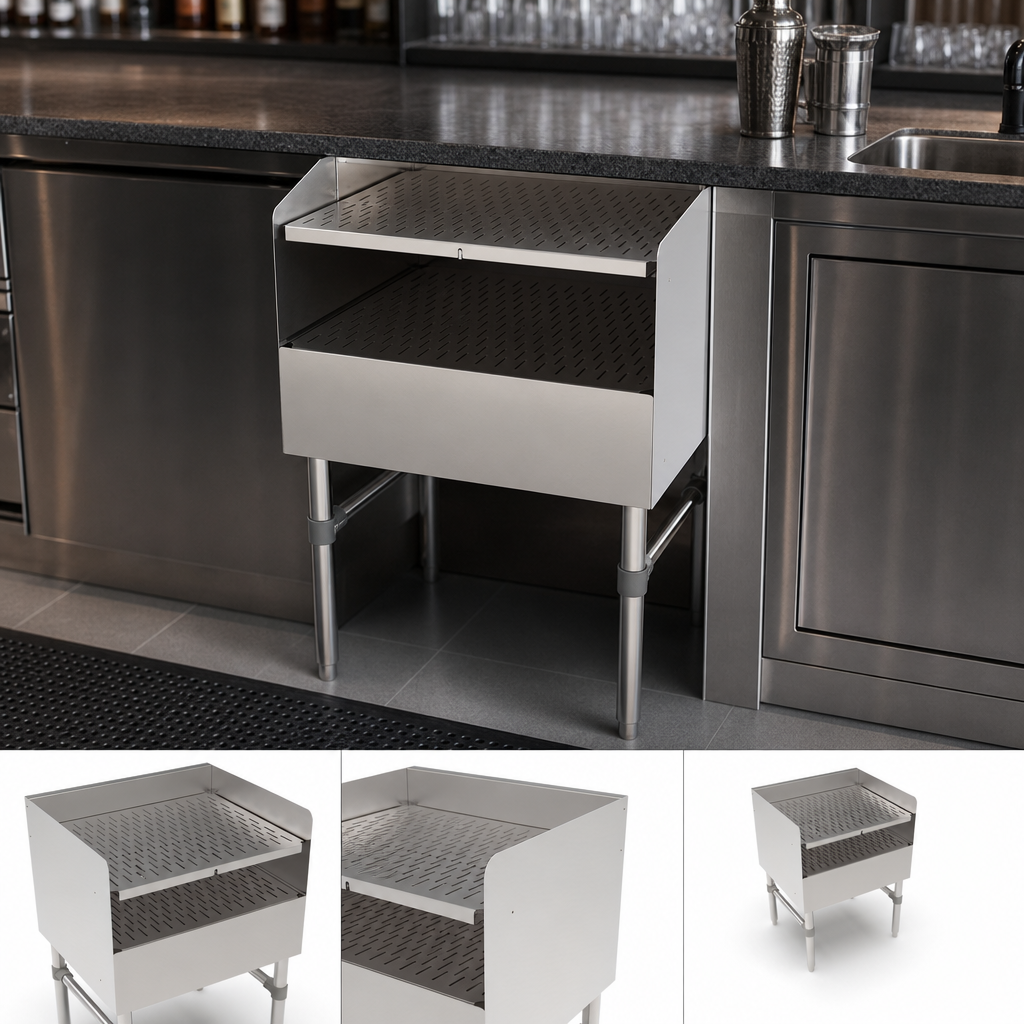

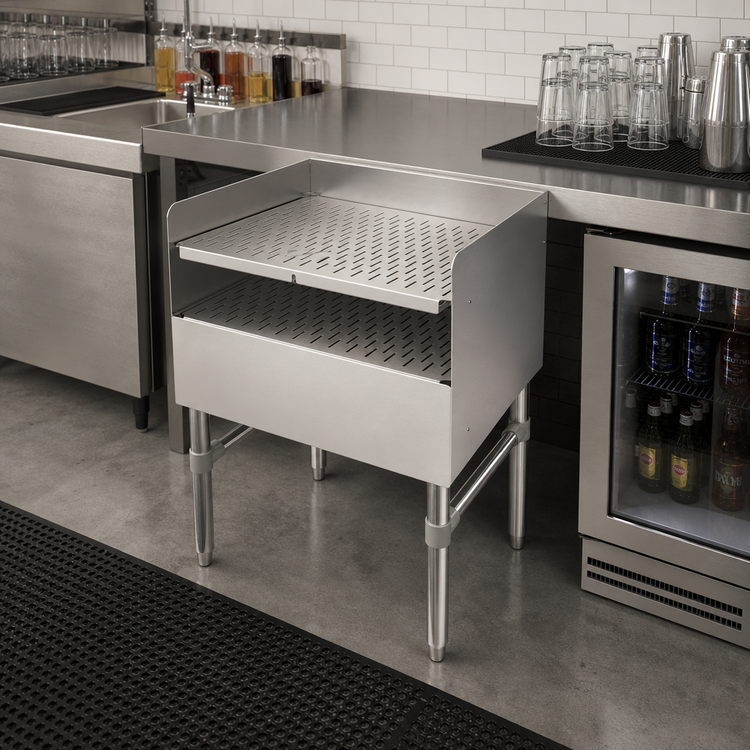

John Boos UBDBR-2124 Recessed Underbar Drainboard – 24" Wide
18 GA Type 300 Stainless Steel • NSF ListedGive your bar the dedicated glass-drying space it deserves. The UBDBR-2124 is a freestanding, recessed drainboard module that bolts to any underbar lineup—or stands proudly on its own—offering exceptional drainage, durability and easy clean-up in one compact footprint.
Key features & benefits

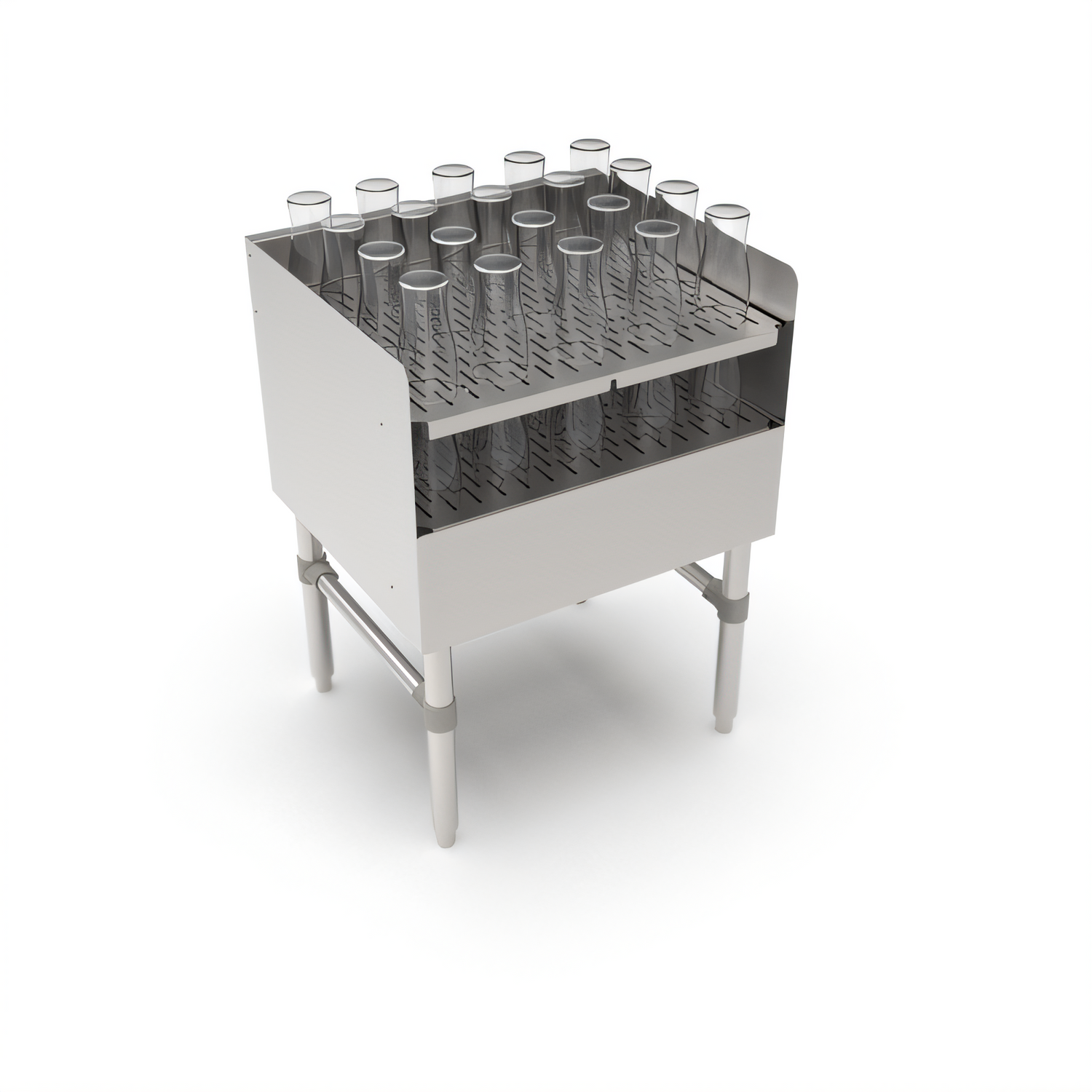

- Roomy 24" W x 21" D recessed deck drains an entire rack of glassware at once.
- (2) removable perforated inserts elevate glasses, promoting faster air-drying.
- Top-mounted 1-3/8" drain with 1" MPT (1-1/2" long) connection simplifies plumbing.
- 18-gauge Type 300 stainless steel—deck, sides, apron & backsplash—for unbeatable corrosion resistance.
- 3" backsplash shields surrounding equipment and walls from splash-back.
- Bolt-on 1-5/8" O.D. stainless steel legs with 1-1/4" side bracing deliver rock-solid stability.
- Adjustable stainless steel bullet feet level the unit on uneven floors.
- Pre-drilled side holes & included Z-clip make attaching to walls or adjoining units quick and clean.
- Finished in a #4 satin polish that wipes clean in seconds.
At-a-glance specifications
| Model | UBDBR-2124 |
|---|---|
| Overall dimensions | 24" W × 21" D × 32-1/2" H |
| Drainboard style | Recessed, freestanding |
| Drain opening | 1-3/8" dia. top drain, 1" MPT connection |
| Deck inserts | (2) removable perforated stainless steel grates |
| Backsplash height | 3" |
| Legs | 1-5/8" O.D. stainless steel, bolt-on |
| Bracing | 1-1/4" front-to-back side bracing |
| Feet | Adjustable stainless steel bullet feet |
| Construction | 18 GA Type 300 stainless steel, #4 satin finish |
| Weight | 56 lb (shipping weight may vary with packaging) |
| Certifications | NSF |
Fast, no-hassle installation
- Legs, knuckles & side bracing slide on quickly—secure with the included 5/16-18 hardware.
- Side mounting holes accept #8-32 hardware (included) to join adjacent underbar pieces.
- Supplied Z-clip lets you level and secure the unit to the wall in minutes.
Care & cleaning
Maintain the natural luster of your stainless deck by wiping it down daily with warm water and a non-chloride detergent. For tougher build-up, a light application of Bar Keepers Friend® or John Boos Stainless Steel Cleaner will restore a like-new sheen.
- Avoid harsh, abrasive or chloride-based cleaners.
- Always clean and polish in the direction of the grain.
- Rinse thoroughly and dry with a soft cloth to preserve the protective chromium oxide layer.
