John Boos UBDB-2136 Bar Equipment
Description

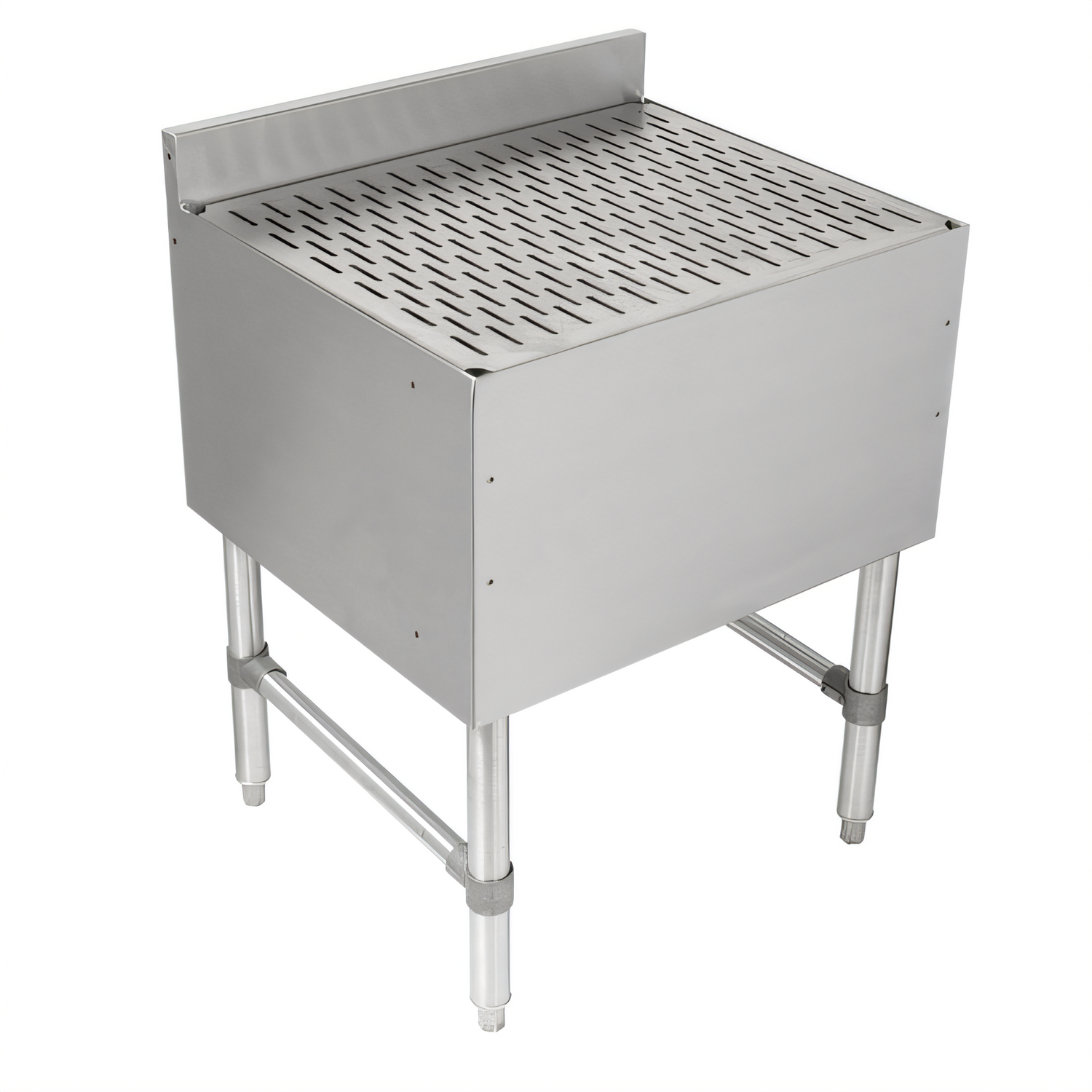

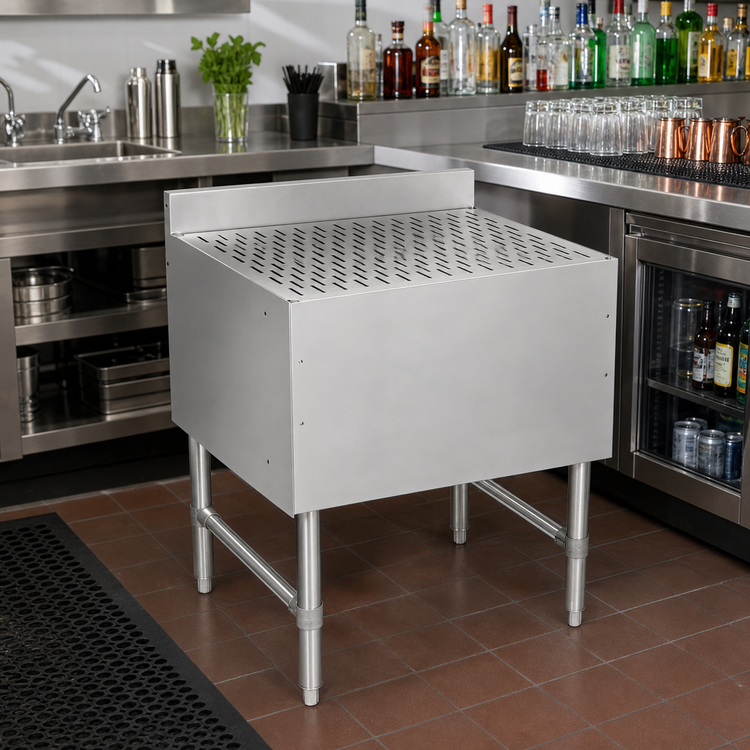

John Boos UBDB-2136 Underbar Drainboard
36 in W × 21 in D × 32 ½ in H • NSF Certified 18-Gauge Stainless SteelEngineered for high-volume bars, tasting rooms and beverage service lines, the UBDB-2136 delivers a generous 36 inch landing area and steadfast John Boos build quality—so every glass, shaker and utensil drains fast, dries quickly and stays sanitary.
Performance Highlights
- Durable 18 GA Type 300 stainless steel with #4 satin polish—resists corrosion & wipes clean

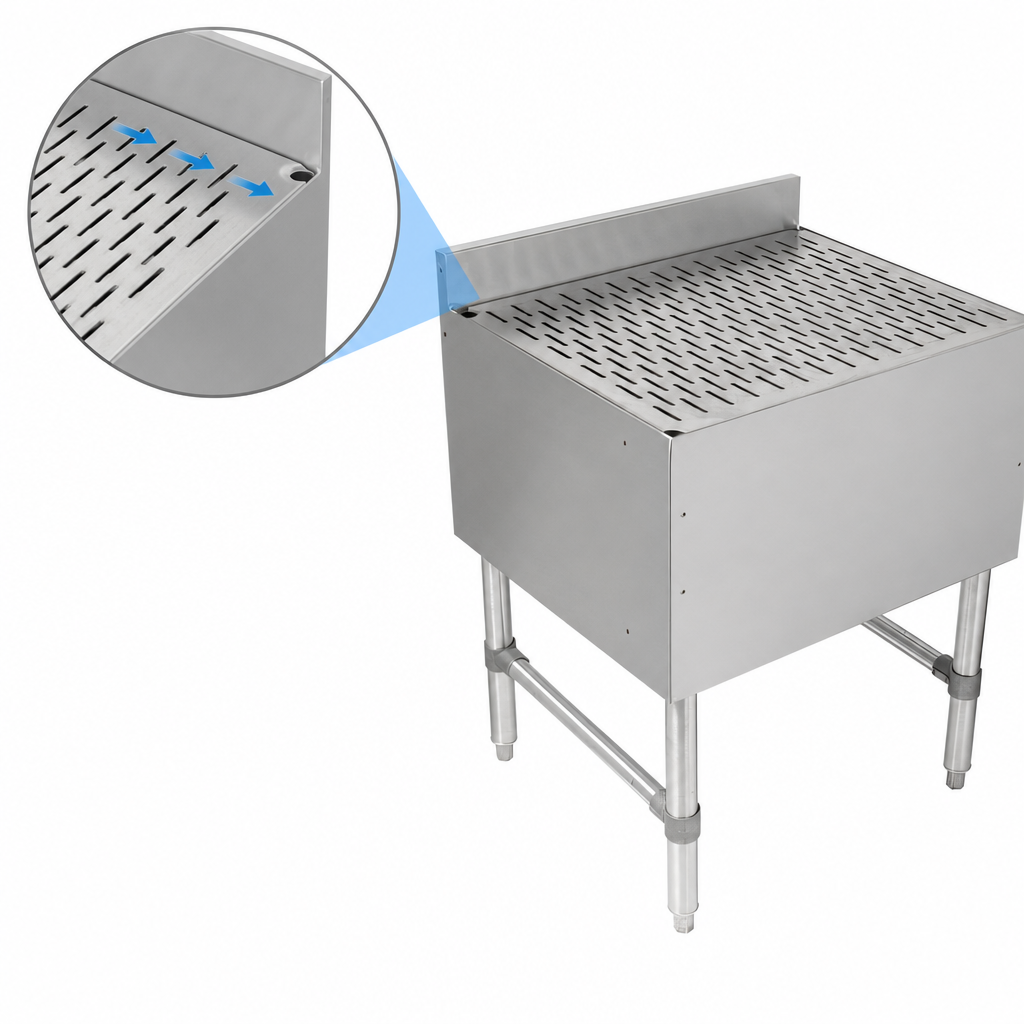

- Creased deck, top-mounted 1 ⅜ in drain and removable perforated insert speed up drainage & drying
- 3 in high turned-down backsplash contains splashes and protects rear walls
- Bolt-on 1 ⅝ in stainless steel legs with 1 in adjustable bullet feet for rock-solid, level placement
- Stainless steel front-to-back & side bracing adds rigidity in busy service environments
- Pre-drilled side holes & supplied Z-clip make it simple to join to adjacent units or wall-mount
- Front inserts accept single or double speed rails (sold separately) for efficient bottle access
- NSF listed for safe, code-compliant installation behind the bar
At-a-Glance Specifications
| Model | UBDB-2136 |
|---|---|
| Overall dimensions (W × D × H) | 36 in × 21 in × 32 ½ in |
| Deck height | 29 ½ in (to top of drainboard) |
| Backsplash height | 3 in |
| Drain size / connection | 1 ⅜ in drain with 1 in MPT, 1 ½ in long |
| Material | 18 GA Type 300 series stainless steel, #4 finish |
| Legs / feet | 1 ⅝ in Ø stainless legs • 1 in adjustable stainless bullet feet |
| Approx. weight | 56 lb |
| Certifications | NSF |
Compatible Accessories (optional)
- Side splashes: UBSS-21-L (left) & UBSS-21-R (right)
- Single speed rails: UBSR1 12–36 in lengths
- Double speed rails: UBSR2 12–36 in lengths
Quick Installation Tips
- Bolt legs to factory-installed gussets using the supplied 5/16-18 hardware
- Attach front-to-back bracing before standing the unit upright for added stability
- Use pre-drilled side holes (#8-32) to gang multiple underbar components flush
- Z-clip lets you level and secure the backsplash to the wall in seconds
Stainless Steel Care
Clean daily with non-chloride detergents and a soft cloth. For tough residue, Bar Keepers Friend followed by John Boos Stainless Steel Cleaner restores the original satin sheen.
Note: Weights are approximate and do not include additional packaging. Dimensional tolerance ± ½ in applies.
