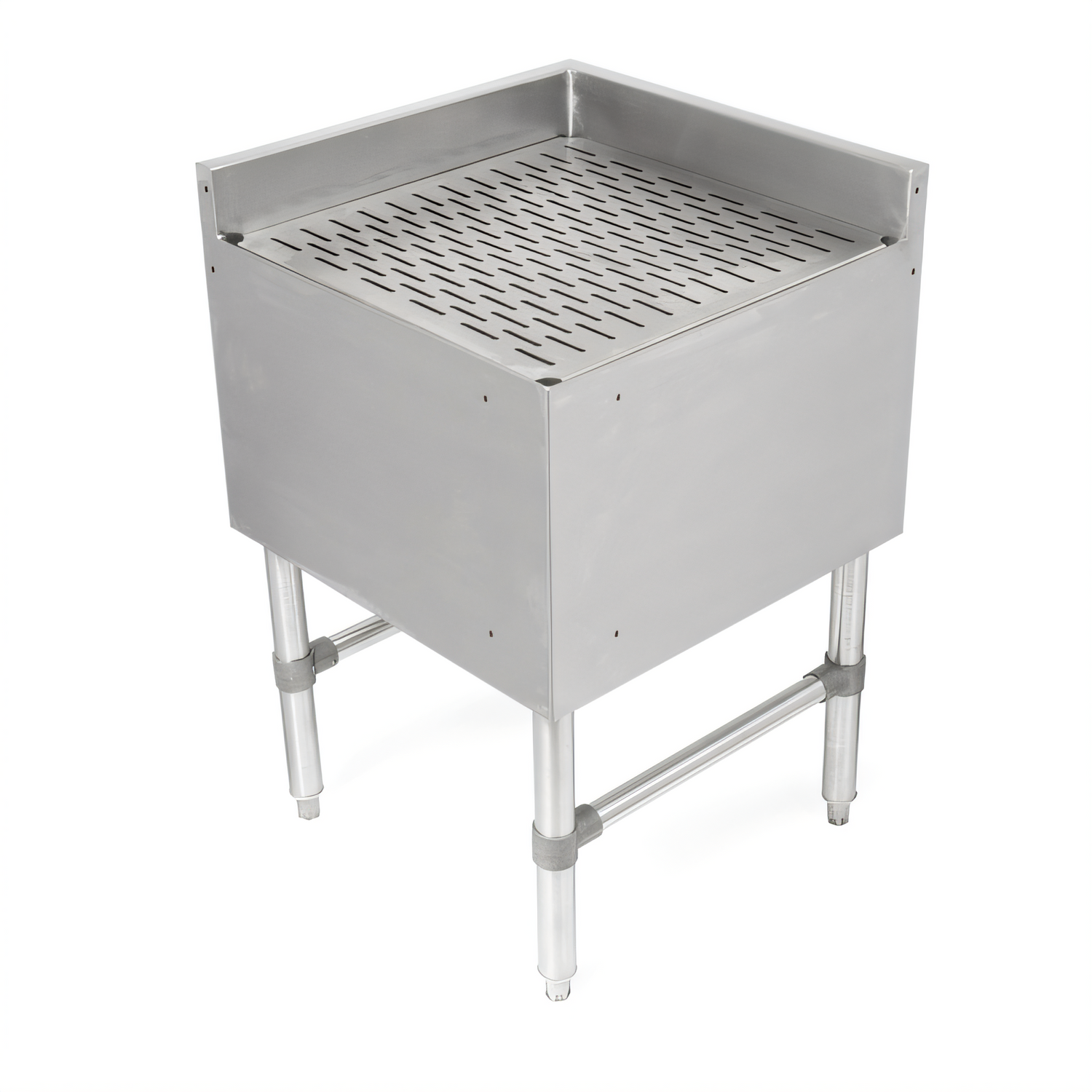

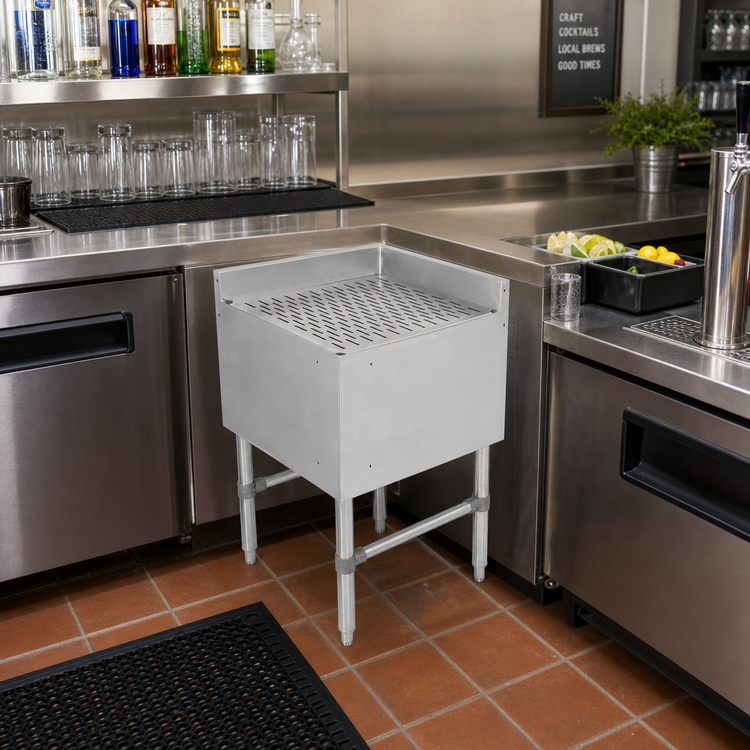

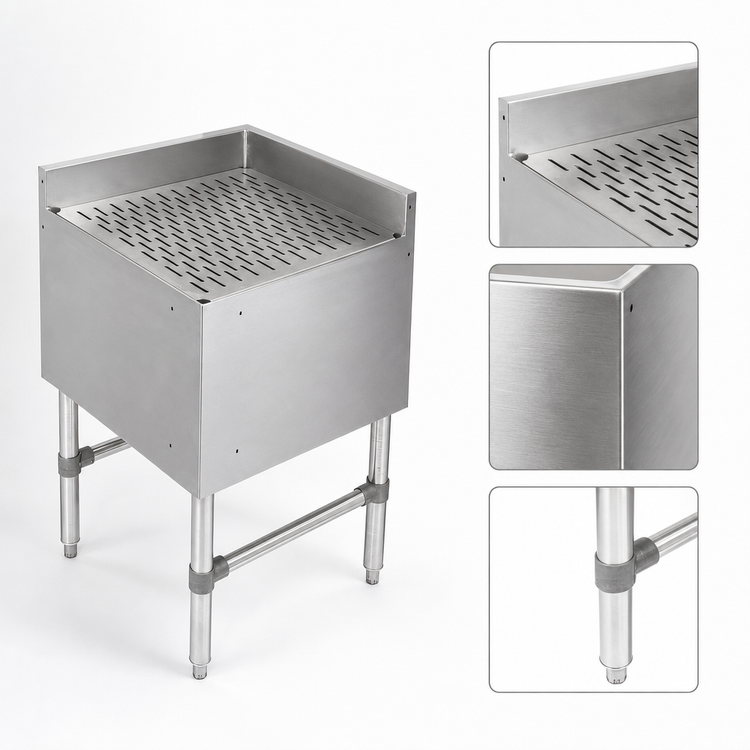

John Boos Freestanding Underbar Corner Drainboard, 21 x 21 x 32-1/2 Inches, Stainless Steel

3-Inch Backsplash, Removable Perforated Insert, Open Base

Built for tight underbar corners, this freestanding stainless steel drainboard combines efficient drainage with flexible mounting options and easy-clean construction.

  • Freestanding corner drainboard sized for 21 x 21-inch underbar corner installations.
  • 18-gauge Type 300 stainless steel construction with a #4 polish satin finish.
  • Creased deck, top drain, and removable perforated insert help move water quickly and improve airflow.
  • Bolt-on stainless steel legs, side bracing, and adjustable bullet feet support stable installation.
  • Pre-drilled side holes and Z-clip mounting help connect the unit to adjacent pieces or a wall.
  • 3-inch backsplash helps contain splashes, and the unit is NSF certified.

Overall Dimensions:

21.0"W x 21.0"D x 32.5"H

Product Weight:

46.0 lb

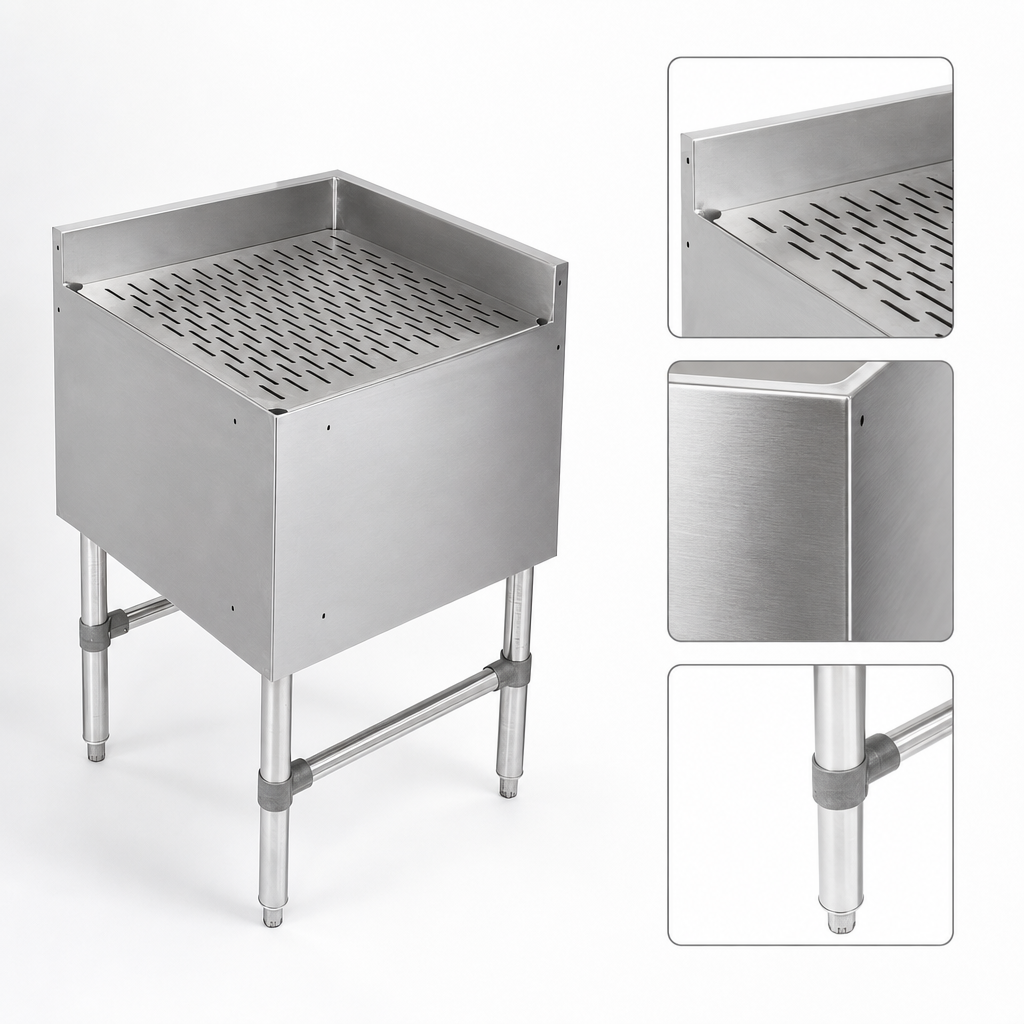

18-Gauge Stainless Steel Construction

Built from Type 300 stainless steel with a #4 polish, satin finish for durability and a clean appearance.

Removable Perforated Drainboard Insert

Helps increase air circulation for faster drying and easier cleanup.

Creased Deck with Top Drain

Formed deck directs water toward the drain for efficient drainage.

Freestanding Open-Base Design

Bolt-on stainless steel legs, front-to-back bracing, and adjustable bullet feet provide stable support and fast installation.

Flexible Mounting Options

Pre-drilled side holes, bolt-to-adjacent capability, and a Z-clip wall mount help the unit fit different underbar layouts.

3-Inch Backsplash

Helps reduce splashes and protect nearby surfaces.

Drain Hardware Included

Features a 1-3/8-inch drain plug and a 1-inch MPT, 1-1/2-inch long drain connection.

Type Corner Drainboard
Style Open Base
Installation Type Freestanding
Material Stainless Steel
Finish Satin
Backsplash 3 Inches
Drain Connection Size 1 Inch MPT, 1-1/2 Inches Long
Shipping Width 21 Inches
Shipping Depth 21 Inches
Shipping Height 33 Inches
Shipping Weight 46 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Assembly instructions PDF Download PDF Care & maintenance PDF Download

Frequently Asked Questions

It is made from 18-gauge Type 300 stainless steel with a #4 polish, satin finish.
Yes. It includes a removable perforated drainboard insert for increased air circulation.
Yes. The sides are pre-drilled for attaching adjacent units together, and it can bolt to adjacent underbar pieces.
It includes a 1-inch MPT, 1-1/2-inch long drain connection and a 1-3/8-inch drain plug.
Yes, the product is NSF certified.
