John Boos Slim-Line Freestanding Underbar Drainboard with 3-Inch Backsplash, 12 x 18 x 32-1/2 Inches, Stainless Steel

SKU: UBDB-1812-X
$492.66
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Best Sellers Commercial Plumbing Supplies Commercial Sinks John Boos New Arrivals Restaurant Equipment

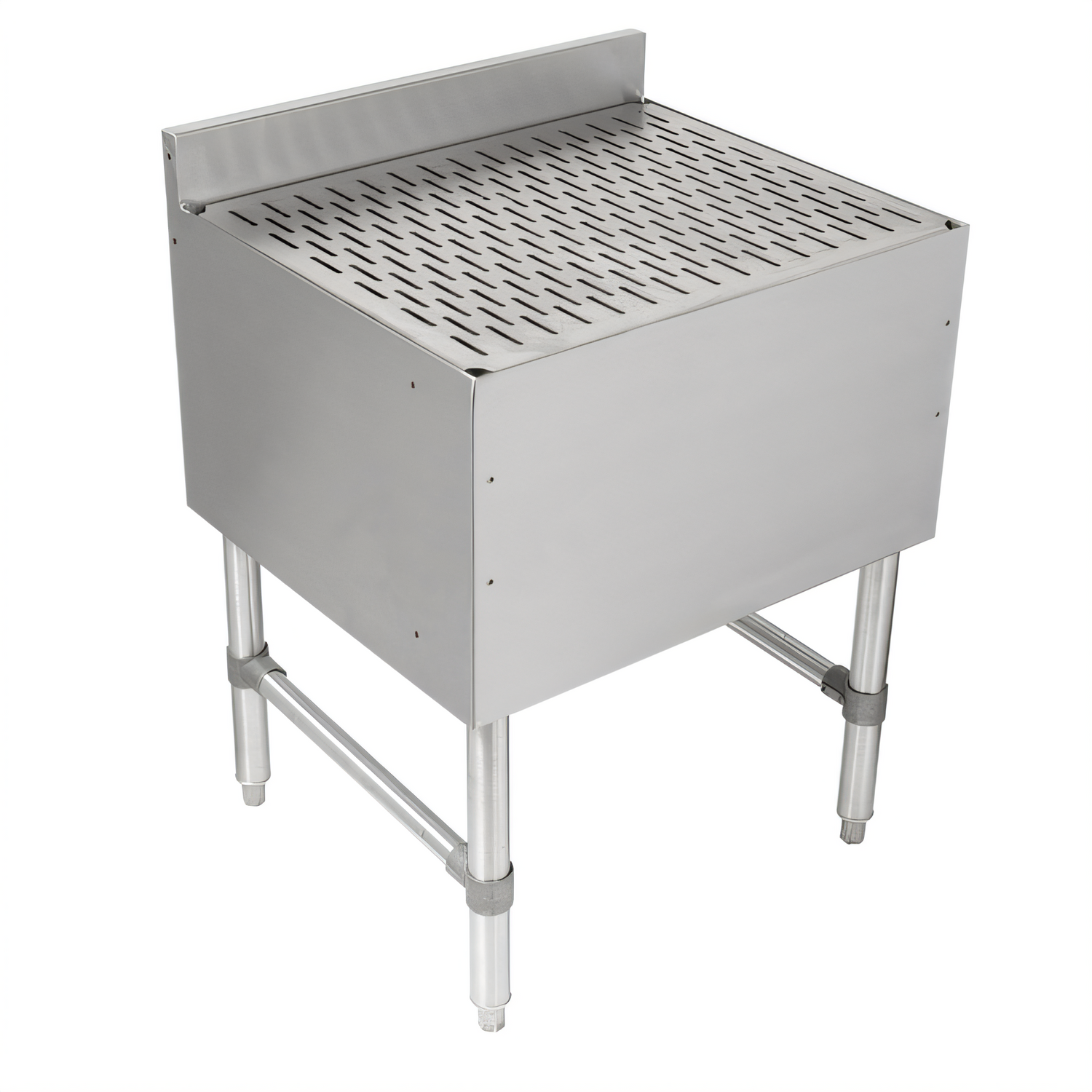

John Boos Slim-Line Freestanding Underbar Drainboard with 3-Inch Backsplash, 12 x 18 x 32-1/2 Inches, Stainless Steel

18-Gauge Type 300 Stainless Steel, Top Drain, Removable Perforated Insert

Built for compact bar stations, this freestanding drainboard combines sturdy stainless steel construction with fast-draining design features.

  • Compact 12-inch-wide underbar drainboard for space-conscious bar and prep areas
  • 18-inch front-to-back Slim-Line footprint with 3-inch backsplash
  • Creased deck, top drain, and removable perforated insert improve drainage and airflow
  • 18-gauge Type 300 stainless steel construction with satin finish for durability
  • Stainless steel legs, bracing, and adjustable bullet feet provide stable freestanding support
  • Pre-drilled side holes and front inserts support modular installation and speed rail attachment
  • NSF listed for commercial foodservice use

Overall Dimensions:

12.0"W x 18.0"D x 32.5"H

Product Weight:

31.0 lb

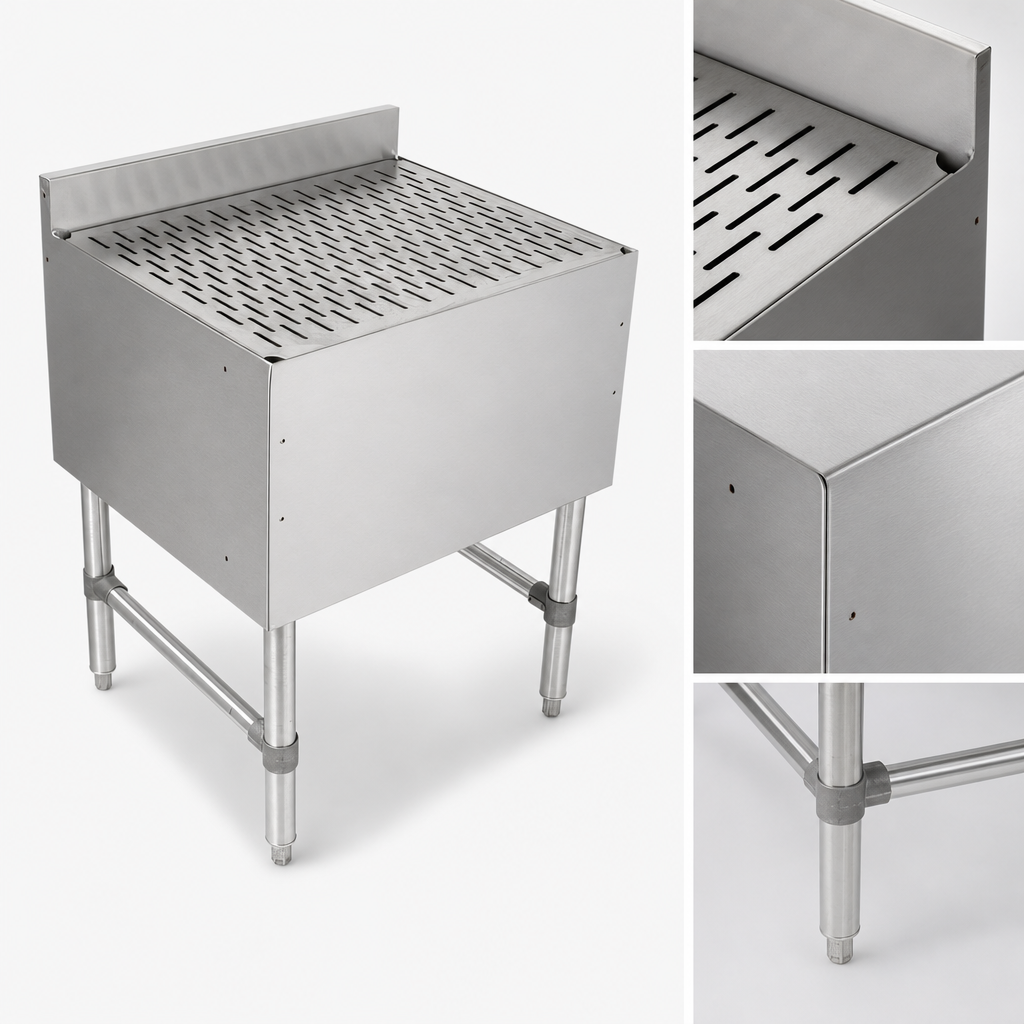

18-Gauge Type 300 Stainless Steel Construction

Durable stainless steel construction throughout with a satin finish for commercial use.

Creased Deck

Sloped deck helps direct liquid toward the drain for better drainage.

Removable Perforated Drainboard Insert

Improves air circulation to help items dry faster.

3-Inch Backsplash

Helps contain water and splash-back behind the unit.

Top Drain

Built-in top drain supports efficient liquid removal.

1-Inch MPT Drain Connection

Provides a standard drain connection point for installation.

Stainless Steel Legs and Bracing

Adds strength and stability for freestanding installation.

Adjustable Stainless Steel Bullet Feet

Helps level the unit on uneven floors.

Pre-Drilled Side Holes

Allows adjacent units to be attached together.

Speed Rail Ready

Standard front inserts support speed rail attachment.

Type Underbar Drainboard
Style Slim-Line
Installation Type Freestanding
Material Stainless Steel
Finish Satin Finish
Drain Connection Size 1 Inch MPT x 1-1/2 Inches Long
Selling Unit Each
Units Per Case 1
Shipping Width 12 Inches
Shipping Depth 18 Inches
Shipping Height 33 Inches
Shipping Weight 31 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Assembly instructions PDF Download PDF Care & maintenance PDF Download

Frequently Asked Questions

It measures 12 inches wide by 18 inches deep by 32-1/2 inches high.
It is constructed from 18-gauge Type 300 stainless steel with a satin finish.
Yes. It includes a removable perforated drainboard insert for increased air circulation.
It has a creased deck, a top drain, and a 1-inch MPT drain connection.
Yes. The sides are pre-drilled for attaching adjacent units together.
The documentation lists left and right side splashes and multiple single and double speed rail sizes.
