John Boos ST6R5-3084SBW Stallion Stainless Steel Prep Tables
Description

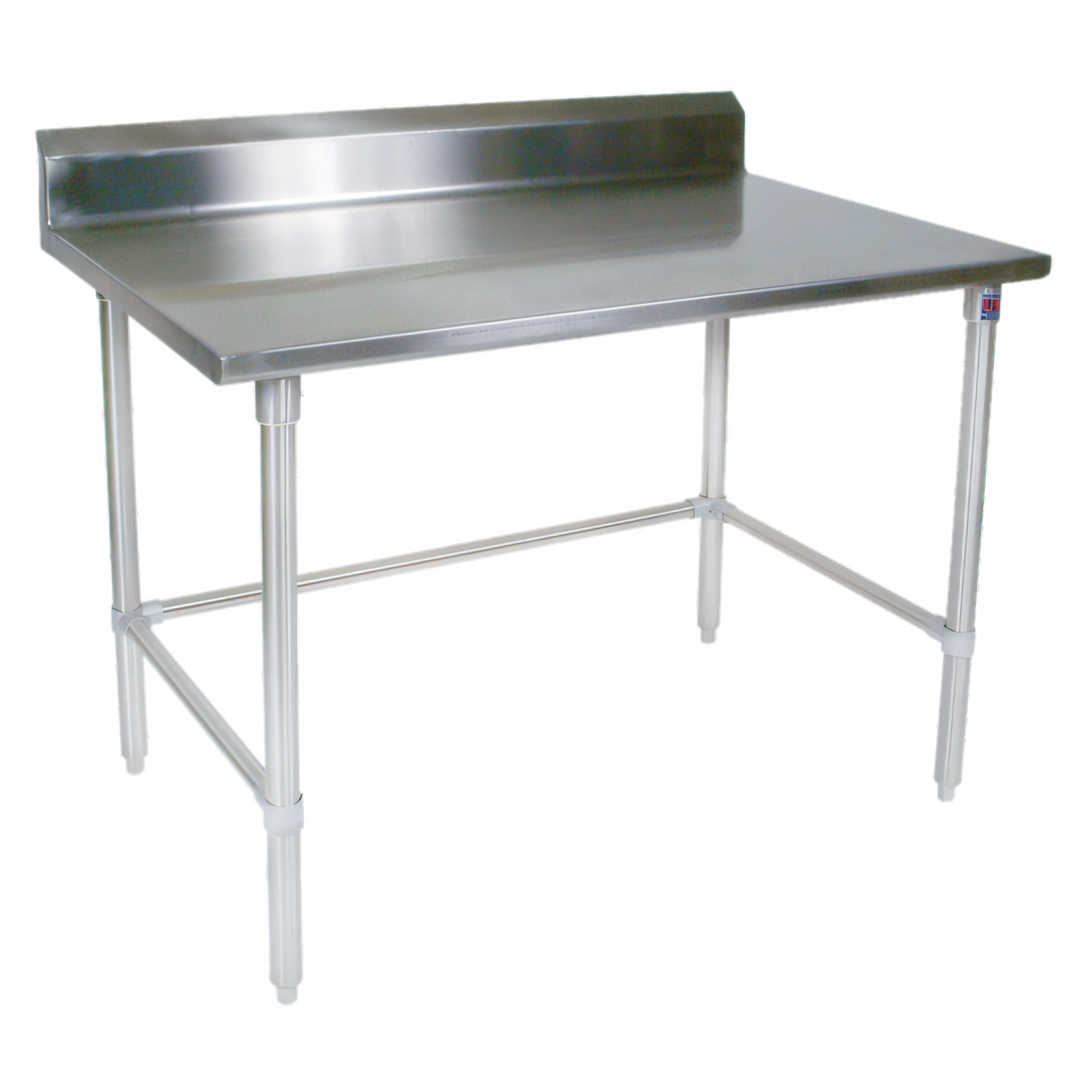

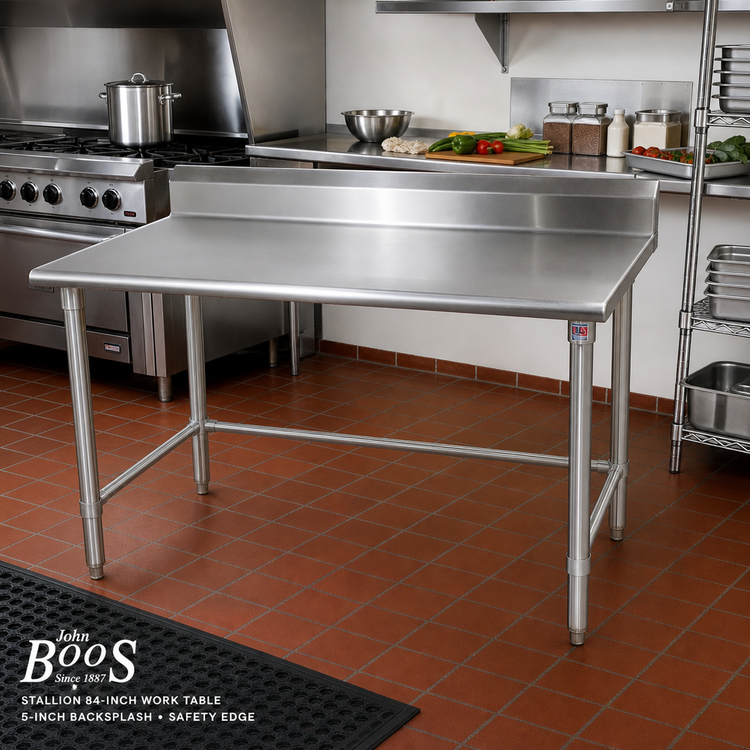

John Boos “Stallion” 84" × 30" Stainless Steel Work Table w/ 5" Backsplash – Fully Welded
Model ST6R5-3084SBW | NSF & CSA-Sanitation ListedEngineered for heavy-duty food-service, laboratory and industrial environments, the John Boos Stallion Series work table delivers rock-solid stability, superior hygiene and long-term corrosion resistance. A one-piece TIG-welded construction, 16-gauge Type 300 stainless top and patented Stallion Safety Edge make this 7-foot powerhouse the professional’s choice for high-volume prep and assembly lines.
Key Features

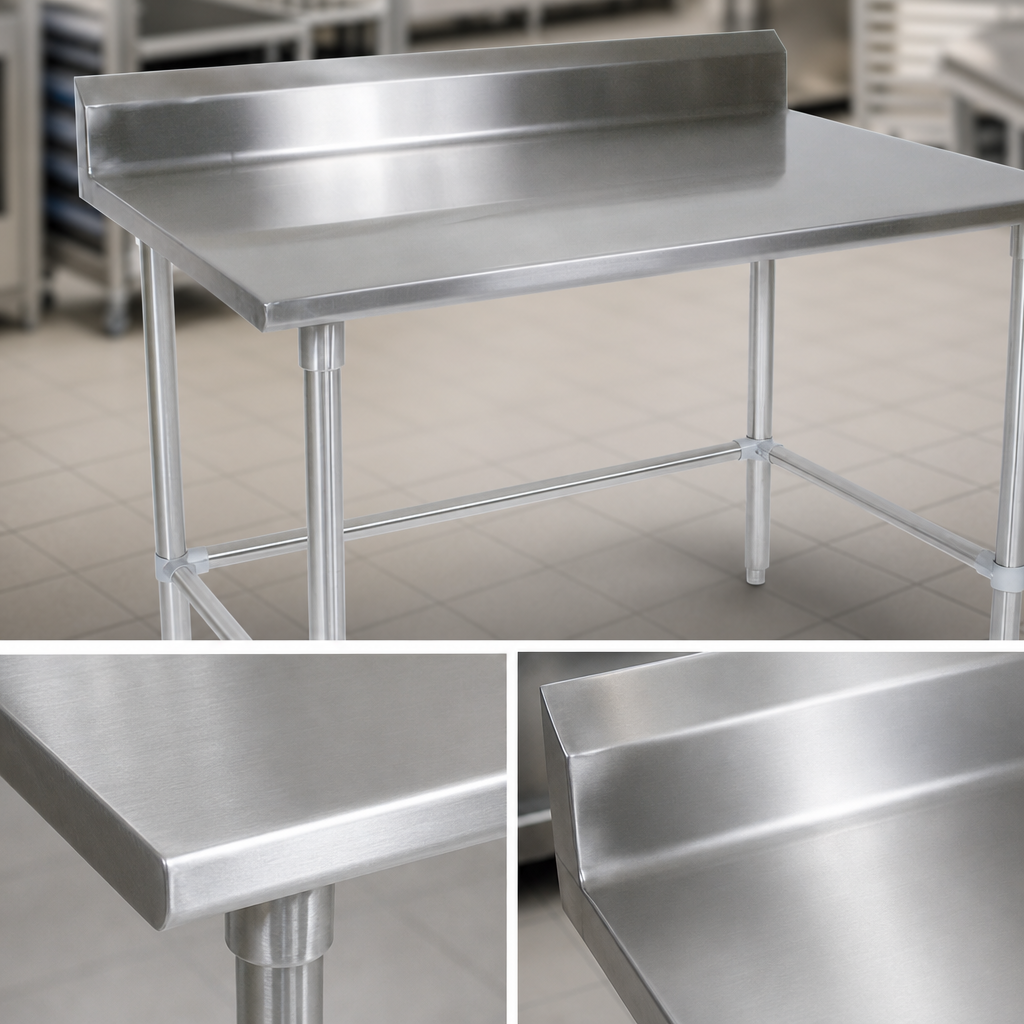

- 16-gauge, Type 300 stainless steel top with #4 satin polish

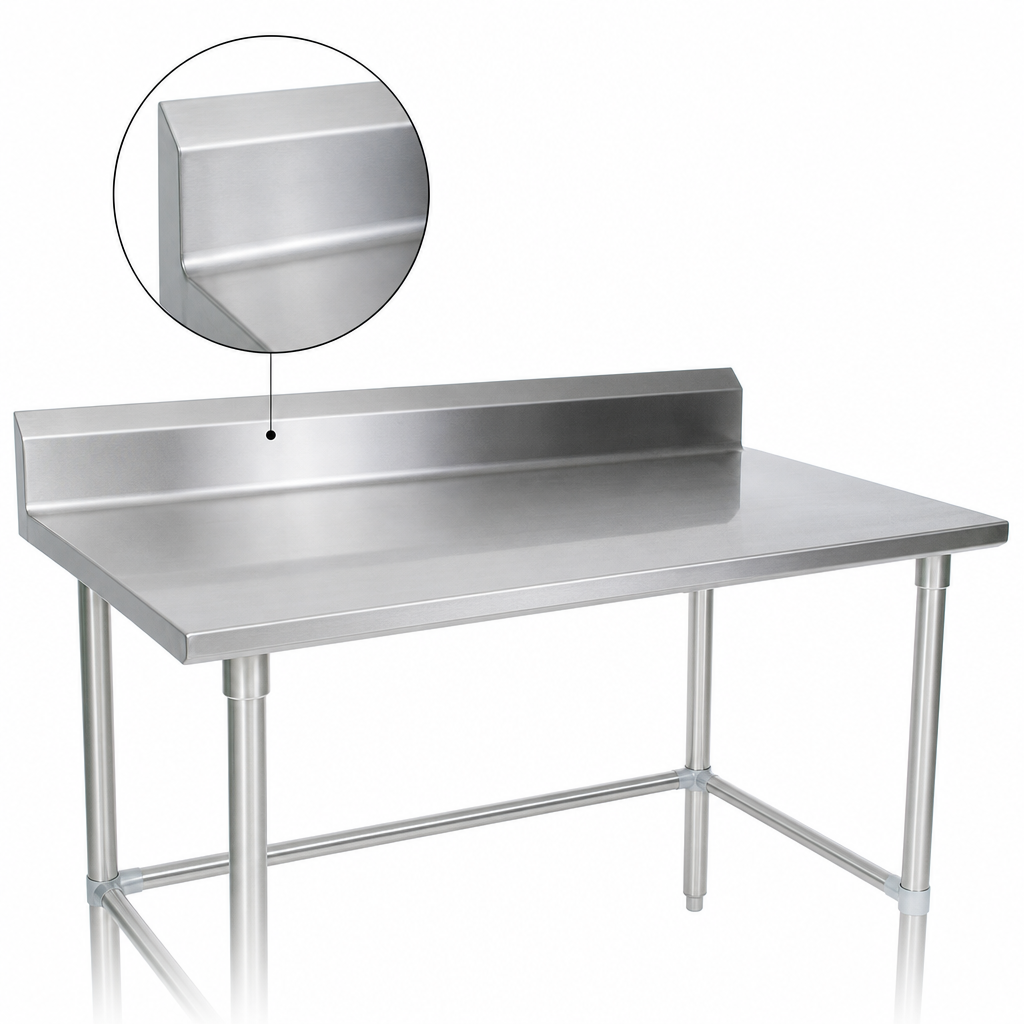

- Integrated 5" backsplash (riser) with 1" return keeps walls sanitary
- 1 ½" Stallion Safety Edge on front for spill control & operator comfort
- 90° turndown on side edges for seamless table line-up
- Sound-deadened top reinforced by full-length 1" × 2" stainless box channel
- 1 ⅝" O.D. 16-ga tubular stainless legs with welded 1 ¼" O.D. side & rear bracing
- Adjustable 1" stainless bullet feet level the table on uneven floors
- Completely TIG-welded; exposed welds polished to match adjacent surfaces
- Extra-high 1,500 lb. evenly distributed load rating
- Ships fully welded—no assembly, no wobble, ready for immediate use
Specifications
| Model | ST6R5-3084SBW |
|---|---|
| Overall length | 84" (2133 mm) |
| Work-surface depth | 30" (762 mm) |
| Work-surface height | 35 ¾" (908 mm) |
| Backsplash height | 5" (127 mm) with 1" return |
| Top material / finish | 16-ga Type 300 SS, #4 satin |
| Front edge | 1 ½" Stallion Safety Edge |
| Side / rear edges | 90° turndown |
| Reinforcement | 1" × 2" stainless box channel, sound deadened |
| Legs | 1 ⅝" O.D. 16-ga tubular stainless |
| Bracing | 1 ¼" O.D. 18-ga stainless, side & rear welded |
| Feet | 1" adjustable stainless bullet feet |
| Weight / Capacity* | ≈ 105 lb ship wt. | 1,500 lb capacity |
| Certifications | NSF, CSA-Sanitation |
| Ships | Fully welded (not knock-down) |
*Maximum weight capacity when load is evenly distributed across work surface.
Perfect For
- Restaurant & hotel prep kitchens
- Meat, seafood & bakery production lines
- Food trucks & commissaries
- Clinical, pharmaceutical & research labs
- Clean-room and industrial assembly areas
Optional Accessories (sold separately)
- Stainless steel drawers & locking kits
- Heavy-duty casters
- Wall-mount or table-mount overshelves
- Pot-rack & utensil bars
- Integrated hand-wash or prep sinks
