John Boos ST6R5-30144SBW Stallion Stainless Steel Prep Tables
$2,554.92
Unit price
/
Unavailable
Description

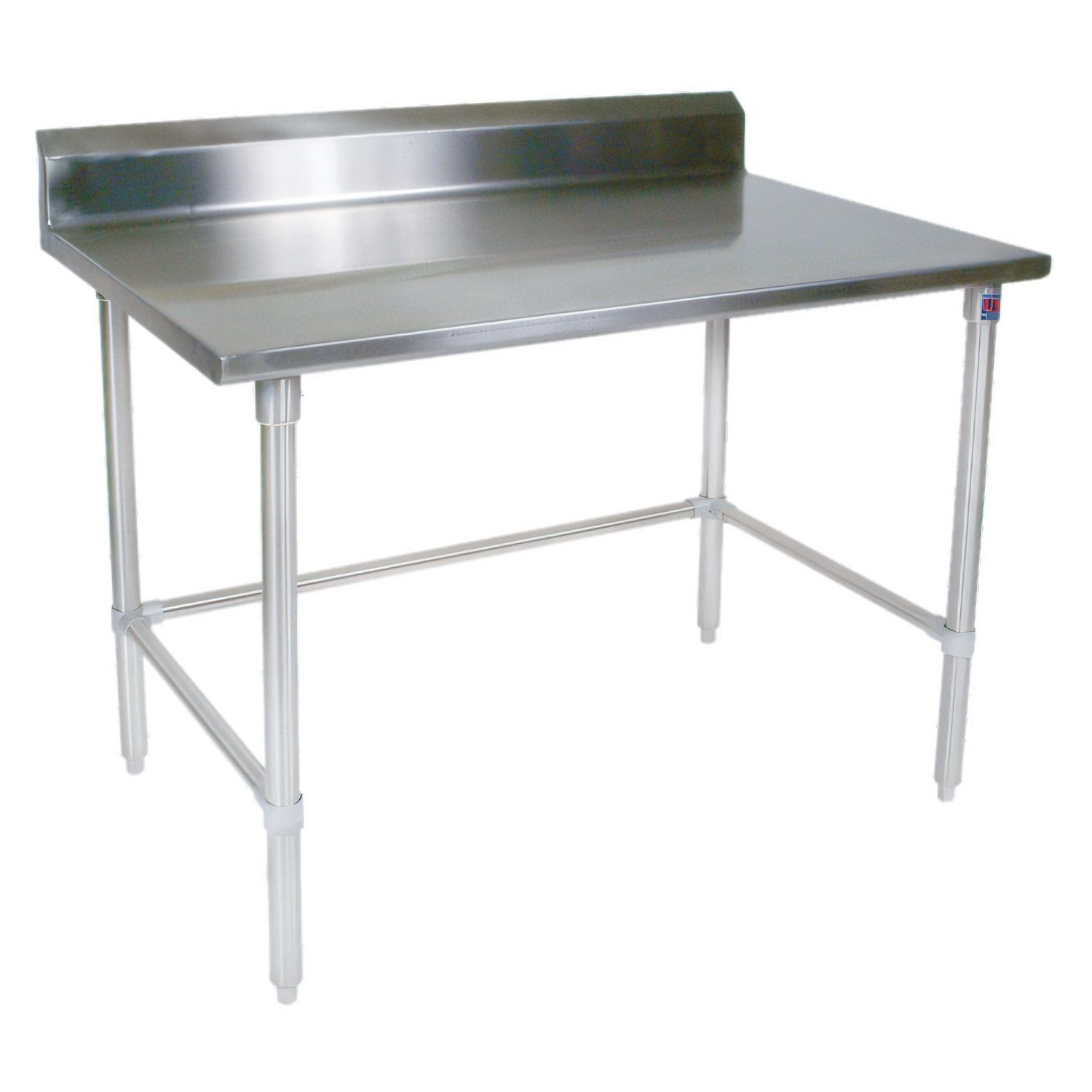

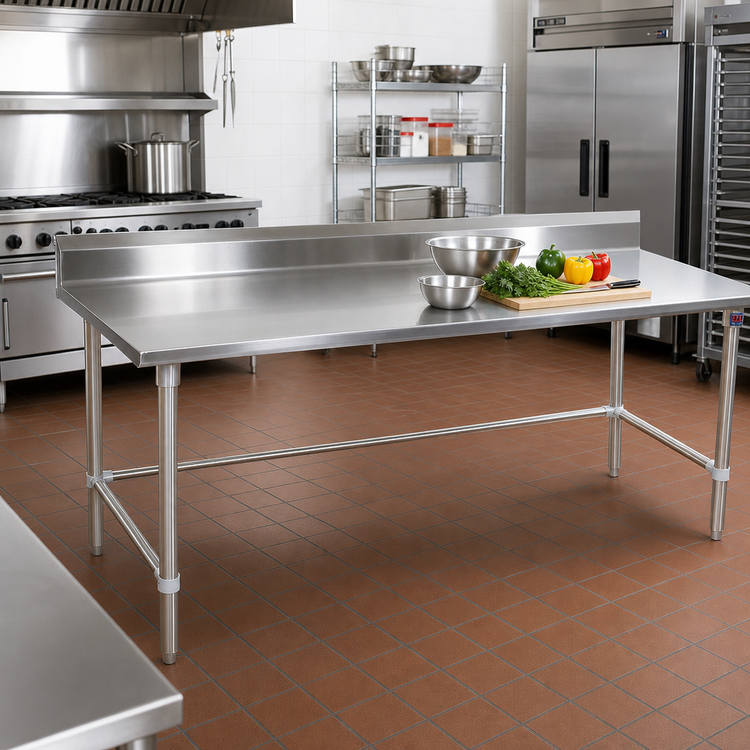

John Boos “Stallion” 144" x 30" Stainless Steel Work Table
Model ST6R5-30144SBW • 5" backsplash • full-welded setupBuilt for the largest production lines, the 12-ft John Boos Stallion Work Table delivers rock-solid support, easy sanitation and long-term durability in demanding commercial kitchens, labs and food-processing facilities.
Key Features & Benefits

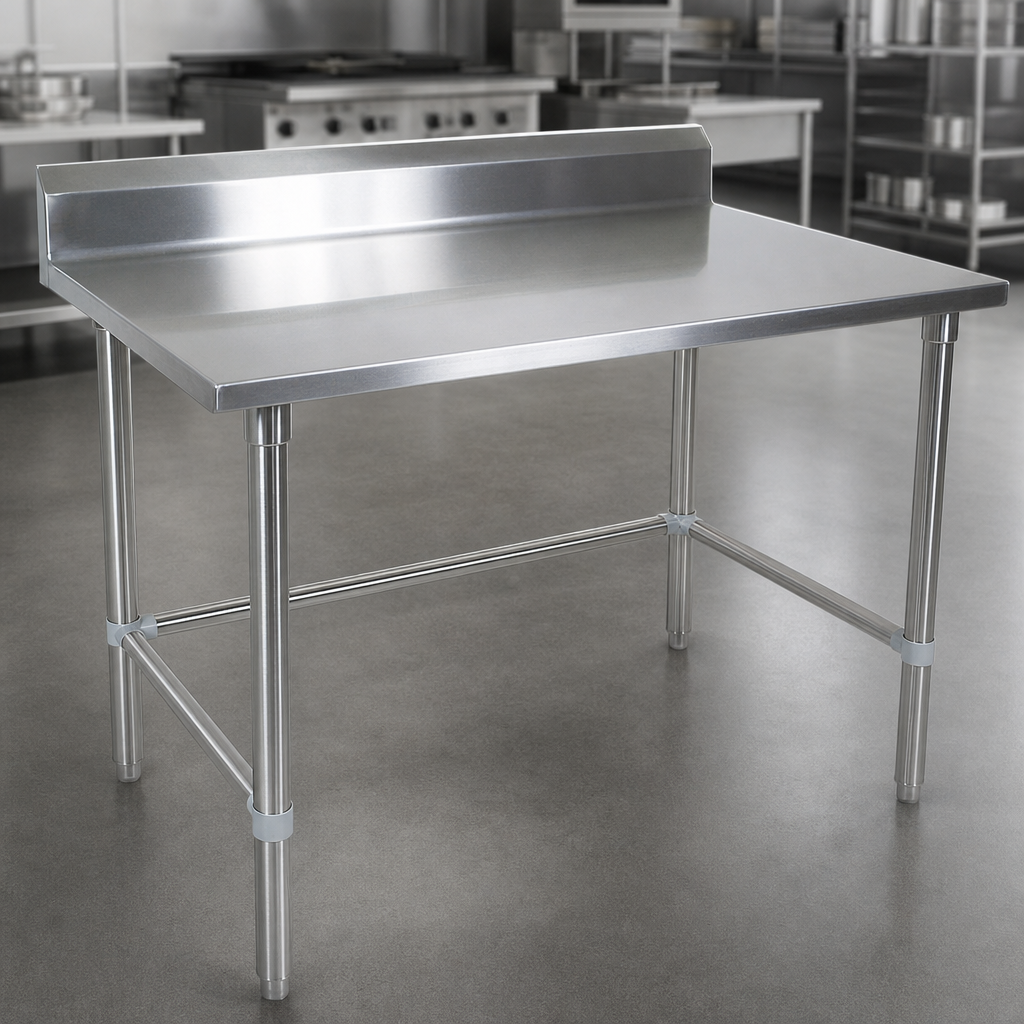

- 16 ga Type 300 stainless steel top with #4 satin polish.

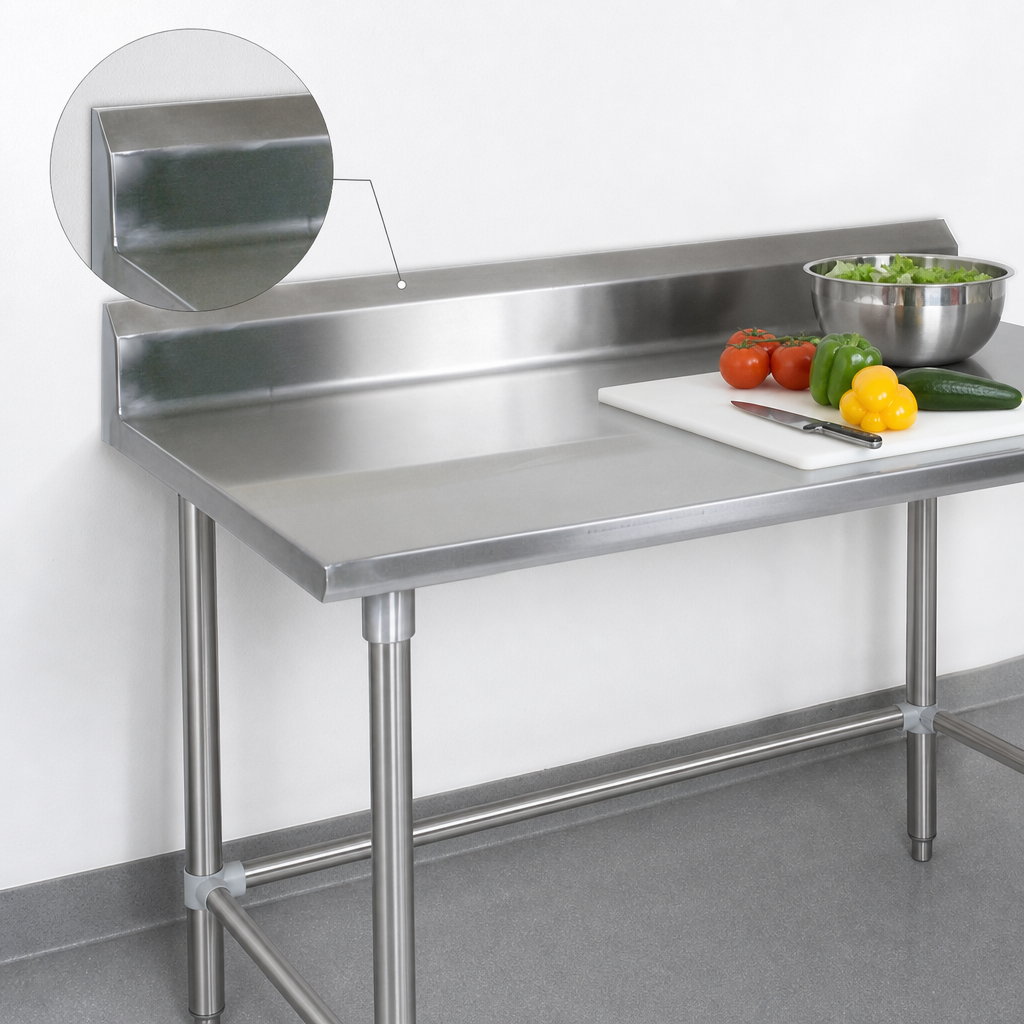

- 5" rear backsplash with 90° turndown sides prevents wall splashes.
- 1 ½" Stallion Safety Edge on the front for comfort and lineup.
- Full-length 1" × 2" box channel reinforcement & sound-deadening tape for a quiet, vibration-free work surface.
- All-welded stainless base with side and rear fixed bracing.
- (6) 1 ⅝" Ø 16 ga stainless legs* with 1" height-adjustable bullet feet for perfect leveling.
- NSF and CSA-Sanitation listed for food-zone use.
- Ships fully welded—no on-site assembly required.
*Tables 7 ft (84") and longer ship with six legs for additional stability.
Technical Specifications
| Overall length | 144 in / 12 ft (3658 mm) |
|---|---|
| Overall depth | 30 in (762 mm) |
| Work surface height | 35 ¾ in (908 mm) |
| Backsplash height | 5 in (127 mm) with hemmed top edge |
| Top material | 16 ga Type 300 stainless steel, #4 satin |
| Understructure | 1" × 2" box channel, sound deadened |
| Legs | 1 ⅝" Ø 16 ga tubular stainless steel, TIG-welded |
| Bracing | 1 ¼" Ø 18 ga stainless, side & rear welded |
| Leveling feet | 1" dia. stainless adjustable bullet feet |
| Ship weight | ≈ 158 lb (71.7 kg) |
| Max. load capacity* | 750 lb evenly distributed |
| Certifications | NSF, CSA-Sanitation |
*Load rating applies to static, evenly distributed weight.
Compatible Accessories (sold separately)
- Stainless steel drawers (with optional locks)
- Heavy-duty swivel or locking casters
- Single & double overshelves
- Integrated sink bowls
- Stainless pot racks
Sizing note: Overall dimensions are typical and may vary ±0.5". Confirm clearances before ordering for confined installations or when adding accessories.
Features & Specs
Features & Specs
Manufacturer
John Boos
Brand_name
Stallion
Certifications
NSF, CSA-Sanitation
Height
40.75in
Width
144.0in
Depth
30.0in
Shipping Weight
158.0lbs
Width (side - side)
144" wide (side - side)
Base Type
open with side & rear crossrails
Table Edge Type
beveled bottom / return
Depth (front - back)
30" deep (front - back)
Base Construction
stainless steel base
Top Gauge
unspecified
Top Stainless Series
300 series top
Splash Height
5" backsplash
Specifications
Work Table, 144"W x 30"D, 16/300 stainless steel top with 5" backsplash, with Stallion Safety Edge front, 90° turndown on sides, box channel understructure with sound deadening tape, stainless steel legs, side & rear welded bracing, adjustable bullet feet, NSF, CSA-Sanitation, Full Welded Setup
