John Boos ST6R5-30108SBW Stallion Stainless Steel Prep Tables
Description

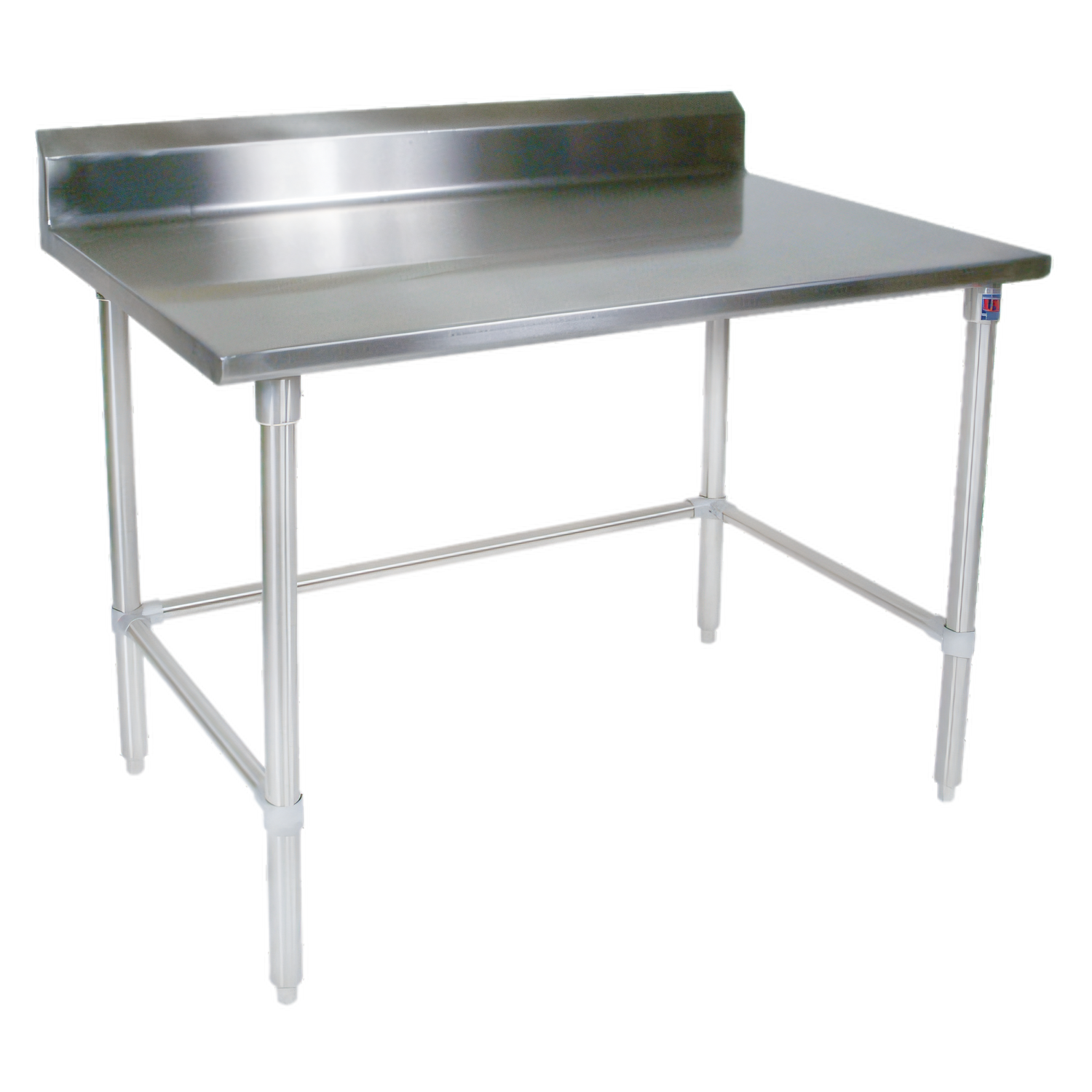

John Boos “Stallion” Stainless Steel Work Table
Model ST6R5-30108SBW — 108" W x 30" D x 35-3/4" HEngineered for the high–volume food-service, lab and industrial environments that demand uncompromising durability, this full-welded Stallion work table combines a 16 gauge Type 300 stainless steel top with heavy-duty six-leg support and NSF/CSA sanitation compliance.
Why You’ll Love It
- 16 GA Type 300 stainless steel top with #4 satin polish resists corrosion and cleans in seconds.
- 5" integrated backsplash protects walls and keeps messes on the work surface.
- 1-1/2" Stallion Safety Edge front for a comfortable, snag-free work zone.
- 90° turndown side edges ensure flush line-ups between adjacent equipment.
- Sound-deadened, 1" × 2" boxed channel understructure eliminates vibration and adds rigidity.
- Six 1-5/8" Ø, 16 GA tubular stainless legs with welded 1-1/4" Ø side & rear bracing.
- Adjustable 1" stainless bullet feet level the table on uneven floors.
- Full TIG-welded set-up ships ready to install—no assembly required.
- NSF and CSA-Sanitation listed for food-contact safety.
At-a-Glance Specs
| Model | ST6R5-30108SBW (“Stallion” Series) |
|---|---|
| Overall dimensions | 108" W × 30" D × 35-3/4" H (work surface) Backsplash adds 5" H with 1" turndown |
| Work surface | 16 GA, Type 300 stainless steel, #4 satin finish Sound-deadening tape beneath top |
| Front / side edges | 1-1/2" Stallion Safety Edge (front) 90° turndown (sides) |
| Undersupport | 1" × 2" boxed channel (entire length) |
| Legs | Six 1-5/8" Ø, 16 GA tubular stainless steel |
| Bracing | 1-1/4" Ø, 18 GA welded stainless side & rear bars |
| Feet | 1" adjustable stainless bullet feet |
| Weight / capacity | Approx. 125 lb ship weight · 1,500 lb max load (evenly distributed) |
| Certifications | NSF, CSA-Sanitation |
| Ships | Fully welded |
Compatible Add-Ons (sold separately)
- Stainless drawers with optional locks
- Single- or double-tier overshelves
- Stainless sink bowls and pot racks
- Heavy-duty swivel or locking caster kits
Units 7 ft. and longer ship with six legs for enhanced stability. All dimensions are typical; allow ±0.5" manufacturing tolerance.
