John Boos  |  Stallion  |  SKU: ST6R5-24144SSW

John Boos ST6R5-24144SSW Stallion Stainless Steel Prep Tables

$2,371.04
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Care & maintenance
Related Searches
Stainless Steel Prep Tables Tables & Workstations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

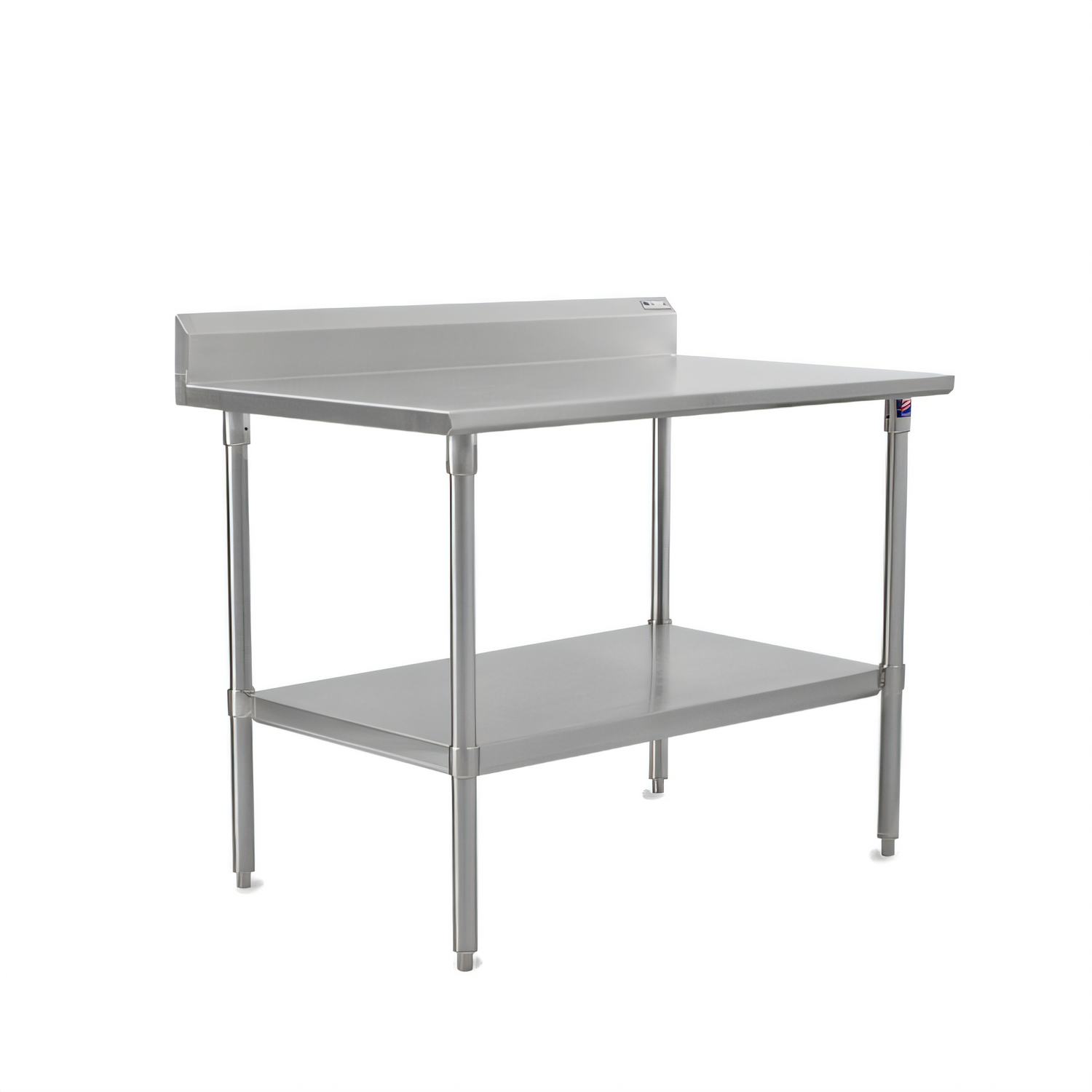

John Boos “Stallion” 144" x 24" Stainless Steel Work Table

Model ST6R5-24144SSW  •  Ships Fully Welded

Stretch your prep capacity to a full 12 feet with the John Boos Stallion work table—engineered for heavy-duty performance, quick sanitation, and years of rock-solid reliability.

Key Features
  • 16 GA Type 300 stainless steel top with #4 satin polish for superior corrosion resistance.
  • Integrated 5" rear backsplash with 1" turndown keeps walls clean and dry.
  • 1 ½" Stallion Safety Edge front prevents drips and offers comfortable arm contact; 90° turndown on both sides for flush line-ups.
  • Full TIG-welded top; exposed welds are polished to match the surrounding finish.
  • 1" × 2" boxed channel under-structure with sound-deadening tape delivers unmatched rigidity and quiet operation.
  • Six 1 5⁄8" O.D. 16 GA tubular stainless legs with welded 18 GA undershelf.
  • Adjustable 1" stainless bullet feet for easy leveling on uneven floors.
  • 750 lb maximum load capacity (evenly distributed).
  • Arrives fully welded—no on-site assembly required.
Specifications
Model ST6R5-24144SSW
Overall width × length 24" W × 144" L  (610 mm × 3658 mm)
Work surface height 35 3⁄4" (908 mm)
Overall height (with backsplash) 40 3⁄4" (1035 mm)
Top material 16 GA Type 300 stainless steel, #4 satin finish
Undershelf Fixed, welded 18 GA stainless steel
Legs Six 1 5⁄8" O.D. 16 GA stainless steel tubes
Backsplash 5" H integrated riser with 1" turndown
Edge profile 1 ½" Stallion Safety Edge front; 90° turndown sides
Load capacity 750 lb (evenly distributed)
Certifications NSF, CSA-Sanitation
Shipping weight 171 lb
Ideal For
  • Commercial and institutional kitchens
  • Food-processing and packaging lines
  • Laboratories and clean rooms
  • Industrial assembly or QA stations

Need drawers, casters, sinks, or overshelves? Contact us for factory-installed accessories.

Note: Weight capacity is based on an evenly distributed static load. All dimensions carry a ±0.5" manufacturing tolerance.

Features & Specs

Manufacturer

John Boos

Brand_name

Stallion

Certifications

NSF, CSA-Sanitation

Height

40.75in

Width

144.0in

Depth

24.0in

Shipping Weight

171.0lbs

Base Construction

stainless steel base

Table Edge Type

beveled bottom / return

Top Gauge

unspecified

Width (side - side)

144" wide (side - side)

Top Stainless Series

300 series top

Base Type

open with undershelf

Splash Height

5" backsplash

Depth (front - back)

24" deep (front - back)

Specifications

Work Table, 144"W x 24"D, 16/300 stainless steel top with 5" backsplash, with Stallion Safety Edge front, 90° turndown on sides, box channel understructure with sound deadening tape, stainless steel legs & welded undershelf, adjustable bullet feet, NSF, CSA-Sanitation, Full Welded Setup
