Description

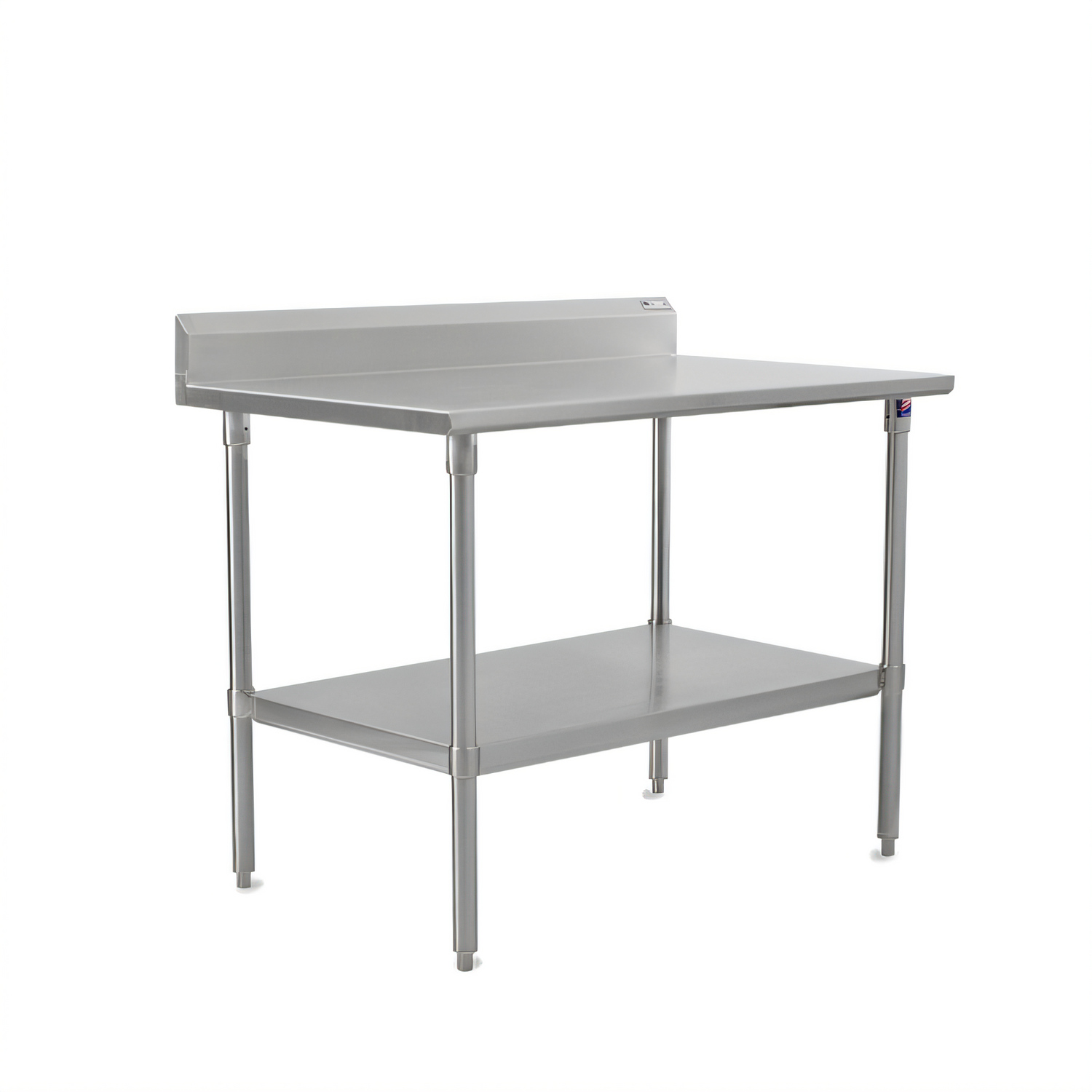

John Boos “Stallion” 120" x 24" Stainless Steel Work Table w/5" Backsplash

Model ST6R5-24120SSW • NSF & CSA-Sanitation Certified

Built for the heaviest commercial workloads, the 10-foot Stallion Series work table delivers the legendary strength of John Boos in a sleek, fully-welded package that rolls off the truck ready for action—no assembly, no compromises.

Key Benefits

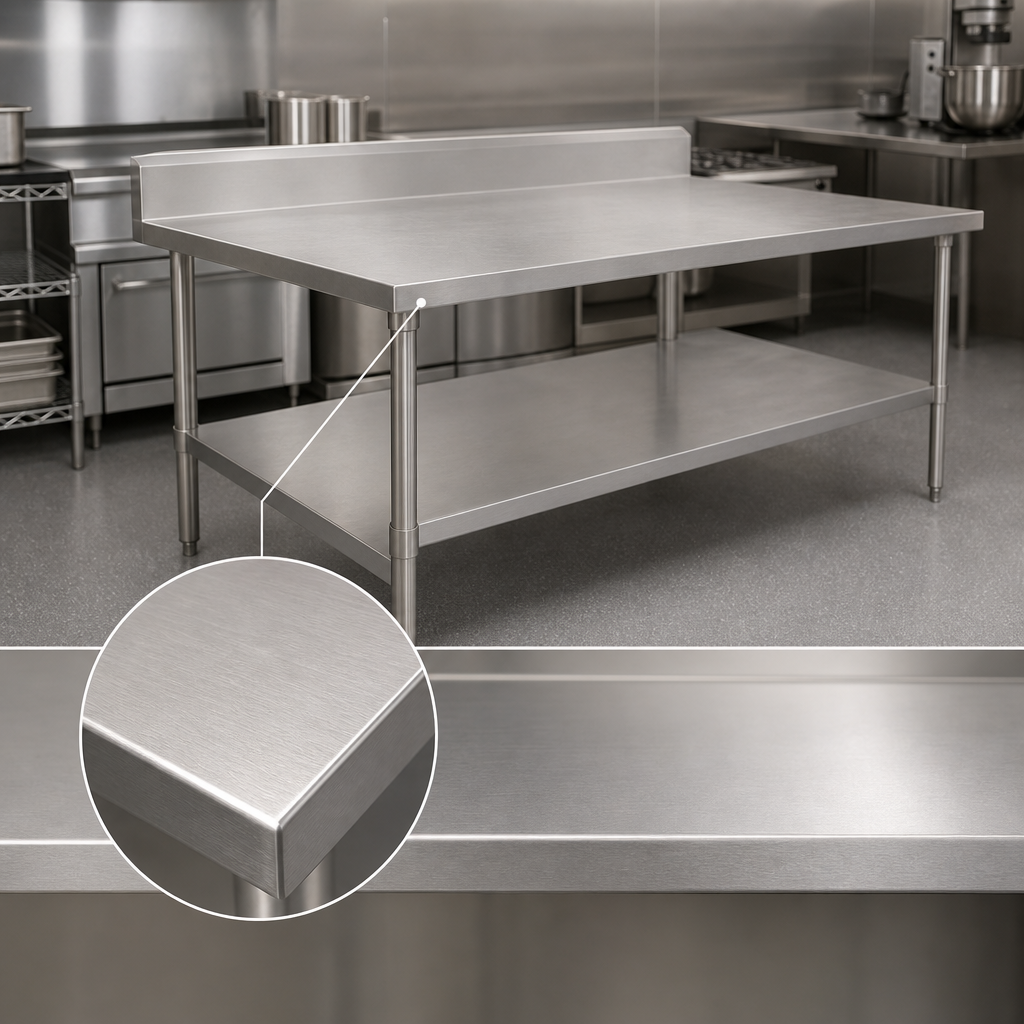

  • Premium 16 GA Type 300 stainless steel top with #4 satin polish.
  • 5" integral backsplash with 1" return keeps walls protected and mess contained.
  • 1 ½" Stallion Safety Edge front for operator comfort; side edges feature a 90° turndown for seamless line-up.
  • TIG-welded top reinforced by a full-length 1" × 2" box-channel frame with sound-deadening tape—quiet, rock-solid performance.
  • Six (6) 1-5/8" Ø 16 GA stainless legs (units over 7 ft. ship with six legs) add unwavering stability.
  • Welded 18 GA stainless undershelf for extra storage; shelf dimensions: 115-1/8" L × 19-3/4" W.
  • 1" adjustable stainless bullet feet make leveling a breeze on uneven floors.
  • Ships fully welded and ready to use—uncrate, level, and get to work.

Technical Specifications

Model ST6R5-24120SSW
Overall Dimensions 120" W × 24" D × 35-3/4" H (work surface)
+5" backsplash height
Work Surface 16 GA, Type 300 stainless, #4 finish
Front/Side Edges 1 ½" Stallion Safety Edge (front); 90° turndown (sides)
Understructure 1" × 2" stainless box channel with sound-deadening tape
Undershelf 18 GA stainless, welded in place
Legs (6) 1-5/8" Ø, 16 GA stainless tubing with stainless gussets
Feet 1" adjustable stainless bullet feet (+1" adjustment)
Shipping Weight ≈ 147 lb
Load Capacity 1,250 lb evenly distributed
Certifications NSF, CSA-Sanitation
Country of Origin USA (Effingham, IL)
Ships As Fully welded unit—no on-site assembly required

Optional Accessories (sold separately)

  • Stainless drawer & drawer lock
  • Swivel or locking stem casters
  • Single or double overshelves
  • Drop-in sink modules
  • Pot rack additions

Need a custom size, sink cut-out, or drawer configuration? Contact our customer success team for a fast quote.

Features & Specs

Manufacturer

John Boos

Brand_name

Stallion

Certifications

NSF, CSA-Sanitation

Height

40.75in

Width

120.0in

Depth

24.0in

Shipping Weight

147.0lbs

Splash Height

5" backsplash

Top Gauge

16 gauge top

Table Edge Type

beveled bottom / return

Base Type

open with undershelf

Depth (front - back)

24" deep (front - back)

Top Stainless Series

300 series top

Width (side - side)

120" wide (side - side)

Base Construction

stainless steel base

Specifications

Work Table, 120"W x 24"D, 16/300 stainless steel top with 5" backsplash, with Stallion Safety Edge front, 90° turndown on sides, box channel understructure with sound deadening tape, stainless steel legs & welded undershelf, adjustable bullet feet, NSF, CSA-Sanitation, Full Welded Setup
