John Boos SDT6-L7096SBK-L Pro-Bowl Compartment Sinks
Description

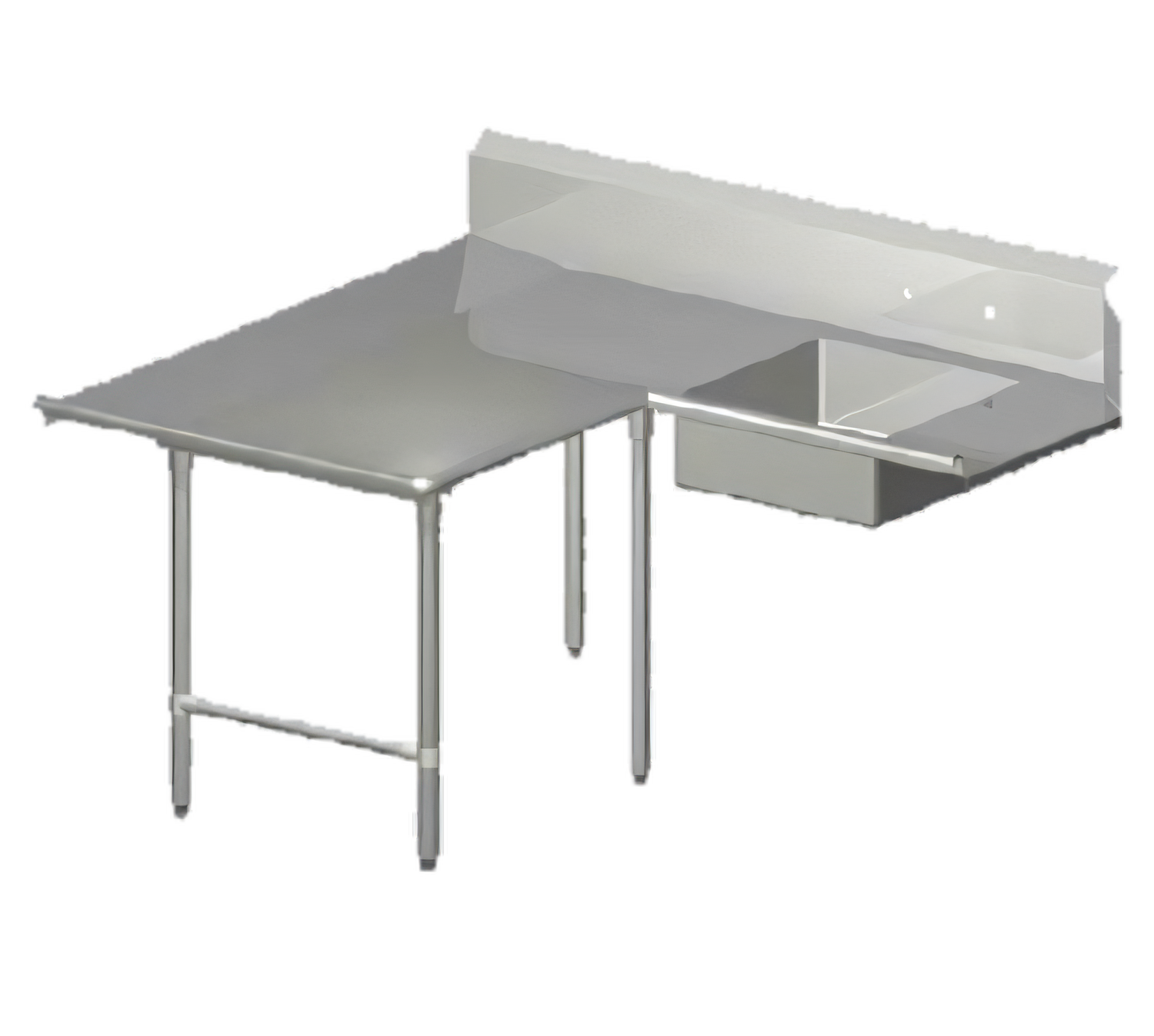

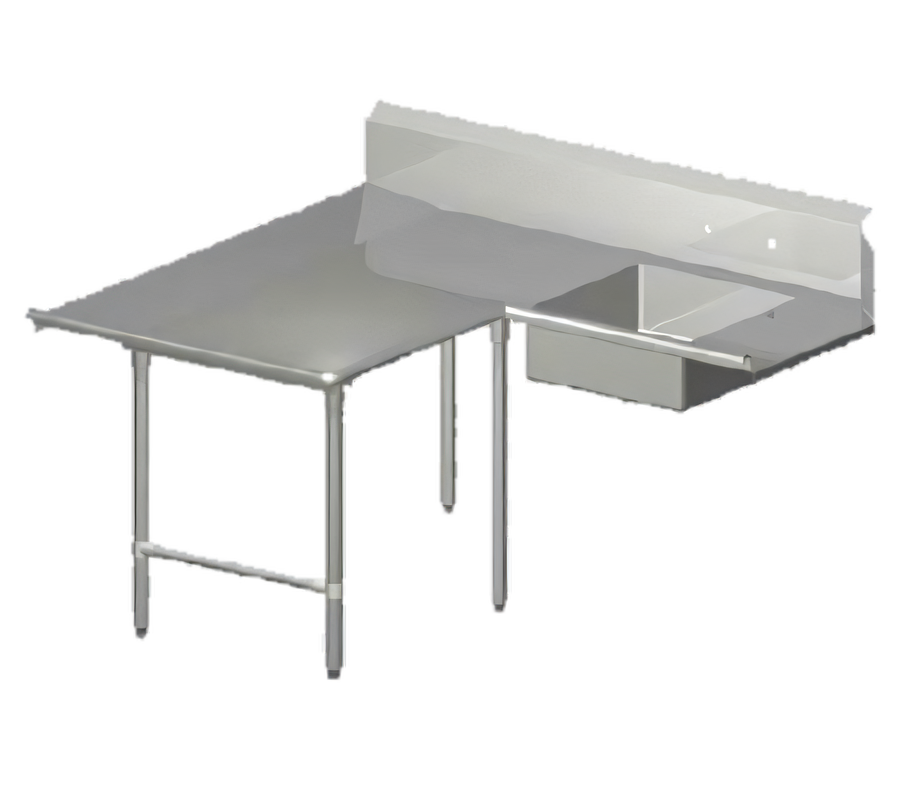

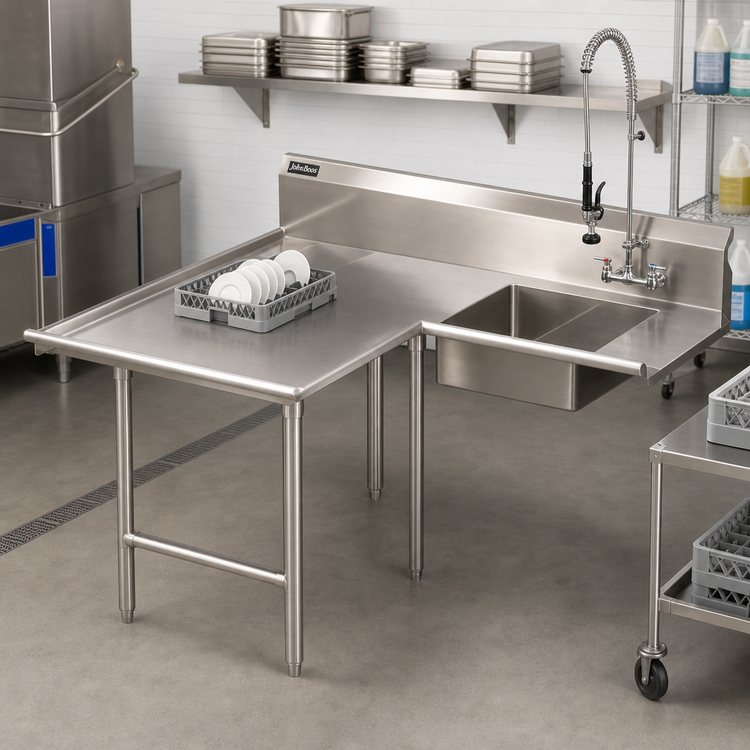

John Boos Pro-Bowl L-Shaped Soiled Landing Dishtable – 70" x 96"
Model SDT6-L7096SBK-L • left-to-right operationKeep dirty ware moving efficiently toward your corner dish-machine while protecting surrounding work areas. The John Boos Pro-Bowl landing dishtable pairs a generous 10" stepped landing shelf with a built-in pre-rinse sink, all fabricated from rugged #4-polish 300-series stainless steel for unbeatable sanitation and durability.
Key Advantages

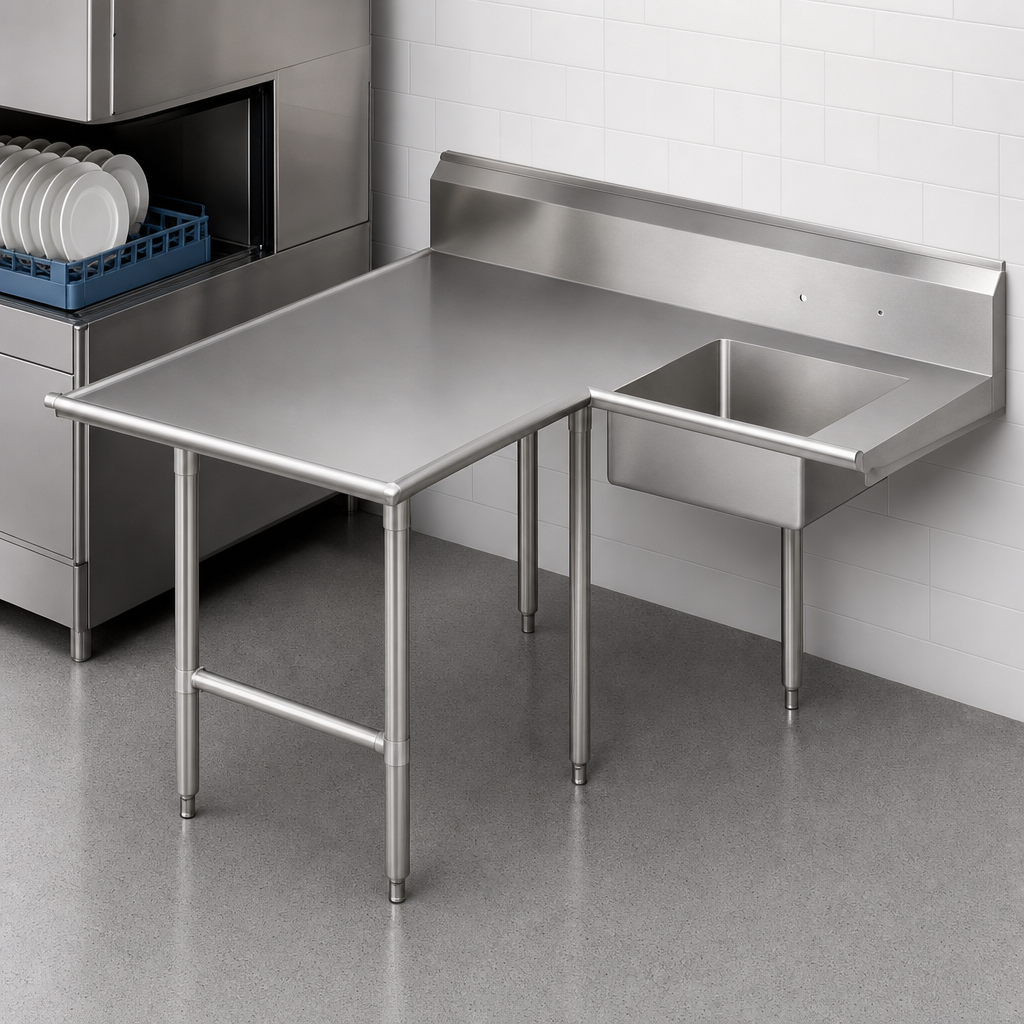

- L-shaped layout: 70" machine side (to corner) × 96" clean-end run.
- Left-to-right flow guides racks straight into the dishmachine and back out to the clean table (sold separately).
- 10" wide stepped landing shelf allows easy rack staging before pre-rinse.
- 20" W × 20" F-B × 8" D die-stamped sink bowl slopes to a 3 ½" drain for rapid evacuation.
- 10" boxed backsplash with 45° cap & 2" return keeps walls dry.
- Splash-mount faucet holes on 8" centers (faucet and sprayer sold separately).
- 2 ¼" rolled front & end edges — bullnosed for operator safety and easy cleaning.
- 16 ga. 300-series stainless steel work surface, TIG-welded and satin-polished to a #4 finish.
- 16 ga. stainless legs, cross-bracing and height-adjustable bullet feet for rock-solid support.
- NSF listed for use in all commercial food-service environments.
Quick Specs
| Overall footprint | 70" (dishmachine to corner) × 96" (corner to clean end) |
|---|---|
| Overall height | 44" |
| Landing shelf width | 10" |
| Sink bowl size | 20" W × 20" F-B × 8" D |
| Backsplash | 10" H boxed, 45° top, 2" return |
| Faucet mounting | (1) set of splash holes, 8" on center |
| Work surface material | 16 ga. type 300 stainless steel, #4 satin |
| Base frame | 16 ga. stainless legs & bracing with adjustable bullet feet |
| Edge profile | 2 ¼" rolled front & ends, bullnosed corners |
| Certifications | NSF |
Optional Accessories (sold separately)
- 8" center splash-mount pre-rinse faucet assembly
- Stainless steel overshelves or undershelves for added storage
- Garbage disposer adapter & control module
Ships knocked-down to minimize freight costs; some field assembly required.
