John Boos SDT6-L70144SBK-R Pro-Bowl Compartment Sinks
Description

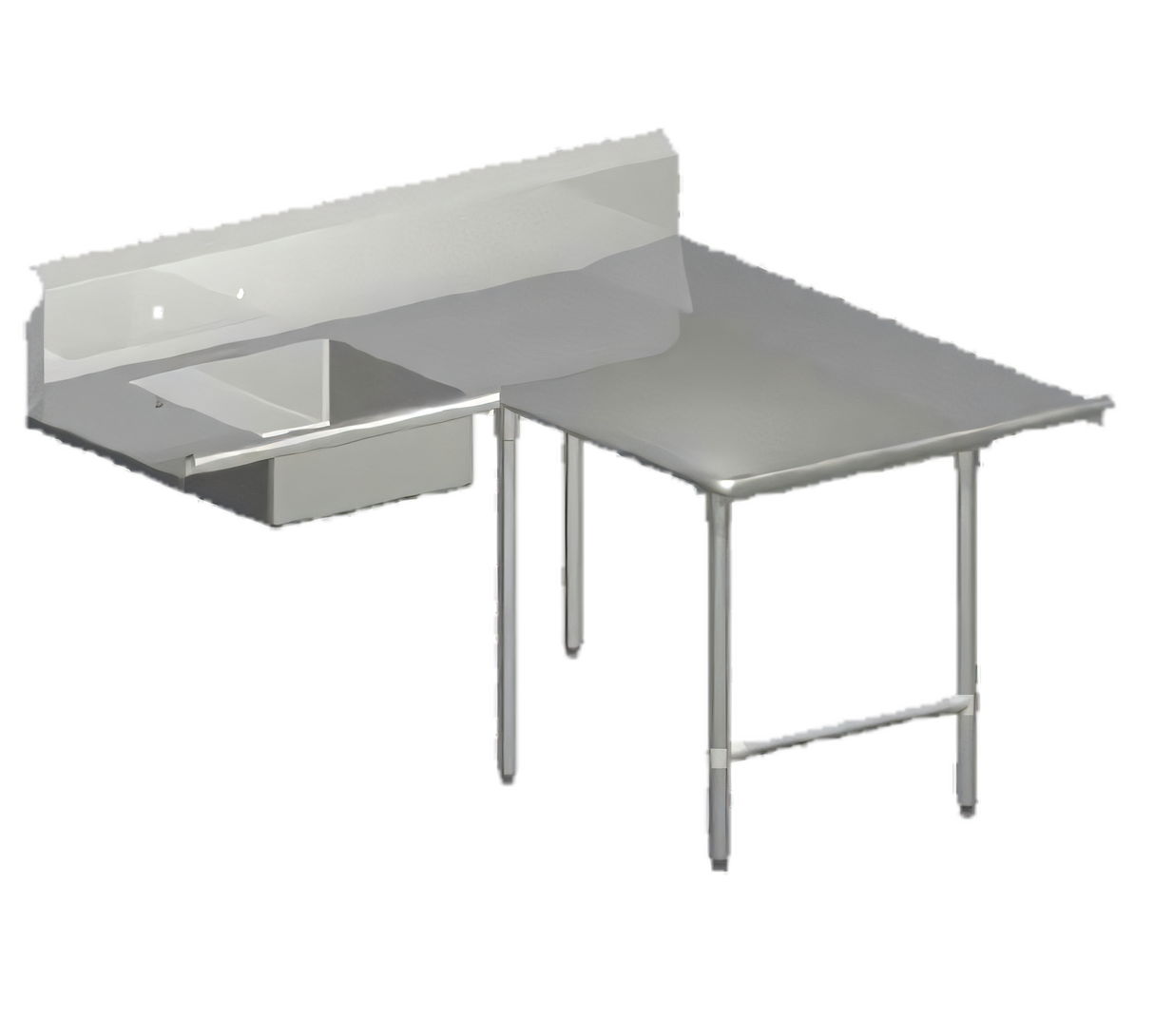

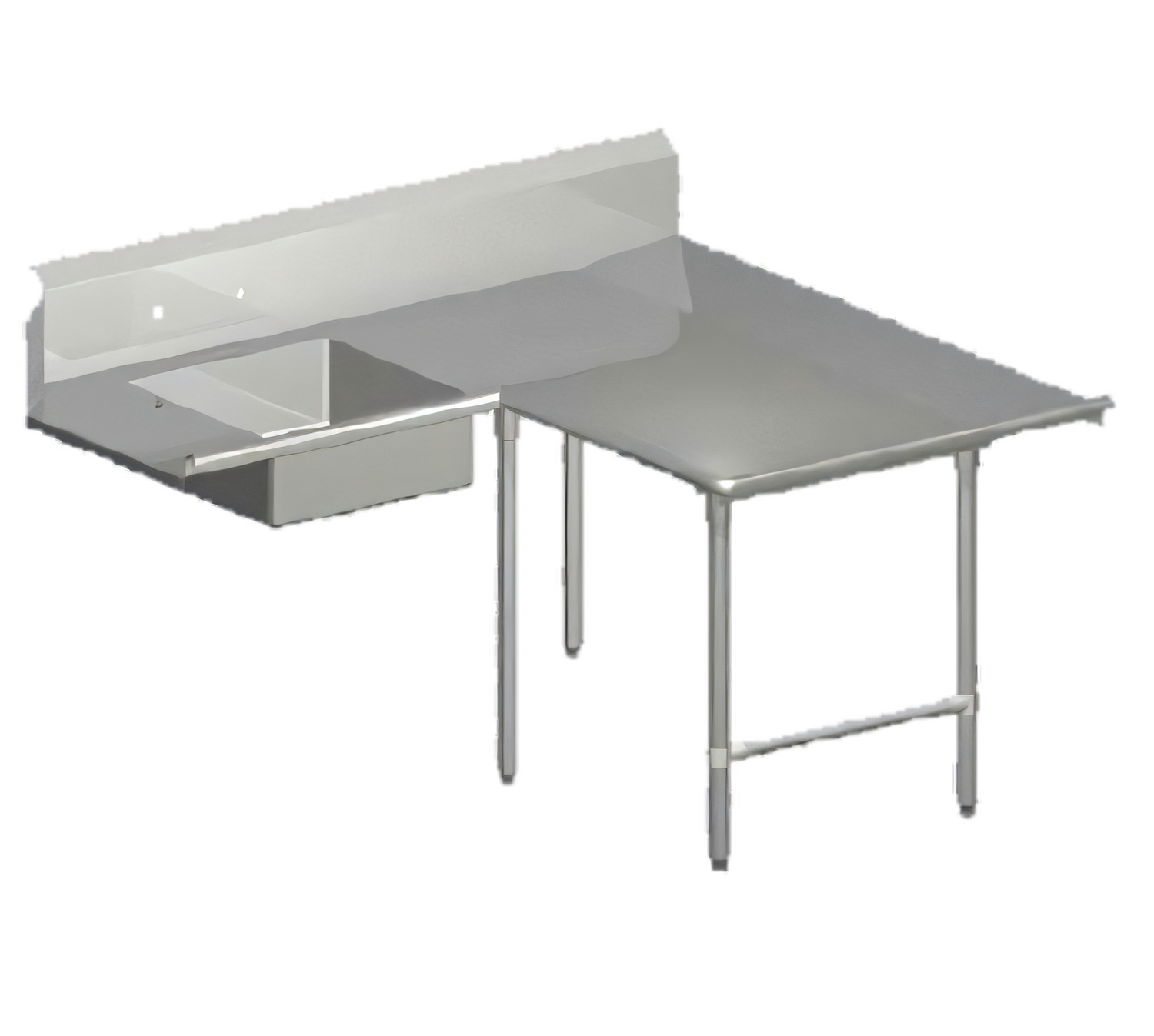

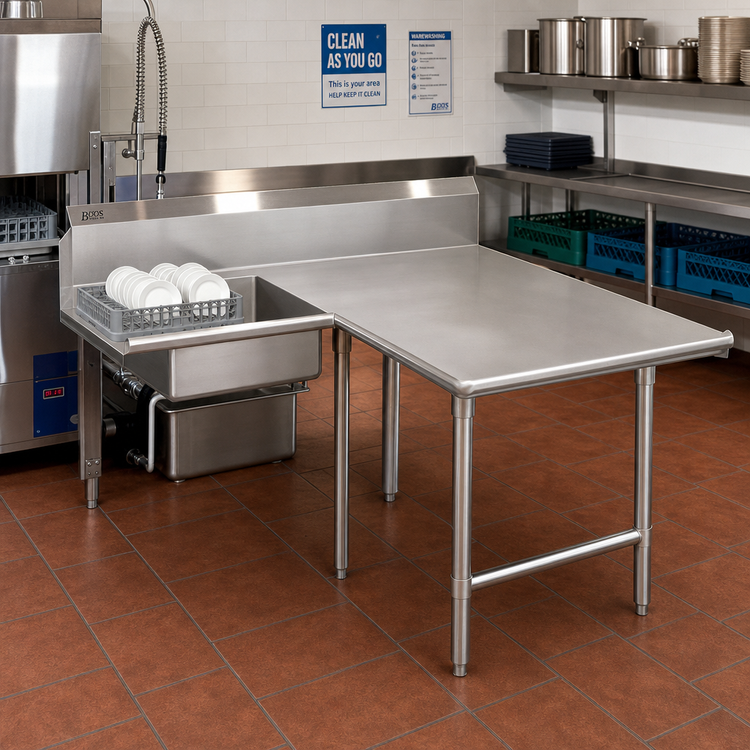

Pro-Bowl™ Soiled Landing Dishtable – 70" x 144" (R-to-L Flow)
John Boos | Model SDT6-L70144SBK-R | NSF ListedMaximize ware-washing throughput and keep dirty wares moving in the right direction with the John Boos Pro-Bowl™ soiled landing dishtable. Built for dishmachines that load from the right and unload to the left, this rugged L-shaped unit gives you a generous 10″ landing shelf, an integrated pre-rinse sink, and the legendary durability of 16 gauge, type 300 stainless steel.
Key Features & Benefits

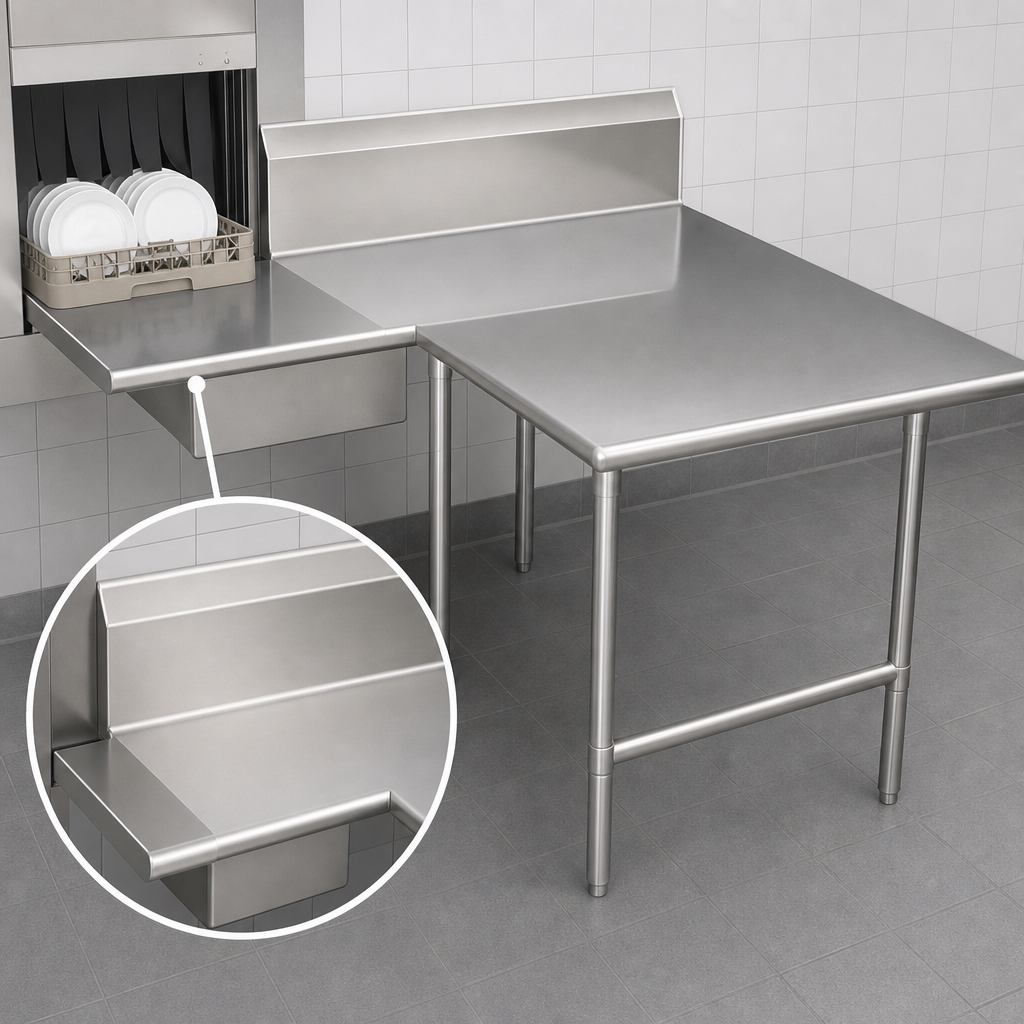

- 70″ machine-to-corner run + 144″ corner-to-end run for efficient corner installation.
- 20″ W × 20″ F/B × 8″ D pre-rinse sink bowl with 3½″ die-stamped drain slopes for fast drainage.
- 10″ high boxed backsplash with 45° top & 2″ return keeps walls dry and sanitary.
- Rolled 2¼″ front & end edges add strength and a comfortable, snag-free work surface.
- One set of splash-mount faucet holes, 1″ dia. on 8″ centers – ready for your pre-rinse or deck faucet.
- 16 ga. #4 satin-polished 300 series stainless top resists corrosion and wipes clean in seconds.
- 1⅝″ Ø 16 ga. stainless legs with adjustable bullet feet and cross-bracing for rock-solid stability.
- 10″ wide stepped landing shelf speeds scraping and sorting before the rack enters the machine.
- NSF certified and Proudly made in the USA by John Boos & Co.
At-a-Glance Specifications
| Overall configuration | L-shape, right-to-left operation |
|---|---|
| Run lengths | 70″ machine side | 144″ clean-end side |
| Overall height | 44″ (34″ work height + 10″ backsplash) |
| Sink bowl | 20″ W × 20″ F/B × 8″ D, 14 ga. bowl bottom |
| Work surface | 16 ga. 300 series stainless, #4 satin finish |
| Edge profile | 2¼″ rolled front & ends, bull-nosed corners |
| Faucet holes | 1″ dia. on 8″ centers (splash-mount) |
| Legs & bracing | Stainless steel, 1⅝″ Ø, adjustable SS bullet feet |
| Compliance | NSF/ANSI 2 – Food Equipment |
| Standard finish | TIG-welded, polished to match adjacent surfaces |
Maintain the stainless finish with non-chloride cleaners such as Bar Keepers Friend and a soft cloth. Avoid harsh abrasives or steel wool to preserve the protective chromium film.
The John Boos Advantage
- Since 1887 – 135+ years of American manufacturing expertise.
- Factory support, CAD layouts, and quick-ship options available.
- Five-year limited warranty on workmanship.
