John Boos

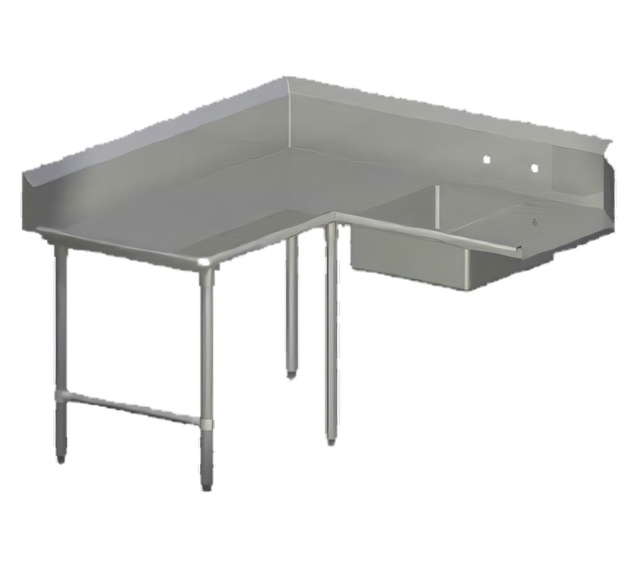

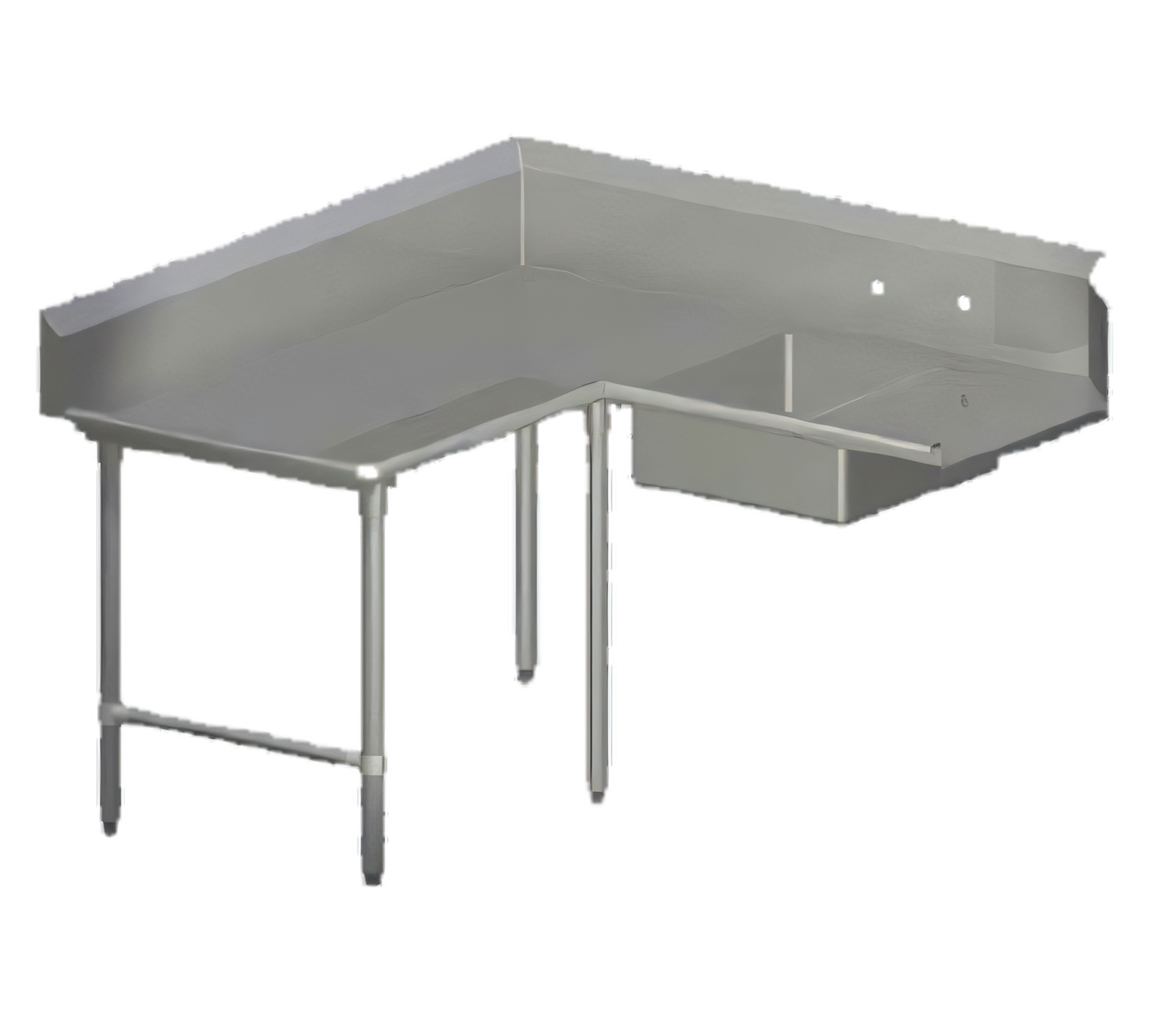

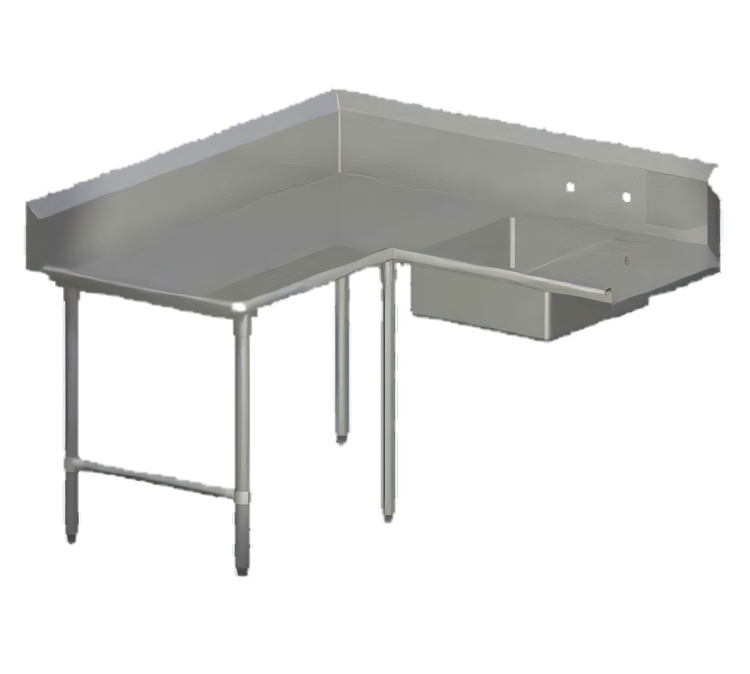

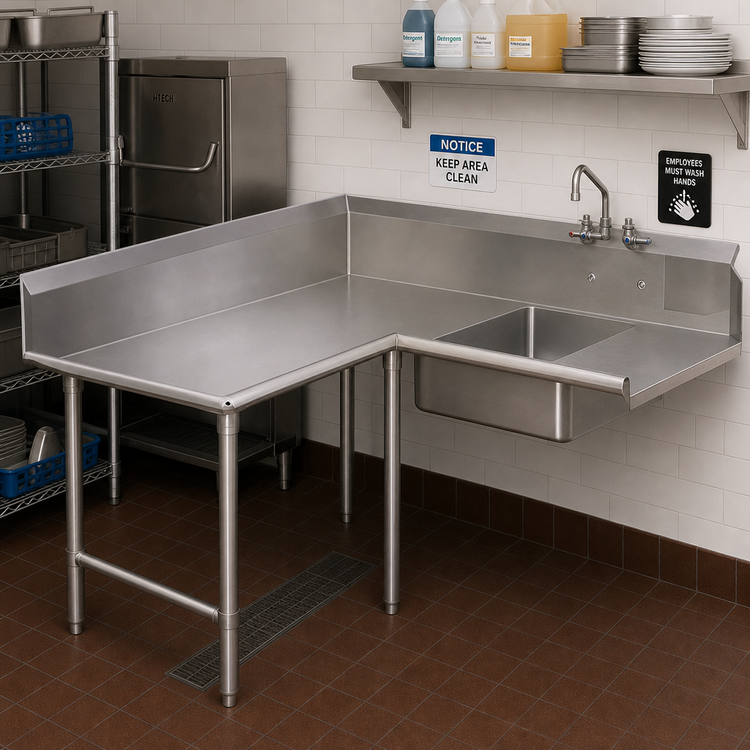

John Boos Pro-Bowl 144-Inch L-Shaped Corner Soiled Dishtable with 20" x 20" x 8" Sink Bowl

SKU: SDT6-K60144SBK-L
GTIN: 662969627355
$5,128.74
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Work Tables Compartment Sinks Dish Tables John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations Specialty Work Tables

John Boos Pro-Bowl 144-Inch L-Shaped Corner Soiled Dishtable with 20" x 20" x 8" Sink Bowl

Left-to-Right Operation, 16-Gauge 300 Series Stainless Steel, 10" Boxed Backsplash

Built for busy dish rooms, this corner dishtable combines a large pre-rinse sink, splash-controlling backsplash, and rugged stainless steel construction for efficient soiled ware handling.

  • 12-foot L-shaped corner layout is designed for left-to-right dish room flow.
  • Includes one 20" x 20" x 8" pre-rinse sink bowl for scraping and rinsing soiled ware.
  • 10" boxed backsplash with a 45° top and 2" return helps contain splashes.
  • 16-gauge 300 series stainless steel top with satin finish delivers durable commercial performance.
  • Stainless steel legs, bracing, and adjustable bullet feet provide stable support and easy leveling.
  • Splash-mount faucet holes with 8" centers simplify faucet installation.

Overall Dimensions:

44.06"H

Product Weight:

345.0 lb

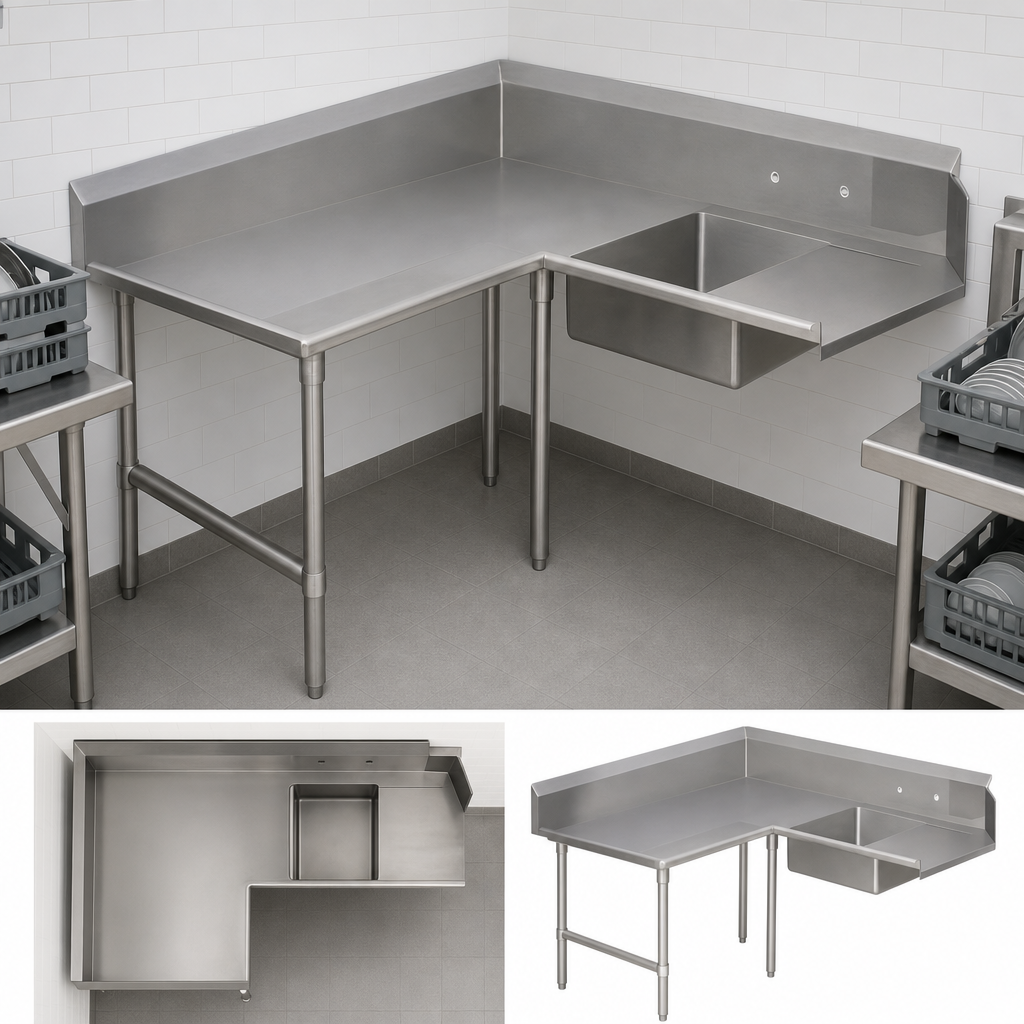

Corner L-Shaped Layout

Designed for left-to-right operation in corner dish room installations.

Pre-Rinse Sink Bowl

Includes one 20" x 20" x 8" sink bowl for handling soiled dishes before washing.

Drainage-Ready Bowl

The bowl bottom is formed for drainage to a 3-1/2" die-stamped opening, with a built-in slope toward the dish machine.

Boxed Backsplash

Full-length 10" high backsplash features a 45° top, 2" return to the wall, and a turned-down rear lip to help reduce splash.

Stainless Steel Work Surface

Type 300 stainless steel top with #4 polish, satin finish, and TIG-welded construction for commercial durability.

Sturdy Support Base

Stainless steel legs, bracing, and adjustable bullet feet provide strong support and leveling; 144-inch units are furnished with six legs.

Faucet Mounting And Safety Edge

Includes one set of splash-mount faucet holes on 8" centers and a 2-1/4" rolled edge with bullnosed outside corners.

Type Soiled Dishtable
Style Corner
Installation Type Floor Model
Direction Left-to-Right
Machine To Corner Length 60 Inches
Corner To End Length 144 Inches
Backsplash Height 10 Inches
Bowl Size 20 x 20 x 8 Inches
Material Stainless Steel
Finish Satin Finish
Shipping Height 45 Inches
Shipping Weight 345 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Care & maintenance PDF Download

Frequently Asked Questions

This model is configured for left-to-right operation.
It includes one 20" x 20" x 8" pre-rinse sink bowl.
The unit has a full-length 10" boxed backsplash with a 2" return to the wall.
It includes one set of splash-mount faucet holes with 8" centers.
The top is type 300 stainless steel with a #4 polish, satin finish.
