John Boos SDT4-L7096SBK-L Pro-Bowl Compartment Sinks
Description

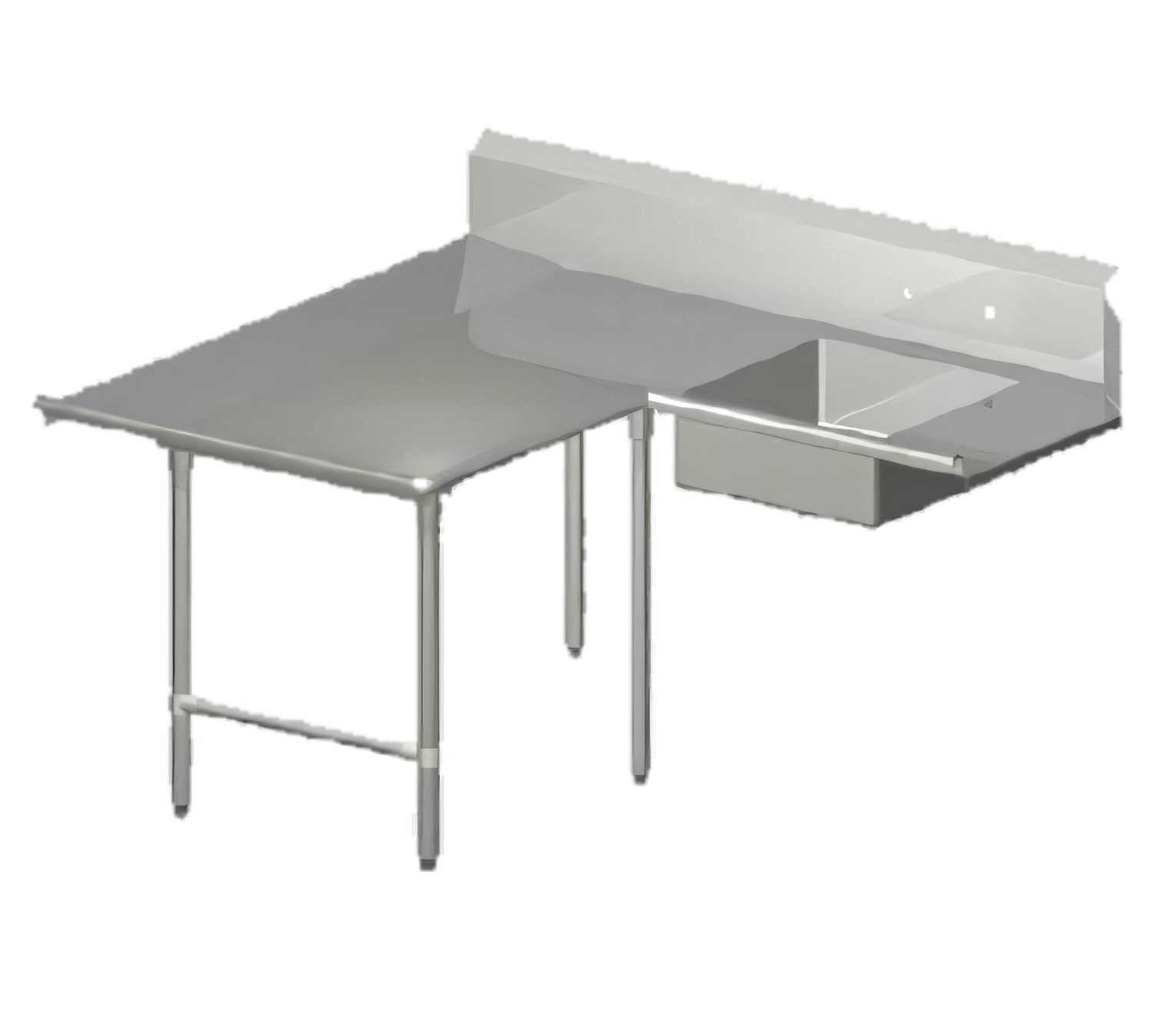

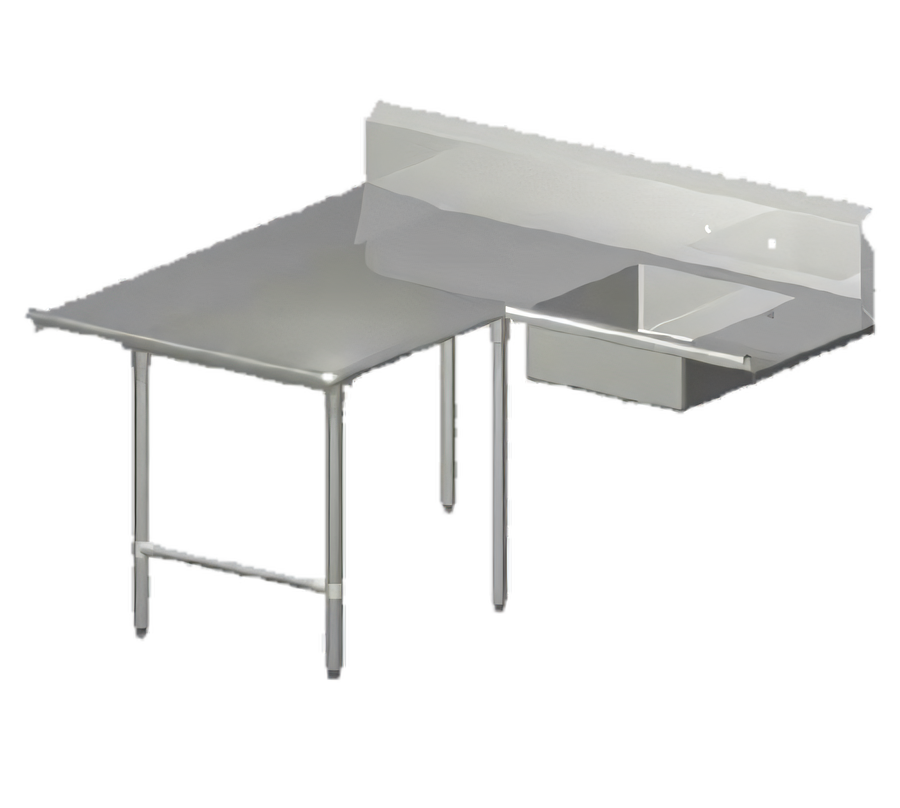

Pro-Bowl L-Shaped Soiled Landing Dishtable
John Boos | 70" machine-to-corner • 96" corner-to-end • Left-to-Right operationEngineered for busy ware-washing lines, the John Boos Pro-Bowl landing dishtable delivers rugged 14-gauge stainless-steel strength, a generous 10" stepped landing shelf, and a full 20" × 20" × 8" pre-rinse sink bowl – all in a space-saving L-shape that feeds seamlessly into your dish machine.
Key Features
- L-shaped footprint: 70" from dish machine to corner, 96" from corner to end
- Left-to-right workflow keeps soiled ware moving one way through the dishroom
- 10" wide stepped landing shelf speeds unloading and sorting
- (1) 20" W × 20" F/B × 8" D pre-rinse sink bowl pitched to a 3 ½" die-stamped drain opening
- 10" boxed backsplash with 45° sanitary return and 1" turned-down lip
- Splash-mount faucet holes on 8" centers (faucet sold separately)
- 2 ¼" rolled front & side edges for employee safety and easy cleaning
- Heavy-duty 14-gauge, type 300 stainless-steel work surface – TIG-welded & polished
- 1 ⅝" Ø stainless-steel legs with cross-bracing and adjustable bullet feet
- NSF certified for foodservice sanitation
At-a-Glance Specifications
| Overall footprint | L-shape: 70" machine side × 96" landing side |
|---|---|
| Overall height | 44" |
| Landing shelf | 10" stepped |
| Sink bowl | (1) 20" W × 20" F/B × 8" D |
| Backsplash | 10" H boxed, 45° top, 2" return |
| Faucet holes | 1" Ø, 8" on-center (splash-mount) |
| Work surface | 14-ga 300 series stainless steel, TIG welded |
| Edge profile | 2 ¼" rolled |
| Base construction | Stainless legs & bracing, adjustable bullet feet |
| Flow direction | Left → Right |
| Certifications | NSF |
Need a right-to-left configuration, overshelves, or pre-rinse faucets? Contact our team for a custom quote.
Built to Outlast the Shift
- 14-gauge top shrugs off heavy sheet-pan drops and bus tubs.
- Bull-nosed corners and fully welded seams speed end-of-night cleanup.
- Integral pitch directs water toward the dish machine for faster drainage.
- Crafted in the USA by John Boos & Co. – trusted since 1887.
Popular Add-Ons
- Pre-rinse faucet assemblies
- Stainless-steel over-shelves
- Undershelves for chemical or rack storage
Care & Maintenance
Wipe down daily with a non-chloride stainless-steel cleaner and a soft cloth. Always clean along the grain, rinse thoroughly, and dry to maintain the protective chromium oxide film and keep your dishtable looking factory-fresh.
