John Boos SDT4-L7072SBK-R Pro-Bowl Compartment Sinks
Description

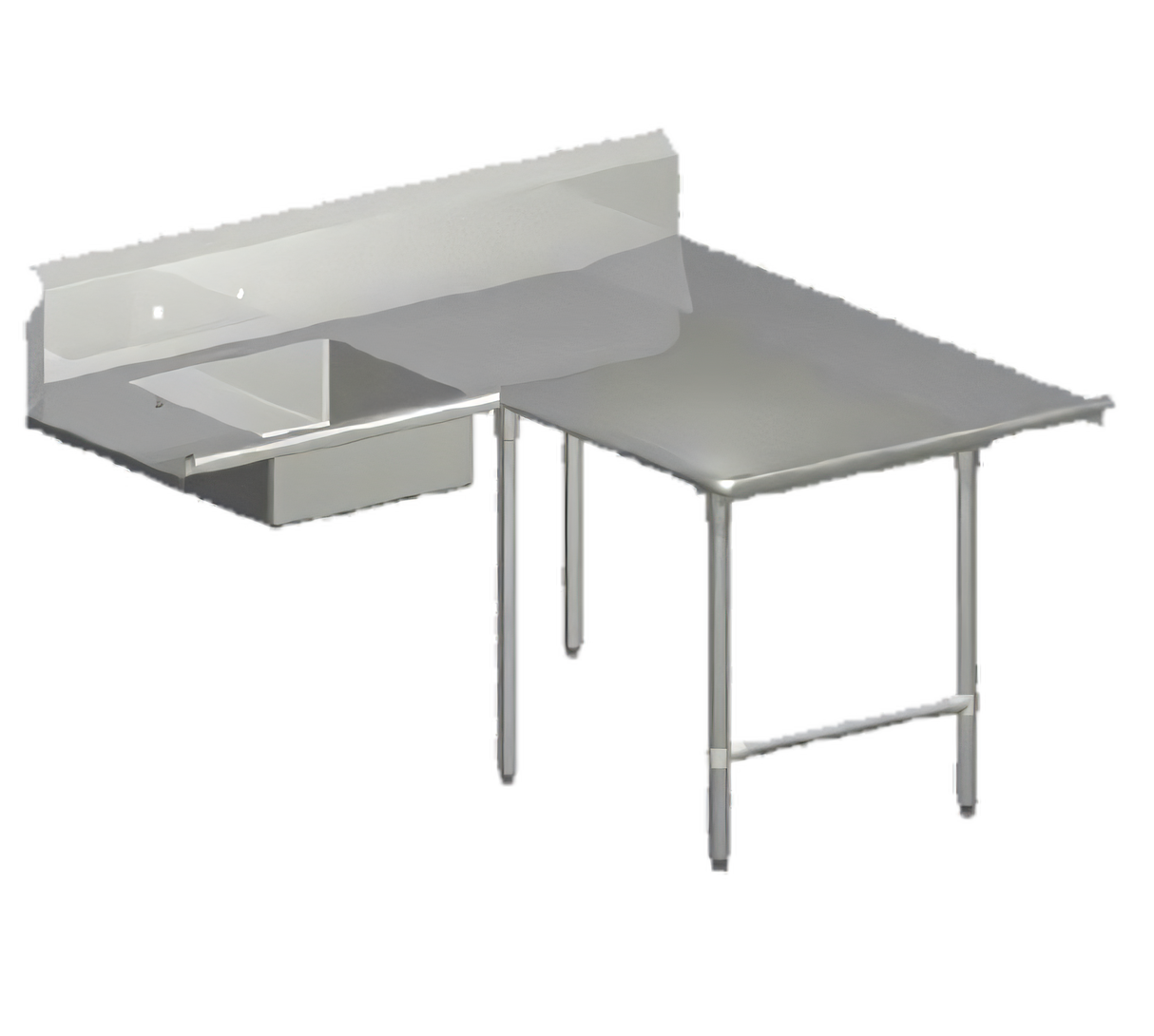

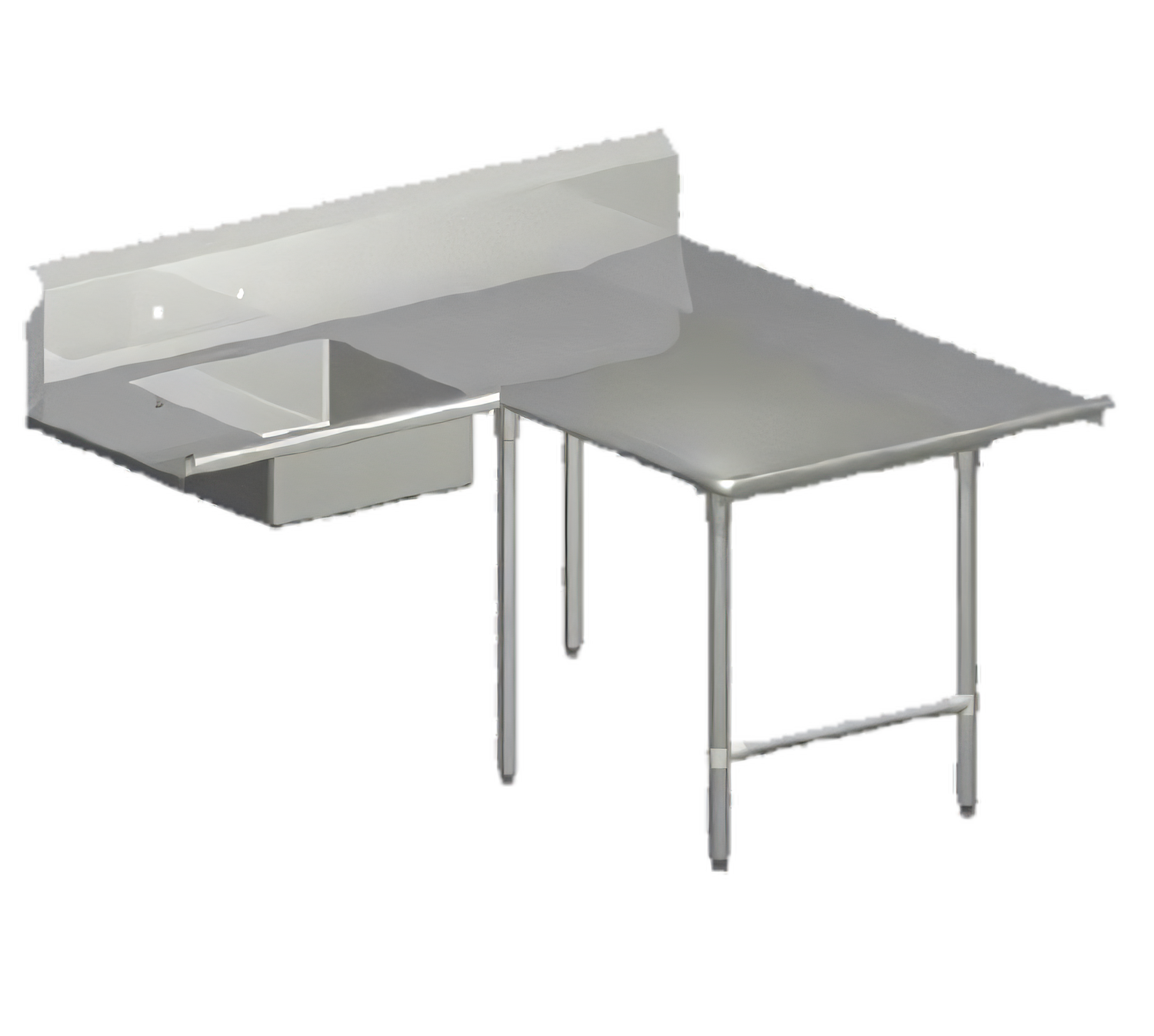

Pro-Bowl 70" × 72" Soiled Landing Dishtable – Right-to-Left
John Boos SDT-L Series • Premium 14-Gauge 304 Stainless SteelKeep dirty wares moving and your dish machine running at top speed with the rugged, NSF-listed Pro-Bowl landing dishtable from John Boos. Designed for high-volume kitchens, this L-shaped unit combines a generous stepped landing shelf with an integrated pre-rinse sink bowl, all fabricated from extra-heavy 14-gauge stainless steel for uncompromising durability.
Key Features
- Premium 14-ga, type 300 (304) stainless steel work surface with #4 satin polish
- L-shape: 70" machine-to-corner | 72" corner-to-end (total run 142")
- 10"-wide stepped landing shelf speeds rack staging and controls splash
- Integrated pre-rinse sink: 20" W × 20" F/B × 8" D, formed bottom drains to 3-½" die-stamped opening
- 10" boxed backsplash with 45° top edge & 2" return—keeps walls dry and sanitary
- Splash-mount faucet holes, 8" on-center (faucet sold separately)
- 2-¼" rolled, bull-nosed front and side edges for superior operator safety
- 16-ga 304 stainless legs & cross bracing with 1" adjustable stainless bullet feet
- Right-to-left operation—dirty ware enters on the right and feeds the dish machine on the left
- NSF certified construction meets the strictest sanitation codes
At-a-Glance Specifications
| Series / Model | Pro-Bowl SDT-L Soiled Landing Dishtable |
|---|---|
| Configuration | L-shaped, right-to-left flow |
| Machine-to-Corner Length | 70 in. |
| Corner-to-End Length | 72 in. |
| Overall Height | 44 in. (work height incl. backsplash) |
| Landing Shelf | 10 in. wide stepped shelf |
| Sink Bowl | 1 × 20" W × 20" F/B × 8" D |
| Backsplash | 10" boxed with 45° cap & 2" return |
| Edge Profile | 2-¼" rolled, bull-nosed |
| Work Surface Material | 14-ga 304 stainless steel |
| Legs / Bracing | 16-ga 304 stainless steel, welded cross bracing |
| Adjustability | 1" stainless bullet feet |
| Faucet Mount | 8" on-center, splash mount |
| Drain Opening | 3-½" die-stamped |
| Certification | NSF |
Need overshelves, undershelves, or a compatible pre-rinse faucet? Chat with us and we’ll build the perfect accessory package for your workflow.
Why John Boos?
- Crafted in the USA since 1887—over 135 years of fabrication expertise
- TIG-welded seams polished to a smooth, sanitary finish
- Industry-leading lead times and responsive factory support
