John Boos

John Boos Pro-Bowl L-Shaped Soiled Dishtable, 70 x 48 Inch Corner Layout, Right-To-Left Operation

SKU: SDT4-L7048SBK-R
GTIN: 662969569433
$4,610.43
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Work Tables Compartment Sinks Dish Tables John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations Specialty Work Tables

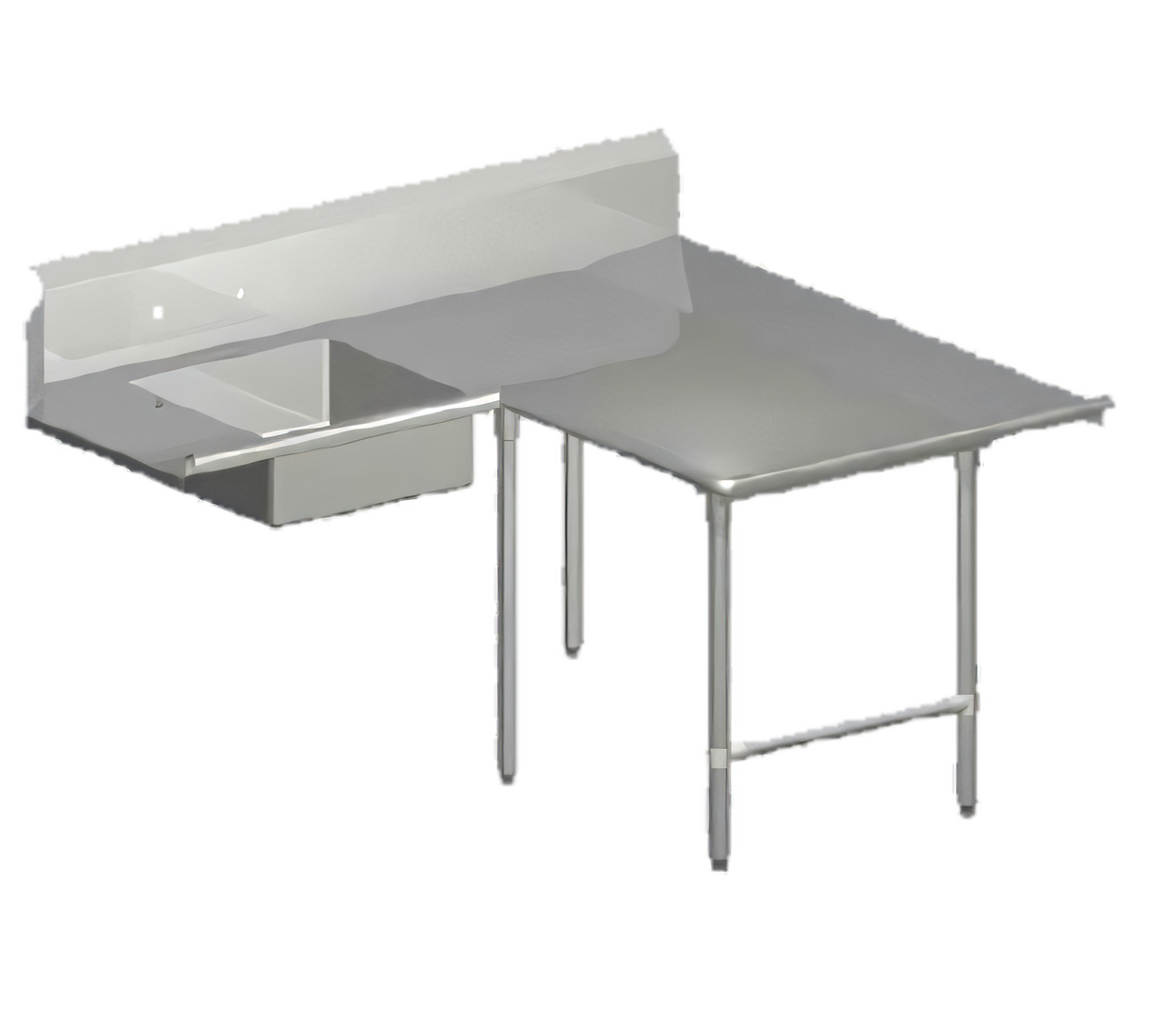

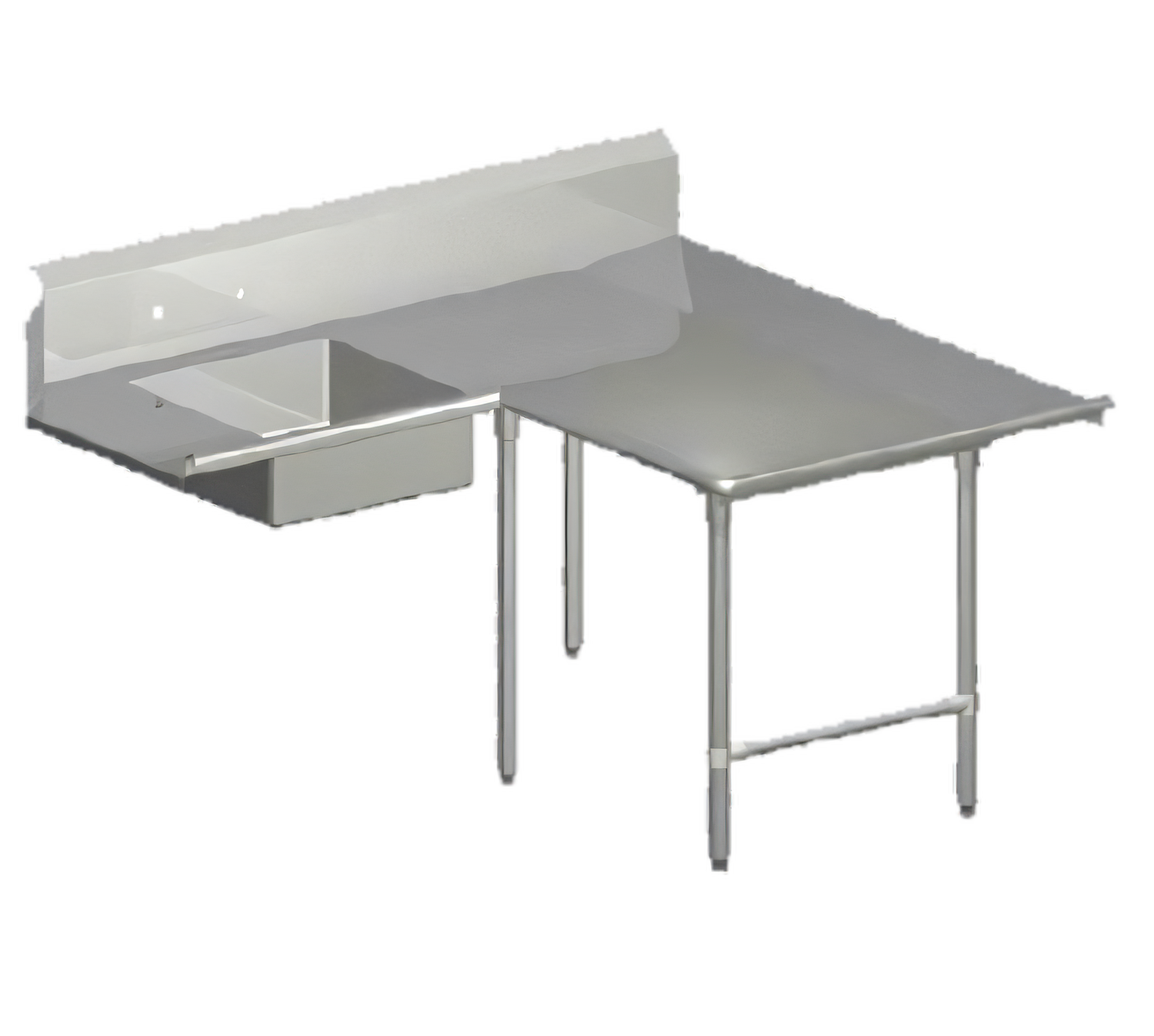

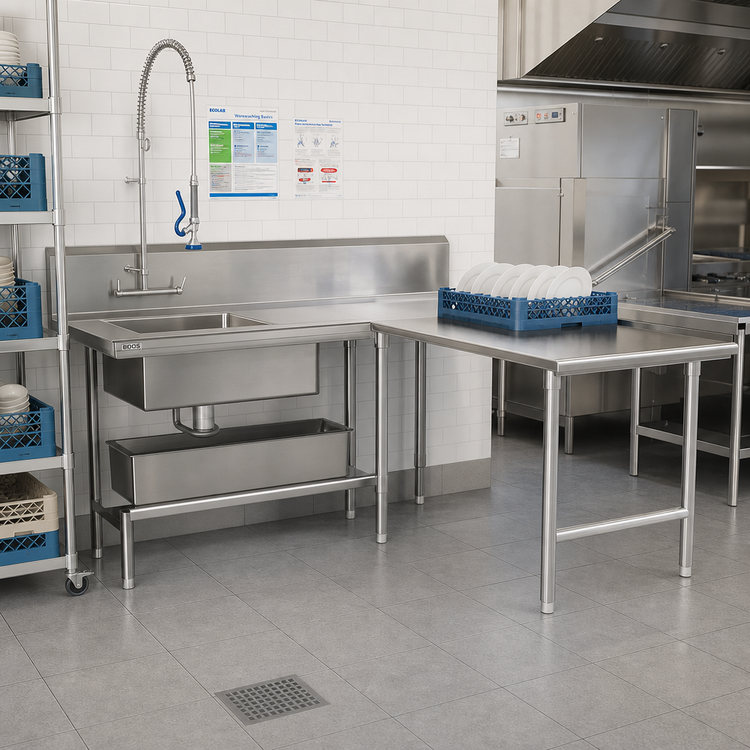

John Boos Pro-Bowl L-Shaped Soiled Dishtable, 70 x 48 Inch Corner Layout, Right-To-Left Operation

10-Inch Landing Shelf, 20 x 20 x 8 Inch Pre-Rinse Bowl, 14-Gauge 304 Stainless Steel Top

Built for efficient dishroom flow, this corner soiled dishtable combines a right-to-left landing shelf, deep pre-rinse bowl, and rugged stainless steel construction.

  • L-shaped corner design fits machine-to-corner dishroom layouts.
  • 10-inch landing shelf provides a dedicated staging area for ware handling.
  • Includes one 20 x 20 x 8 inch pre-rinse sink bowl for scraping and rinsing.
  • 10-inch boxed backsplash with a 45-degree top and 2-inch return helps contain splash.
  • 14-gauge 304 stainless steel top with stainless steel legs, bracing, and adjustable bullet feet.
  • Splash-mount faucet holes are pre-punched on 8-inch centers.

Overall Dimensions:

44.06"H

Product Weight:

205.0 lb

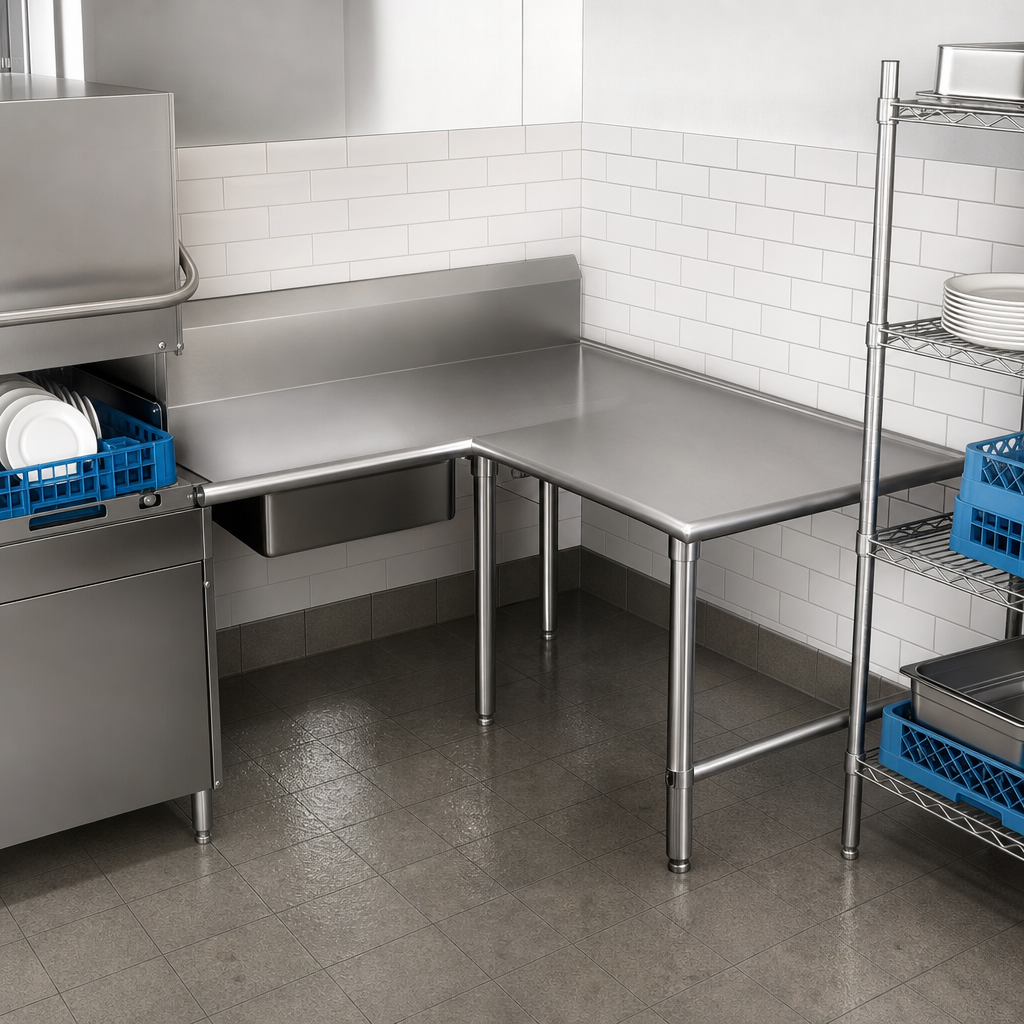

L-Shaped Corner Layout

Designed for machine-to-corner installations with a 70-inch machine side and 48-inch corner side.

Right-To-Left Operation

Configured for right-to-left dish flow to match your dishroom layout.

10-Inch Landing Shelf

Provides a wide step landing area for loading and unloading dishes.

Pre-Rinse Sink Bowl

Includes one 20 x 20 x 8 inch bowl for scraping and pre-rinsing wares.

Boxed Backsplash

Full-length 10-inch backsplash includes a 2-inch return to the wall at 45 degrees and a turned-down rear lip to help control splash.

Stainless Steel Construction

Built with a 14-gauge 304 stainless steel top and stainless steel legs, bracing, and adjustable bullet feet.

Built-In Drainage Slope

The bowl bottom is formed with slope toward the machine side to assist drainage.

TIG-Welded, Polished Finish

Exposed welds are polished to match adjacent surfaces, and outside corners are bullnosed for a cleaner edge.

Faucet-Ready Design

Includes one set of splash-mount faucet holes with 8-inch centers.

Knockdown Construction

K.D. design ships unassembled with adjustable bracing to help reduce freight cost.

Type Soiled Dishtable
Style Landing Design
Installation Type Floor Model
Shape Corner
Direction Right-To-Left
Machine To Corner Length 70 Inches
Corner To End Length 48 Inches
Bowl Size 20 x 20 x 8 Inches
Splash Height 10 Inches
Material 304 Stainless Steel
Finish Satin Finish
Top Gauge 14 Gauge
Leg Gauge 16 Gauge
Stainless Series 300 Series
Faucet Hole Centers 8 Inches
Shipping Height 45 Inches
Shipping Weight 205 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

Yes. This model is configured for right-to-left operation.
It includes one 20 x 20 x 8 inch pre-rinse sink bowl.
Yes. It has a 10-inch boxed backsplash with a 2-inch return and splash-mount faucet holes on 8-inch centers.
The unit uses a 14-gauge 304 stainless steel top with stainless steel legs, bracing, and adjustable bullet feet.
No. The K.D. design ships unassembled with adjustable bracing to help reduce freight cost.
Optional accessories listed in the document include faucets, an over shelf, and an under shelf.
