John Boos SDT4-L70120SBK-R Pro-Bowl Compartment Sinks
Description

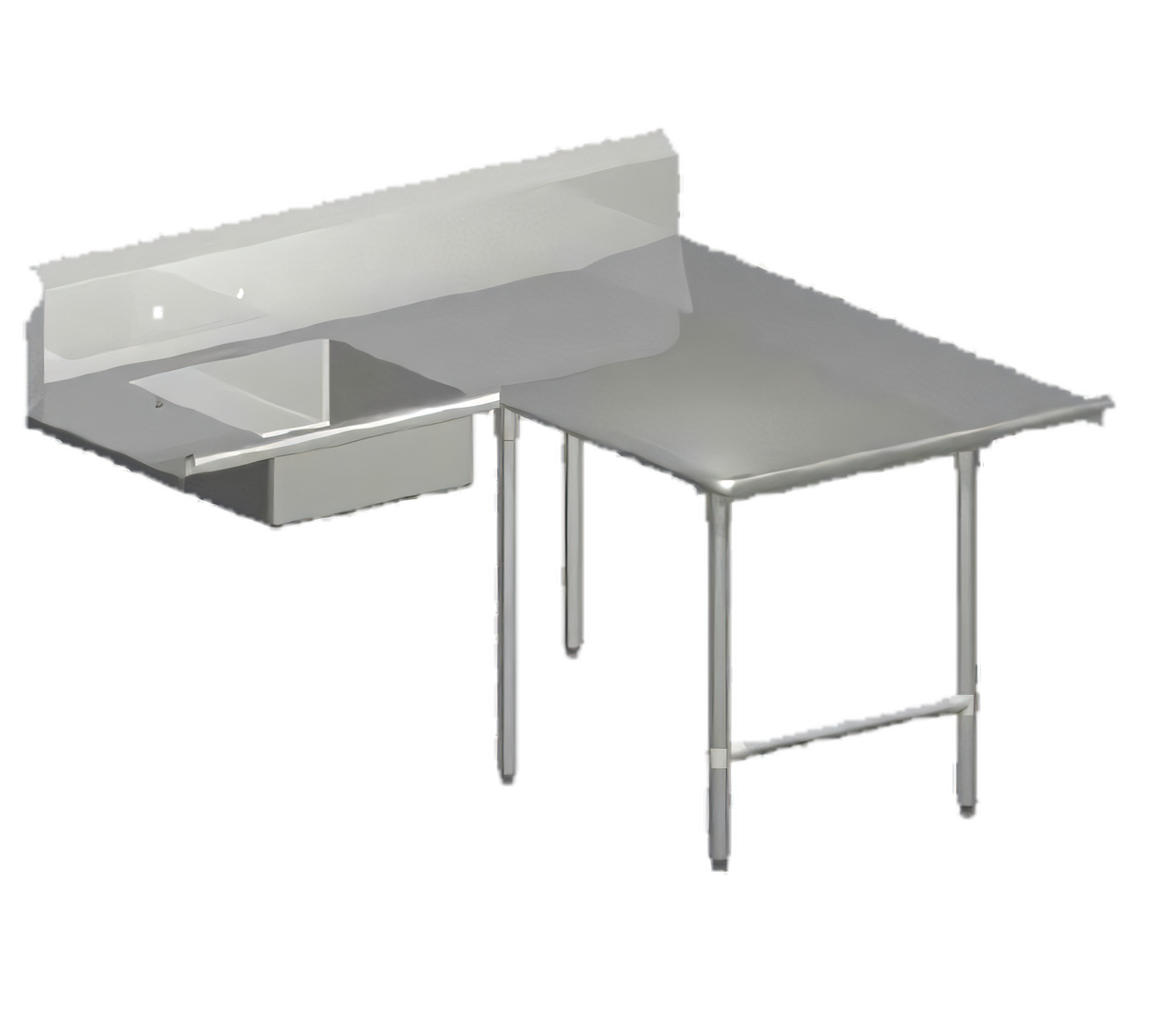

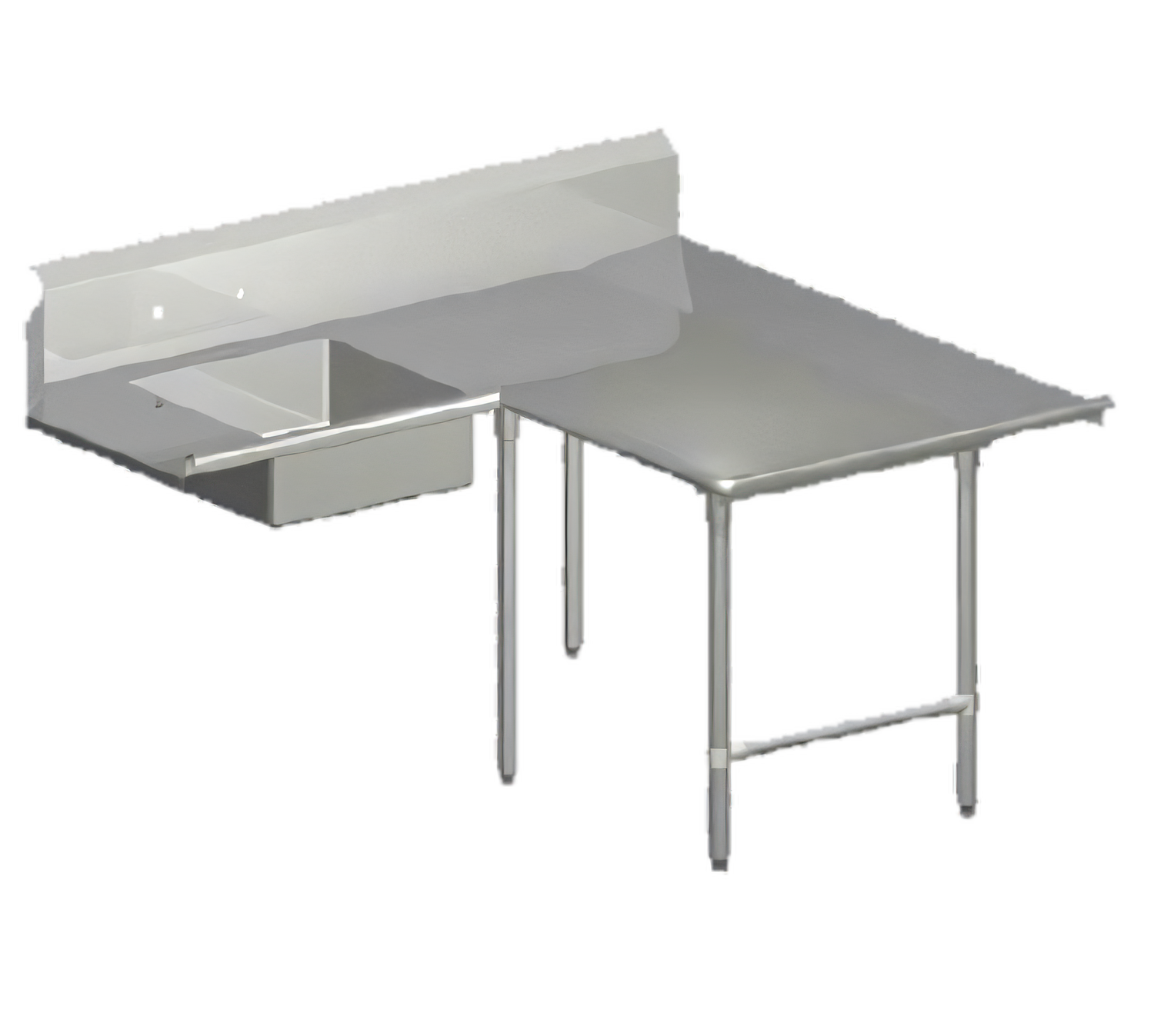

John Boos Pro-Bowl Soiled Landing Dishtable – 120" × 70" L-Shape, Right-to-Left
Model: SDT4-L70120SBK-R | Premium 14 ga SeriesMaximize ware-washing efficiency with this heavy-duty John Boos Pro-Bowl landing dishtable. Built for corner dish machines, it turns otherwise wasted space into a streamlined, easy-to-clean work zone that keeps dirty wares moving and staff safe.
Key Features

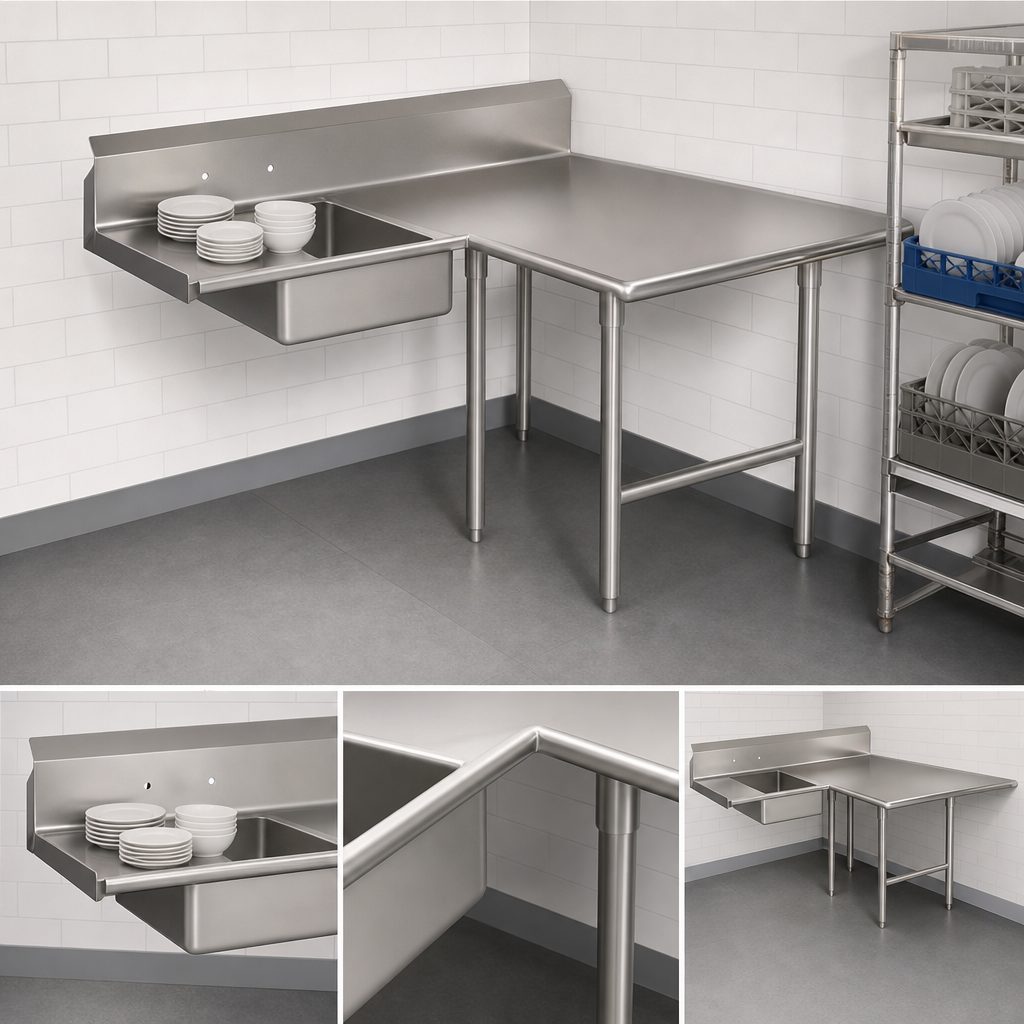

- Space-saving 70" machine side + 120" landing side create a true L-shaped workflow.
- Right-to-left operation for fast unloading and optimal ergonomic flow.
- Integrated 10" wide stepped landing shelf for staging racks, trays & bus tubs.
- (1) 20" W × 20" F/B × 8" D pre-rinse sink bowl with 3-1/2" die-stamped drain opening.
- 10" boxed backsplash with 45° return & 1" turn-down rear lip protects surrounding walls.
- Pre-punched splash-mount faucet holes on 8" centers (faucet sold separately).
- 2-1/4" sanitary rolled front & side edges eliminate sharp corners and shed water.
- 14-ga Type 300 stainless steel top (#4 satin finish) — TIG-welded & polished for a seamless surface.
- 16-ga stainless steel legs, heavy cross bracing & adjustable bullet feet keep the table rock-solid on uneven floors.
- Bull-nosed corners for safety and effortless wipe-downs.
- NSF Listed & proudly made in the USA.
At-a-Glance Specifications
| Overall configuration | L-shaped soiled dishtable, right-to-left flow |
|---|---|
| Machine side run | 70" (machine to corner) |
| Landing side run | 120" (corner to end) |
| Overall height | 44" |
| Landing shelf width | 10" |
| Sink bowl size | 20" W × 20" F/B × 8" D |
| Backsplash | 10" boxed with 45° top & 2" return |
| Faucet holes | 1" Ø, 8" centers, splash-mount |
| Work surface material | 14-ga 300 series stainless steel |
| Legs / bracing | 16-ga stainless steel w/ adjustable bullet feet |
| Front / side edge | 2-1/4" rolled, sanitary |
| Certifications | NSF |
| Approx. weight | ≈ 325 lb |

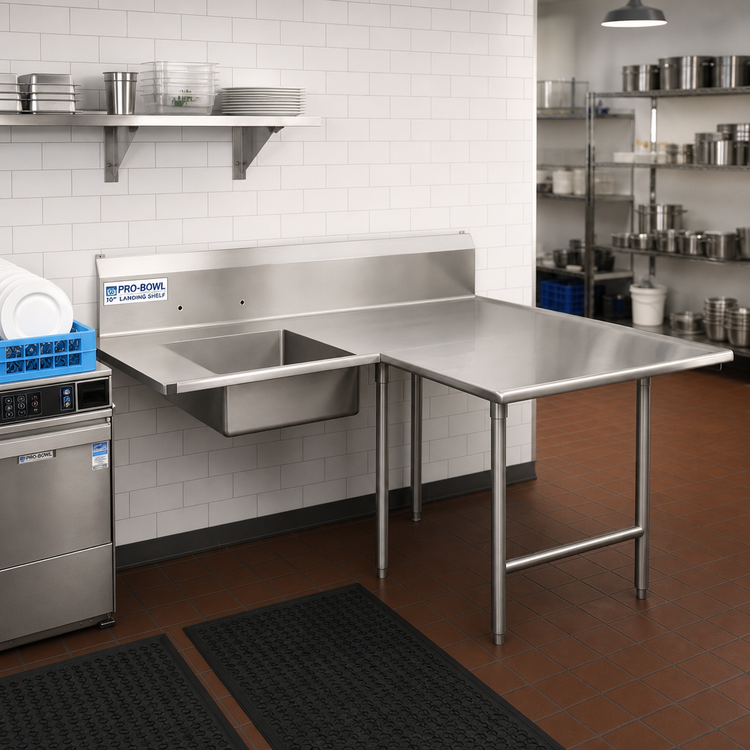

Faucet, pre-rinse sprayer, and dish machine pictured are sold separately.
Why Choose John Boos?
- American-made quality since 1887.
- Rigorous NSF compliance for food-safe performance.
- Comprehensive lineup of optional shelves, faucets & accessories for future expansion.
Maintain the brilliant satin finish with non-chloride cleaners such as Bar Keepers Friend and the John Boos Stainless Steel Cleaner.
