John Boos

Pro-Bowl L-Shaped Soiled Landing Dishtable with 20 x 20 x 8 Bowl and 10-Inch Landing Shelf

SKU: SDT4-L70120SBK-L
GTIN: 662969710910
$5,199.27
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

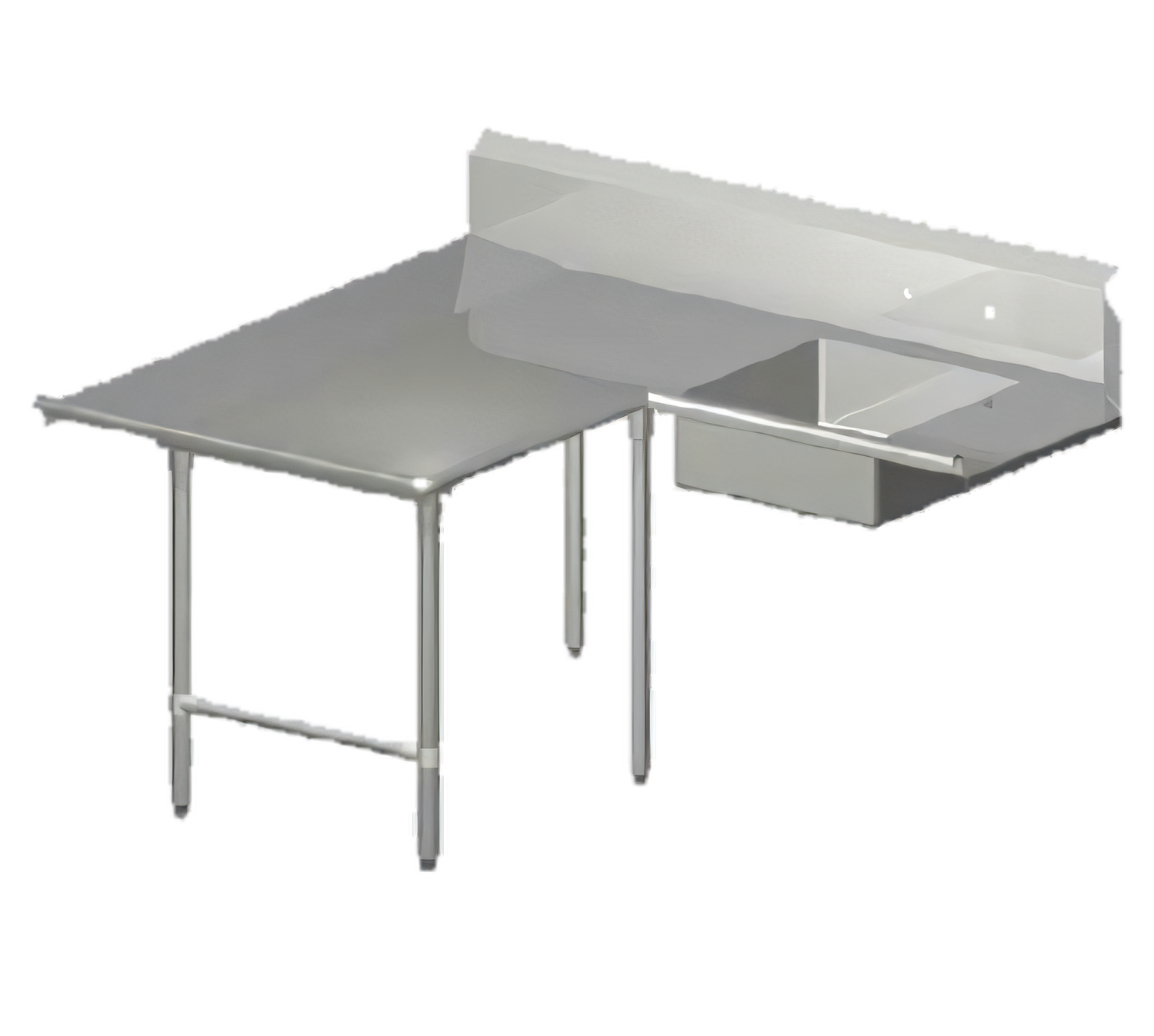

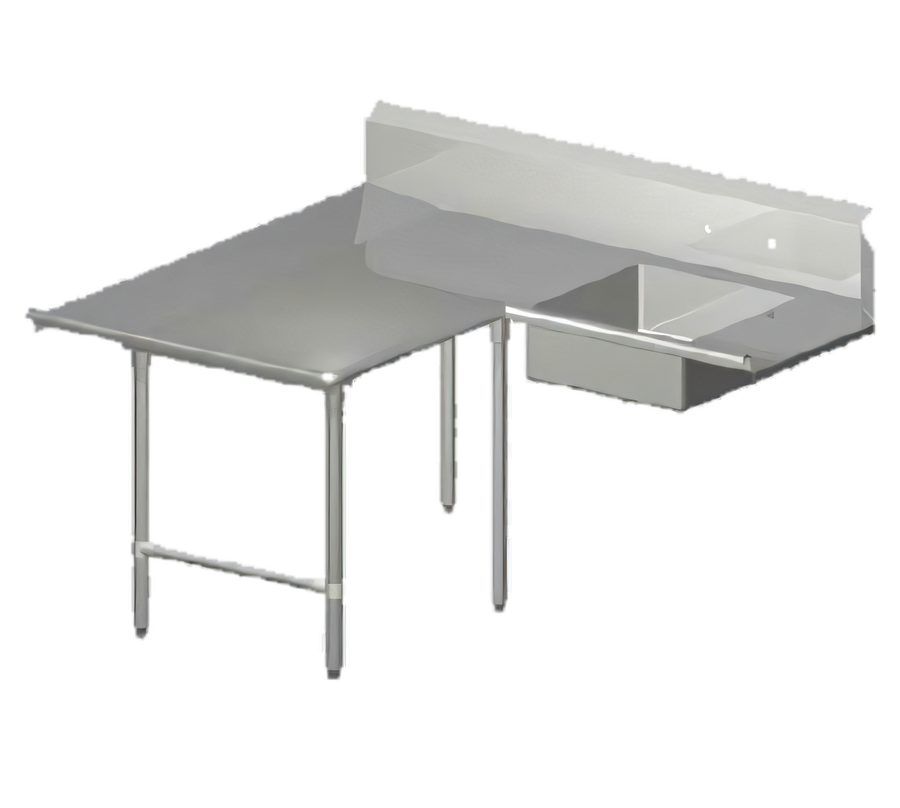

Pro-Bowl L-Shaped Soiled Landing Dishtable with 20 x 20 x 8 Bowl and 10-Inch Landing Shelf

70-Inch Machine-to-Corner x 120-Inch Corner-to-End, Left-To-Right Operation

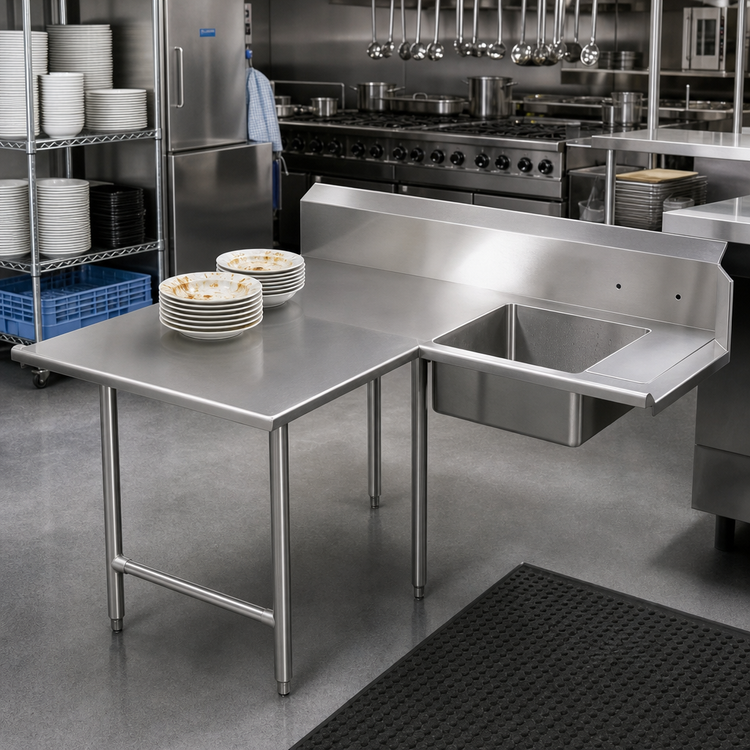

Built for efficient dishroom workflow, this L-shaped landing dishtable combines a 20 x 20 x 8 bowl, a 10-inch landing shelf, and durable stainless steel construction.

  • L-shaped corner design supports machine-to-corner and corner-to-end dishroom layouts.
  • Includes one 20 x 20 x 8 sink bowl and a 10-inch landing shelf for soiled dish handling.
  • 10-inch boxed backsplash with a 45° return and turned-down rear lip helps contain splash.
  • 14-gauge stainless steel top with stainless steel legs, bracing, and adjustable bullet feet.
  • TIG-welded construction with bullnosed outside corners and polished exposed welds for a clean finish.
  • Splash mount faucet holes are drilled on 8-inch centers.

Overall Dimensions:

44.06"H

Product Weight:

325.0 lb

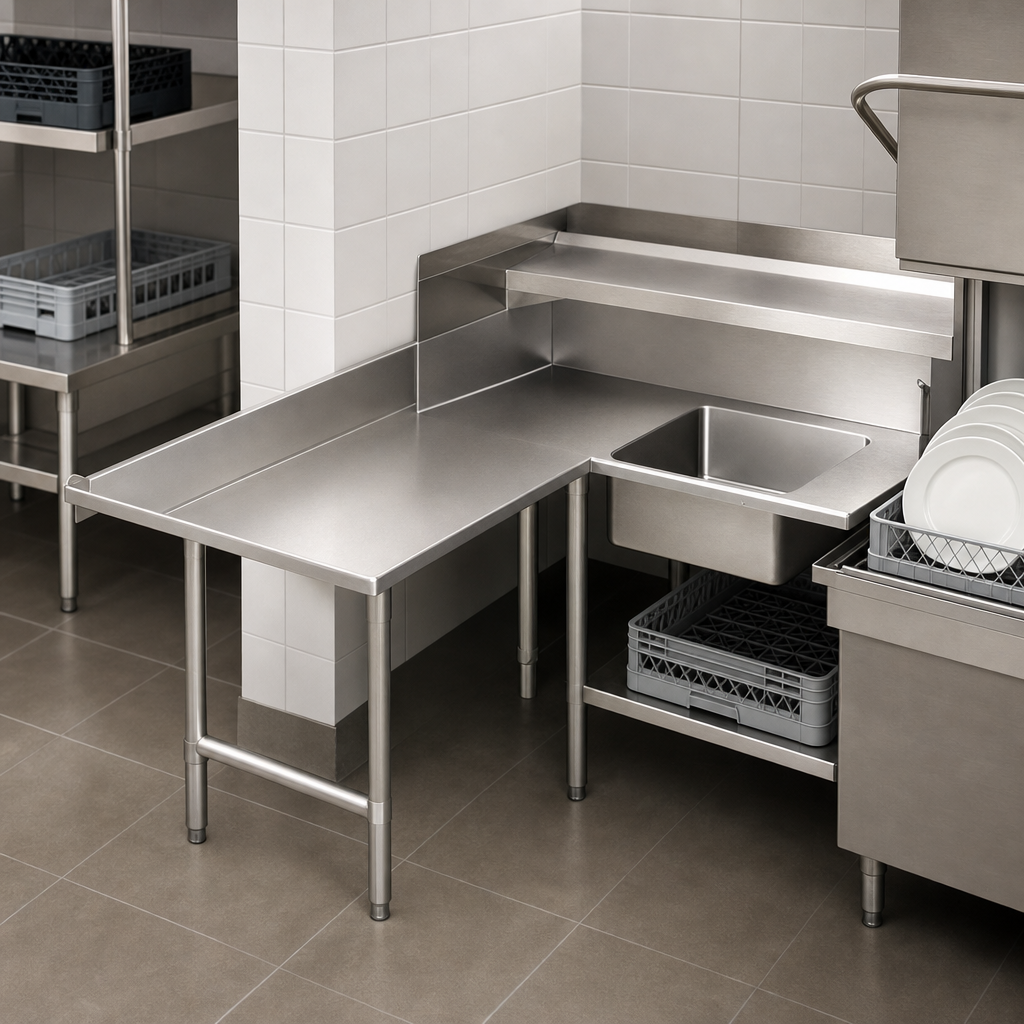

L-Shaped Corner Layout

Designed for corner placement with left-to-right operation to support efficient dish machine workflow.

20 x 20 x 8 Sink Bowl

Includes one pre-rinse sink bowl sized for soiled dish handling.

10-Inch Landing Shelf

Provides a dedicated landing area for dishes at the machine side of the table.

10-Inch Boxed Backsplash

Helps contain water and includes a 45° top return and a turned-down rear lip.

Splash Mount Faucet Holes

One set of faucet holes is provided in the backsplash on 8-inch centers.

Stainless Steel Top and Support Structure

Built with a stainless steel top, legs, bracing, and adjustable bullet feet for durability and leveling.

TIG-Welded, Bullnosed Construction

Exposed welds are polished to match adjacent surfaces, and outside corners are bullnosed for a safer edge.

Type Soiled Dishtable
Style L-Shaped Landing
Installation Type Floor Model
Shape Corner
Direction Left To Right
Material Stainless Steel
Stainless Steel Series 300 Series
Gauge 14 Gauge
Finish Satin Finish
Leg Type Stainless Steel
Bowl Count 1
Bowl Size 20 x 20 x 8 Inches
Splash Height 10 Inches
Landing Shelf Width 10 Inches
Faucet Hole Spacing 8 Inches On Center
Shipping Height 45 Inches
Shipping Weight 325 lb.
Selling Unit Each
Units Per Case 1

Frequently Asked Questions

It includes one 20" W x 20" front-to-back x 8" deep pre-rinse sink bowl.
The backsplash is 10" high and includes a 45° top return with a 2" return to the wall.
The overall height is 44 1/16".
Yes, it includes one set of splash mount faucet holes with 8" centers.
The cutsheet lists faucets, an over shelf, and an under shelf as optional accessories.
This model is left-to-right operation.
