Description

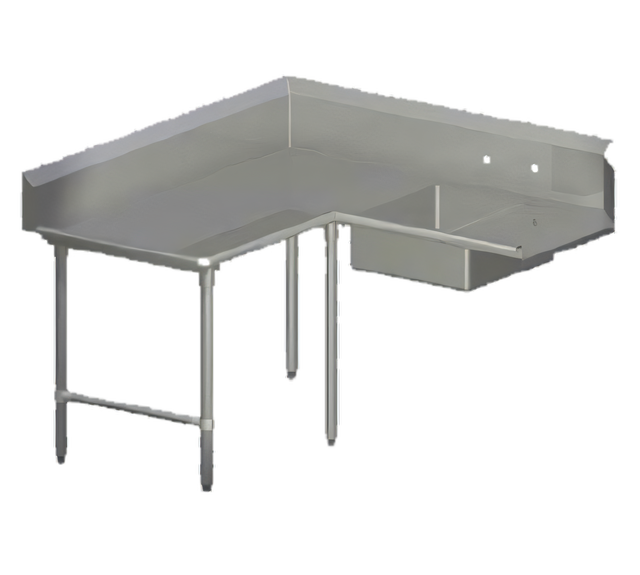

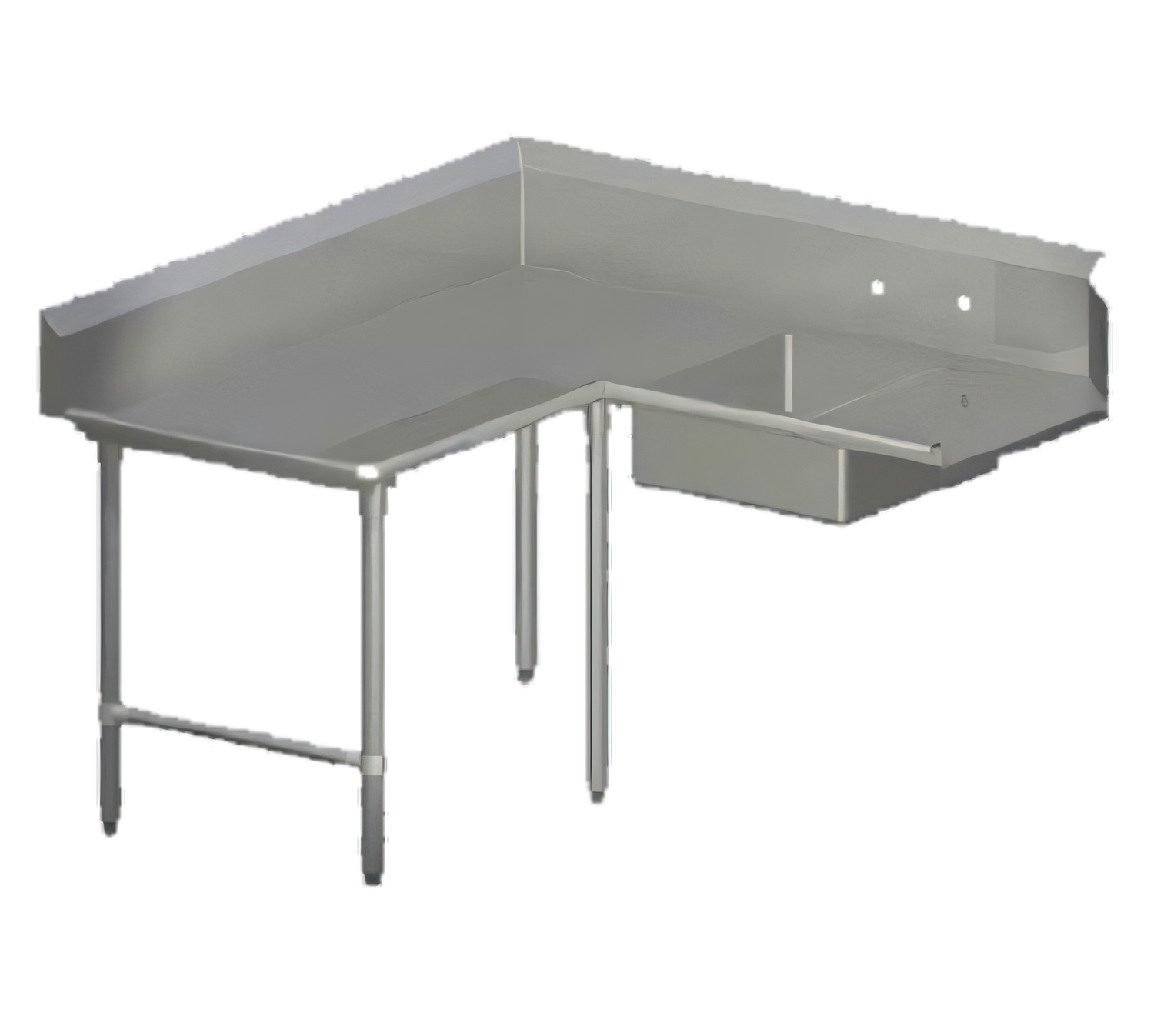

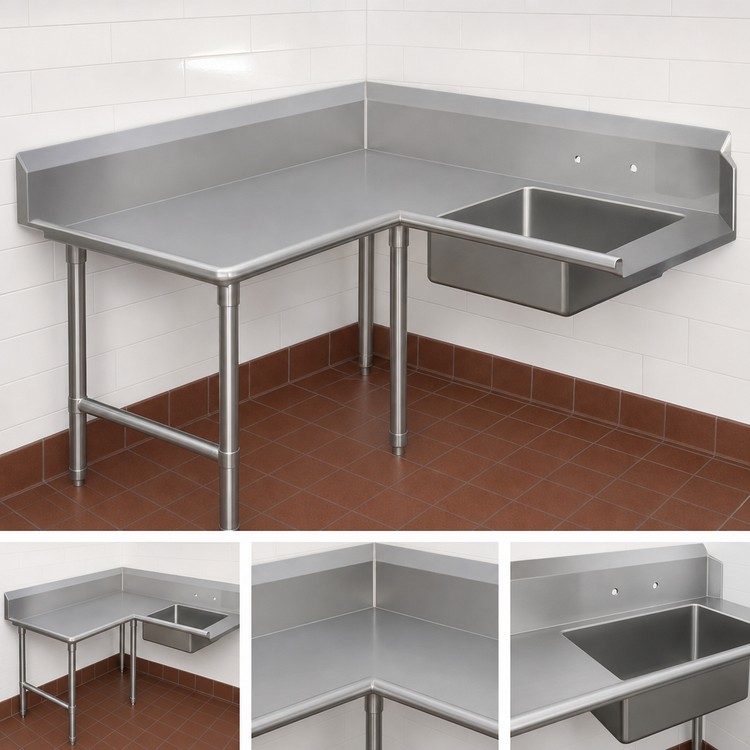

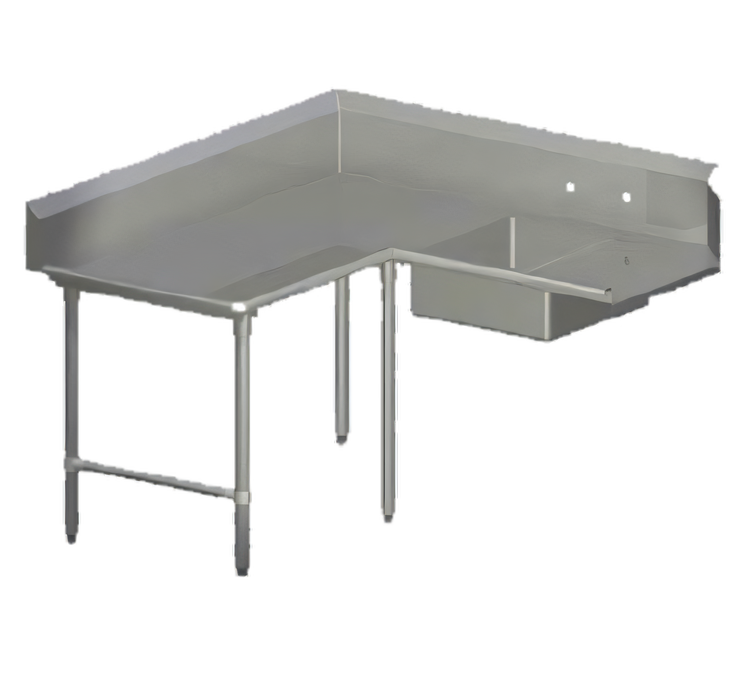

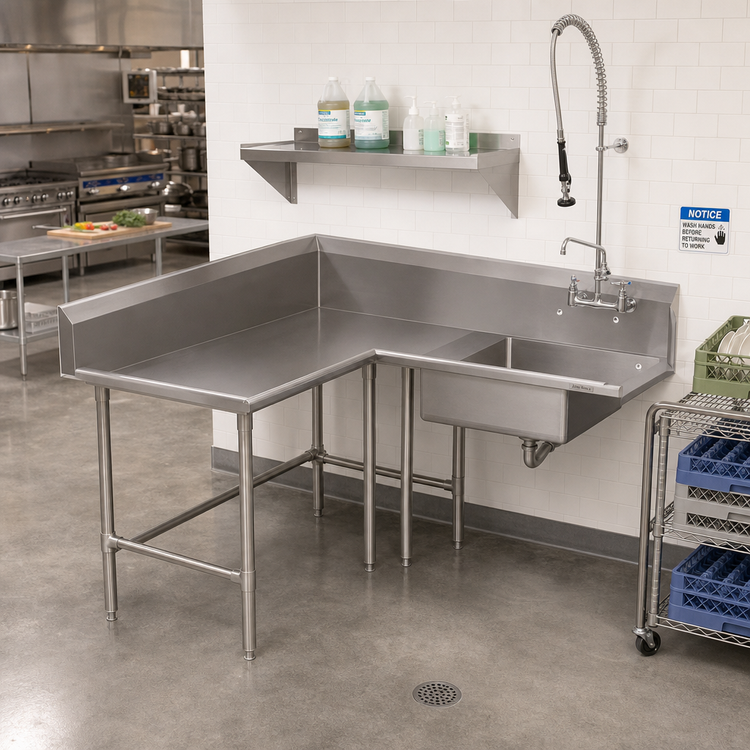

John Boos Pro-Bowl™ Corner Soiled Dishtable

60" Machine-to-Corner x 96" Corner-to-End • Left-to-Right Operation • NSF

Designed for high-volume dish rooms that need to maximize every square foot, the Pro-Bowl™ corner soiled dishtable from John Boos delivers rugged 14-gauge stainless-steel durability, an ergonomic L-shaped workflow, and the easy-to-clean finishes food-service pros trust. Simply position your warewasher at the short side, load from the left, and keep the dirty traffic moving.

Built-For-Work Features

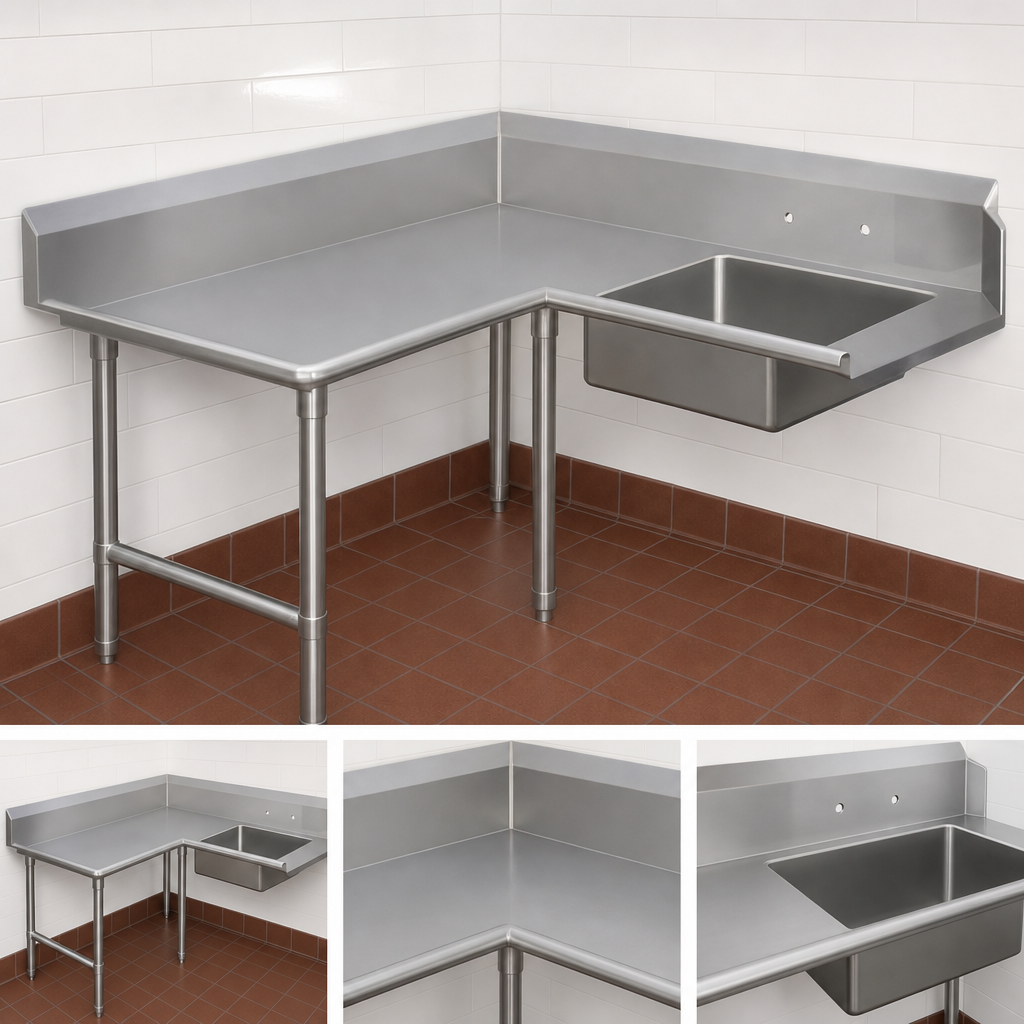

  • L-shaped configuration with 60" machine-to-corner and 96" corner-to-end runs.
  • (1) 20" W x 20" F/B x 8" D pre-rinse sink bowl with 3½" die-stamped drain opening.
  • 10" boxed backsplash, 45° top edge & 2" return keeps water off the wall.
  • Factory-punched 1" faucet holes, 8" on-center (splash mount).
  • 2¼" rolled front & end rims and bull-nosed corners for strength & operator safety.
  • 14-gauge, Type 304 stainless-steel top with #4 satin polish – heavy-duty & kitchen-ready.
  • 1-5/8" Ø 16-ga stainless-steel legs with adjustable bullet feet & cross bracing.
  • TIG-welded construction; exposed welds ground & polished to match adjacent surfaces.
  • NSF listed for guaranteed sanitation compliance.

Specifications

Overall configuration Corner (L-shape), left-to-right flow
Dimensions 60" (machine to corner) x 96" (corner to end)
Overall height 44" to top of 10" backsplash
Sink bowl (1) 20" W x 20" F/B x 8" D, 3 ½" drain
Backsplash 10" high boxed, 45° top, 2" return
Faucet mounting 1" holes, 8" centers (splash mount)
Work surface 14-ga 304 stainless steel, #4 satin finish
Legs / bracing 16-ga 304 stainless, 1-5/8" Ø with adjustable bullet feet
Front & end rims 2 ¼" rolled, bull-nosed corners
Compliance NSF certified

Care & Maintenance

Maintain the protective chromium oxide layer by cleaning with non-chloride stainless-steel cleaners (such as Bar Keepers Friend) and soft towels. Avoid wire brushes or abrasive pads, rinse thoroughly, and always wipe dry in the direction of the polish lines.

Popular Add-Ons (sold separately)

  • Pre-rinse faucet sets
  • Stainless single or double overshelves
  • Undershelves for extra pan storage
Installation note: Some units ship knocked-down to reduce freight costs. Field assembly is straightforward; however, John Boos recommends installation by a qualified technician to ensure proper leveling and dishwasher alignment.

Features & Specs

Manufacturer

John Boos

Brand_name

Pro-Bowl

Certifications

NSF

Height

44.06in

Shipping Weight

285.0lbs

Stainless Gauge

14 gauge

Shape

corner

Splash Height

10"H splash

Width (machine - corner) OA

49" - 60"

Width (end - corner) OA

85" - 96"

Direction

left to right

Stainless Series

300 series

Leg Type

stainless steel legs

Specifications

Pro-Bowl Soiled Dishtable, corner design, 60" machine to corner, 96" corner to end, 44"H overall size, L-shaped, left-to-right operation, (1) 20"W x 20" front-to-back x 8" deep pre-rinse sink bowl, 10"H boxed backsplash with 45° top & 2" return, (1) set of splash mount faucet holes with 8" centers, 2-1/4"H rolled edge, 14/300 stainless steel top, stainless steel legs, bracing, & adjustable bullet feet, NSF
