John Boos Pro-Bowl L-Shaped Island Soiled Dishtable with 20 x 20 x 8 Pre-Rinse Sink Bowl, Left-to-Right, 60 x 144 Inches

SKU: SDT4-I60144SBK-L
GTIN: 662969708870
$4,651.02
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Work Tables Compartment Sinks Dish Tables John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations Specialty Work Tables

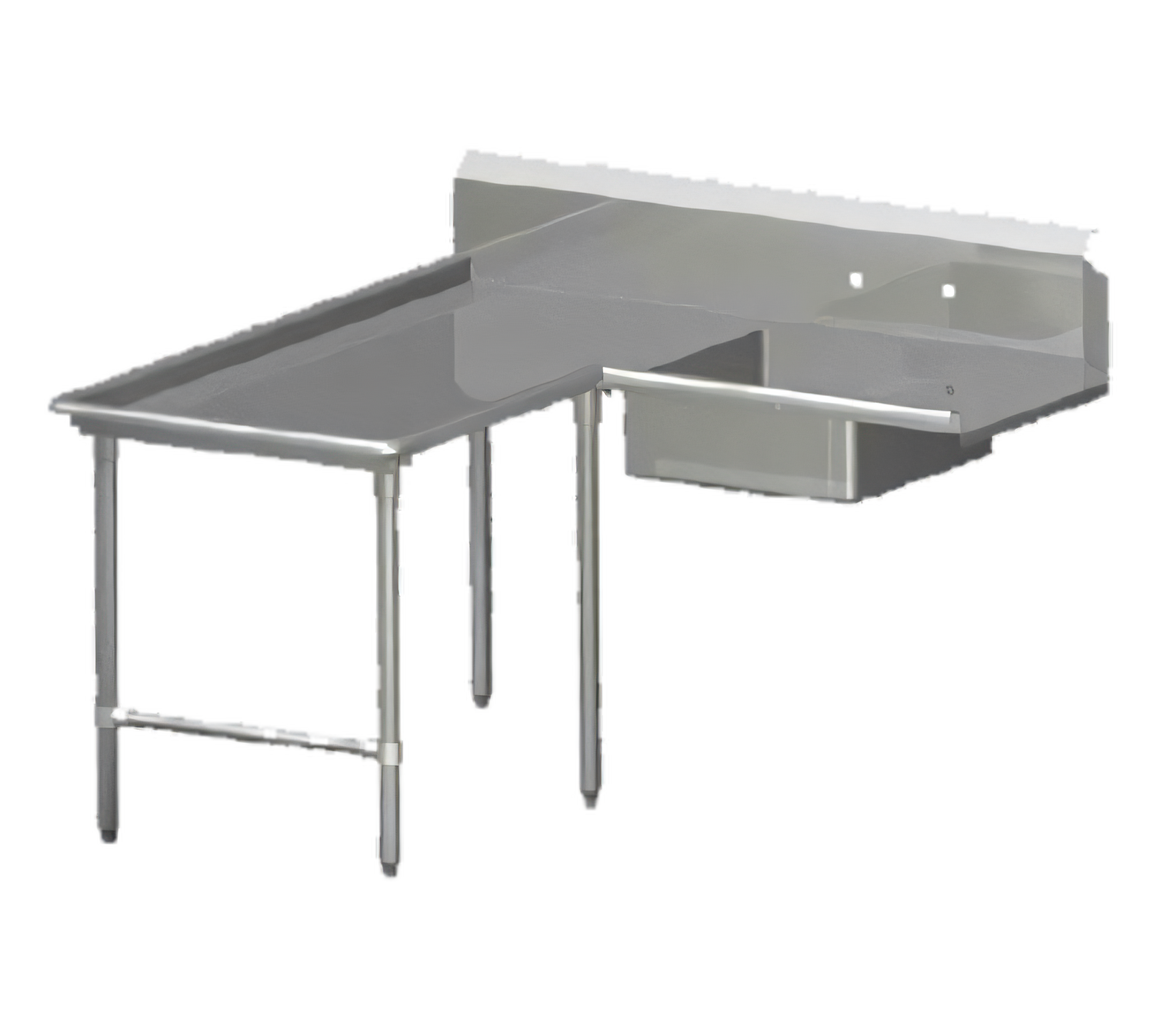

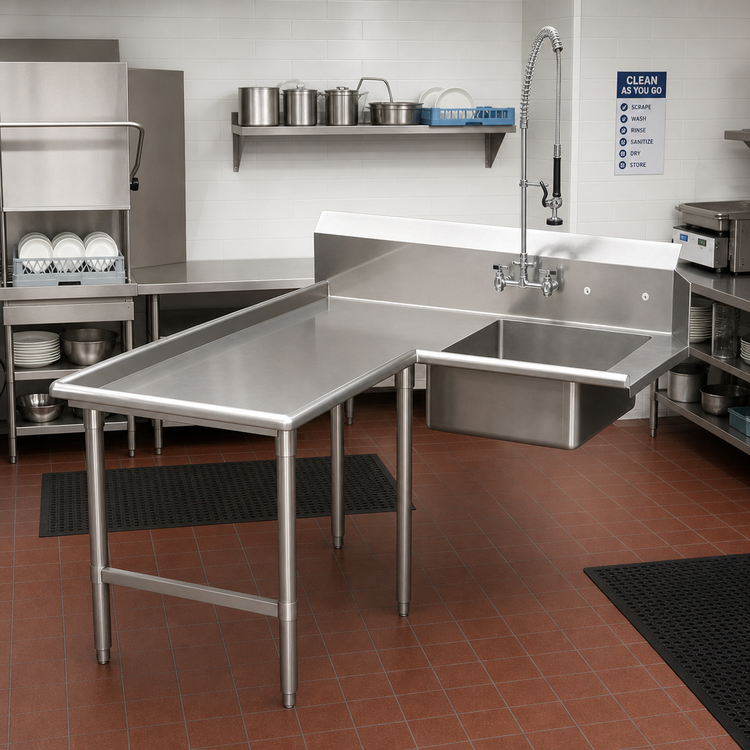

John Boos Pro-Bowl L-Shaped Island Soiled Dishtable with 20 x 20 x 8 Pre-Rinse Sink Bowl, Left-to-Right, 60 x 144 Inches

14-Gauge Stainless Steel Top, 10-Inch Boxed Backsplash

Designed to streamline dishroom workflow, this island-style L-shaped dishtable combines a pre-rinse sink, splash control, and heavy-duty stainless steel construction.

  • L-shaped island layout is designed for left-to-right dishroom workflows.
  • 60-inch machine-to-corner and 144-inch corner-to-end footprint creates ample working space.
  • Includes a 20 x 20 x 8-inch pre-rinse sink bowl for scraping and rinsing.
  • 10-inch boxed backsplash with 45° and 2-inch return helps control splash.
  • Built with a 14-gauge stainless steel top, stainless steel legs, bracing, and adjustable bullet feet.
  • 2-1/4-inch rolled edge and splash-mount faucet holes with 8-inch centers complete the station.

Overall Dimensions:

44.06"H

Product Weight:

350.0 lb

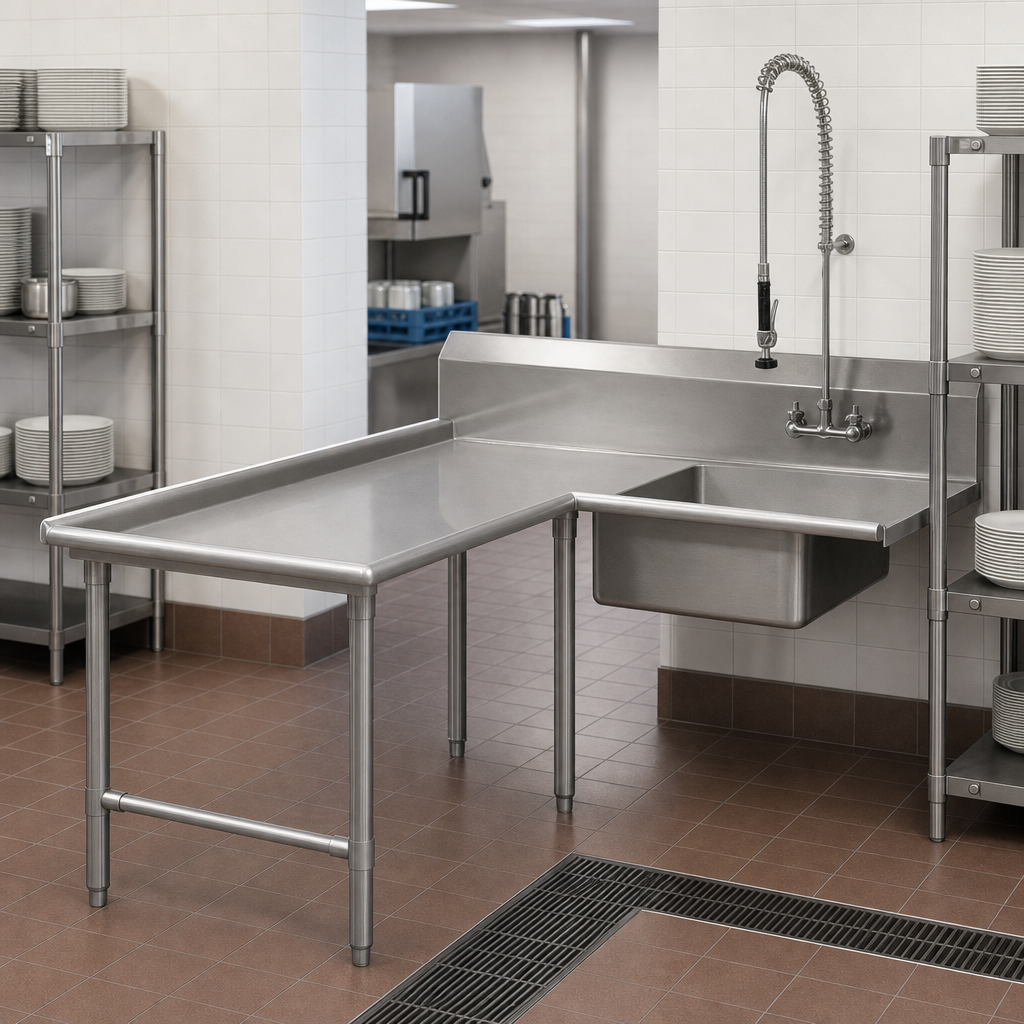

Island Layout

L-shaped island design supports left-to-right operation in a central dishroom setup.

Pre-Rinse Sink Bowl

Includes one 20-inch wide by 20-inch front-to-back by 8-inch deep bowl for rinsing and scraping.

Boxed Backsplash

10-inch backsplash with a 45° and 2-inch return helps contain splashes and protect adjacent surfaces.

Heavy-Duty Top

14-gauge stainless steel top is built for commercial dishroom use.

Stainless Steel Base

Stainless steel legs, bracing, and adjustable bullet feet provide stability and leveling.

Splash-Mount Faucet Holes

One set of faucet holes with 8-inch centers is included for compatible fixture installation.

Rolled Edge

2-1/4-inch rolled edge adds strength and gives the table a finished appearance.

Type Soiled Dishtable
Style Island
Installation Type Floor Model
Shape L-Shaped
Direction Left-to-Right
Gauge 14 Gauge
Material Stainless Steel
Machine To Corner Length 60 Inches
Corner To End Length 144 Inches
Sink Bowl Size 20 Inches x 20 Inches x 8 Inches Deep
Backsplash Height 10 Inches
Faucet Hole Centers 8 Inches
Selling Unit Each
Units Per Case 1
Shipping Height 45 Inches
Shipping Weight 350 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Care & maintenance PDF Download

Frequently Asked Questions

Yes. This model is designed for left-to-right operation.
The sink bowl measures 20 inches wide by 20 inches front-to-back by 8 inches deep.
It is 60 inches machine-to-corner and 144 inches corner-to-end, with an overall height of 44 inches.
Yes. It has a 10-inch boxed backsplash with a 45° and 2-inch return.
It includes one set of splash-mount faucet holes with 8-inch centers.
The unit features a 14-gauge stainless steel top with stainless steel legs, bracing, and adjustable bullet feet.
