John Boos PBMSHS-W2-8020 Hand Sinks
John Boos PBMSHS-W2-8020 Hand Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
John Boos PBMSHS-W2-8020 Hand Sinks
Description

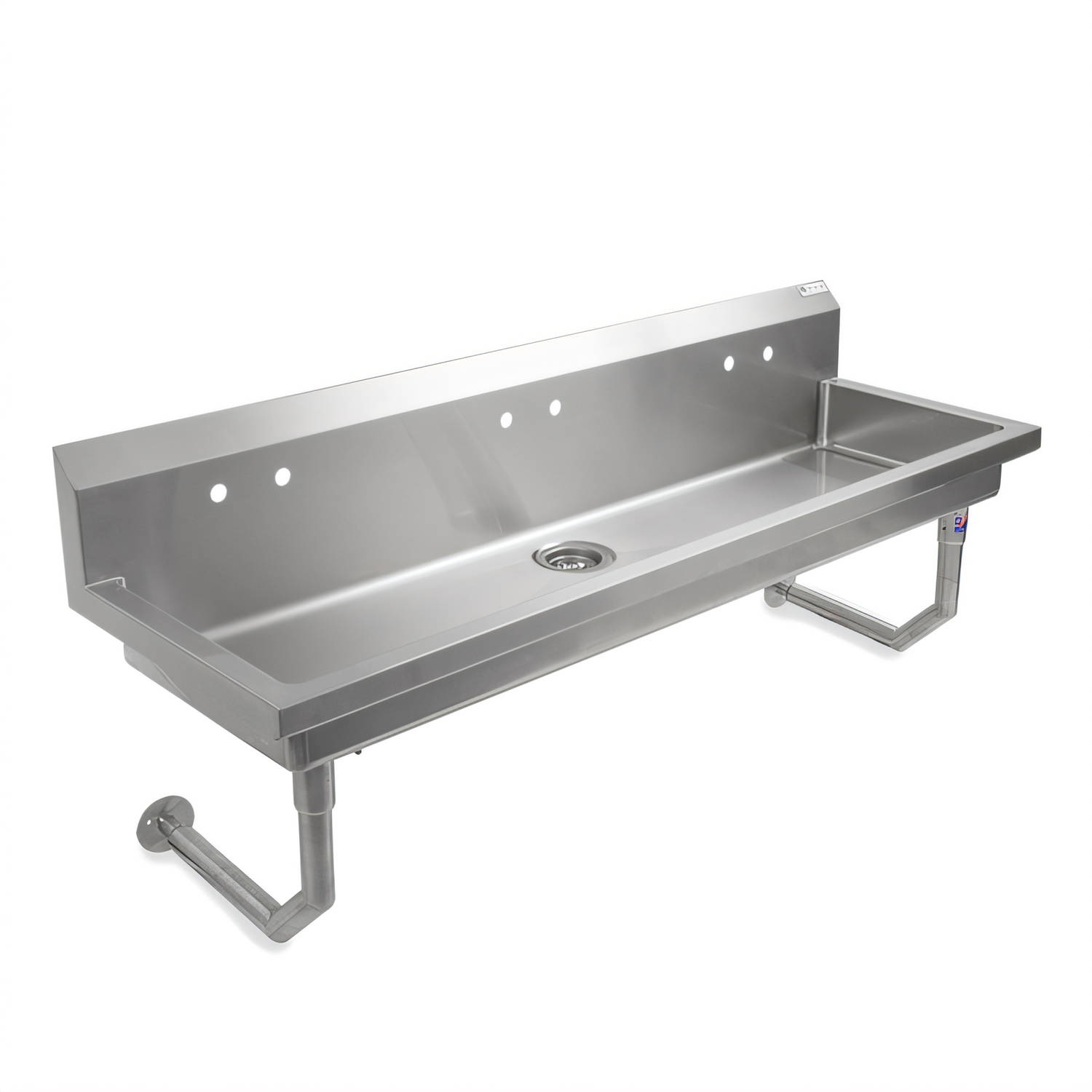

John Boos PBMSHS-W2-8020 Multi-Station Handwash Sink

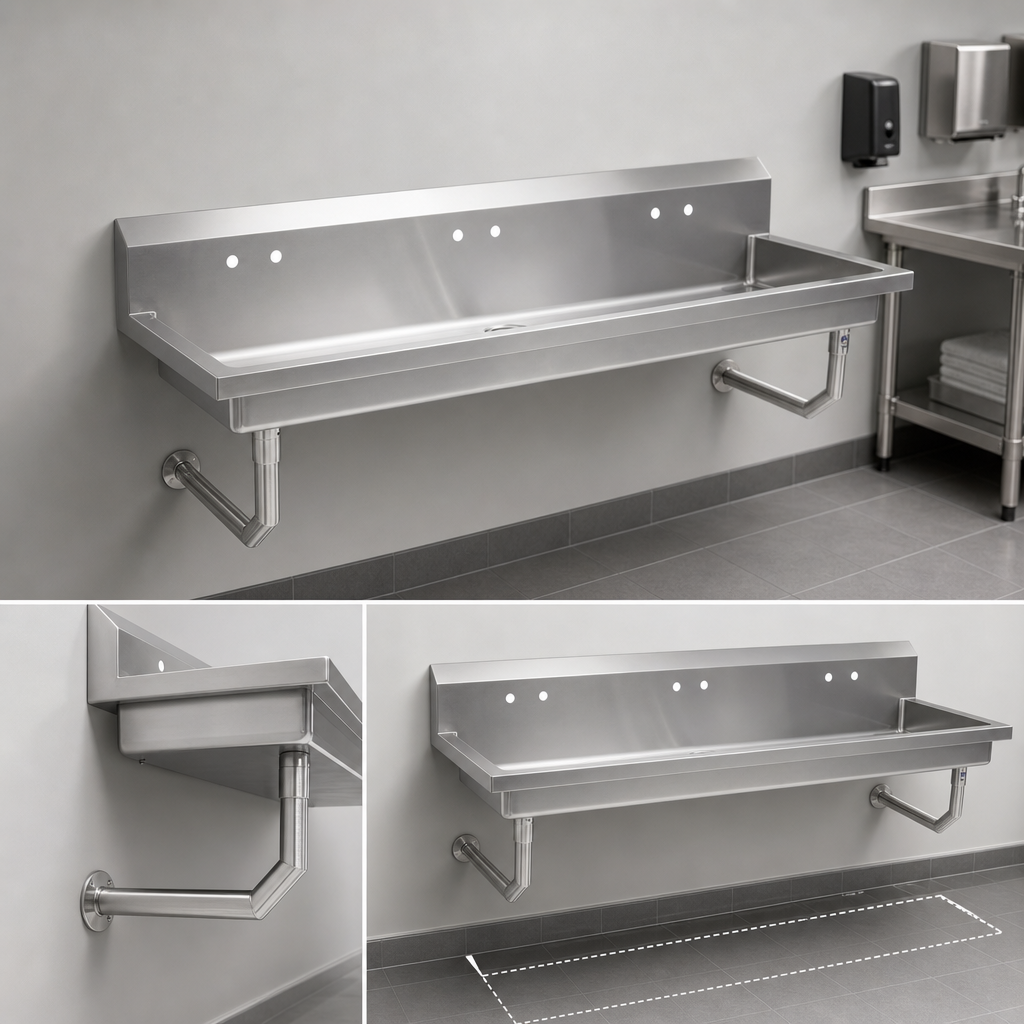

Wall-Mount • 80" Wide • 4 User • Made in USABuilt for busy commercial environments, this 80-inch John Boos multi-station sink gives four team members a dedicated hand-washing station while maximizing floor space with a sturdy wall-mount design. Heavy-duty 16-gauge, 300 series stainless steel and TIG-welded construction deliver the strength, sanitation and long service life that professional kitchens, labs and healthcare facilities demand.
Key Features
- Serves up to 4 simultaneous users – perfect for high-traffic wash areas
- 4 sets of 4" on-center faucet holes in the 7" backsplash accept most splash-mount faucets
- 5" deep bowl with pitched bottom and 3-1/2" die-stamped drain opening for fast drainage
- Fabricated from 16 GA, Type 300 stainless steel with #4 satin polish – easy to clean & corrosion resistant
- TIG-welded; all exposed welds are ground & polished to match surrounding finish
- Front 1-5/8" O.D. stainless legs, 1-1/4" cross bracing and heavy wall brackets provide rock-solid support
- Adjustable flanged feet with anchor holes make leveling and floor fastening simple
- Ships knock-down (KD) to minimize freight costs; straightforward on-site assembly
- Proudly Made in the USA at the John Boos facility in Effingham, Illinois
Specifications
| Model | PBMSHS-W2-8020 |
|---|---|
| Installation | Wall mount with front legs & cross bracing (KD) |
| Overall width | 80" (203.2 cm) |
| Front-to-back | 19-5/8" (49.9 cm) |
| Bowl depth | 5" (12.7 cm) |
| Backsplash height | 7" (17.8 cm) |
| Faucet holes | (4) sets – 4" on-center, 1-1/8" dia. (splash-mount) |
| Drain opening | 3-1/2" dia. die-stamped |
| Material | 16-gauge, 300 series stainless steel (#4 satin) |
| Leg diameter | 1-5/8" O.D. stainless |
| Cross brace diameter | 1-1/4" O.D. stainless |
| Shipping weight | 74 lb (33.6 kg) |
| Country of origin | USA |
Some units ship unassembled for reduced freight cost. All dimensions are typical; tolerance ± 0.5".
