John Boos PBMSHS-W2-6020 Hand Sinks
Description

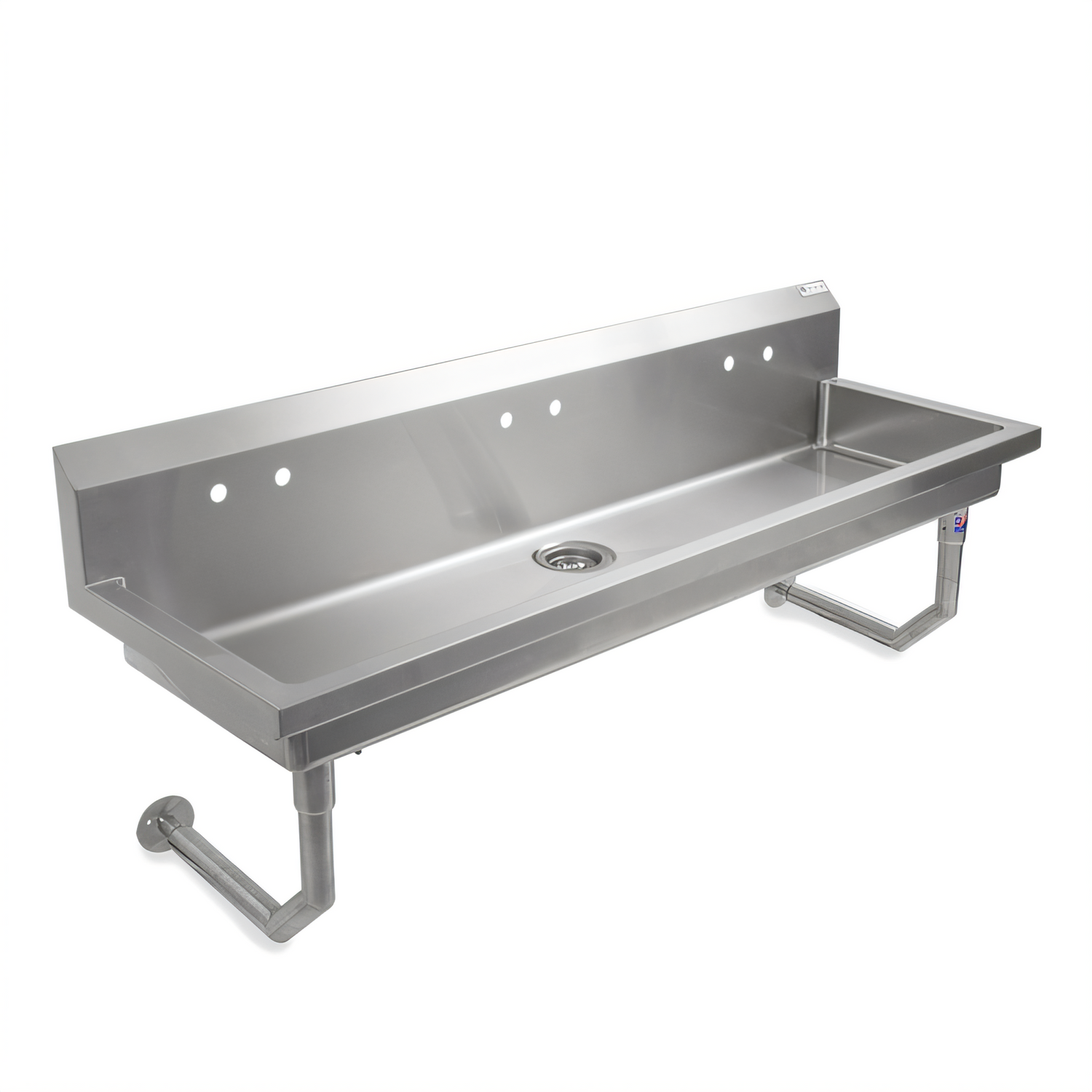

John Boos PBMSHS-W2-6020 Multi-Station Handwash Sink

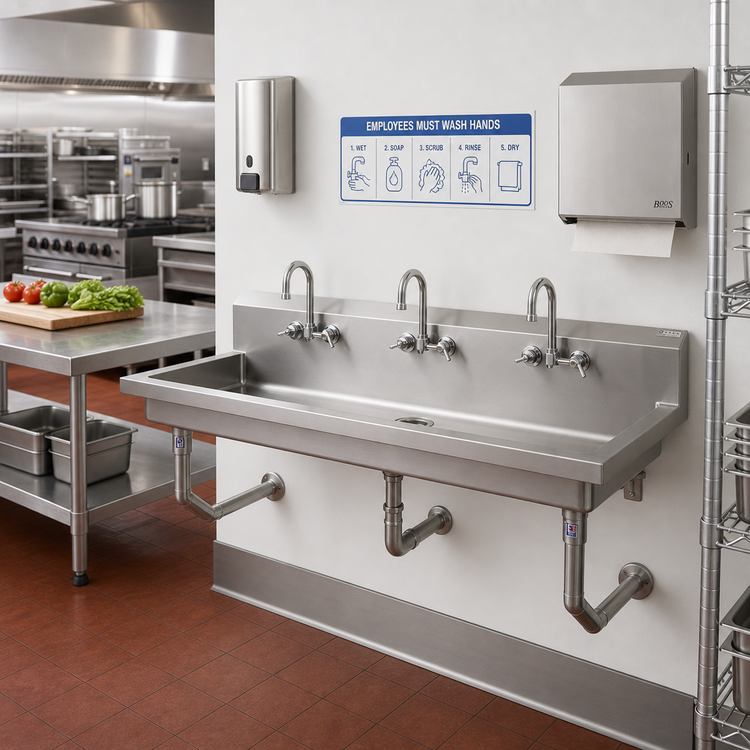

60" Wall-Mount | 3 Users | 16 GA Type 300 Stainless SteelBuilt for high-traffic kitchens, classrooms, labs and plant floors, the PBMSHS-W2-6020 delivers durable, space-saving hand-washing for up to three users at once. 100% made in the USA from food-service-grade stainless steel, this wall-mounted sink ships knock-down (KD) for reduced freight costs and quick on-site assembly.
Key Features
- Three sets of splash-mount faucet holes on 4" centers (faucets sold separately)
- 60" W x 19-5/8" D overall with a 5" deep bowl – ideal depth for thorough hand-washing without excess splashing
- One-piece TIG-welded bowl with #4 satin polish for easy clean-up
- 7" integrated backsplash helps protect walls and meet health codes
- 3-1/2" die-stamped drain opening formed to accelerate water run-off
- Heavy-duty 16 gauge, Type 300 series stainless steel top & bowl
- Stainless steel support legs, adjustable cross bracing and flanged feet with anchoring holes for rock-solid stability
- Ships knock-down (KD) to lower shipping costs & simplify job-site handling
- NSF compliant materials – safe for food-service environments
- Proudly made in Effingham, Illinois, USA
Specifications
| Model | PBMSHS-W2-6020 |
|---|---|
| Overall Dimensions (W × D × H) | 60" × 19-5/8" × 41" |
| Bowl Depth | 5" |
| Faucet Holes | 3 sets | 4" on center | Ø 1" holes |
| Drain Opening | 3-1/2" die-stamped |
| Material – Bowl & Deck | 16 GA Type 300 stainless steel, #4 satin finish |
| Support Frame | 1-5/8" Ø stainless steel legs 1-1/4" Ø stainless cross bracing |
| Feet | 1" adjustable, flanged, pre-drilled for anchoring |
| Shipping Weight | 61 lb (ships KD) |
| Country of Origin | USA |
Installation & Care

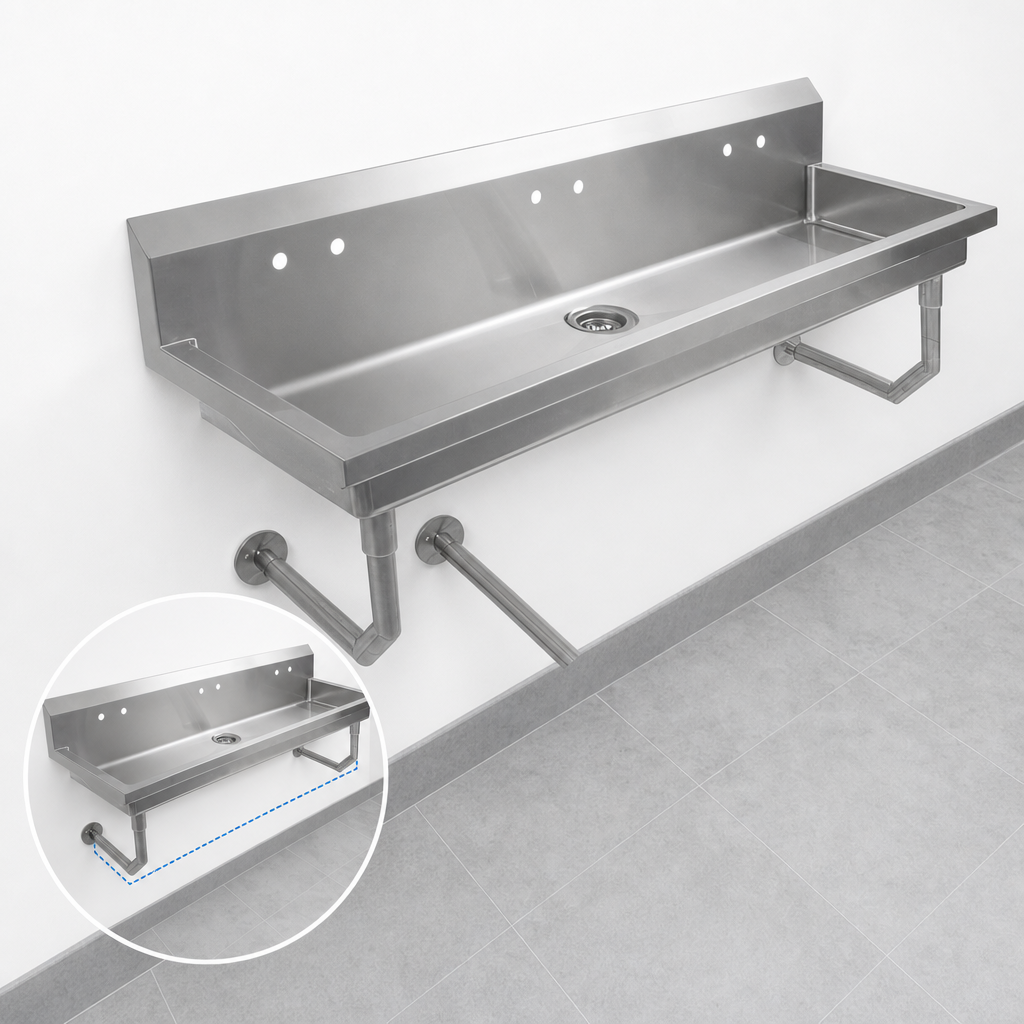

- Mounts directly to wall; secure flanged feet to floor for maximum stability.
- Compatible with most 4" O.C. deck-mount faucets and standard 3-1/2" drains/strainers.
- Clean daily with mild detergent and a soft cloth; avoid harsh chlorine cleaners to maintain the #4 satin finish.
Faucets, drains, and supply lines are shown for illustration only and are not included unless added to your order.
John Boos & Co. continually improves products and reserves the right to change specifications without notice.
