John Boos PBMSHS-W2-10020 Hand Sinks
Description

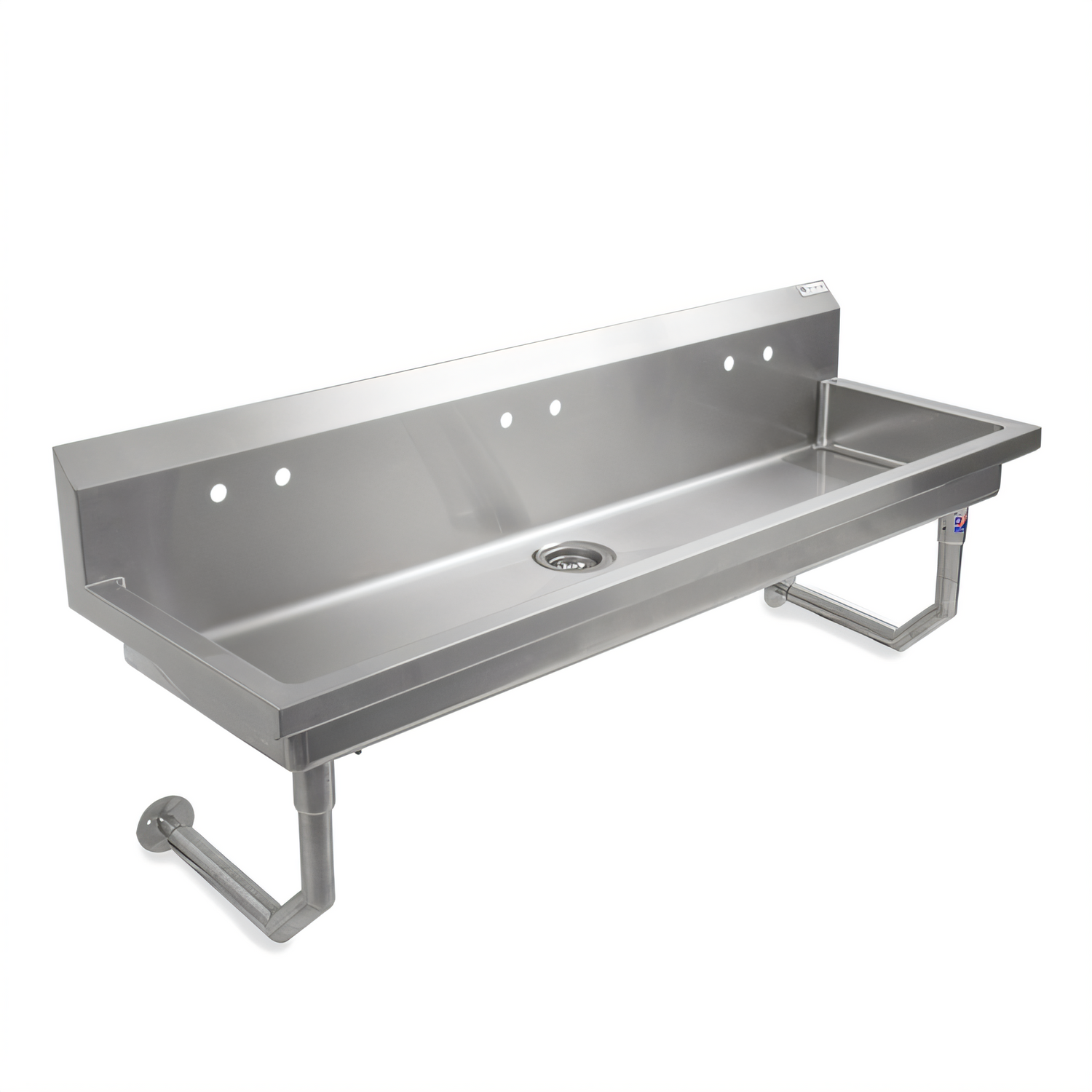

John Boos PBMSHS-W2-10020 Multi-Station Handwash Sink

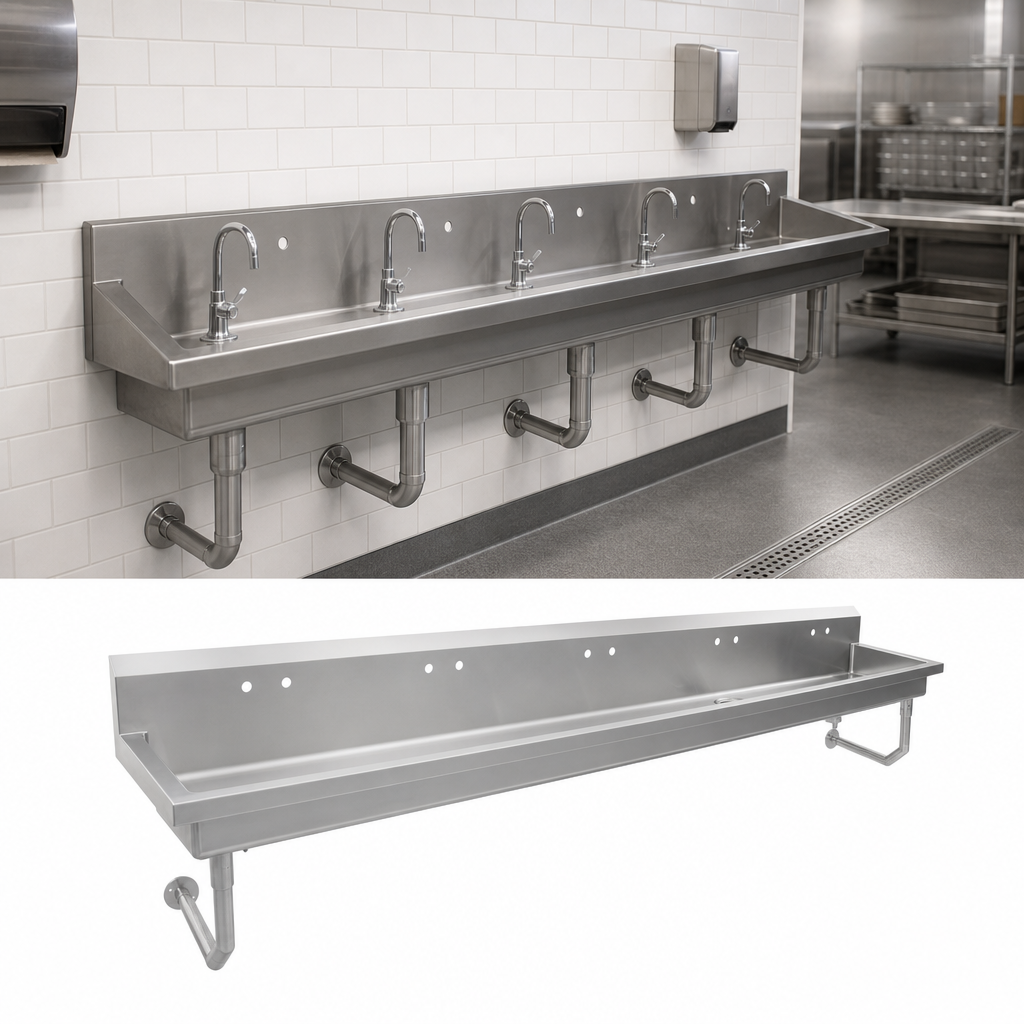

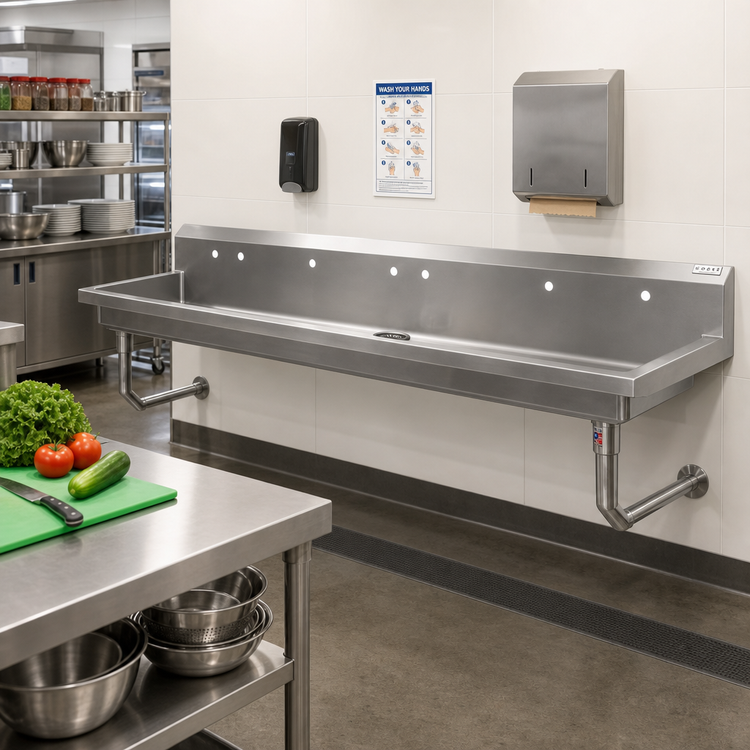

Wall-Mount • 5 Users • 100" Stainless SteelKeep throughput high and hygiene standards higher with the John Boos PBMSHS-W2-10020. This rugged, American-made sink provides five independent hand-wash stations in one space-saving wall unit—ideal for busy food-service, manufacturing and institutional environments.
Key Features
- Five sets of 4" on-center splash-mount faucet holes (faucets not included).
- Expansive 100" width lets up to five users wash simultaneously.
- 5" deep bowl with TIG-welded seams and smooth #4 satin polish for fast, sanitary clean-up.
- 7" integral backsplash contains splashes and protects surrounding walls.
- 16-gauge, 300-series stainless steel top—corrosion-resistant, food-service safe and built to last.
- 1-5/8" O.D. stainless steel front legs with adjustable cross-bracing for rock-solid stability.
- 1" adjustable stainless steel flanged feet with mounting holes for secure, level installation.
- 3-1/2" die-stamped drain opening for quick water evacuation (strainer & plumbing by others).
- Ships knock-down (KD) to reduce freight costs; simple bolt-up assembly on site.
- Made in Effingham, Illinois, USA.
Specifications
| Model | PBMSHS-W2-10020 |
|---|---|
| Mounting Style | Wall mount with front support legs |
| Overall Width | 100 in. |
| Front-to-Back Depth | 19-5/8 in. |
| Bowl Depth | 5 in. |
| Backsplash Height | 7 in. |
| Faucet Holes | 5 sets, 4" on-center, 1-1/8" dia. |
| Drain Opening | 3-1/2" dia. |
| Material Thickness | 16 ga (0.062") |
| Stainless Alloy | 300 series |
| Approx. Weight | 94 lb |
| Country of Origin | USA |
Perfect For
- High-volume commercial kitchens & commissaries
- Food processing & packaging plants
- Pharmaceutical, laboratory & clean-room prep areas
- Industrial, warehouse & manufacturing wash-up rooms
- Education, stadium & correctional facility restrooms
Faucets, soap dispensers and valves are shown for reference only and are sold separately. Need a complete turnkey package? Contact us for assistance.
