John Boos PBMSHS-W1-6020 Hand Sinks
John Boos PBMSHS-W1-6020 Hand Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

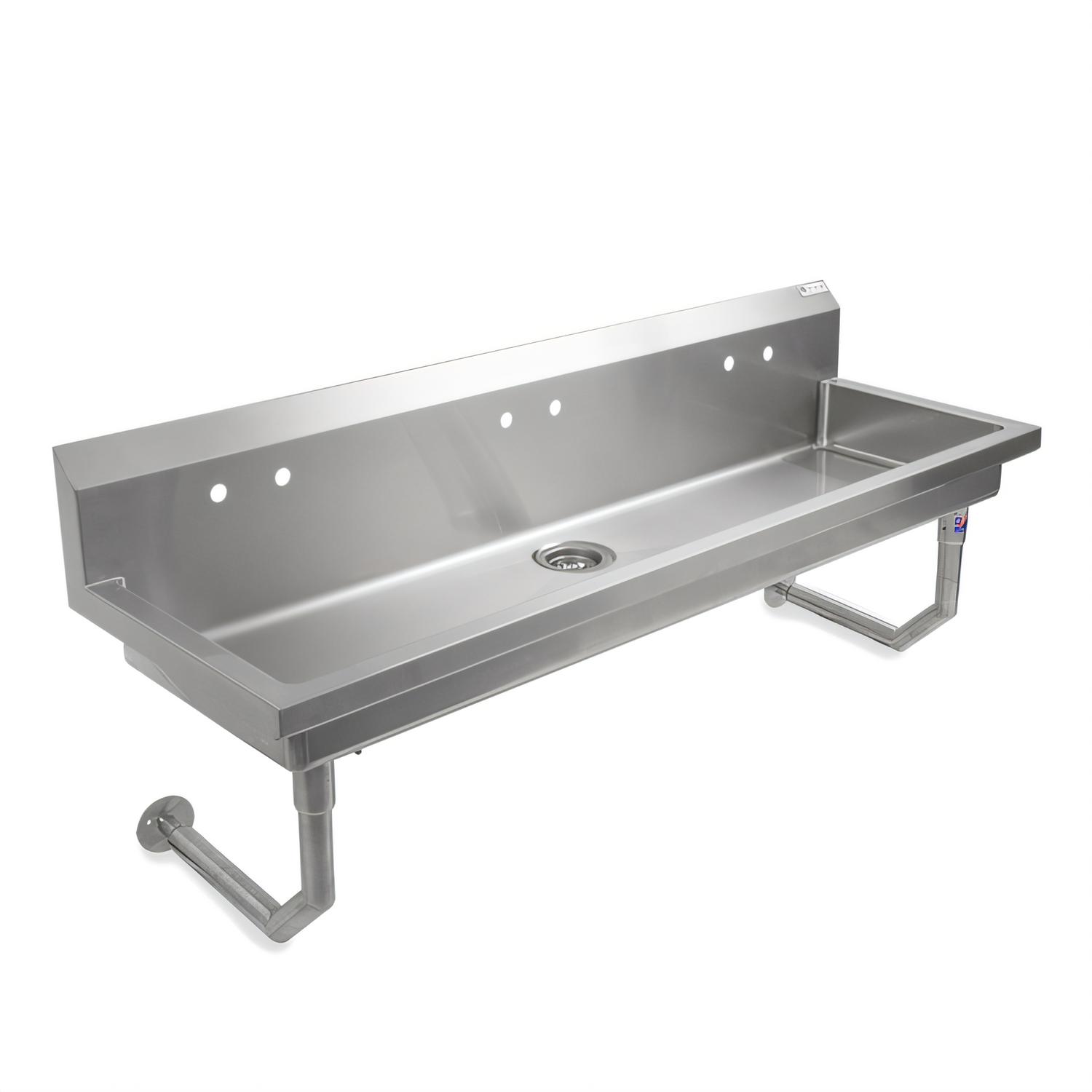

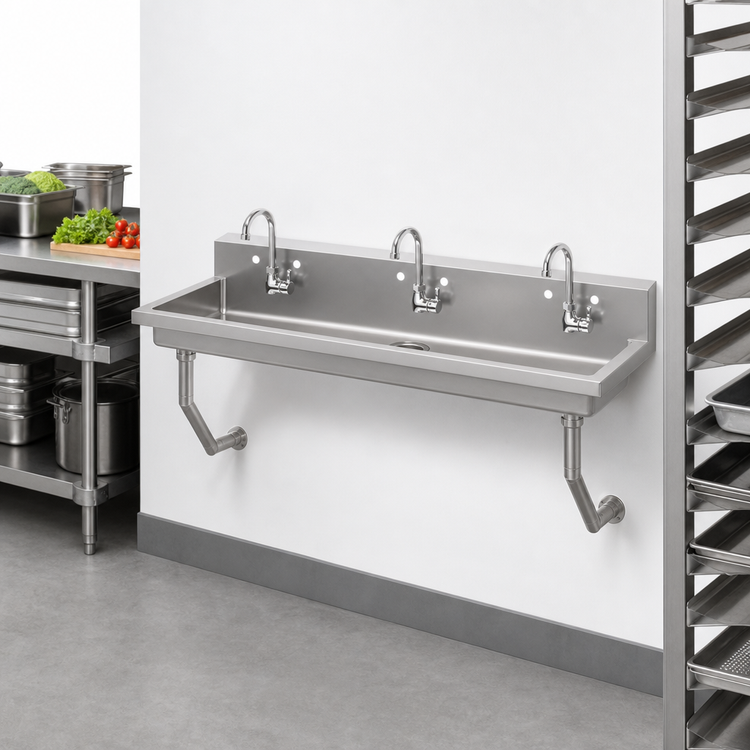

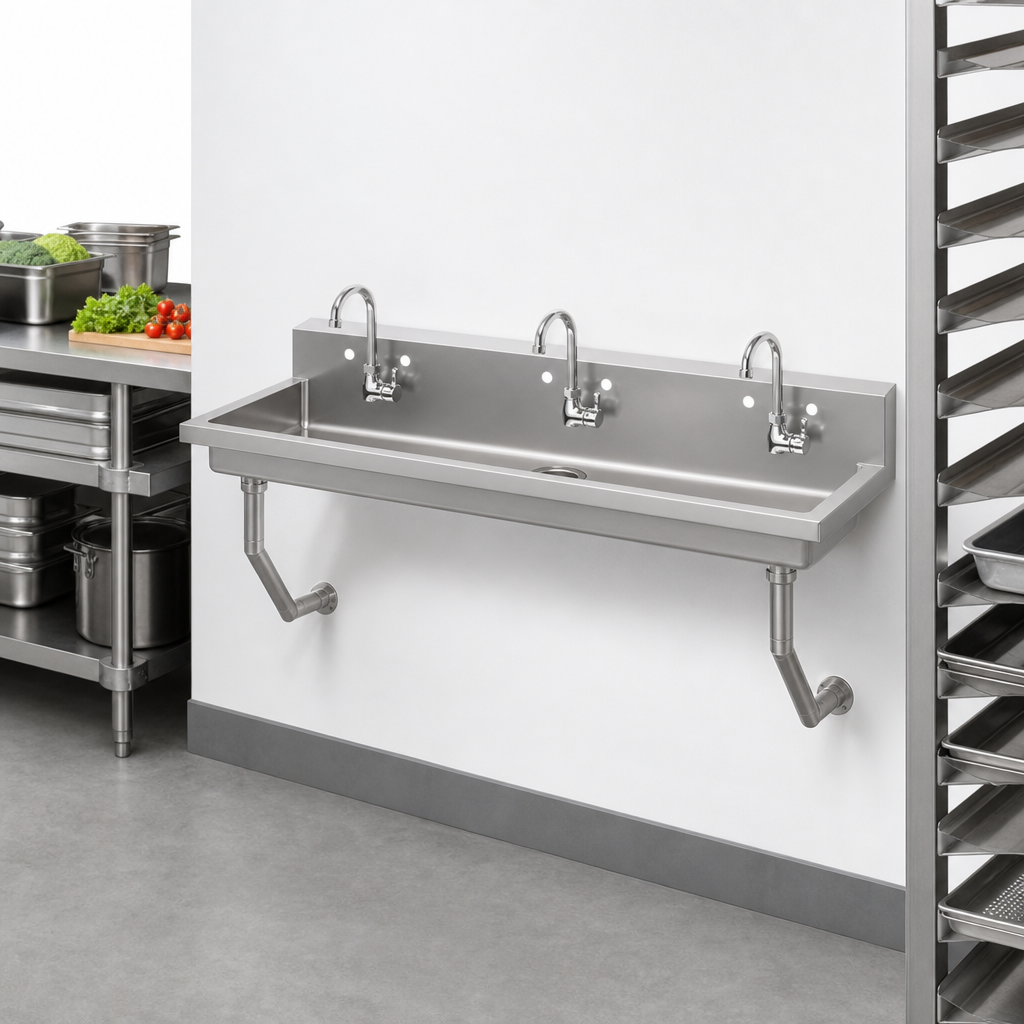

John Boos PBMSHS-W1-6020 Multi-Station Handwash Sink
Wall-Mount • 60" Wide • 3 Single-Hole Faucet StationsGive your staff a fast, sanitary hand-washing solution with this rugged, three-station sink from John Boos & Co. Built from heavy-duty 16-gauge, 300-series stainless steel and proudly made in the USA, it delivers the durability, cleanability and space-saving convenience demanded in commercial kitchens, food production facilities and industrial wash-up areas.
Key Features
- Generous 60" width allows up to three users at once for higher throughput.
- 5" deep, single-piece sink bowl is TIG-welded for a watertight, easy-clean interior.
- #4 satin polish on all exposed surfaces resists corrosion and wipes down in seconds.
- 7" high integral backsplash with (3) 1" diameter single-hole openings—perfect for sensor, metering or manual splash-mount faucets.
- 3½" die-stamped drain opening formed for rapid water evacuation (drain strainer sold separately).
- Stainless steel legs and 1¼" O.D. tubular cross-bracing add rock-solid support.
- Adjustable 1" flanged feet with anchoring holes make leveling and secure wall/floor mounting simple.
- Ships knock-down (KD) to minimize freight cost; quick on-site assembly.
- Manufactured in Effingham, Illinois, USA.
Specifications
Model | PBMSHS-W1-6020 |
---|---|
User Stations | 3 |
Overall Width | 60" (1524 mm) |
Front-to-Back Depth | 19 5⁄8" (498 mm) |
Bowl Depth | 5" (127 mm) |
Backsplash Height | 7" (178 mm) |
Faucet Holes | (3) single 1" Ø holes on the backsplash |
Drain Opening | 3 1⁄2" Ø, centered |
Material / Gauge | 16-ga. Type 300 stainless steel |
Finish | #4 satin polish |
Weight | Approx. 61 lb (27.7 kg) |
Country of Origin | USA |
Faucets, drains, traps and other accessories are shown for illustration only and are sold separately unless added to your order.
Some units ship unassembled for reduced freight costs. All dimensions are nominal; manufacturing tolerance ± 0.5".
