John Boos PBMSHS-W1-4020-X Hand Sinks
Description

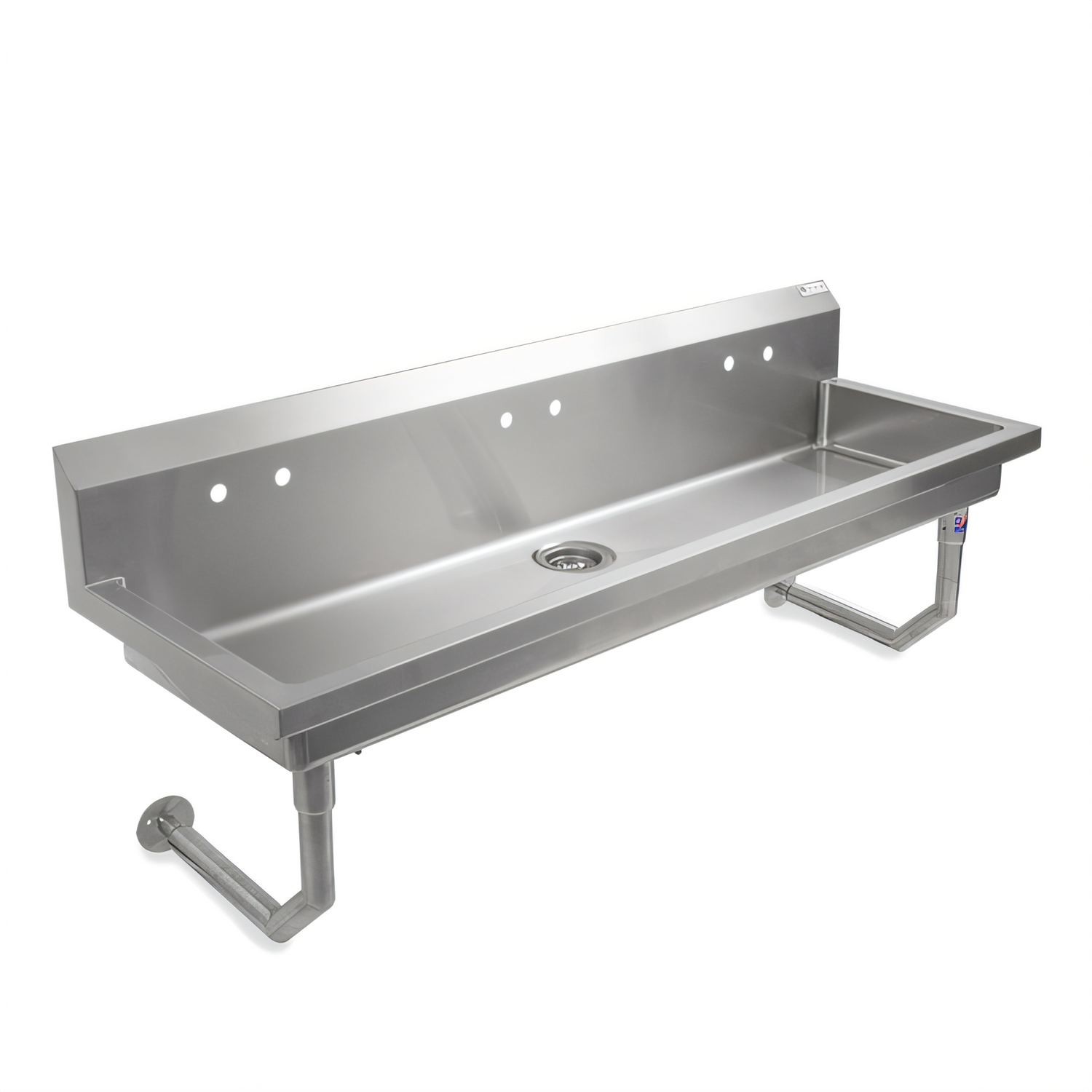

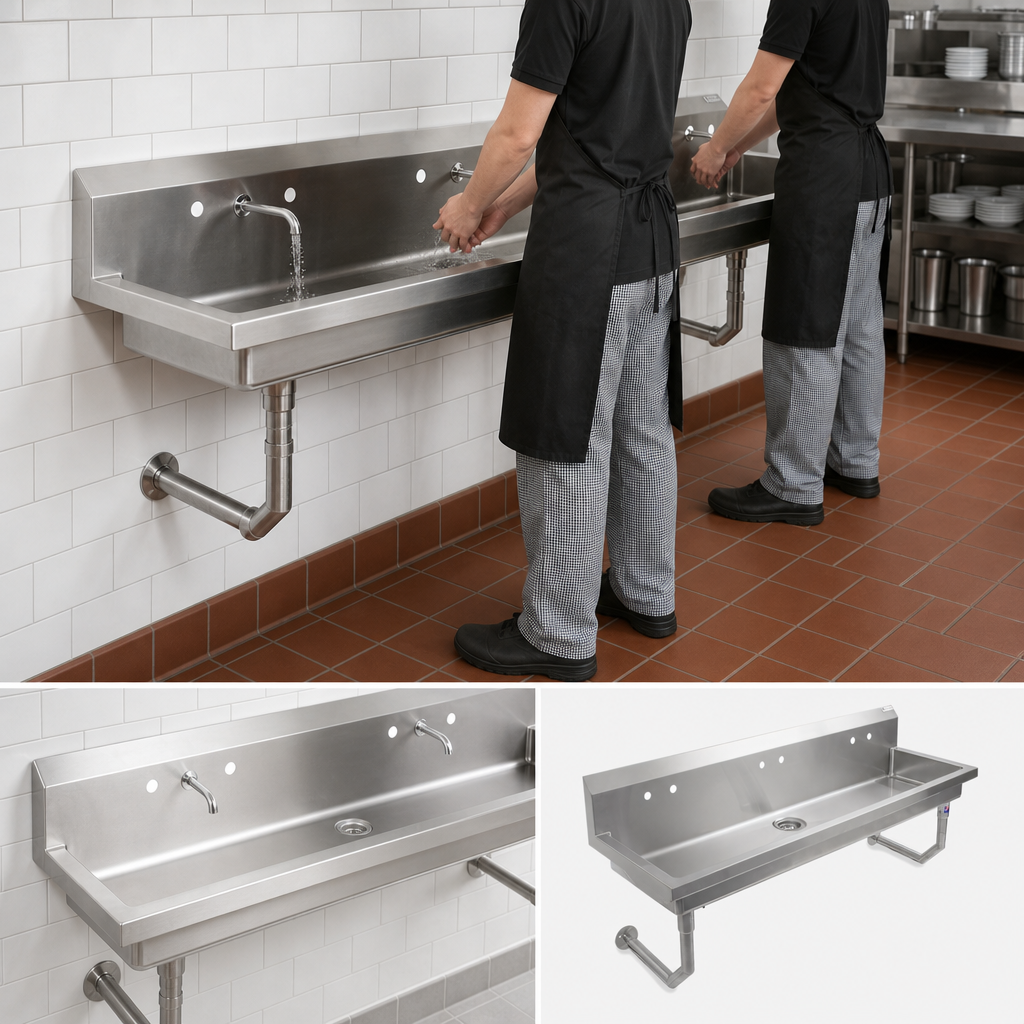

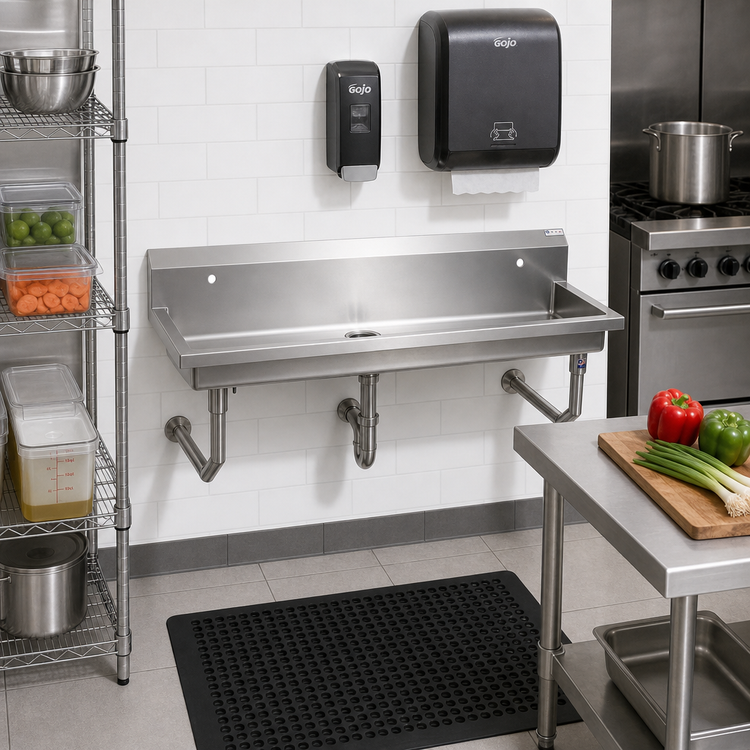

John Boos PBMSHS-W1-4020 Wall-Mount Multi-Station Hand-Wash Sink – 40"
Two single-hole splash-mount stations • 16 GA Type 300 stainless • Made in the USAEngineered for high-volume hygiene, the PBMSHS-W1-4020 allows two staff members to wash up simultaneously while occupying just 40 inches of wall space. Rugged 16 gauge stainless construction, a 7 inch integrated backsplash, and TIG-welded seams make it a long-term performer in commercial kitchens, factories, and institutional facilities.
Key features
- Premium 16 GA, Type 300 series stainless steel – satin #4 finish
- 5" deep bowl with pitch-formed bottom and 3 ½" die-stamped drain openings
- (2) 1" single-hole splash-mount faucet punchings on a 7" high backsplash
- Stainless steel front legs, adjustable cross bracing, and 1" flanged feet with anchor holes
- TIG-welded construction; exposed welds are polished to match surrounding surfaces
- Ships knock-down (KD) to reduce freight costs; straightforward field assembly
- NSF-accepted design and proudly manufactured in Effingham, IL USA
At-a-glance specs
| Model | PBMSHS-W1-4020 |
|---|---|
| Stations | 2 |
| Mounting style | Wall mount with front support legs |
| Overall dimensions | 40" W × 19-5/8" D × 41" H (to top of backsplash) |
| Bowl depth | 5" |
| Backsplash | 7" H with (2) single-hole faucet punchings |
| Drain opening | 3-1/2" Ø (drains sold separately) |
| Material | 16 GA Type 300 stainless steel, satin polish |
| Shipping weight | ≈ 47 lb |
| Country of origin | USA |
Perfect for
- Commercial & commissary kitchens
- School cafeterias and campus dining
- Food & beverage processing plants
- Locker rooms and employee wash-up areas
Stainless steel care
Clean routinely with a soft towel or sponge and a non-chloride cleanser such as Bar Keepers Friend. Rinse thoroughly and dry to maintain the passive protective film. Avoid abrasive pads, wire brushes, and chlorine bleach.
