John Boos PBMSHS-W1-10020-X Hand Sinks
Description

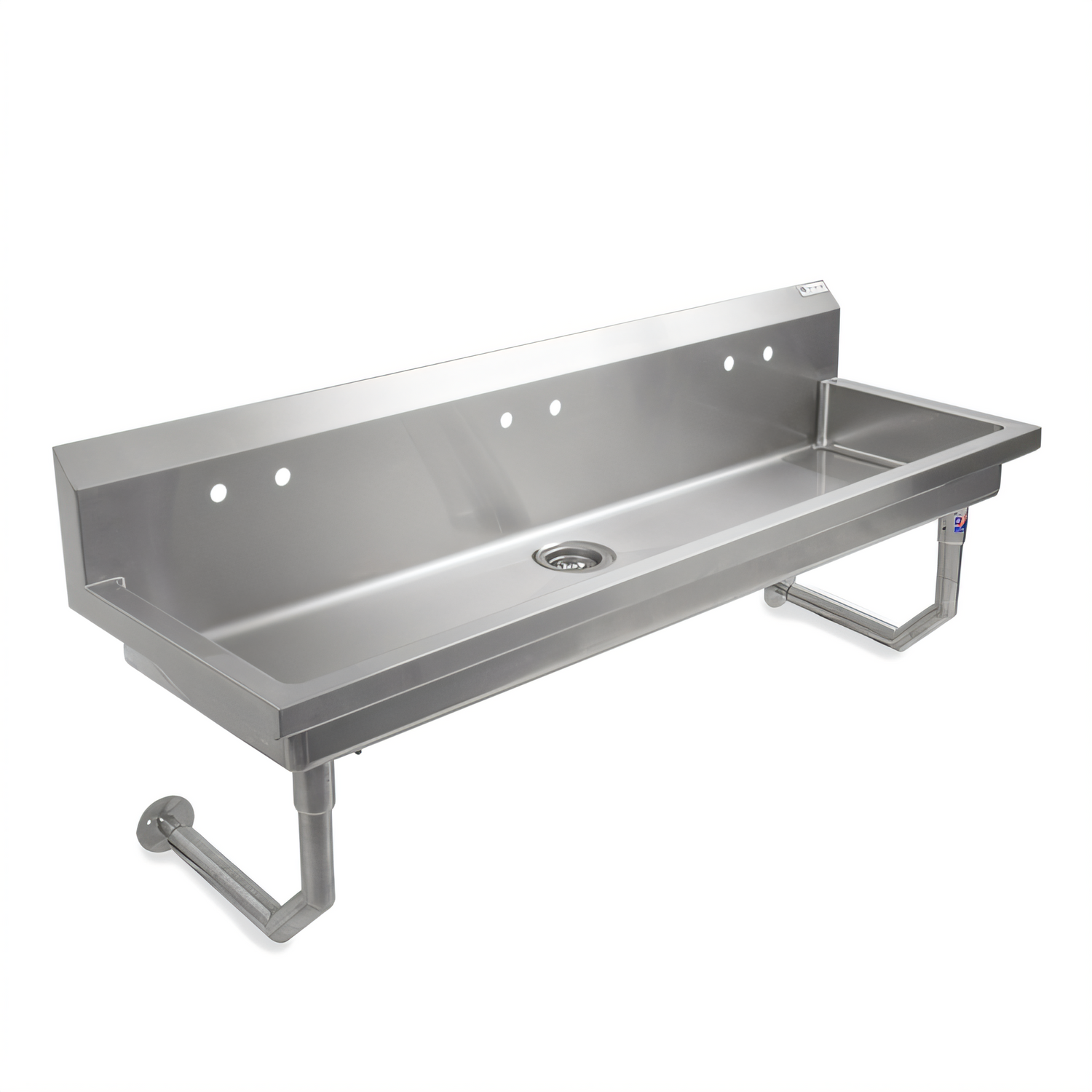

John Boos PBMSHS-W1-10020 Wall-Mount Multi-Station Handwash Sink
100" L | 5 Single-Hole Faucet Positions | Made in the USACreate a high-capacity hand-washing zone without sacrificing valuable floor space. The John Boos PBMSHS-W1-10020 delivers five ergonomic wash stations, rugged 16-gauge type 300 stainless-steel construction, and the legendary build quality operators have trusted since 1887.
Why You’ll Love It
- Five dedicated stations – (5) 1" splash-mount single holes accept your choice of gooseneck, sensor, or metering faucets.

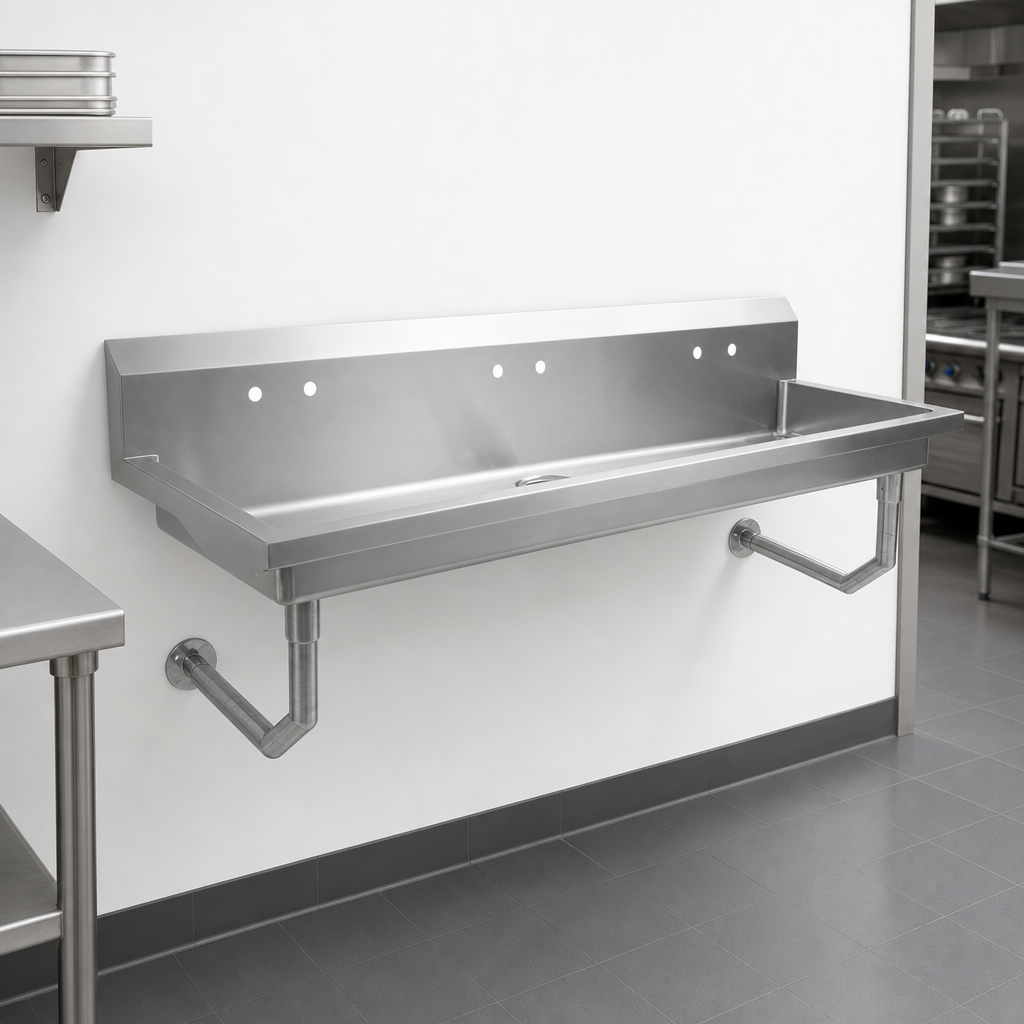

- Space-saving wall mount – front support legs with adjustable flanged feet keep the sink rock solid while freeing the area beneath for easy cleaning.
- Durable 16 GA 300 series stainless – TIG-welded, #4 satin finish resists corrosion and wipes down quickly.
- Hygienic design – 5" deep bowl with rounded corners and pitched bottom drains quickly through the 3-½" die-stamped outlet.
- 7" backsplash – contains splashes and offers a clean mounting surface for faucets and accessories.
- Adjustable bracing – 1-¼" OD stainless cross-brace adds front-to-back rigidity.
- Ships knocked down (KD) – reduces freight cost and allows you to bring the sink through standard doorways before final assembly.
Technical Specifications
| Model | PBMSHS-W1-10020 |
|---|---|
| Overall Length | 100 in (2540 mm) |
| Front-to-Back | 19-5/8 in (498 mm) |
| Bowl Depth | 5 in (127 mm) |
| Backsplash Height | 7 in (178 mm) |
| Faucet Holes | (5) single 1" holes on 4" centers |
| Drain Opening | 3-½" die-stamped |
| Material / Finish | 16 GA Type 300 stainless steel / #4 satin |
| Legs & Feet | 1-5/8" OD stainless legs, adjustable flanged feet with mounting holes |
| Weight | 94 lb (42.6 kg) |
| Country of Manufacture | United States of America |
Installation & Shipping
- Ships knocked-down; simple bolt-together assembly.
- Wall hardware not included (varies by wall type).
- Palletized for LTL shipment; freight class – 125.
Care & Maintenance
Maintain the sink’s passive protective layer by cleaning with non-chloride, non-abrasive cleaners such as Bar Keepers Friend, wiping in the direction of the grain, and rinsing thoroughly. Avoid steel wool or wire brushes.
