John Boos PBMSHS-W1-10020 Hand Sinks
Description

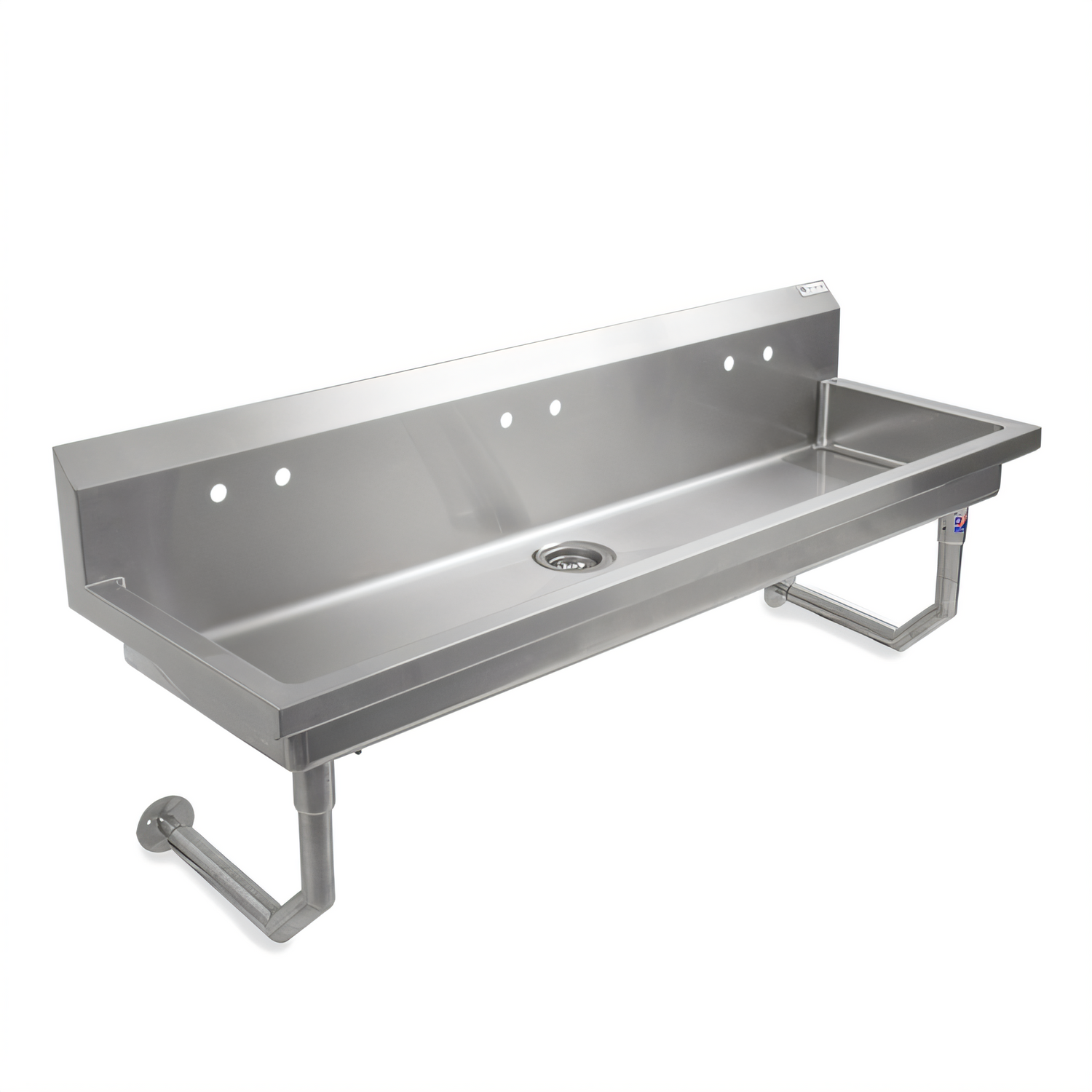

John Boos PBMSHS-W1-10020 Multi-Station Handwash Sink – Wall Mount, 100″
5 single splash-mount faucet holes | 16 GA 300 Series stainless steel | Made in USABuilt for the demands of busy commercial environments, this 100-inch, five-user hand-wash station delivers legendary John Boos durability in a hygienic, wall-mounted footprint. From school cafeterias to large production facilities, the PBMSHS-W1-10020 keeps teams moving, clean and compliant.
Key Features
- Simultaneous capacity for 5 users—ideal for shift changes and high-traffic areas.
- Fabricated from 16-gauge, Type 300 stainless steel with a #4 satin polish for maximum corrosion resistance.
- 5″ deep one-piece bowl is pitched for fast drainage to a 3-½″ die-stamped opening.
- 7″ integral backsplash shields surrounding walls and simplifies sanitation.
- Pre-punched with (5) single 1″ faucet holes—ready for your preferred splash-mount faucets.
- Wall bracket plus 1-5/8″ Ø stainless steel front legs and adjustable cross bracing for rock-solid stability.
- 1″ adjustable flanged feet with pre-drilled holes—anchor to the floor when required by local code.
- Ships knocked-down (KD) to lower freight cost; quick bolt-together assembly on site.
- Made in Effingham, Illinois—over 135 years of John Boos craftsmanship.
Perfect For
- Commercial & institutional kitchens
- Food-processing and packaging plants
- Healthcare, pharma & clean-pack rooms
- Schools, stadiums & event venues
- Industrial warehouses & break rooms
Technical Specifications
| Model | PBMSHS-W1-10020 |
|---|---|
| Overall dimensions | 100″ W × 19-5/8″ D × 41″ H (to top of backsplash) |
| Bowl depth | 5″ |
| Backsplash height | 7″ |
| Drain opening | 3-½″ diameter, die-stamped |
| Faucet configuration | (5) single 1″ Ø splash-mount holes (faucets not included) |
| Material & finish | 16 GA Type 300 stainless steel, #4 satin polish |
| Mounting style | Wall mount rear bracket with stainless steel front legs & adjustable bracing |
| Feet | 1″ adjustable flanged feet with floor-mount holes |
| Weight | Approx. 94 lb |
| Country of origin | USA |

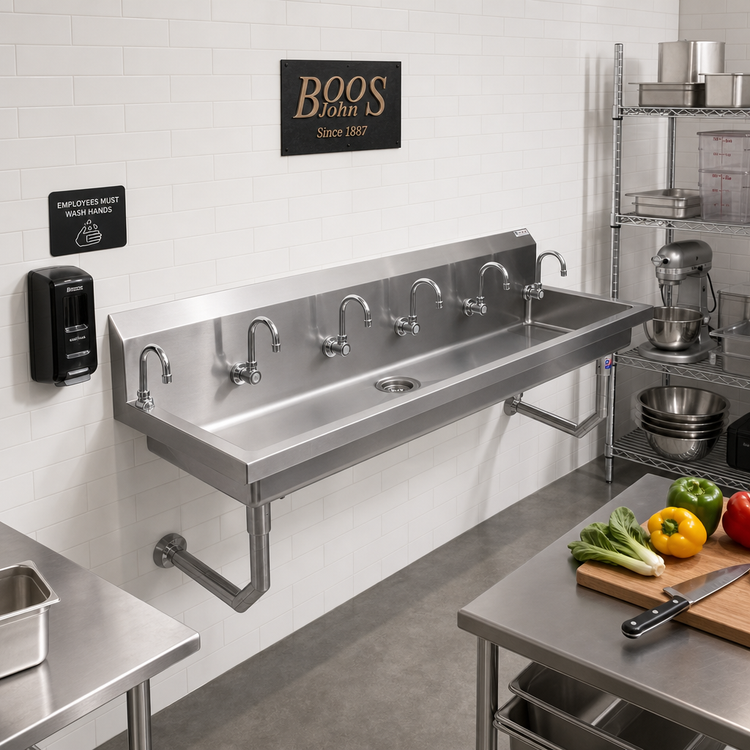

Faucets, drains and additional accessories are shown for illustration purposes only and are sold separately.
