John Boos PBMSHS-F1-4020 Hand Sinks
Description

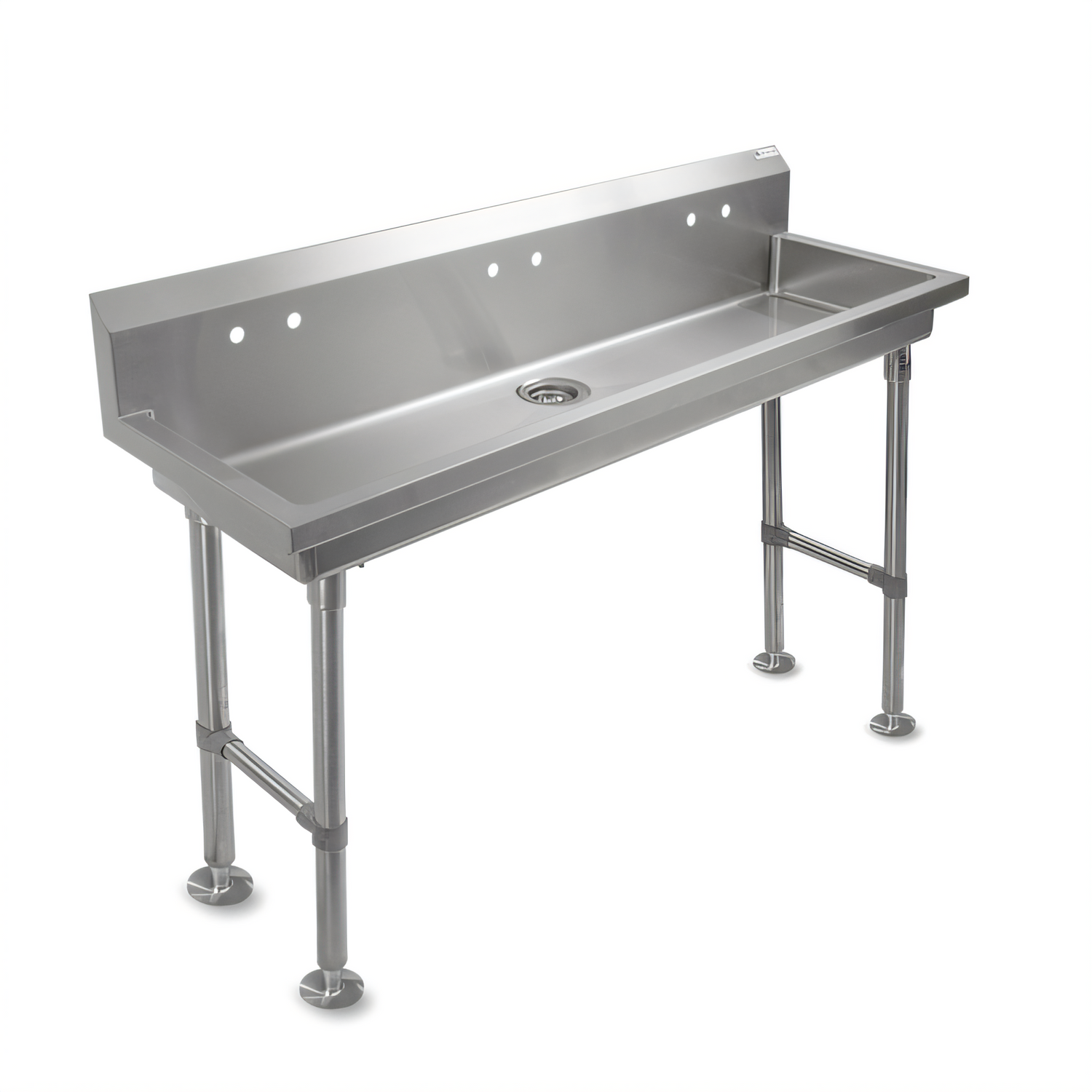

John Boos PBMSHS-F1-4020 Multi-Station Handwash Sink – 40″
2-User, Freestanding, 16-Gauge Type 300 Stainless SteelEngineered for high-traffic environments, this John Boos multi-station sink delivers dependable hand-washing performance in a compact 40-inch footprint. Heavy-duty 16-gauge stainless steel construction, precision TIG welds and a sanitary satin polish make it the long-term solution for any commercial or institutional setting.
Key Features & Benefits
- Rugged 16-gauge Type 300 stainless steel with easy-clean #4 satin finish.
- Two single 1″ splash-mount faucet holes on a 7″ backsplash for quick installation of your choice of faucets.
- Spacious 40″-wide, 5″-deep bowl formed for fast drainage to a 3-1/2″ die-stamped outlet.
- TIG-welded seams; exposed welds are polished to blend seamlessly with surrounding surfaces.

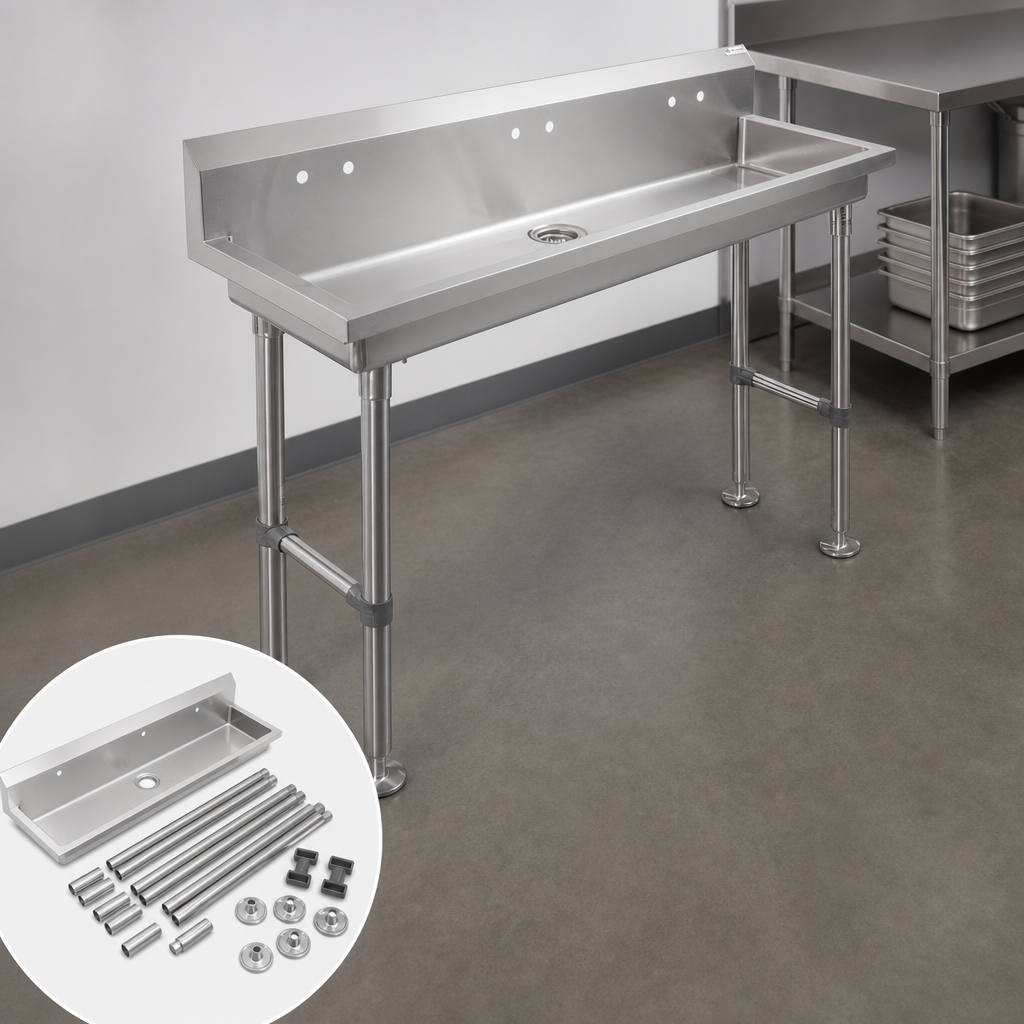

- Freestanding, knock-down (KD) base ships efficiently and assembles in minutes.
- 1-5/8″ O.D. stainless legs with adjustable 1-1/4″ O.D. cross bracing for rock-solid stability.
- Adjustable stainless flanged feet with anchoring holes help level the sink and secure it to the floor.
- NSF-compliant materials support food-service and healthcare sanitation standards.
- Proudly made in Effingham, Illinois, USA.
Ideal Applications

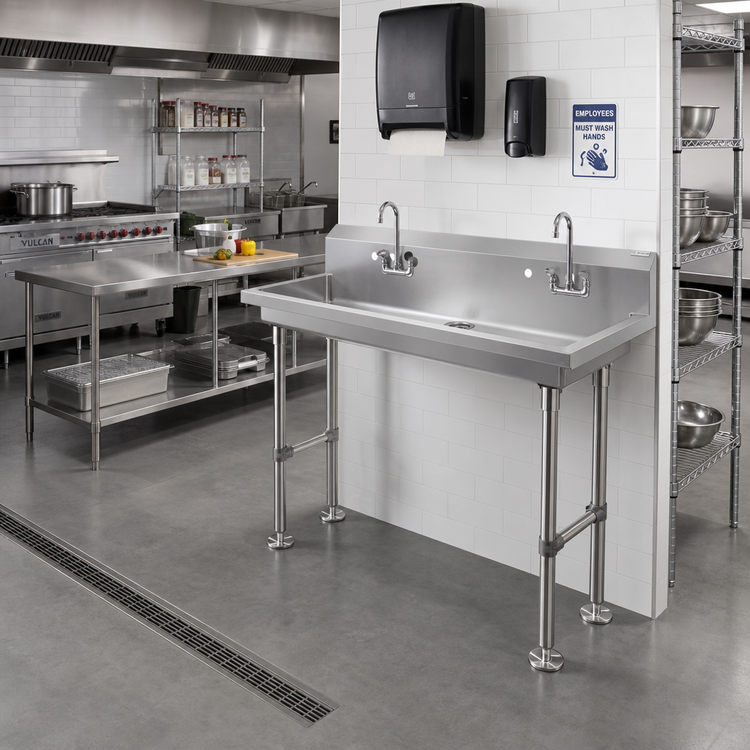

- Commercial kitchens & food prep areas
- Schools, stadiums & event venues
- Manufacturing & warehouse wash stations
- Healthcare, lab & clean-room facilities
Technical Specifications
| Model | PBMSHS-F1-4020 |
|---|---|
| Overall width | 40″ (1016 mm) |
| Front-to-back depth | 19-5/8″ (498 mm) |
| Bowl depth | 5″ (127 mm) |
| Backsplash height | 7″ (178 mm) |
| Faucet holes | (2) × 1″ Ø single-hole splash mount |
| Drain opening | 3-1/2″ die-stamped |
| Material | 16-ga Type 300 stainless steel, #4 satin polish |
| Legs | 1-5/8″ O.D. stainless steel, TIG welded |
| Cross bracing | 1-1/4″ O.D. stainless, adjustable |
| Feet | Adjustable stainless flanged feet with mounting holes |
| Shipping weight | 50 lb (22.7 kg) |
| Country of origin | USA |
Need a longer sink or 4″ on-center faucet holes? Additional PBMSHS-F models are available in widths up to 100″. Contact us for details.
