John Boos PBJC-222584-X Mop Sinks
Description

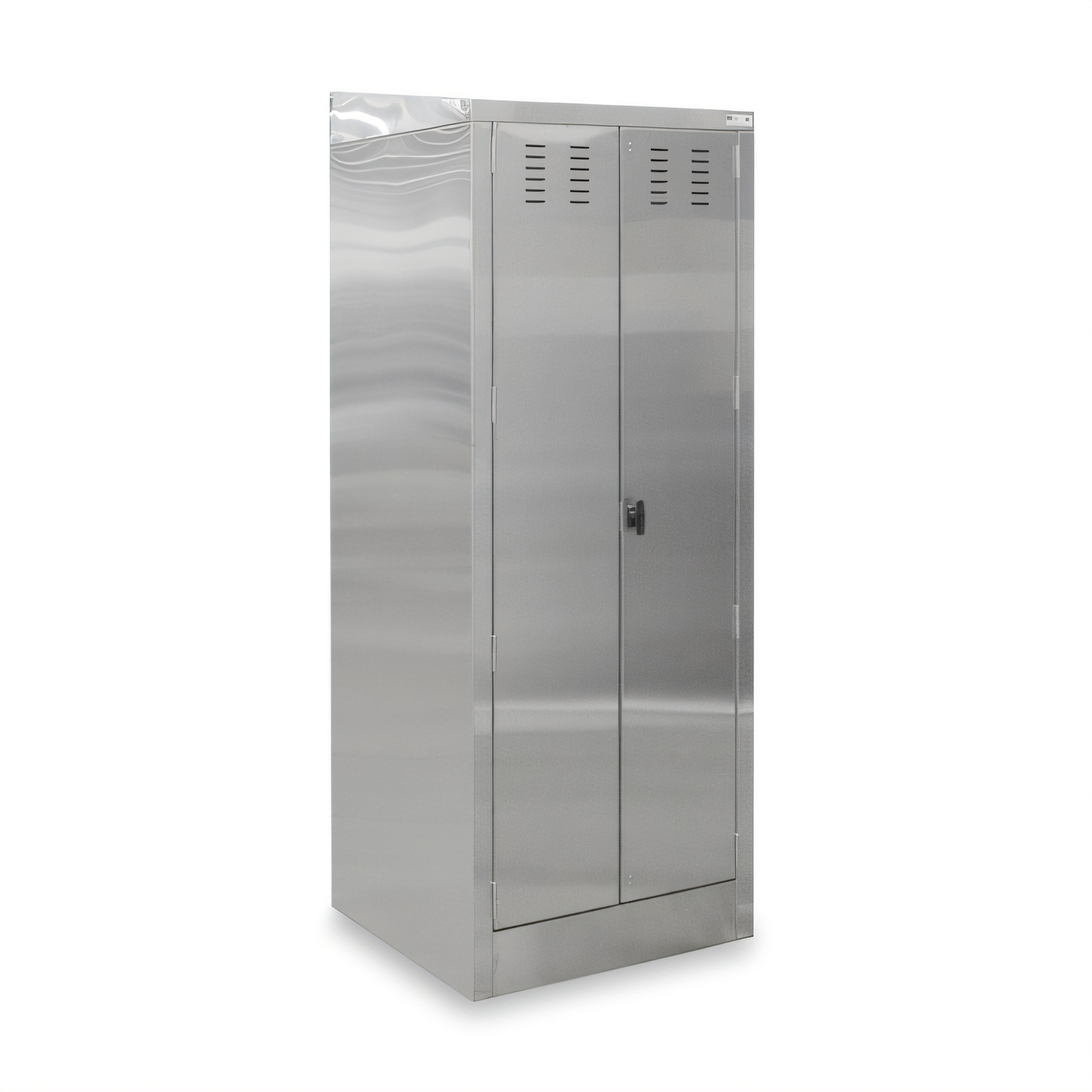

John Boos PBJC-222584 Stainless Steel Janitor Cabinet
25" W x 22-1/2" D x 84" H – Oversized 20" × 16" × 12" Mop Sink – NSF ListedConsolidate your mop sink, chemical storage and janitorial tools in one tamper-proof, stainless-steel enclosure that is built to outlast daily commercial use. The PBJC-222584 arrives ready to connect to your existing plumbing and keeps everything you need behind two lockable louvered doors.
At a Glance
- 18 GA Type 300 stainless-steel cabinet finished in #4 satin polish

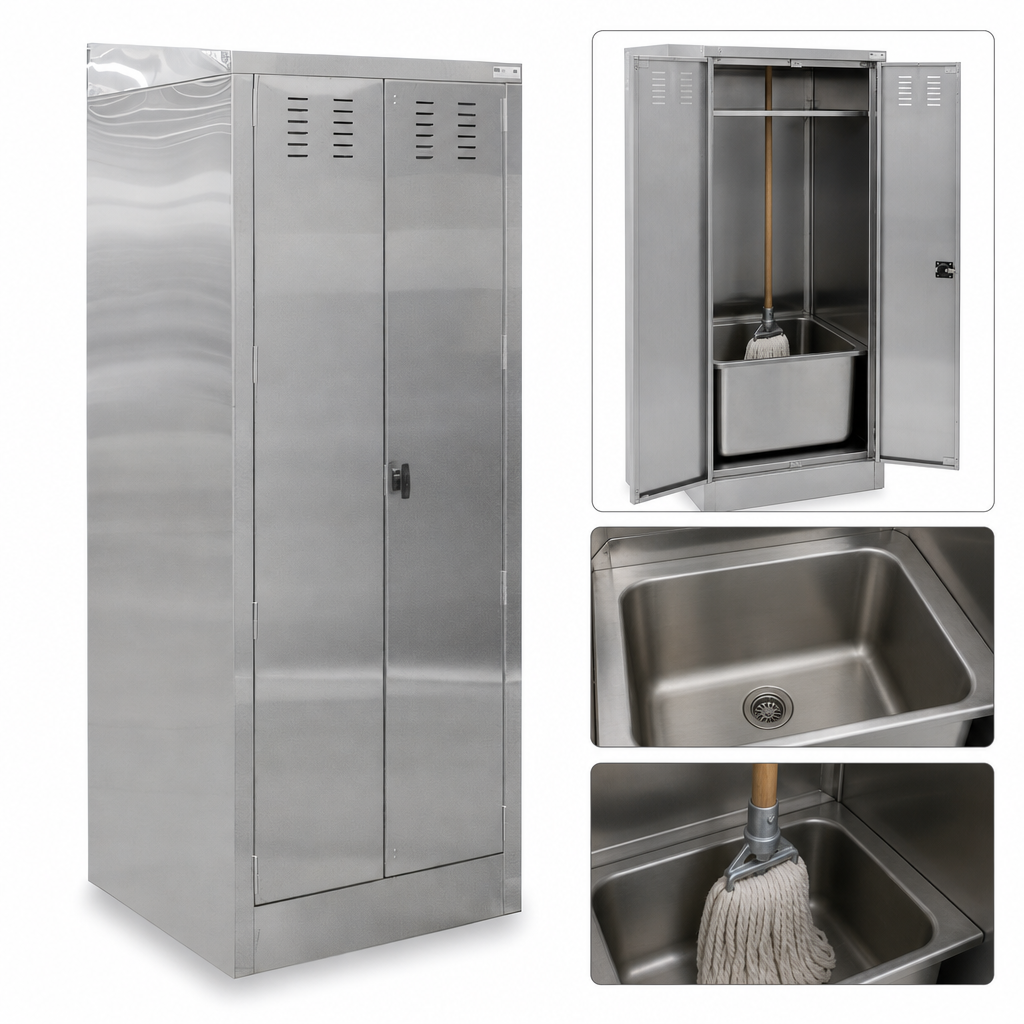

- 16 GA Type 300 oversized mop sink (20" × 16" × 12") with 3-½" die-stamped drain opening
- Service faucet (PBF-SS-6) with vacuum breaker & 120" (10 ft) hose (PB-HOSE-120) included

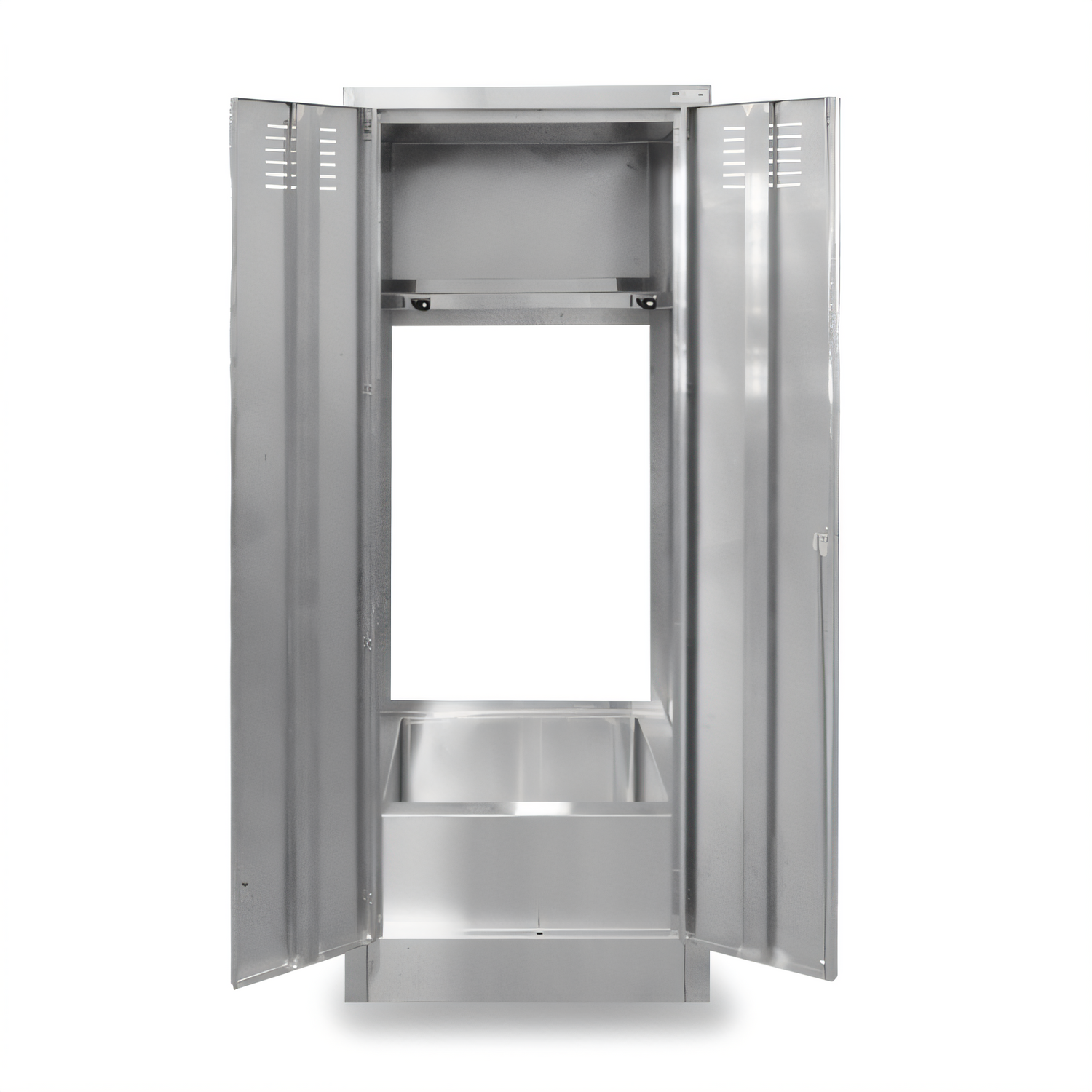

- (2) lockable louvered swing doors with tamper-proof hardware
- Open back for easy plumbing connections
- Overhead stainless-steel shelf keeps chemicals safely above the sink
- Rear-mounted mop holder with (2) locking cams keeps handles organized & off the floor
- NSF listed for regulated food-service and janitorial environments
- Ships from Effingham, IL and Nevada facilities for faster regional delivery
Technical Specifications
| Model | PBJC-222584 |
|---|---|
| Overall Dimensions (W × D × H) | 25" × 22-1/2" × 84" |
| Mop Sink Interior | 16" L × 20" W × 12" Deep (16 GA) |
| Cabinet Construction | 18 GA Type 300 stainless steel, TIG-welded, #4 satin finish |
| Doors | (2) Lockable louvered swing doors, tamper-proof hardware |
| Shelf | Integrated overhead shelf for chemical storage |
| Mop Holder | Rear-mounted, (2) locking cams |
| Faucet & Hose | PBF-SS-6 service faucet with vacuum breaker & 120" hose |
| Drain Opening | 3-½" die-stamped, accepts 2" male drain pipe |
| Unit Weight | 169 lb |
| Certifications | NSF |
Installation Notes
- Unit ships fully welded; field connection to supply and waste lines required.
- Service faucet mounting location may be specified at time of order.
- Ensure a 2" DWV line is available to mate with the 3-½" sink outlet.
Stainless-Steel Care
Maintain the protective chromium oxide layer by rinsing after each use, drying with a soft cloth and avoiding chlorine-based cleaners. For stubborn deposits, use a non-chloride cleanser such as Bar Keepers Friend, following the grain of the finish.
