John Boos PBHS-W-1410-KV1APS-EW-X Hand Sinks
$1,130.21
Unit price
/
Unavailable
Description

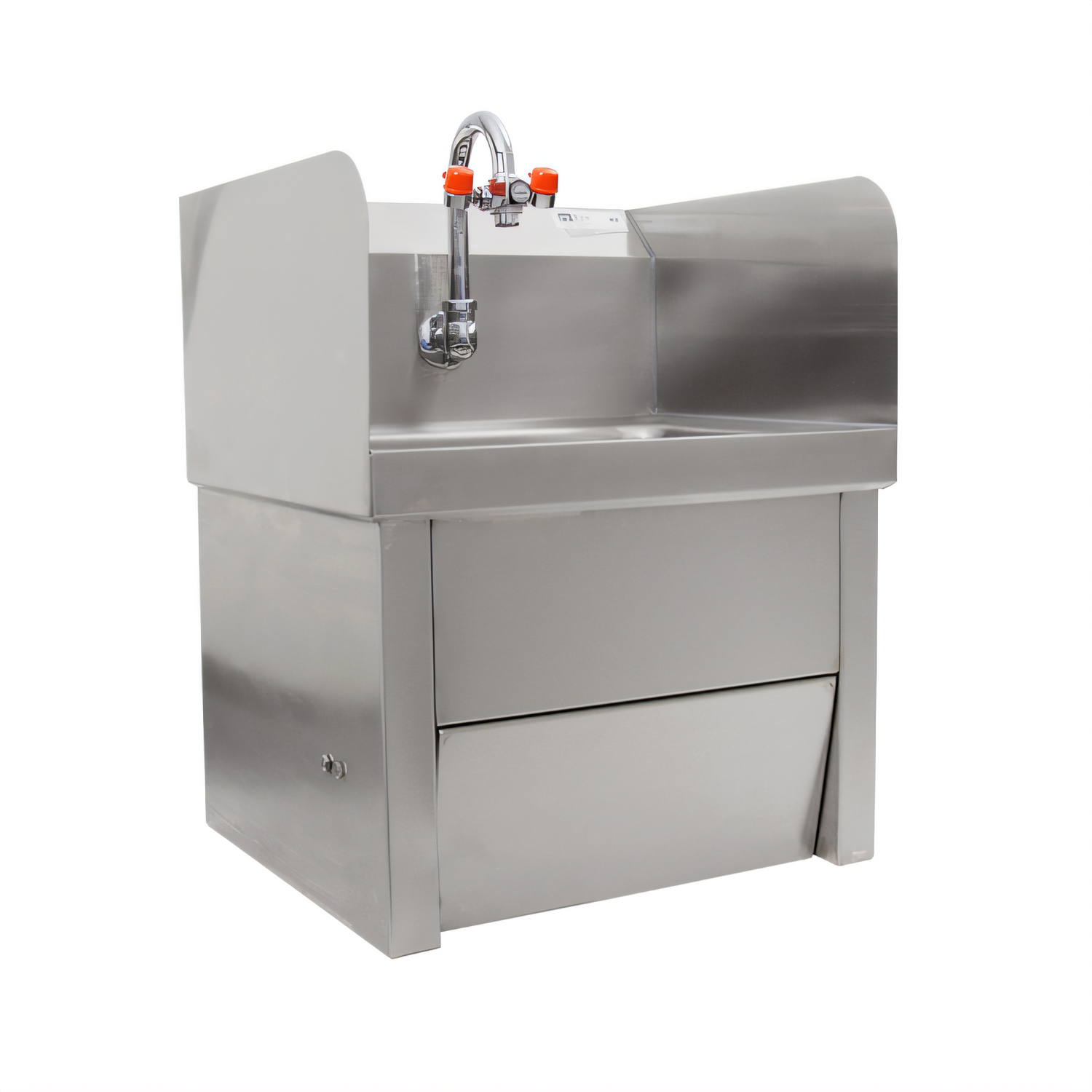

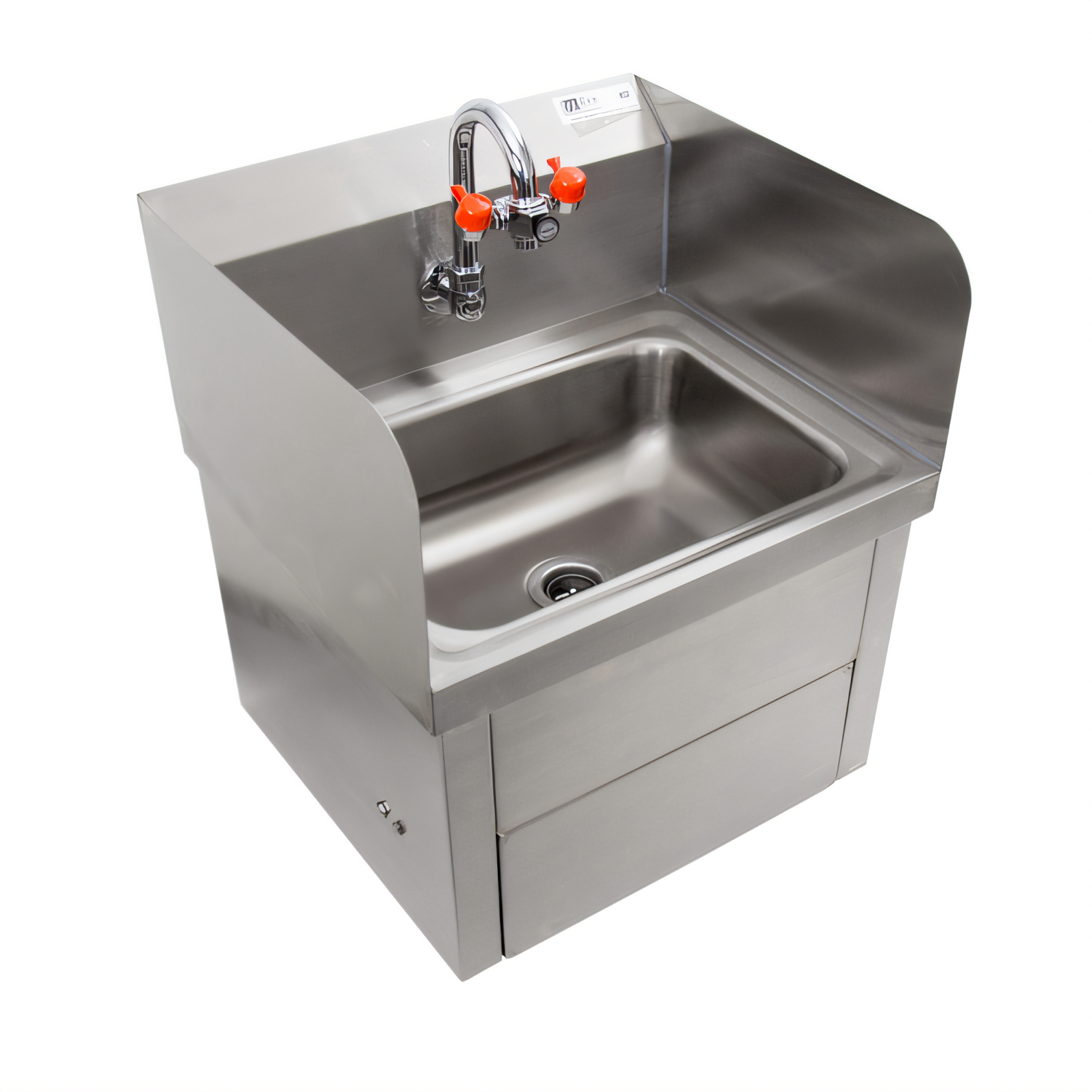

John Boos PBHS-W-1410-KV1APS-EW Hand Sink with Eye Wash
14" × 10" bowl • wall-mount • knee-activated • NSFCompact, durable and ready for the most demanding prep, lab and industrial spaces, this wall-mounted hand sink pairs a deep stainless bowl with a faucet-mounted eye wash to give staff instant access to both hand hygiene and emergency eye flushing.
Key Features

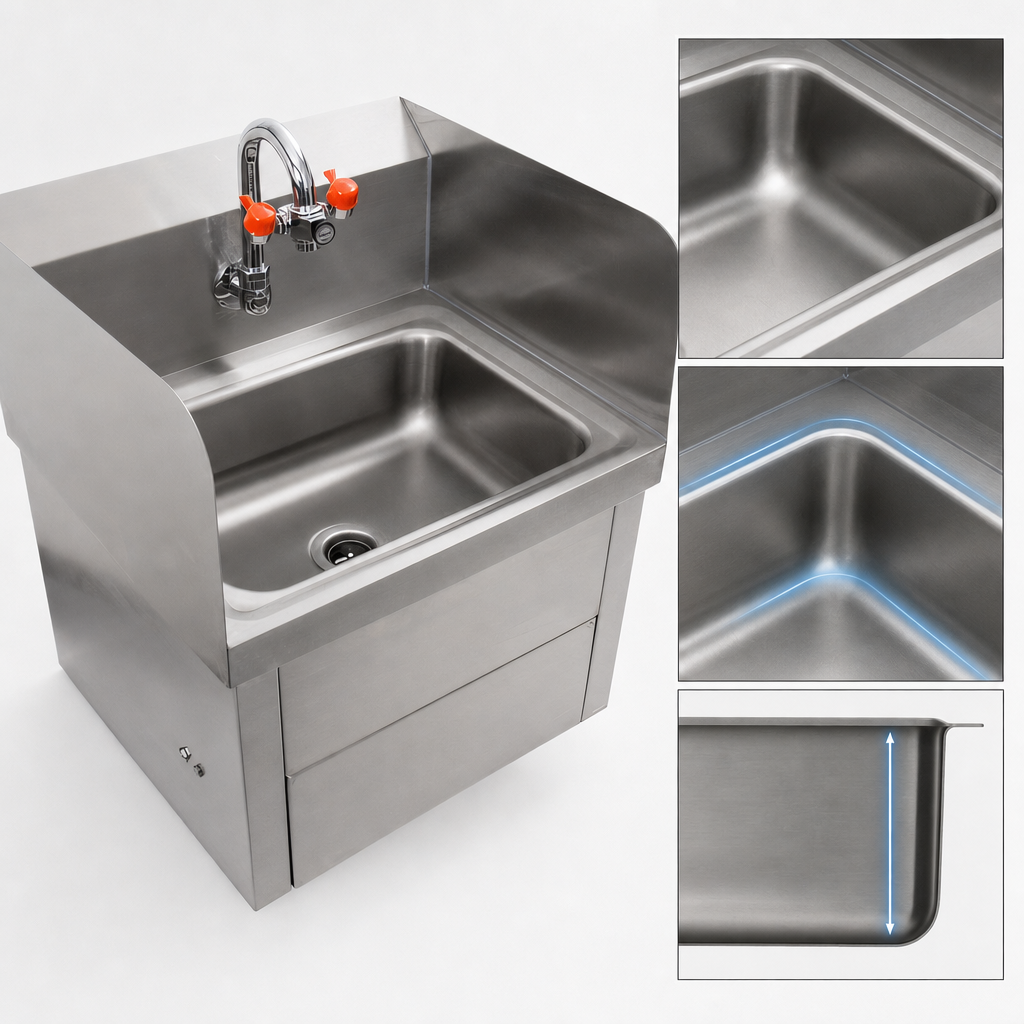

- 14" W × 10" D × 5" deep one-piece, deep-drawn bowl with large radii corners.
- 3 ½" splash-mount gooseneck faucet with pull-knob dual-spray eye wash attachment.
- Knee-activated valve and hinged front apron for hands-free operation.
- 18-gauge Type 300 stainless steel – TIG-welded & #4 satin-polished.
- 2" drain opening with included basket drain.
- Heavy-duty stainless mounting bracket simplifies wall installation.
- NSF listed for hand-washing applications.
Important:
Faucet-mounted eye washes require two separate actions
(turn on water, pull knob) and therefore do not meet ANSI Z358.1-2014
as primary eye-wash stations. Use only as a supplemental safety device and
supply cold or tepid water to prevent scalding.
Technical Specifications
| Model | PBHS-W-1410-KV1APS-EW |
|---|---|
| Mounting | Wall (stainless steel bracket included) |
| Bowl Size (W × D × H) | 14" × 10" × 5" |
| Overall Sink Size | 17" × 15 ½" × 22" |
| Faucet | 3 ½" splash-mount gooseneck, 1-hole centered |
| Activation | Knee valve with hinged apron |
| Eye Wash | Pull-knob dual-spray, faucet-mounted |
| Drain | 2" opening (1 ⅞" OD) with basket drain |
| Construction | Type 300 stainless steel, #4 satin finish |
| Certifications | NSF |
| Shipping Weight | ≈ 23 lb |
| Manufactured | Effingham, IL & Nevada, MO USA |
Included with Your Sink
- Hand sink with knee valve & hinged apron (pre-assembled)
- 3 ½" gooseneck faucet with eye wash attachment
- Basket drain with strainer
- Stainless steel wall bracket & installation hardware
- Installation, care & maintenance instructions
Care & Maintenance
- Clean daily with mild soap or non-chloride detergent and a soft cloth or sponge.
- Avoid abrasive pads, steel wool, or cleaners containing chlorides/quaternary salts.
- Rinse and wipe dry after cleaning to preserve the protective chromium oxide film.
- For stubborn stains, apply Bar Keepers Friend with the grain, rinse thoroughly, then polish with John Boos Stainless Steel Cleaner.
Regular cleaning keeps the stainless finish bright and corrosion-resistant for years of dependable service.
Features & Specs
Features & Specs
Manufacturer
John Boos
Certifications
NSF
Height
22.0in
Width
17.0in
Depth
15.5in
Shipping Weight
23.0lbs
Bowl Height (rim to drain)
5" deep
Faucet
faucet included
Bowl Width (left to right)
13" - 14"
Bowl Depth (front to back)
9" - 10" front-to-back
Style
wall mounted
Specifications
Hand Sink with Eye Wash, wall mount, 14"W x 10"D front-to-back x 5" deep bowl, 3-1/2" gooseneck faucet with eye wash attachment, knee activated with hinged front apron, 2" drain opening with basket drain, includes: mounting bracket, stainless steel construction, NSF (Available in Effingham and Nevada)
