John Boos | SKU:
PBHS-W-1410-KV1APS-EW-SS-X
John Boos PBHS-W-1410-KV1APS-EW-SS-X Hand Sinks
$1,412.46
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
John Boos PBHS-W-1410-KV1APS-EW-SS-X Hand Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
John Boos PBHS-W-1410-KV1APS-EW-SS-X Hand Sinks
$1,412.46
Unit price
/
Unavailable
Description

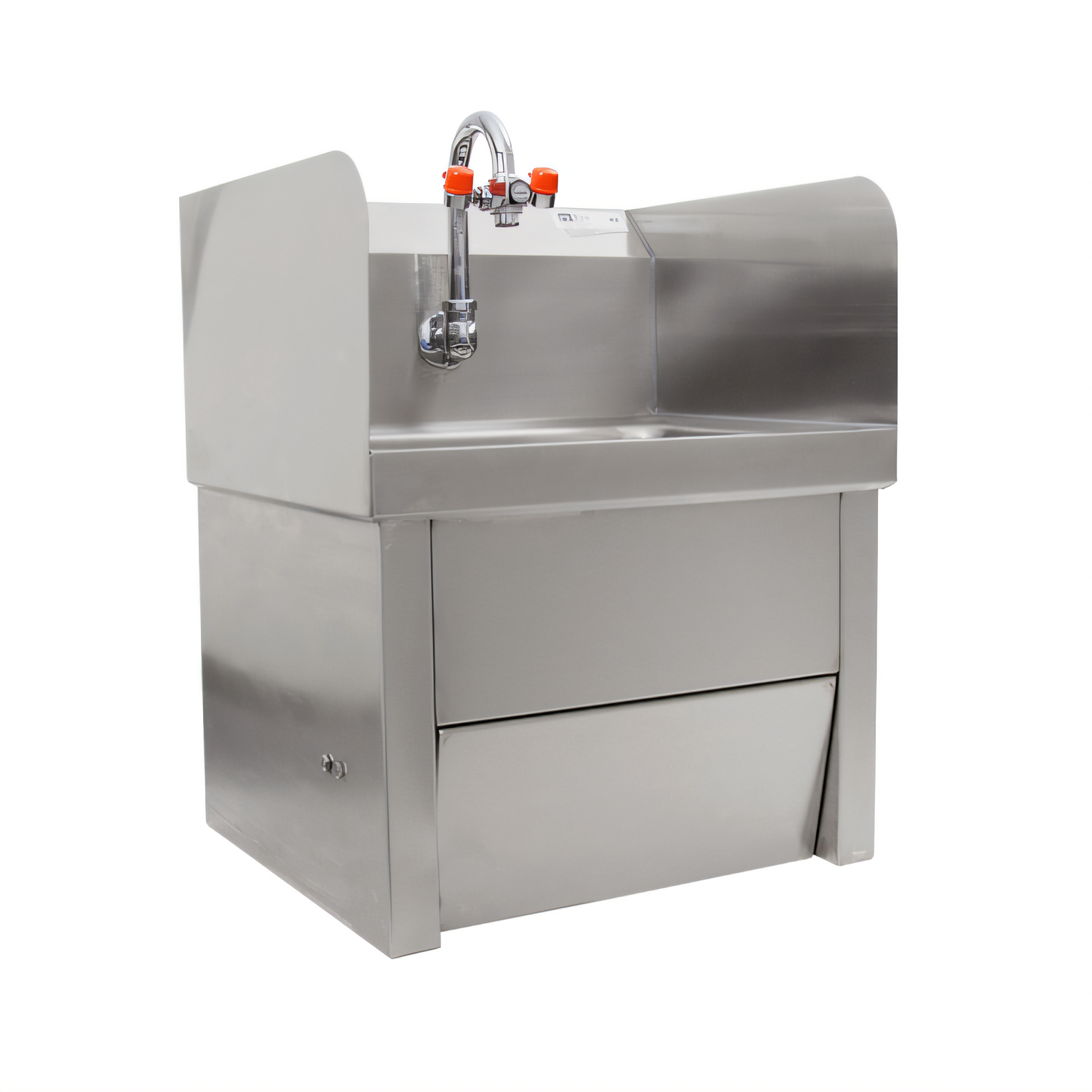

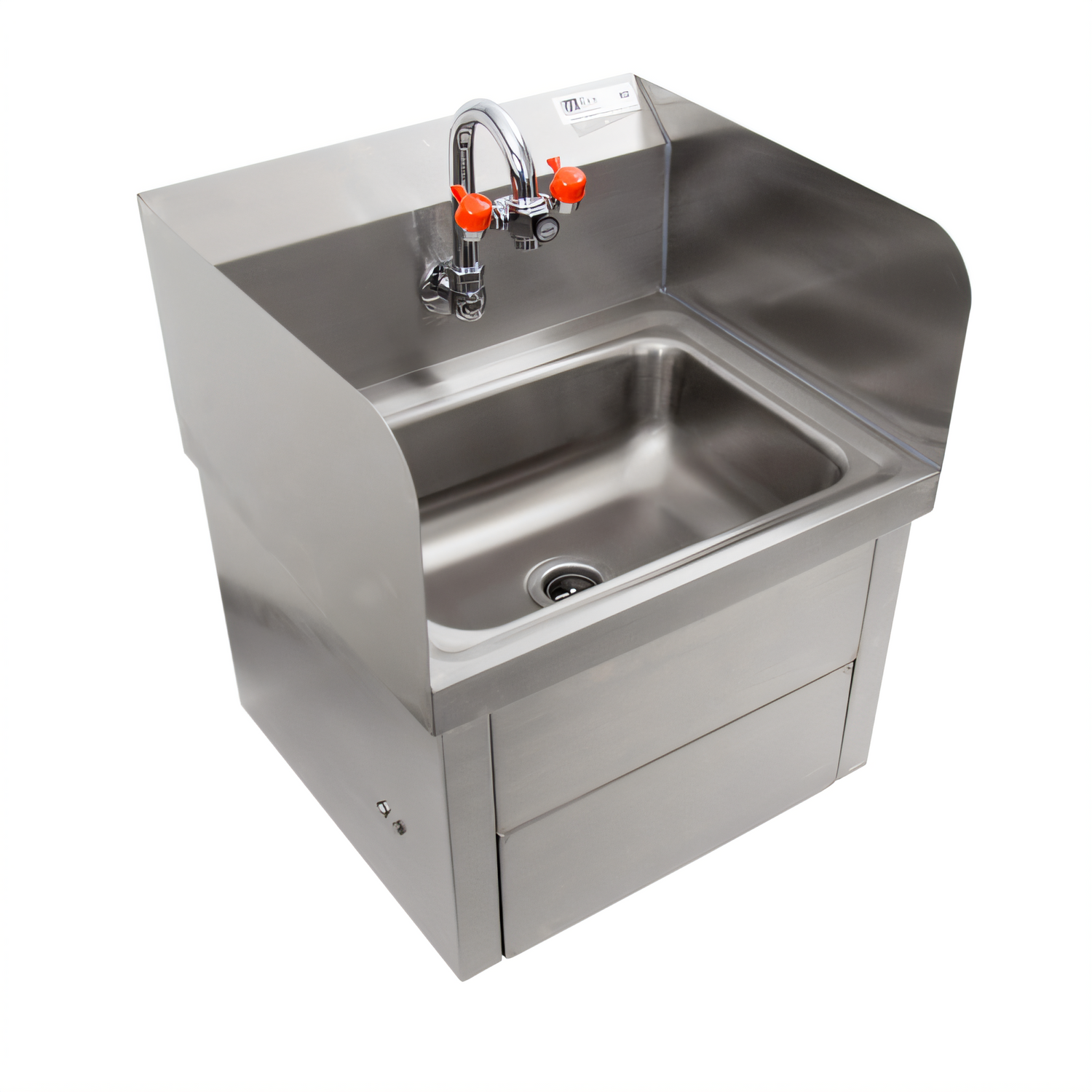

John Boos PBHS-W-1410-KV1APS-EW-SS Hand Sink with Eye Wash
14" x 10" bowl • Wall-mount • Knee-activated • NSFBuilt for demanding commercial, laboratory, and industrial environments, this all-stainless hand sink combines hands-free operation with a faucet-mounted eye wash attachment—delivering convenience, hygiene and an added layer of personal safety in one compact unit.
Key Features & Benefits
- Hands-free knee valve activates water flow; hinged front apron doubles as the actuator.

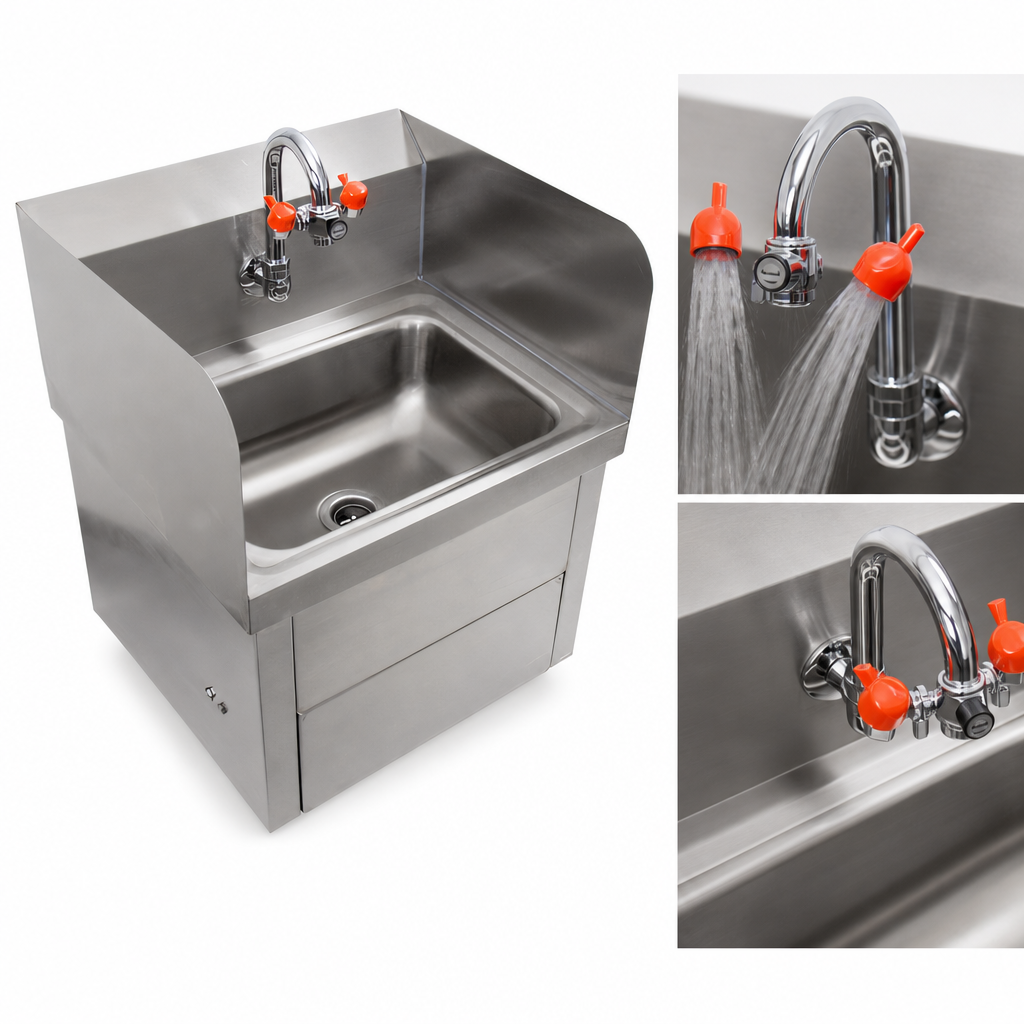

- 3.5" splash-mount gooseneck faucet with integrated eye wash attachment for quick response rinsing.
- One-piece 14"W x 10"D x 5"H deep-drawn bowl with large radius corners for easy cleaning.
- Dual 10" high side splashes contain overspray and meet health-code requirements.
- Type 300 stainless steel throughout, TIG-welded and polished to a #4 satin finish.
- Includes 1-7/8" basket drain (fits standard 2" plumbing) and heavy-duty wall mounting bracket.
- NSF listed for safe use in foodservice and healthcare facilities.
At-a-Glance Specs
| Model | PBHS-W-1410-KV1APS-EW-SS |
|---|---|
| Bowl Dimensions (W × F-B × D) | 14" × 10" × 5" |
| Overall Sink Size (W × F-B × H) | 17" × 15 ½" × 22" |
| Activation Method | Knee valve with hinged apron |
| Faucet Style | 3.5" splash-mount gooseneck, single-hole, eye wash attachment |
| Drain Opening | 1-7/8" (basket drain included) |
| Side Splashes | Left & right (10" high, 20 ga SS) |
| Construction | 18 ga Type 300 SS, #4 satin polish |
| Net Weight | 26 lb |
| Certifications | NSF |
What’s Included
- Wall-mount hand sink with side splashes
- Gooseneck faucet & eye wash attachment (pre-installed)
- Knee-valve assembly with hinged front apron
- Basket drain & strainer
- Heavy-duty stainless steel wall mounting bracket
Installation & Utility
- Ships fully welded; simply mount to wall and connect ½" water lines and 1½" drain.
- Recommended supply temperature: cold or tempered (≤ 100 °F) water for eye wash safety.

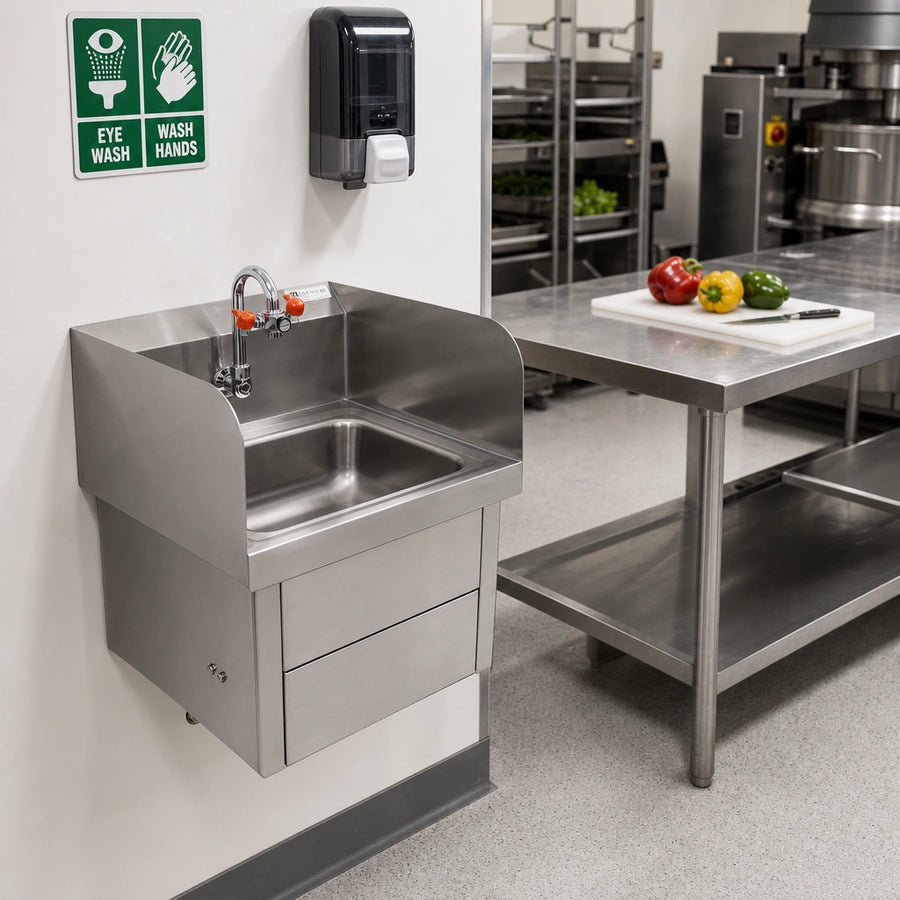

- Ideal for kitchens, labs, manufacturing floors and job-site trailers.
Eye Wash Disclaimer: The faucet-mounted eye wash requires two
actions—turning on water and pulling the activation knob—and is intended only as a
supplemental rinsing device. It does not meet ANSI Z358.1-2014 requirements for
primary emergency eye wash equipment.
Care & Maintenance
- Clean daily with mild soap or non-chloride cleaner and a soft cloth.
- Avoid abrasive pads, steel wool or cleaners containing chlorine or quaternary salts.
- Rinse and dry after each use to preserve the stainless steel’s protective film.
- For stubborn stains, use Bar Keepers Friend followed by a stainless polish.
Need it fast? Product is stocked in Effingham, IL and Nevada for shorter lead times.
Features & Specs
Features & Specs
Manufacturer
John Boos
Certifications
NSF
Height
22.0in
Width
17.0in
Depth
15.5in
Shipping Weight
26.0lbs
Bowl Width (left to right)
13" - 14"
Bowl Height (rim to drain)
5" deep
Faucet
faucet included
Bowl Depth (front to back)
9" - 10" front-to-back
Style
wall mounted
Features
side splash(es)
Specifications
Hand Sink with Eye Wash, wall mount, 14"W x 10"D front-to-back x 5" deep bowl, 3-1/2" gooseneck faucet with eye wash attachment, knee activated with hinged front apron, left & right side splashes, 2" drain opening with basket drain, includes: mounting bracket, stainless steel construction, NSF (Available in Effingham and Nevada)
