John Boos  |  SKU: PBHS-W-1410-KV1APS-EW-SS  |  UPC: 662969794286

John Boos PBHS-W-1410-KV1APS-EW-SS Hand Sinks

$1,775.28
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

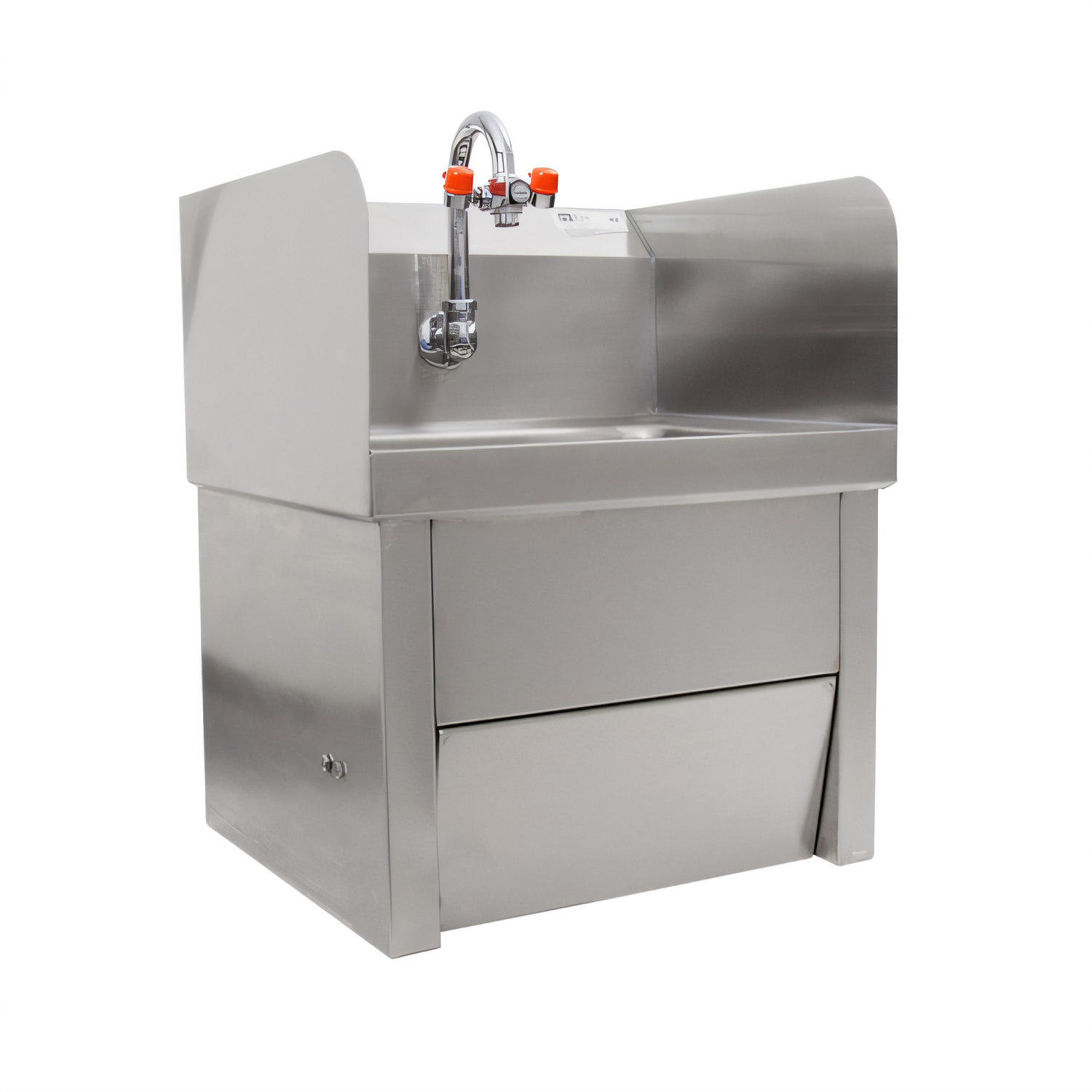

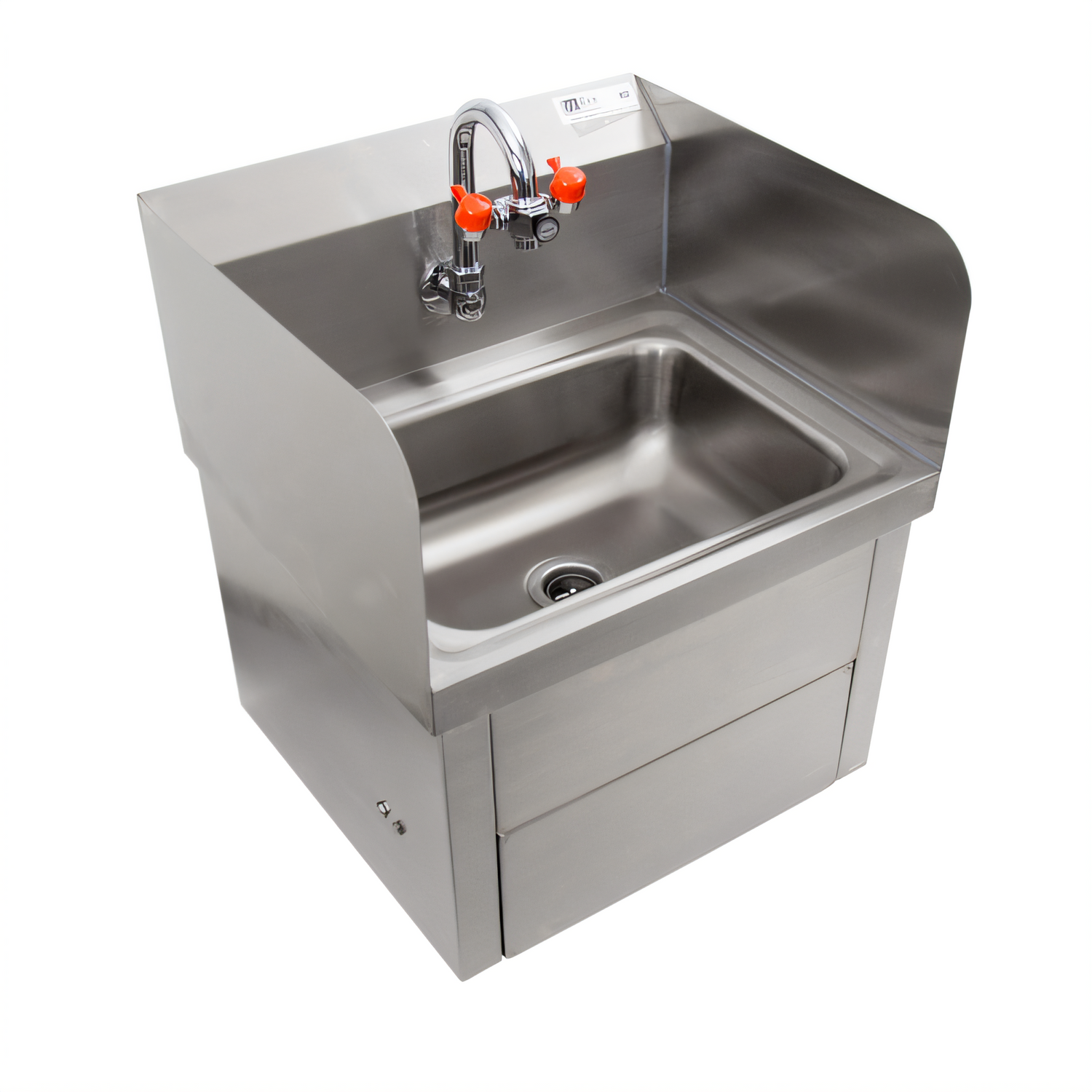

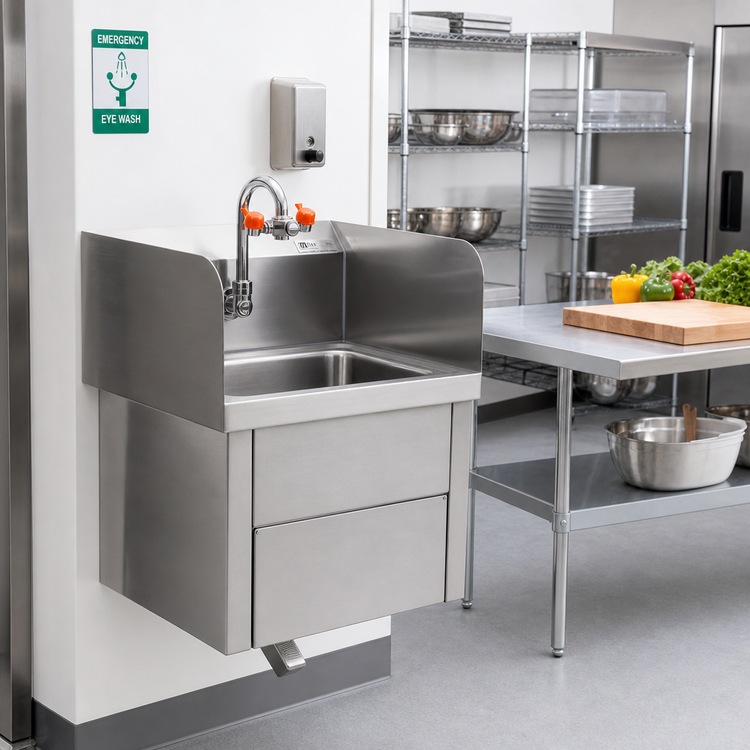

John Boos Wall-Mount Hand Sink with Eye Wash

Model PBHS-W-1410-KV1APS-EW-SS

Built for demanding commercial, industrial, and laboratory environments, this compact 14 × 10 in. hand sink pairs hands-free knee activation with a faucet-mounted eye-wash attachment—delivering everyday sanitation and emergency response in one rugged, NSF-listed unit.

Key Features

  • One-piece, deep-drawn 14 × 10 × 5 in. bowl with large radii corners for fast, thorough cleaning.
  • 3.5 in. splash-mount gooseneck faucet with pull-knob eye-wash attachment for immediate ocular rinsing.

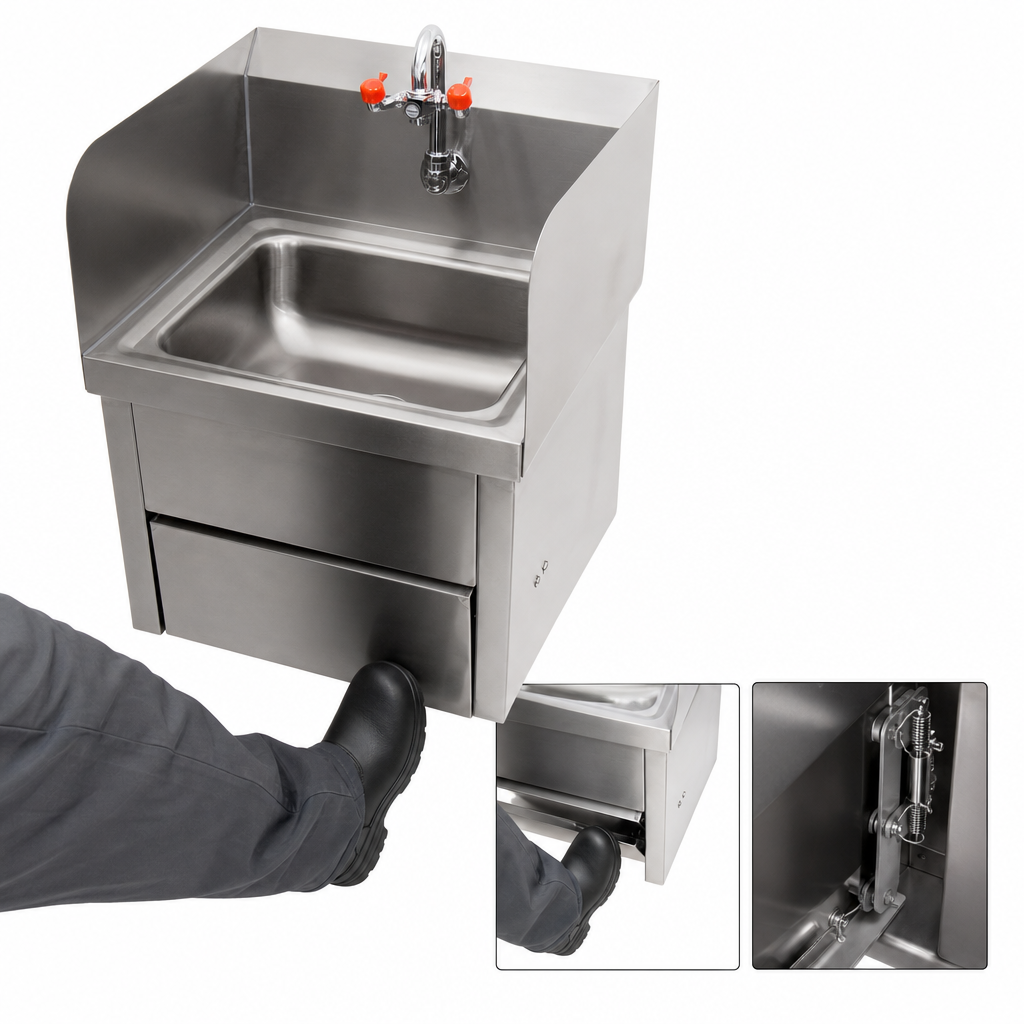

  • Hands-free knee valve with full, hinged front apron—promotes hygiene and provides easy service access.
  • Integrated 10 in. left & right side splashes (20 ga stainless) contain overspray and protect walls.
  • 2 in. drain opening with removable basket drain included.
  • Heavy-duty wall-mount bracket supplied for quick, secure installation.
  • All Type 300 stainless steel; TIG-welded seams are polished to a #4 satin finish.
  • NSF listed for food-service and healthcare applications.

Specifications

Bowl Dimensions (W × F-B × D) 14 in. × 10 in. × 5 in.
Overall Sink Size (L × W × H) 17 in. × 15-1/2 in. × 22 in.
Activation Knee valve with hinged apron
Faucet 3-1/2 in. splash-mount gooseneck, 1-hole centered
Eye Wash Pull-knob actuation, dual spray heads (cold/warm water only)
Drain 2 in. OD with basket drain
Side Splashes Left & right included
Material / Finish Type 300 stainless steel, #4 satin polish
Mounting Wall bracket (included)
Weight 26 lb
Certification NSF
Eye-Wash Disclaimer: The faucet-mounted eye wash requires two motions to operate (turn on water, pull knob). John Boos does not consider this unit compliant with ANSI Z358.1-2014 for primary eye-wash stations. It is intended only as a supplemental device in conjunction with a dedicated, plumbed emergency eye-wash system. Use cold or warm water only; hot water may cause scalding. Not for use with electronic faucets.

Need help with installation or have compliance questions? Contact our product team—we’re here to ensure you get the right sink for your workspace.

Features & Specs

Manufacturer

John Boos

Certifications

NSF

Height

22.0in

Width

17.0in

Depth

15.5in

Shipping Weight

26.0lbs

Bowl Height (rim to drain)

5" deep

Faucet

faucet included

Bowl Width (left to right)

13" - 14"

Bowl Depth (front to back)

9" - 10" front-to-back

Style

wall mounted

Features

side splash(es)

Specifications

Hand Sink with Eye Wash, wall mount, 14"W x 10"D front-to-back x 5" deep bowl, 3-1/2" gooseneck faucet with eye wash attachment, knee activated with hinged front apron, left & right side splashes, 2" drain opening with basket drain, includes: mounting bracket, stainless steel construction, NSF
