John Boos  |  SKU: PBHS-W-1410-KV1APS-EW  |  UPC: 662969794262

John Boos PBHS-W-1410-KV1APS-EW Hand Sinks

$1,624.78
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

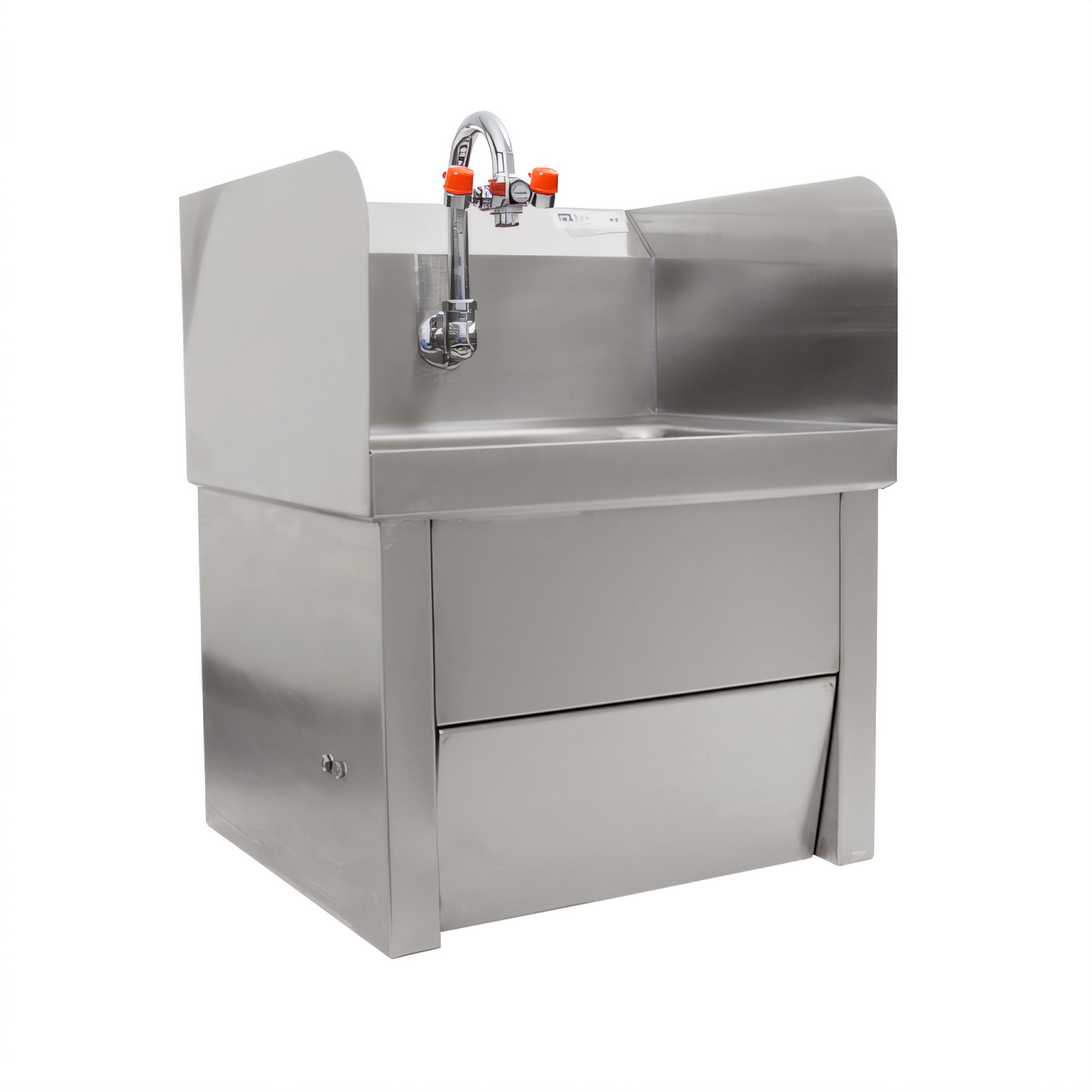

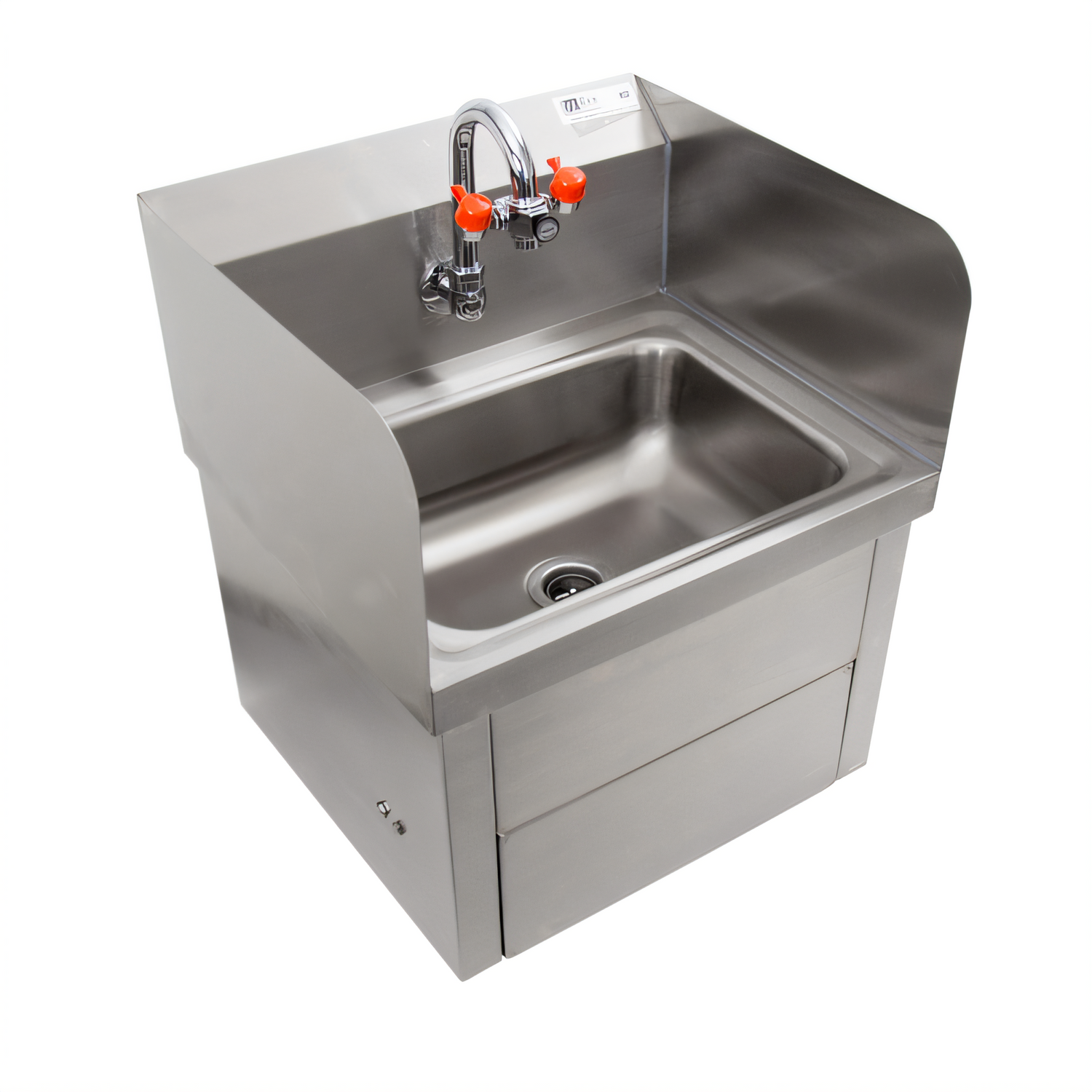

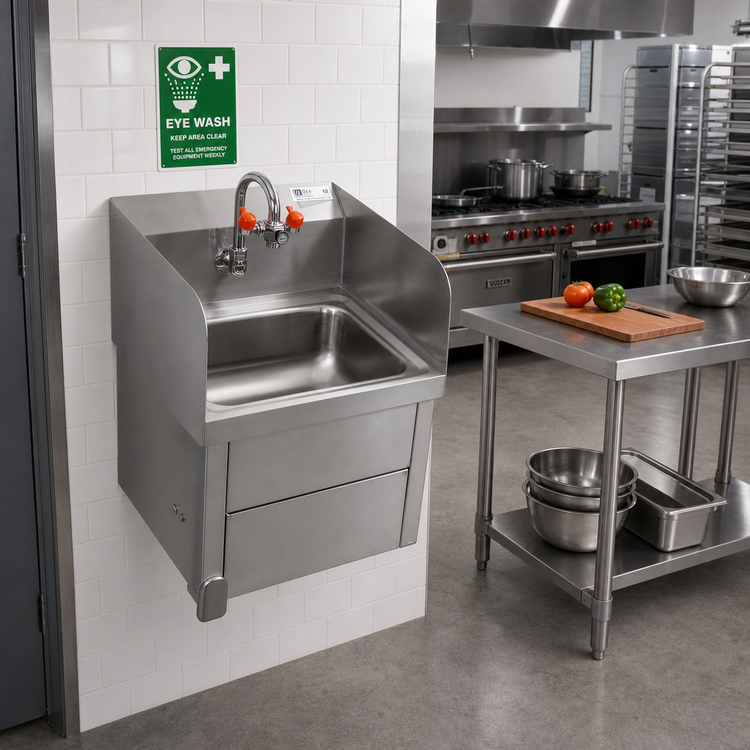

John Boos PBHS-W-1410-KV1APS-EW Hand Sink with Eye Wash

Wall-Mount • Knee-Activated • Stainless Steel • NSF Listed

Built for spaces where hygiene and safety are non-negotiable, this compact John Boos hand sink pairs touch-free knee activation with a faucet-mounted eye-wash to keep staff protected and on-task in laboratories, commercial kitchens, and industrial work zones.

Key Features

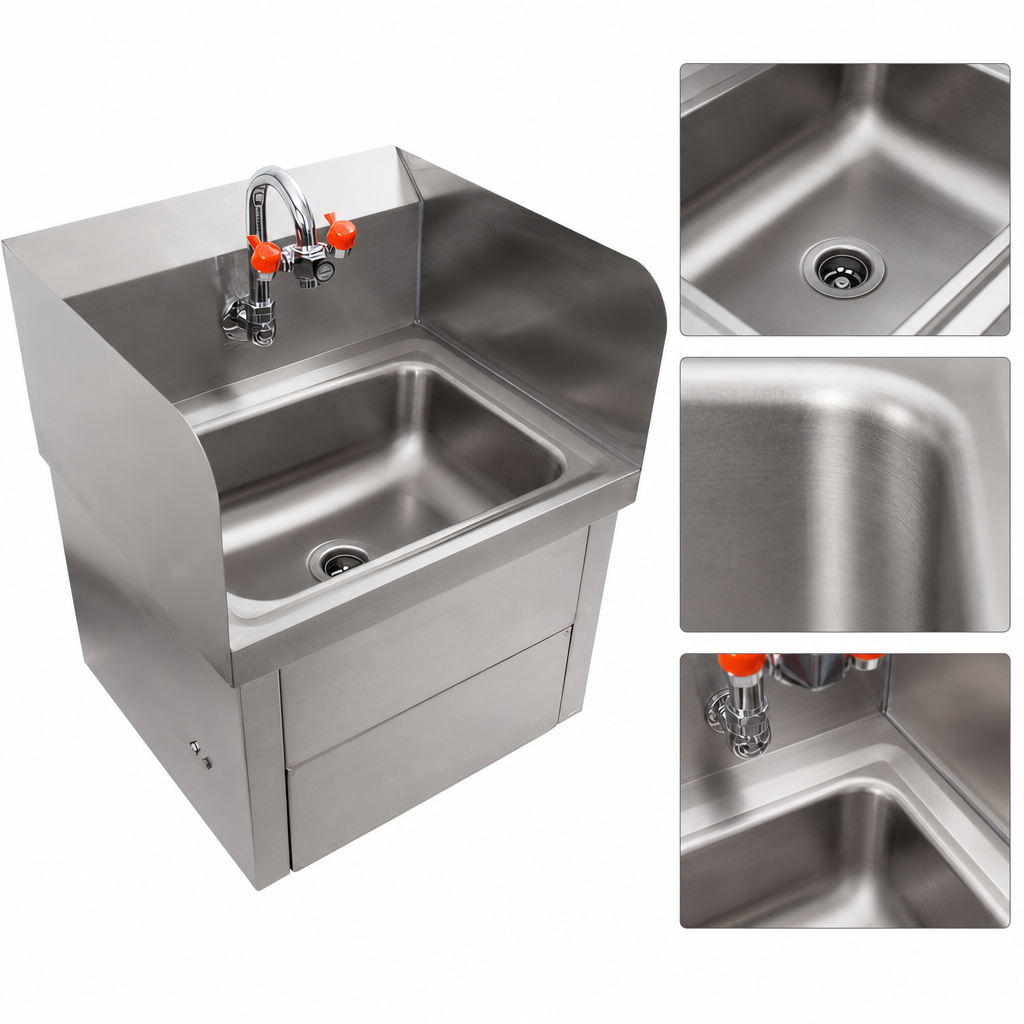

  • One-piece deep-drawn 14" × 10" × 5" bowl with generous radii for easy clean-up.
  • 3-1/2" splash-mount gooseneck faucet outfitted with pull-knob eye-wash attachment for fast drenching.
  • Hands-free knee valve hidden behind a hinged front apron—eliminates hand contact and reduces cross-contamination.
  • Durable Type 300 stainless steel; TIG-welded seams are polished to a sanitary #4 satin finish.
  • 2" (1-7/8" nominal) drain opening with basket strainer keeps solids out of the line.
  • Stainless steel wall-mount bracket included for quick, secure installation.
  • NSF certified for regulated food-service and healthcare applications.

Specifications

Model PBHS-W-1410-KV1APS-EW
Bowl Dimensions (L × W × D) 14" × 10" × 5"
Overall Sink Size (L × W × H) 17" × 15-1/2" × 22"
Mounting Wall mount – stainless steel bracket included
Faucet 3-1/2" splash-mount gooseneck, 1-hole centered
Activation Knee-operated valve with hinged front apron
Eye Wash Faucet-mounted, pull-knob activation (cold or tempered water only)
Drain 2" opening, basket drain included
Material / Finish Type 300 stainless steel / #4 satin
Certifications NSF
Approx. Shipping Weight 23 lb.
Eye Wash Disclaimer: The faucet-mounted eye-wash requires two separate actions (turn on water, then pull the activation knob) and therefore does not meet ANSI Z358.1-2014 requirements for a primary eye-wash station. It is intended solely as a supplemental unit to a dedicated plumbed eye-wash. Use with cold or tempered water only—hot water may cause scalding. Not compatible with electronic/sensor faucets.

Need built-in side splashes? Check out model PBHS-W-1410-KV1APS-EW-SS for left & right splash protection.

Features & Specs

Manufacturer

John Boos

Certifications

NSF

Height

22.0in

Width

17.0in

Depth

15.5in

Shipping Weight

23.0lbs

Bowl Height (rim to drain)

5" deep

Bowl Width (left to right)

13" - 14"

Faucet

faucet included

Bowl Depth (front to back)

9" - 10" front-to-back

Style

wall mounted

Specifications

Hand Sink with Eye Wash, wall mount, 14"W x 10"D front-to-back x 5" deep bowl, 3-1/2" gooseneck faucet with eye wash attachment, knee activated with hinged front apron, 2" drain opening with basket drain, includes: mounting bracket, stainless steel construction, NSF
