John Boos PB-DIIB3420CP10-X Bar Equipment
Description

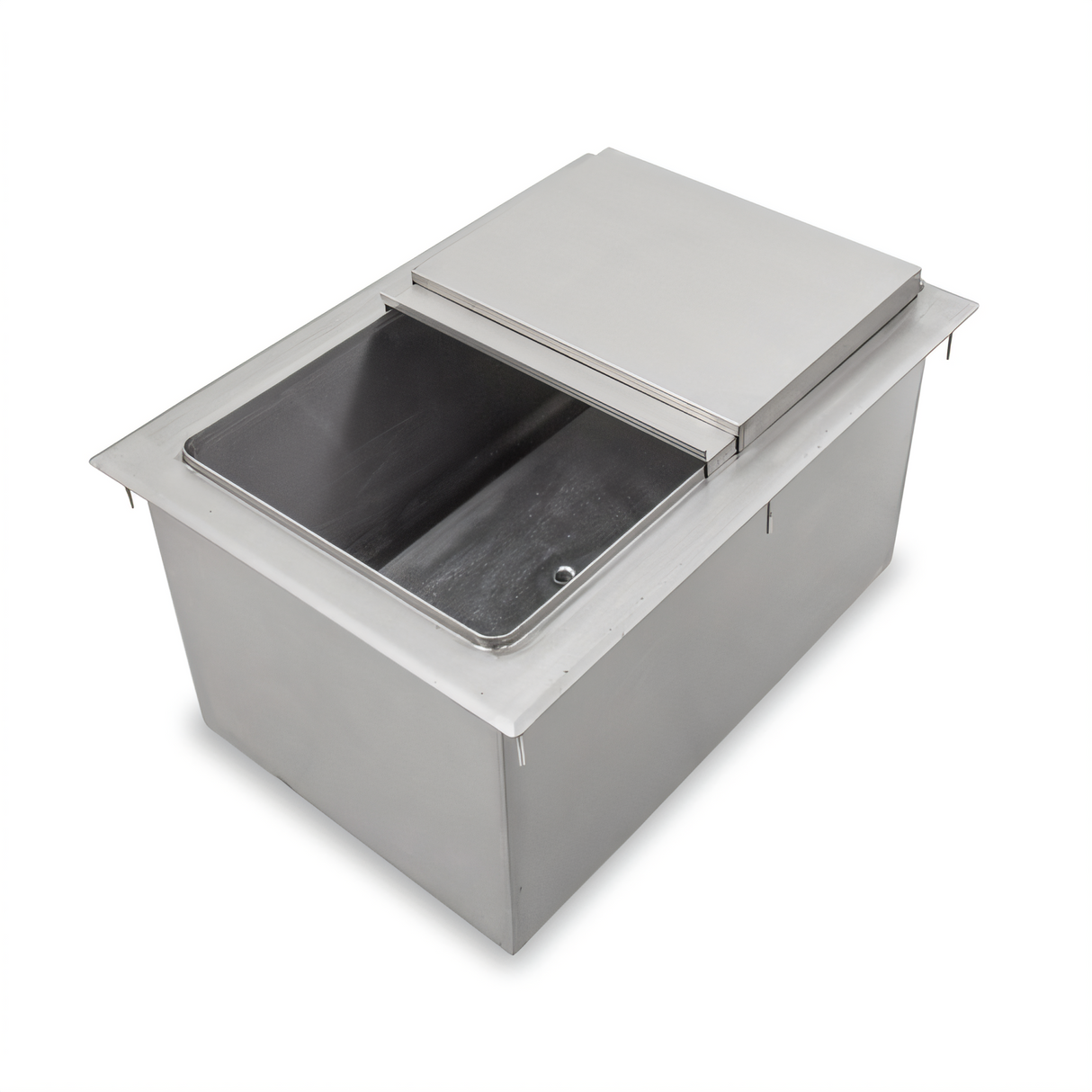

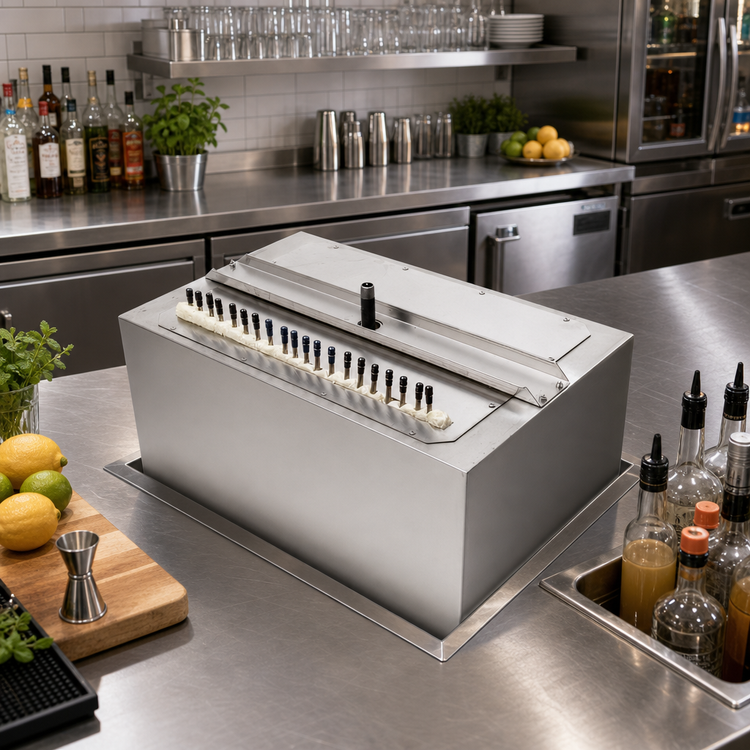

John Boos PB-DIIB3420CP10 Drop-In Ice Bin w/ Cold Plate – 34" x 20"
Built-to-last stainless steel ice storage for busy bars and beverage service linesKeep drinks colder, service faster, and bartenders happier with the John Boos PB-DIIB3420CP10 insulated drop-in ice bin. Engineered from heavy-duty 300 series stainless steel and equipped with a high-efficiency 10-circuit cold plate, this 34" wide model provides reliable ice storage and rapid beverage chilling in one compact package.
Why You’ll Love It
- 10" deep insulated basin stores up to 96 lb of ice

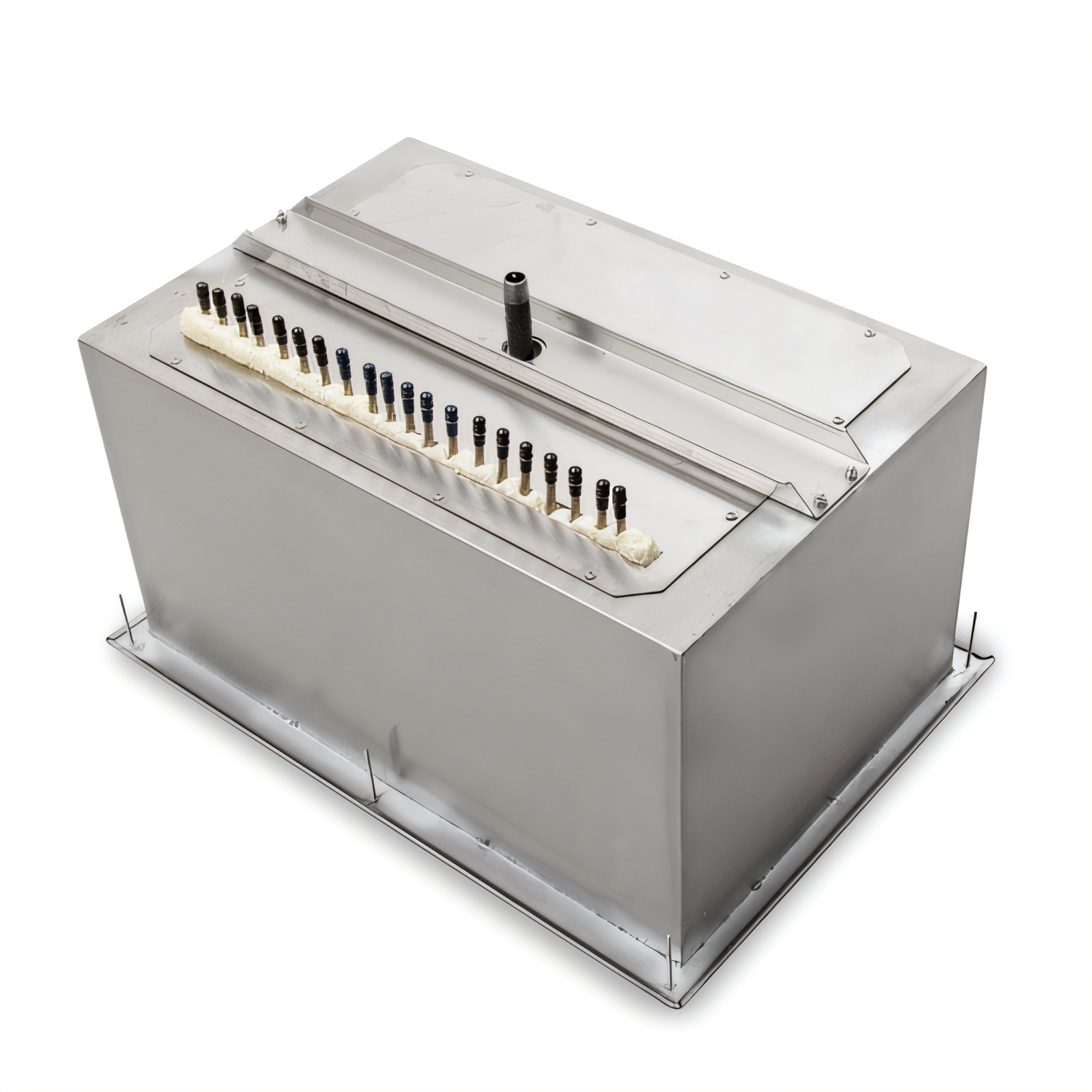

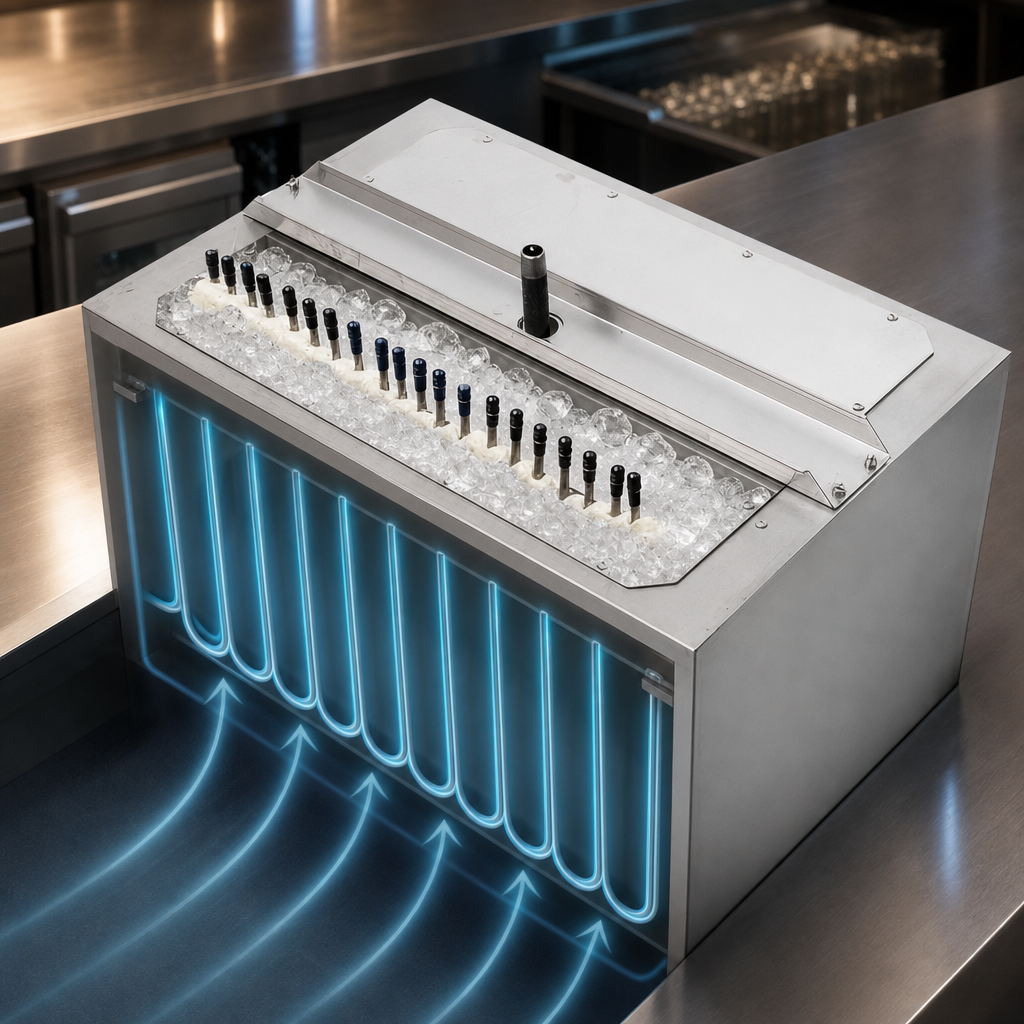

- Integrated 10-circuit cold plate chills multiple beverage lines for crisp, ice-cold pours

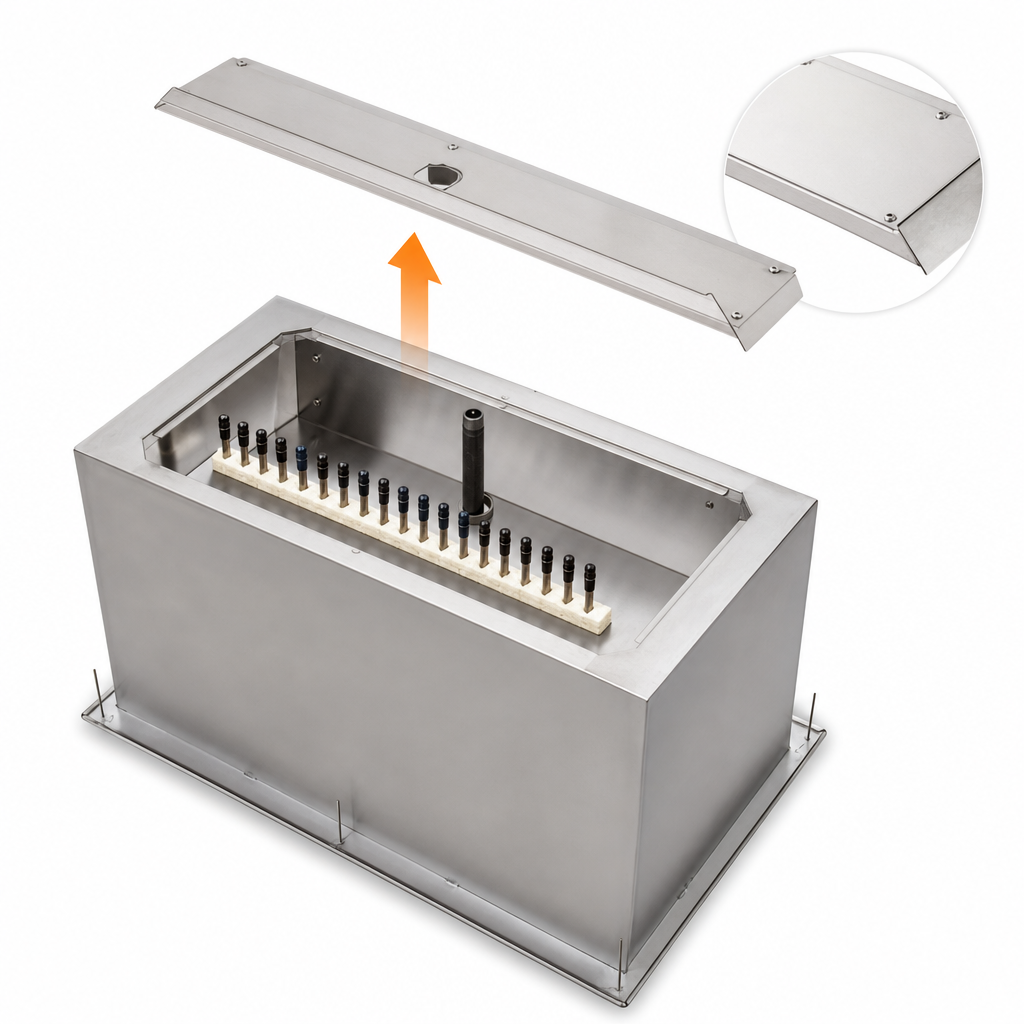

- Removable stainless steel sliding lid protects ice from contaminants
- 1/2" raised deck lip helps contain spills and directs runoff toward drain
- Durable construction: 14 ga stainless steel deck & 18 ga stainless base
- TIG-welded seams are polished to a smooth, easy-to-clean finish
- NSF certified for safe food-contact use
- Made in the USA – fabricated at Boos plants in Effingham, IL and Nevada, MO
At-a-Glance Specifications
| Model | PB-DIIB3420CP10 |
|---|---|
| Overall Size (W × D × H) | 34" × 20" × 14-3/16" |
| Interior (L × F-B × Depth) | 30" × 15" × 10" |
| Ice Capacity | 96 lb |
| Cold Plate | 10 circuits, 1/2" MPT nipple |
| Drain | 1/2" MPT |
| Recommended Cut-Out | 33" × 19-1/8" |
| Unit Weight | 127 lb (shipping) |
| Materials | Deck: 14 ga 300-series SS Base: 18 ga 300-series SS |
| Certifications | NSF |
Easy Drop-In Installation
- Fits a countertop cut-out of 33" × 19-1/8" (± 1/2")
- 1/2" raised deck lip sits flush on top surface for a clean, sealed look
- Pre-tapped 1/2" MPT connections simplify plumbing beverage lines and drain
Need a custom size? Contact us for additional John Boos drop-in configurations.
Care & Maintenance
- Clean daily with mild soap and a soft cloth; rinse and wipe dry
- Avoid harsh chloride or abrasive cleaners to preserve the protective stainless film
- For restoration, use approved stainless polish such as Boos Block Stainless Steel Cleaner
